Lexus Truck
>>
2002
>>
RX 300 AWD V6-3.0L (1MZ-FE)
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Navigation System
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Symptom Diagnostic Procedures
>>
16 - Touch Switch Does Not Function (Navigation Screen Only)
16 - Touch Switch Does Not Function (Navigation Screen Only)
16. TOUCH SWITCH DOES NOT FUNCTION. (NAVIGATION SCREEN ONLY)

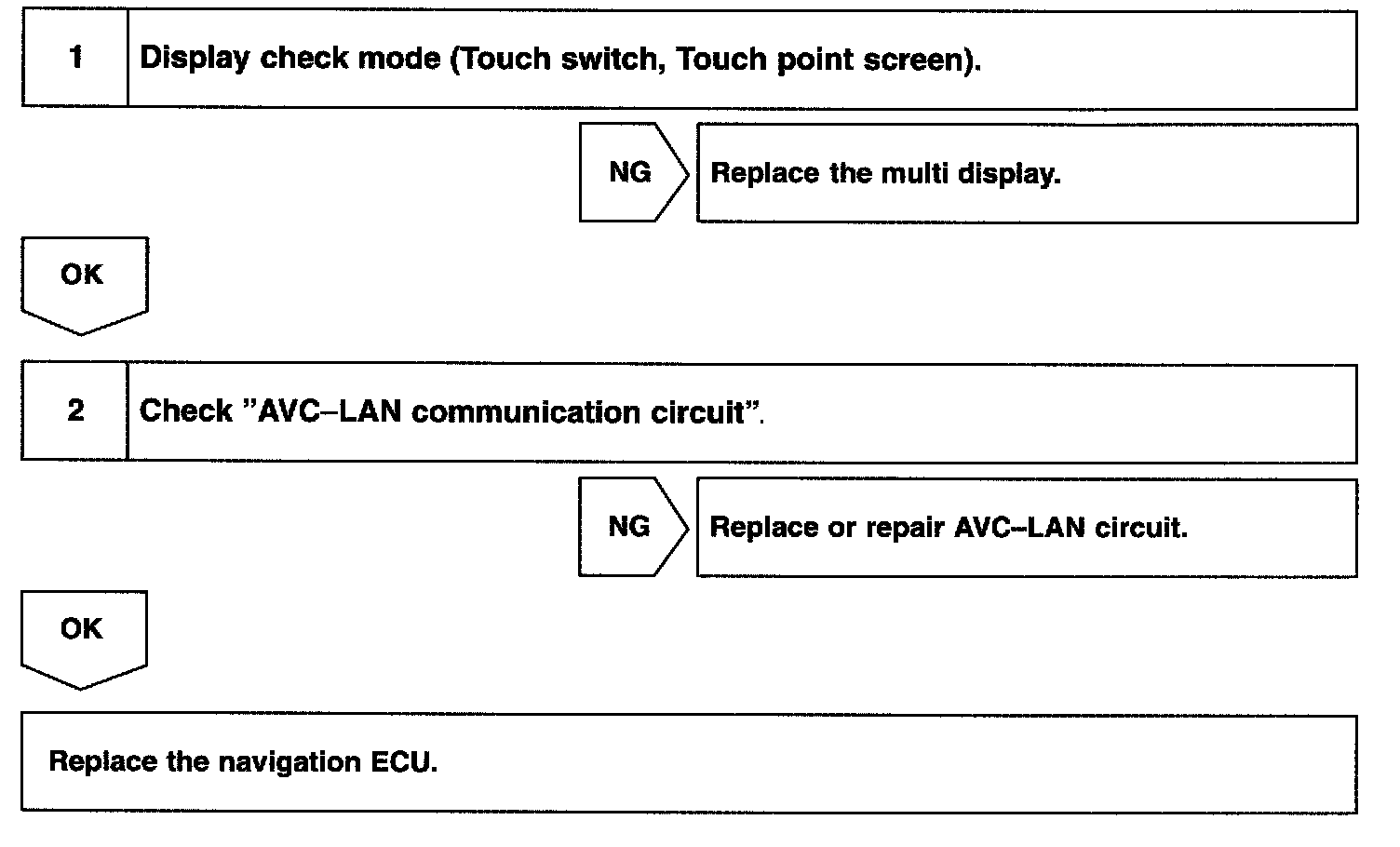

Step 1 - 2:
INSPECTION PROCEDURE
