P1350

DTC P1350 VVT SENSOR (CAMSHAFT POSITION SENSOR) CIRCUIT MALFUNCTION (BANK 2)

CIRCUIT DESCRIPTION

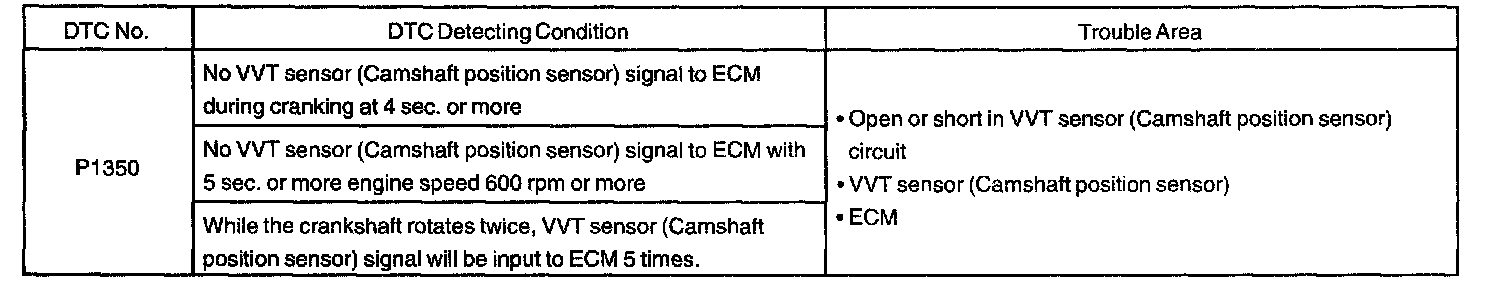

DTC Detecting Condition:

VVT sensor (VV1 or VV2 signal) consist of a signal plate and pickup coil.

The VV1 or VV2 signal plate has 1 tooth on its outer circumference and is mounted on the intake camshafts. When the camshafts rotate, the protrusion on the signal plate and the air gap on the pickup coil change, causing fluctuations in the magnetic field and generating an electromotive force in the pickup coil. The actual camshaft angle is detected by the VVT sensor and it provides feedback to the ECM to control the intake valve timing in response to during condition.

Wiring Diagram:

Step 1:

Step 2 - 3:

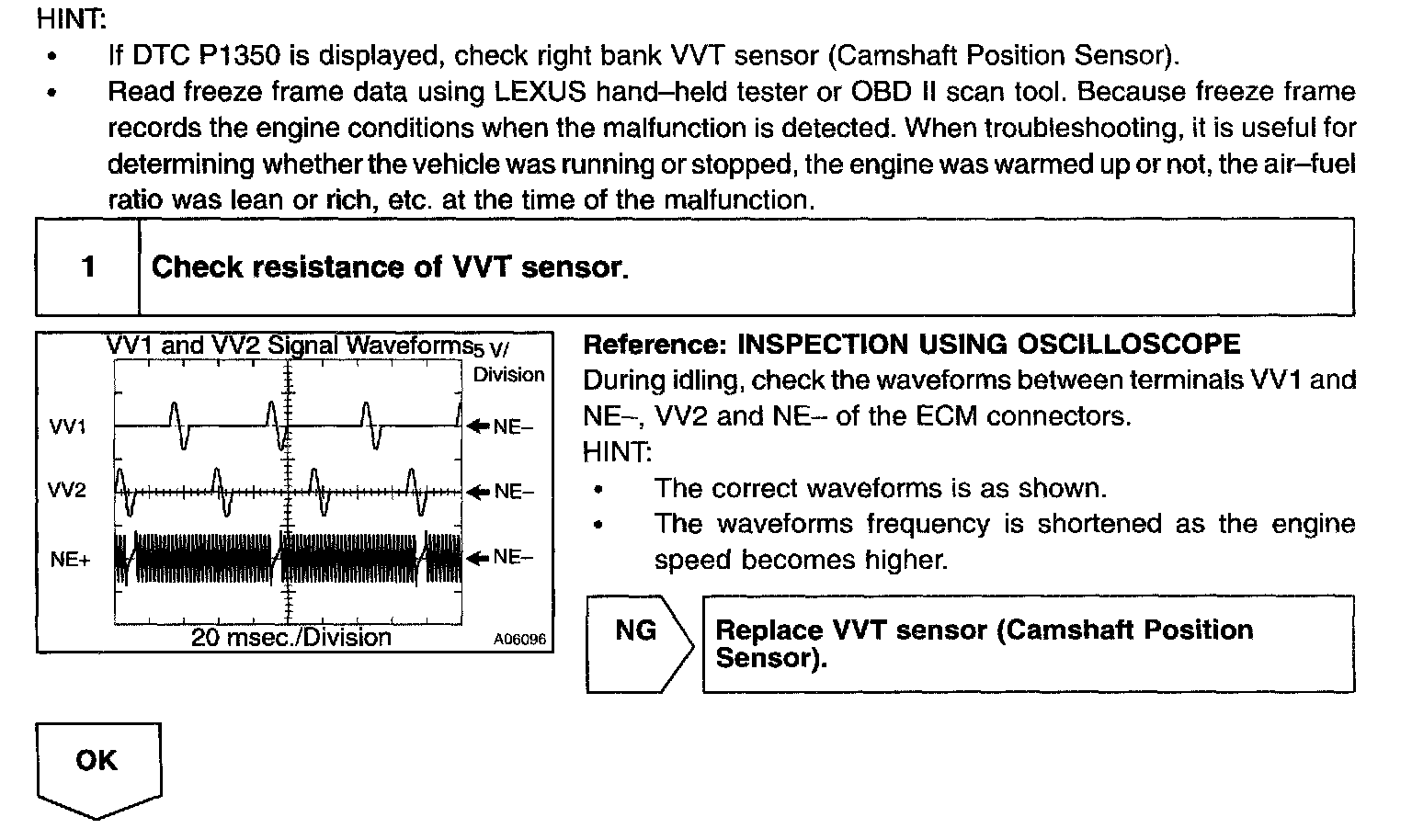

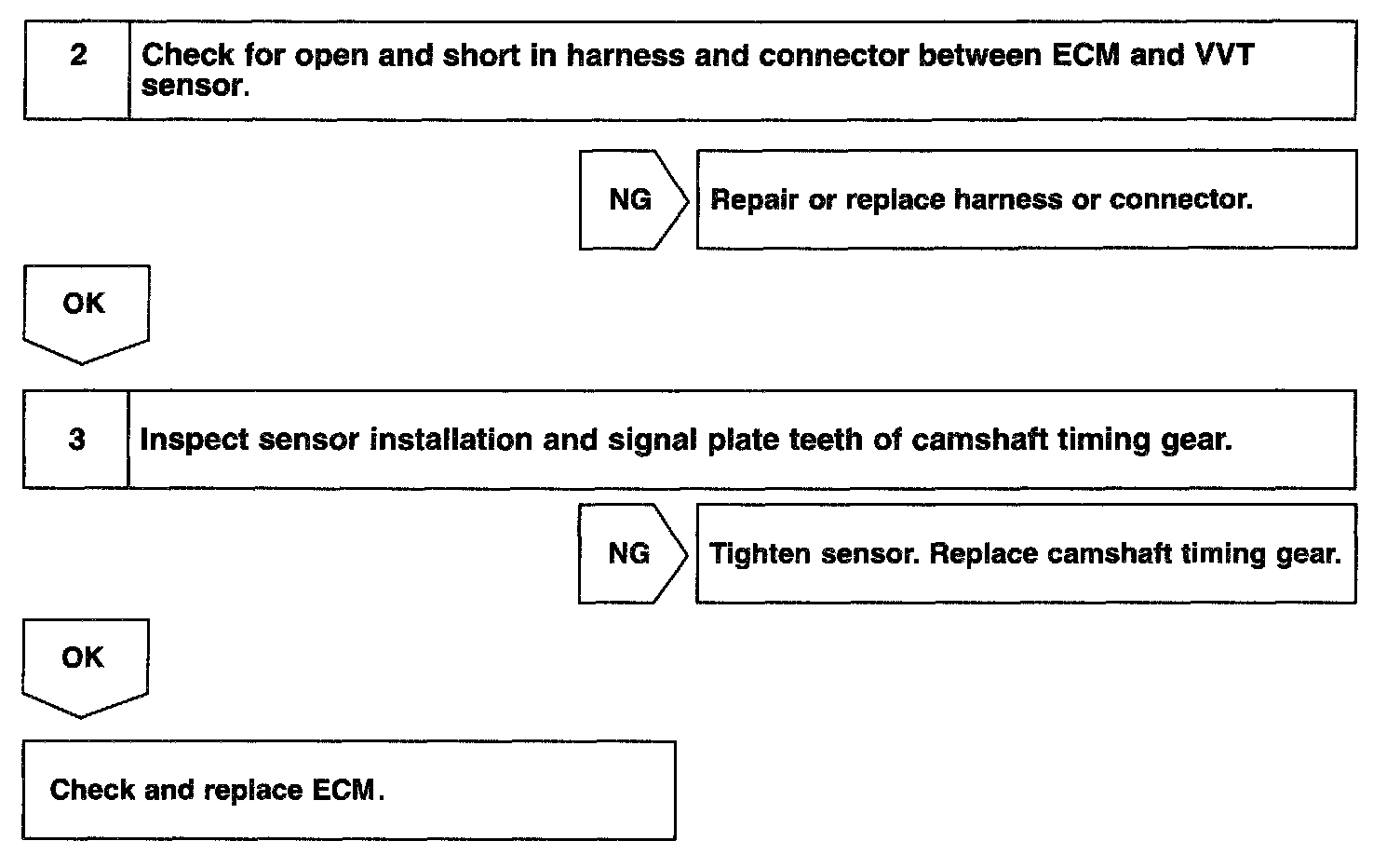

INSPECTION PROCEDURE
