P0770

DTC P0770 SHIFT SOLENOID E MALFUNCTION (SHIFT SOLENOID VALVE DSL)

SYSTEM DESCRIPTION

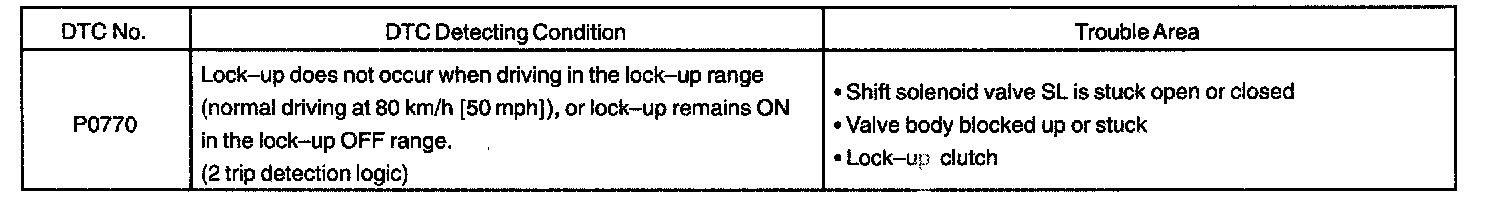

DTC Detecting Condition:

The ECM uses the signals from the throttle position sensor, air-flow meter and crankshaft position sensor to monitor the engagement condition of the lock-up clutch.

Then the ECM compares the engagement condition of the lock-up clutch with the lock-up schedule in the ECM memory to detect mechanical trouble of the shift solenoid valve SL, valve body and torque converter clutch.

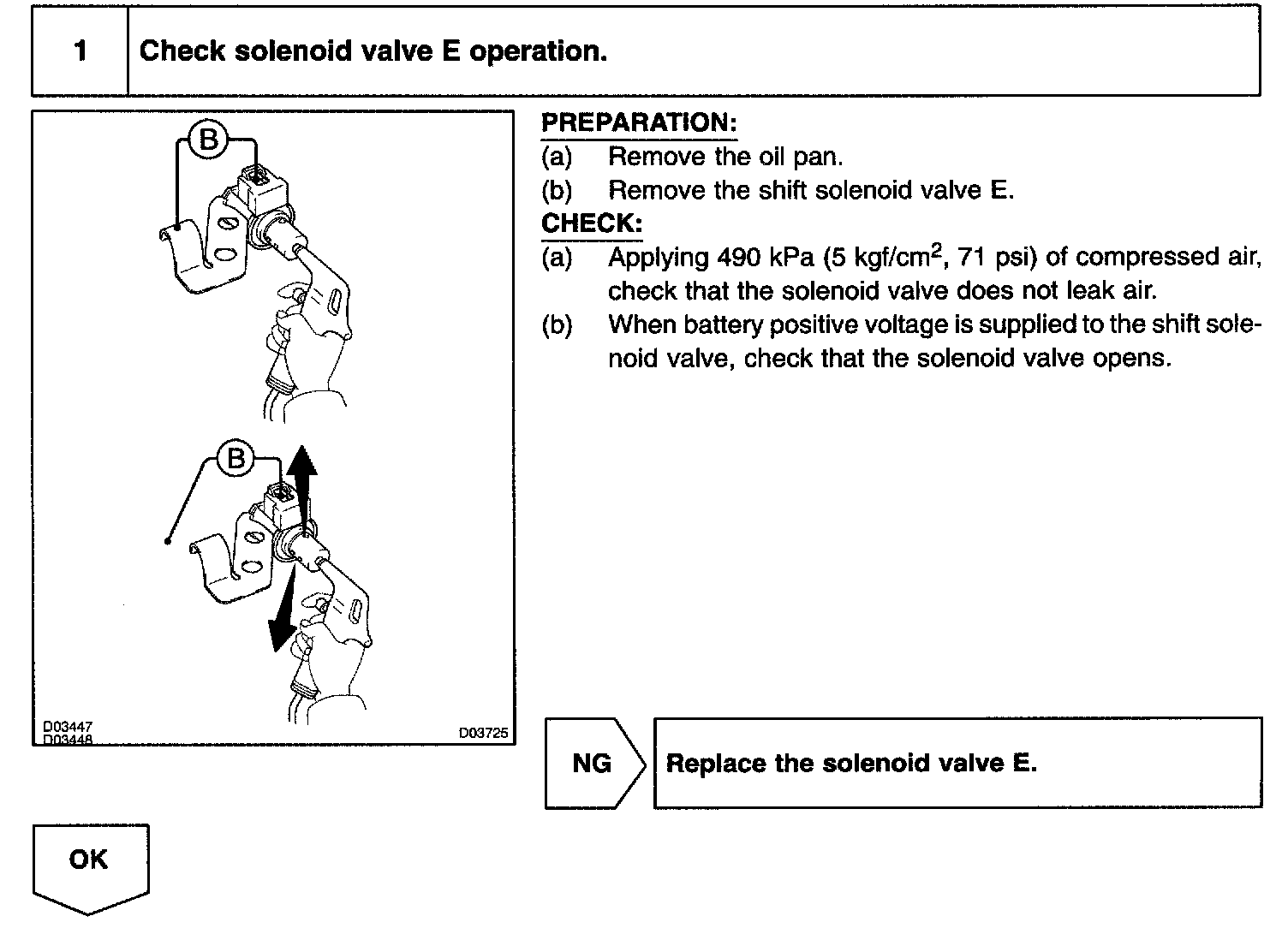

Step 1:

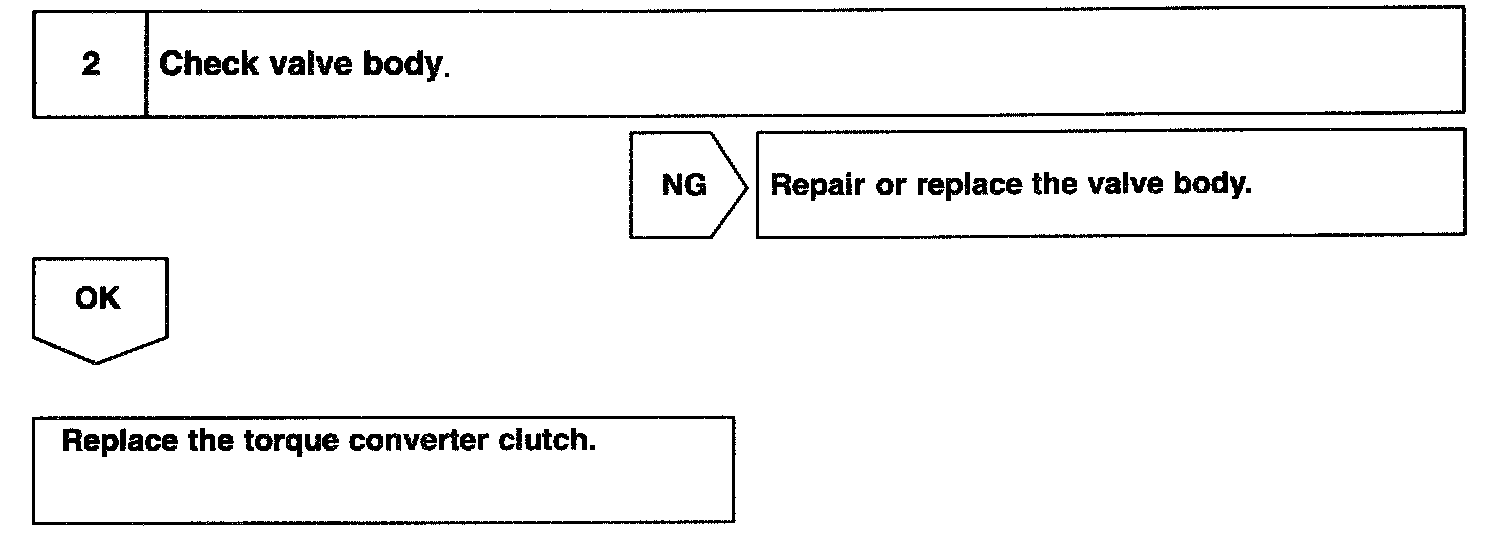

Step 2:

INSPECTION PROCEDURE
