DTC P0120 THROTTLE/PEDAL POSITION SENSOR/SWITCH "A" CIRCUIT MALFUNCTIONCIRCUIT DESCRIPTION

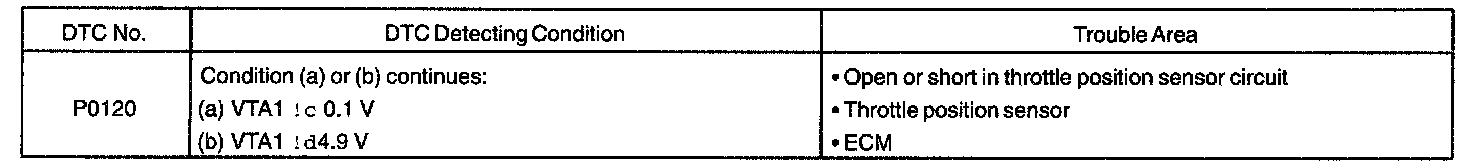

DTC Detecting Condition:
The throttle position sensor is mounted in the throttle body and detects the throttle valve opening angle. When the throttle valve is fully closed, a voltage of approximately 0.7 V is applied to terminal VTA1 of the ECM. The voltage applied to the terminals VTA1 of the ECM increases in proportion to the opening angle of the throttle valve and becomes approximately 2.7 - 5.2 V when the throttle valve is fully opened. The ECM judges the vehicle driving conditions from these signals input from terminal VTA1 and uses them as one of the conditions for deciding the air-fuel ratio correction, power increase correction and fuel-cut control etc.

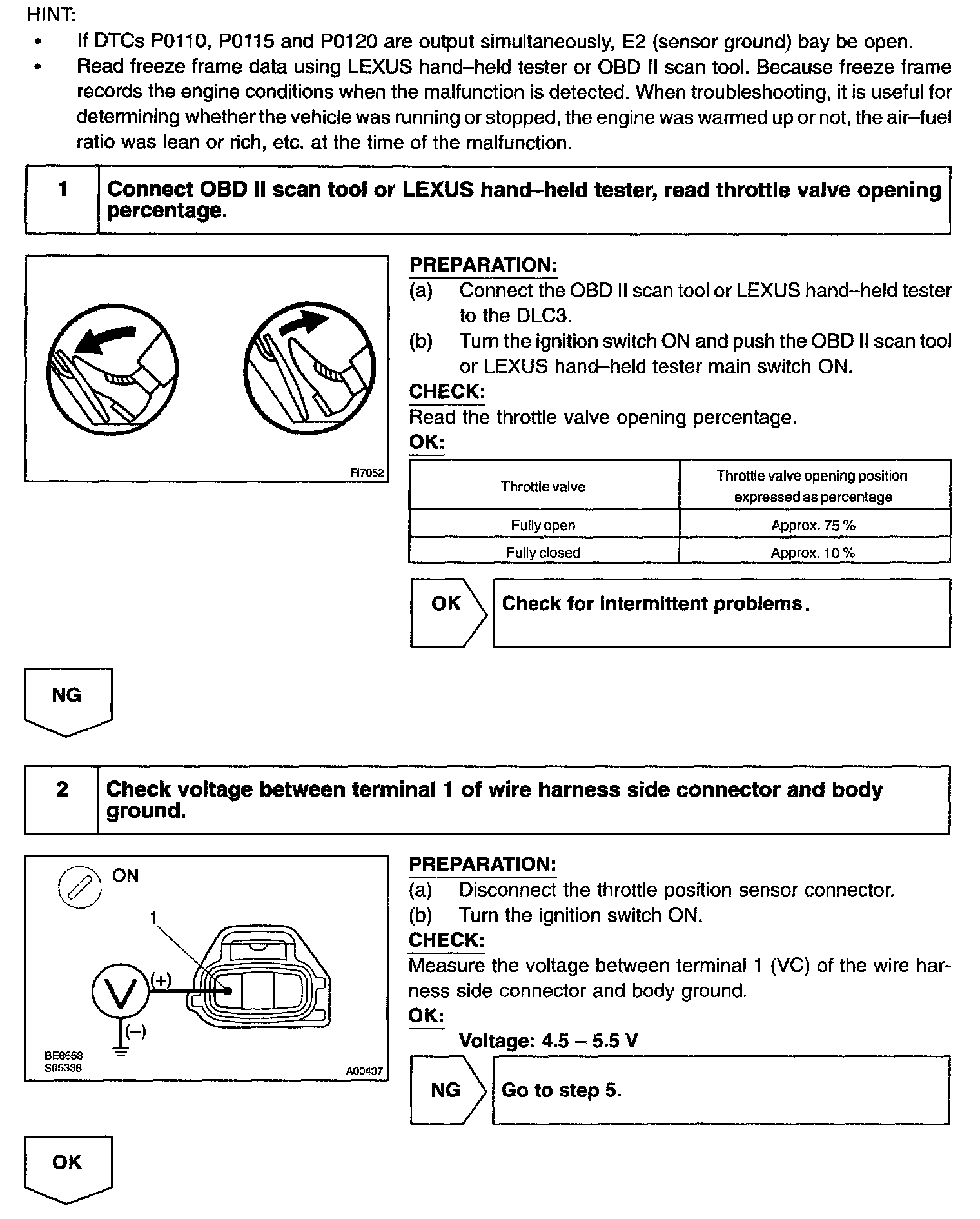

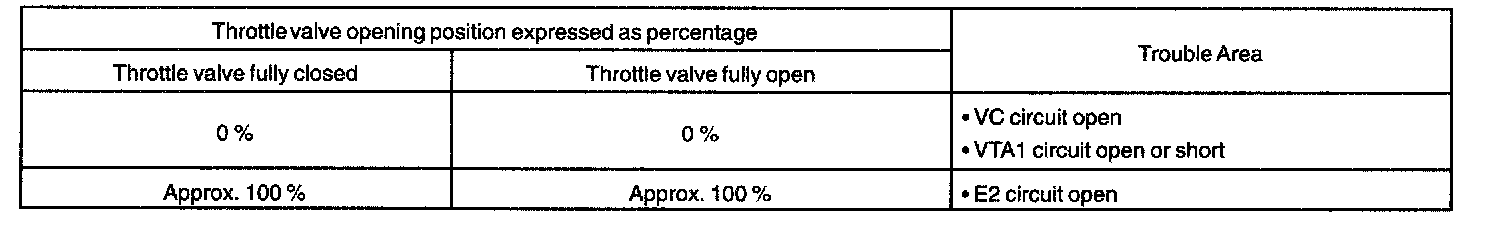

HINT: After confirming DTC P0120, use the OBD II scan tool or LEXUS hand-held tester to confirm the throttle valve opening percentage and closed throttle position switch condition.

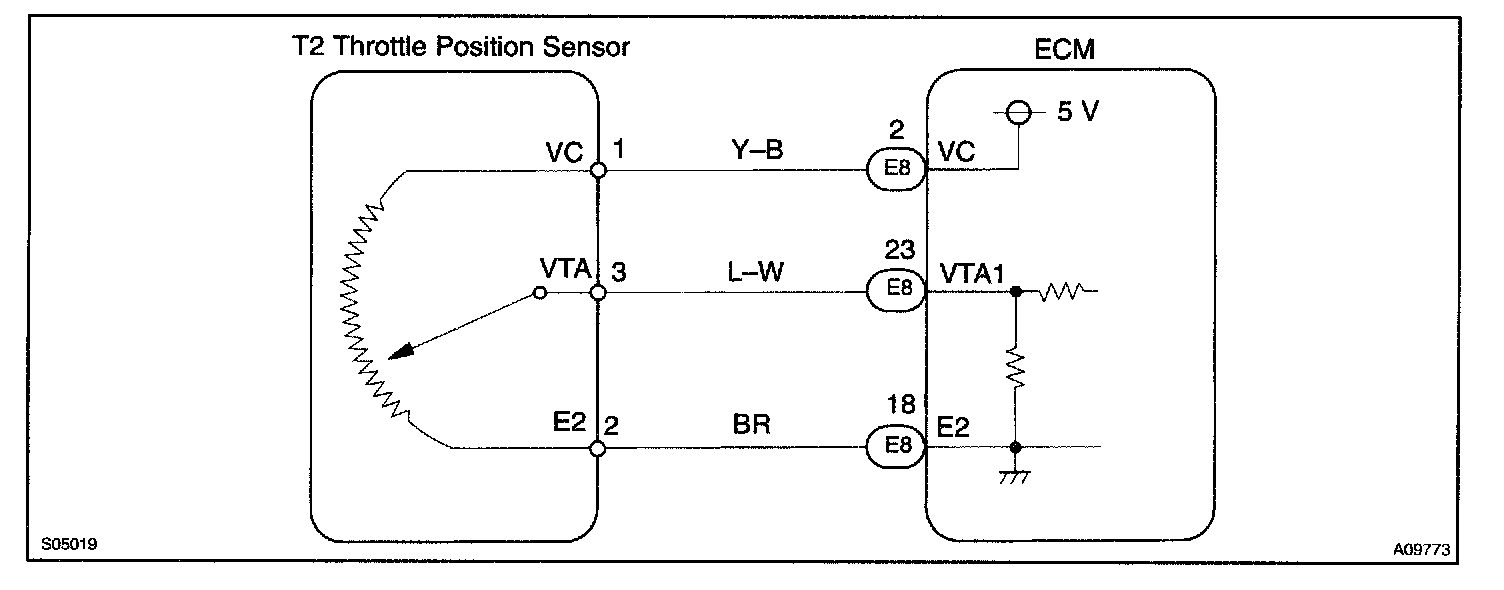

Wiring Diagram:
Step 1 - 2:
Step 3 - 4:
Step 5:

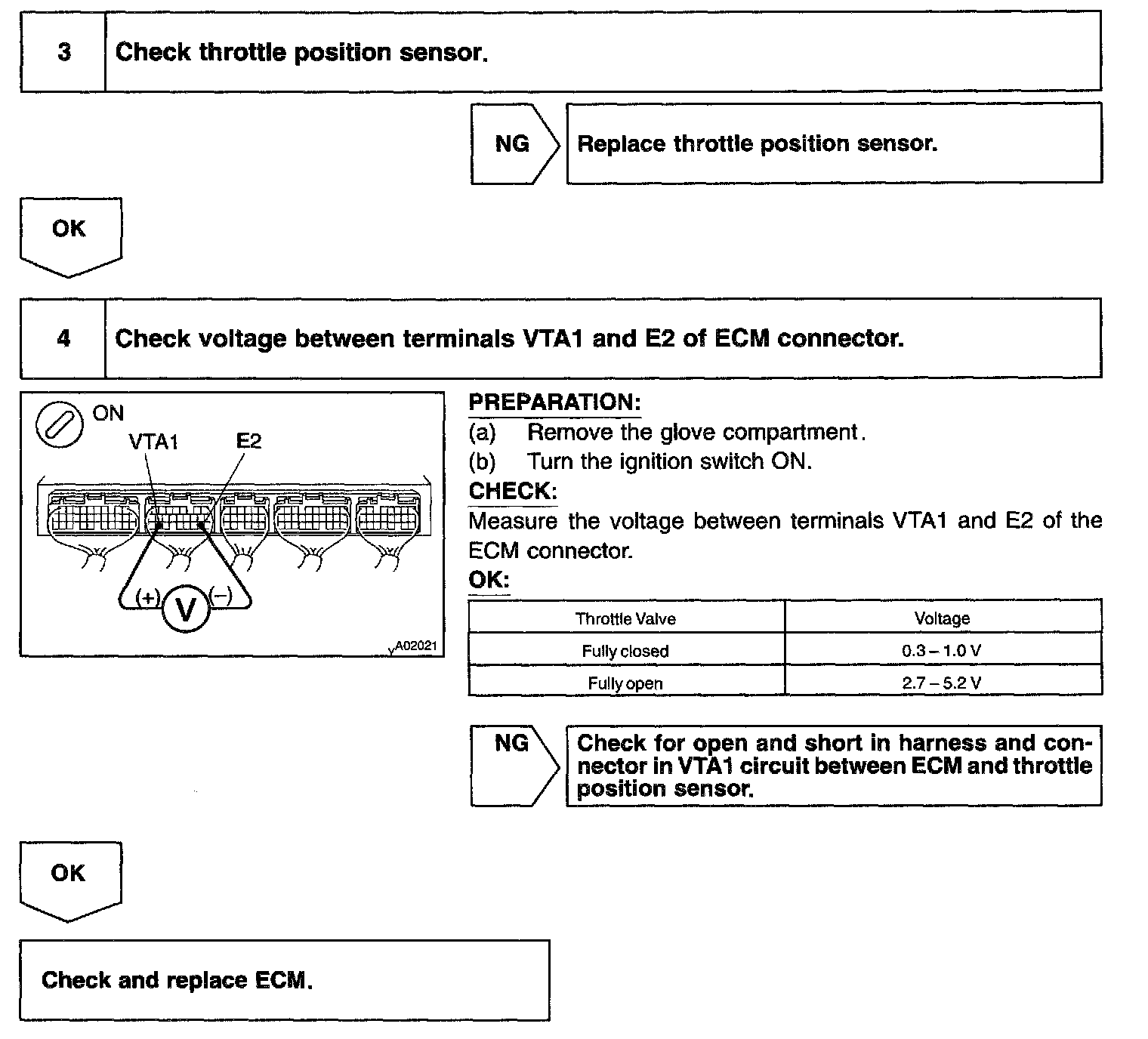

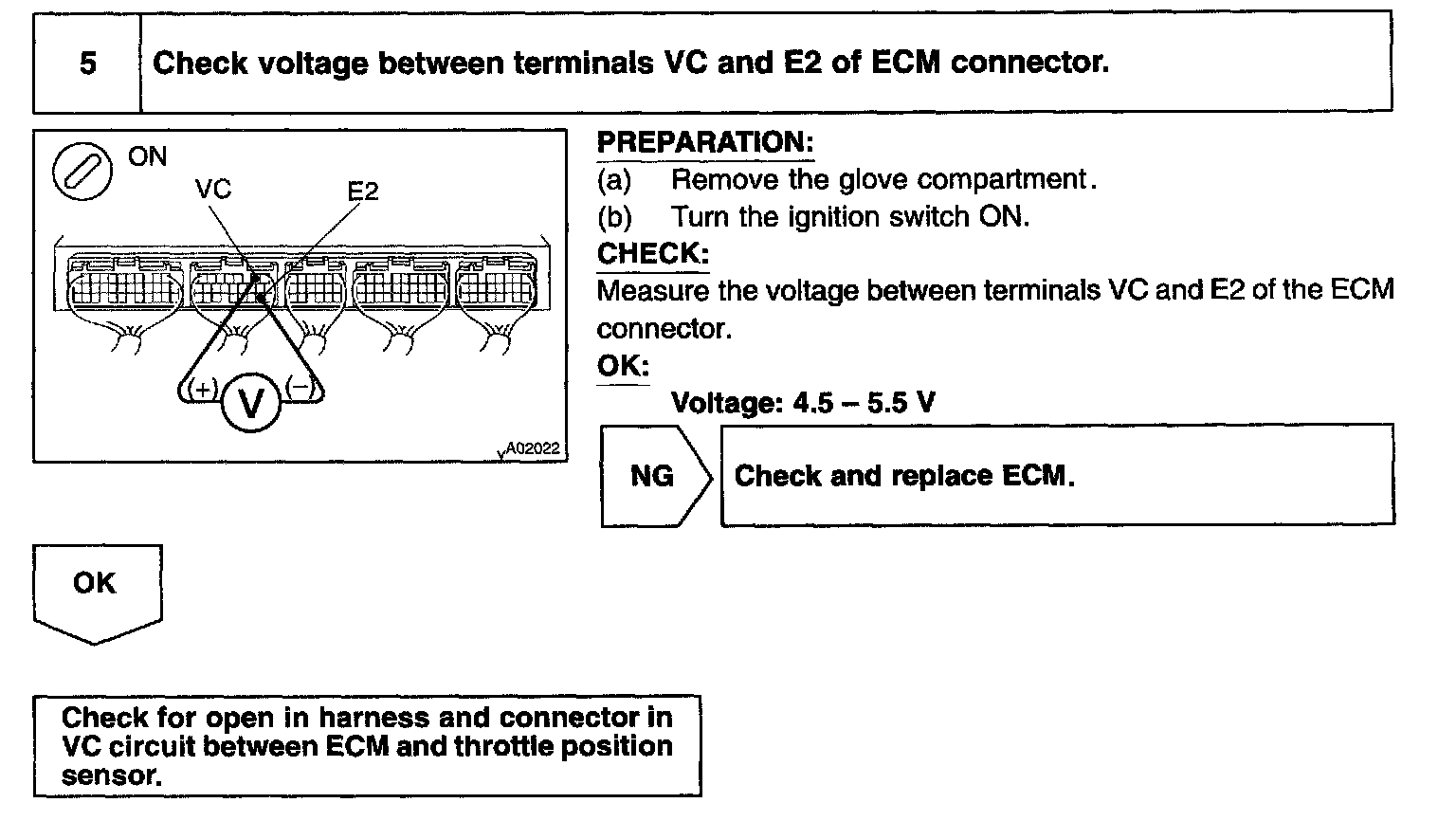

INSPECTION PROCEDURE
CHECK FOR INTERMITTENT PROBLEMS
LEXUS hand-held tester only:
By putting the vehicle's ECM in the check mode, 1 trip detection logic is possible instead of 2 trip detection logic and sensitivity to detect open circuits is increased. This makes it easier to detect intermittent problems.
1. Clear the DTC.
2. Set the check mode.
3. Perform a simulation test.
4. Check the connector and terminal.
5. Handle the connector.
