C1234
C1234
DTC C1234 MALFUNCTION IN YAW RATE SENSOR

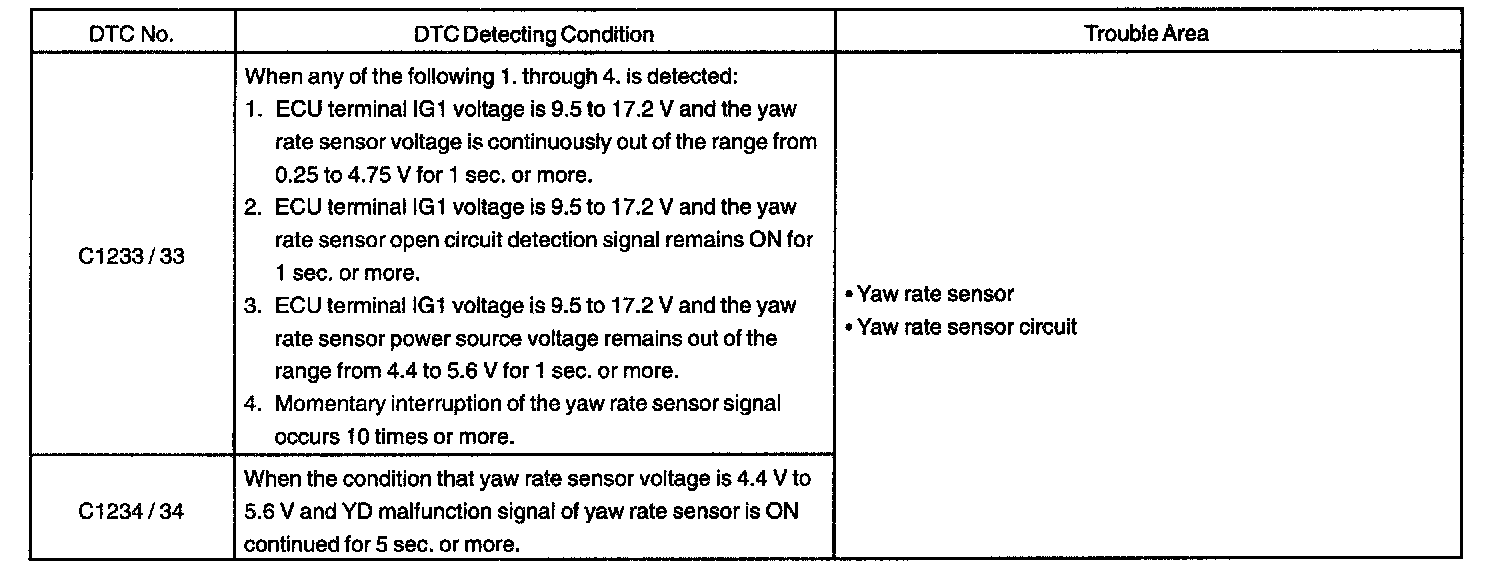

DTC Detecting Condition:
CIRCUIT DESCRIPTION

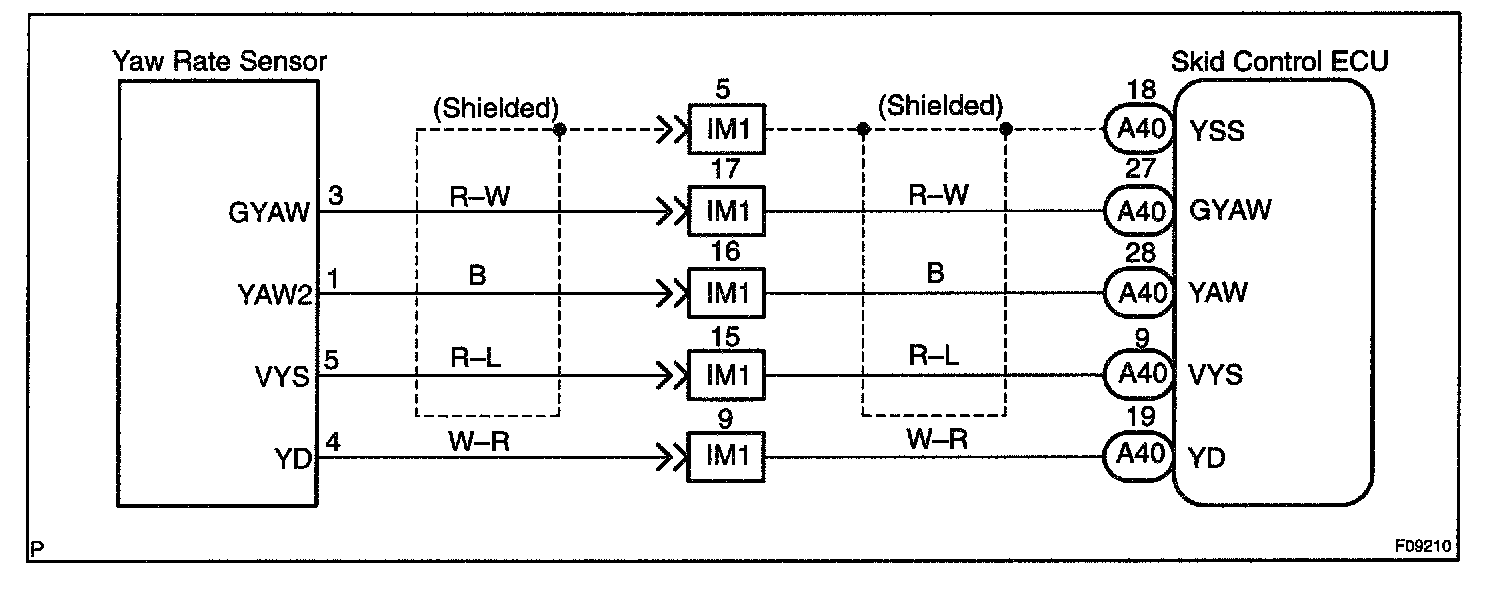

Wiring Diagram:

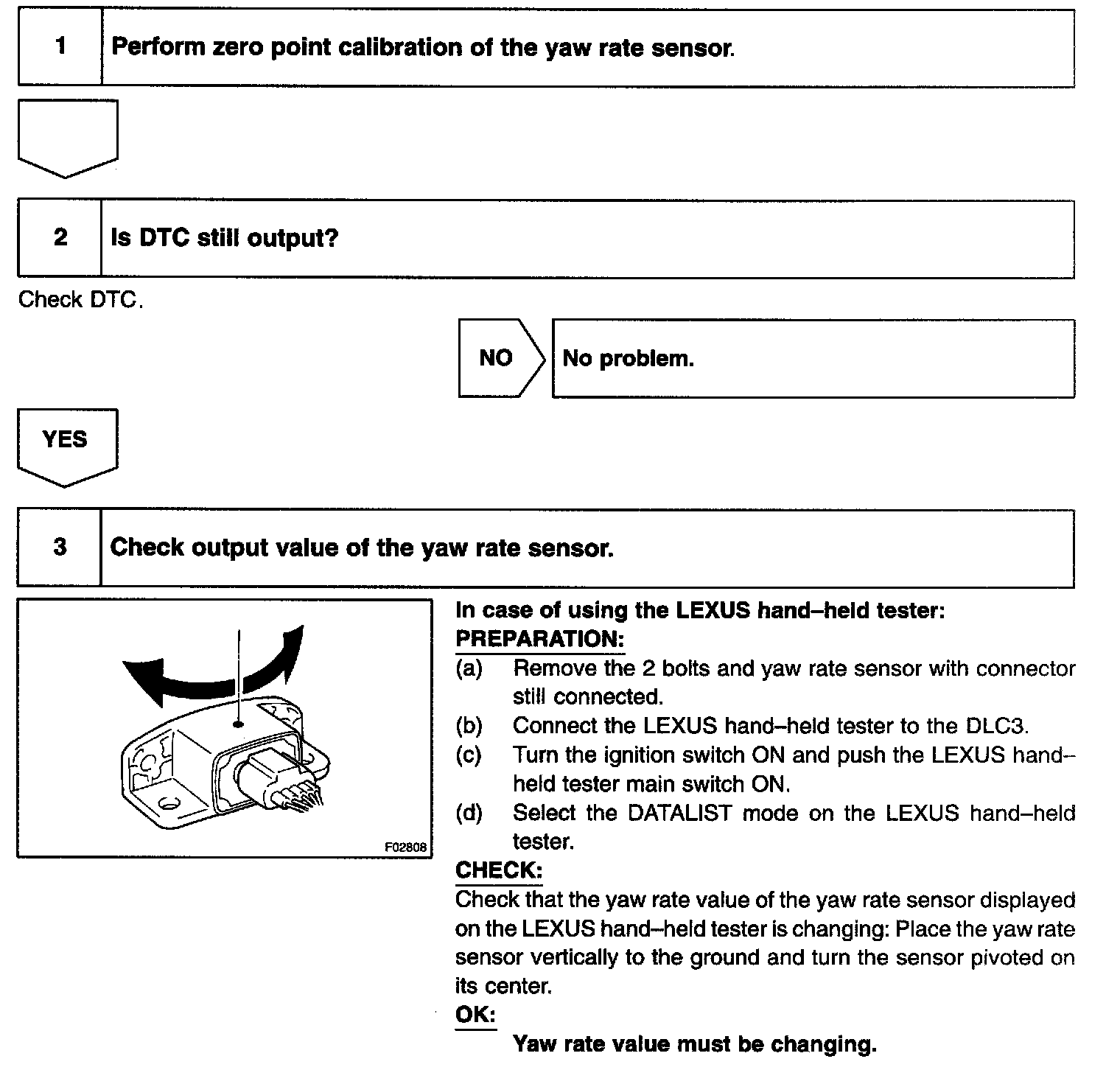

Step 1 - 3:

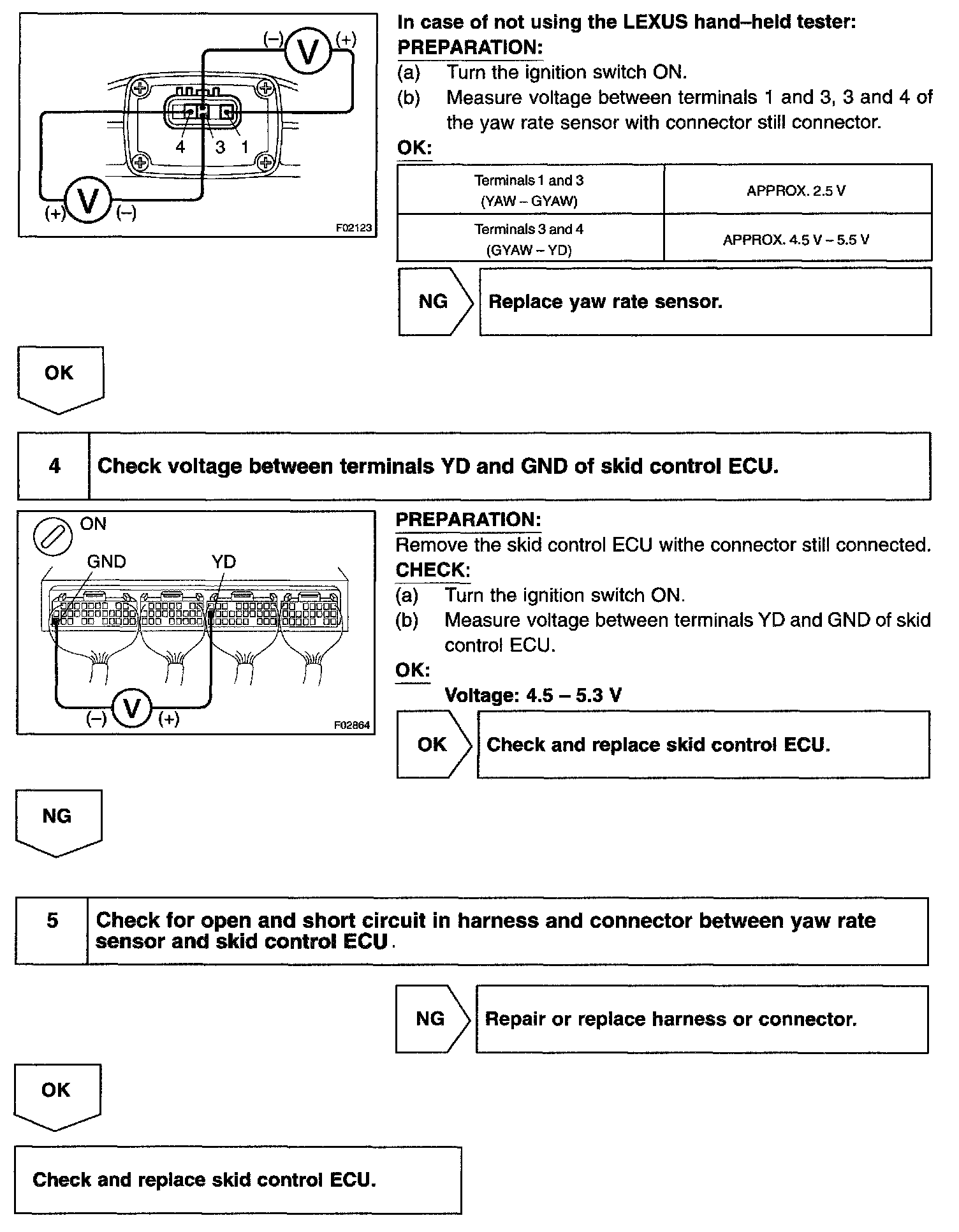

Step 3 (Continued) - 5:
INSPECTION PROCEDURE
