Lexus Truck
>>
2002
>>
RX 300 AWD V6-3.0L (1MZ-FE)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
C Code Charts
>>
C1232
C1232
DTC C1232 DECELERATION SENSOR CIRCUIT

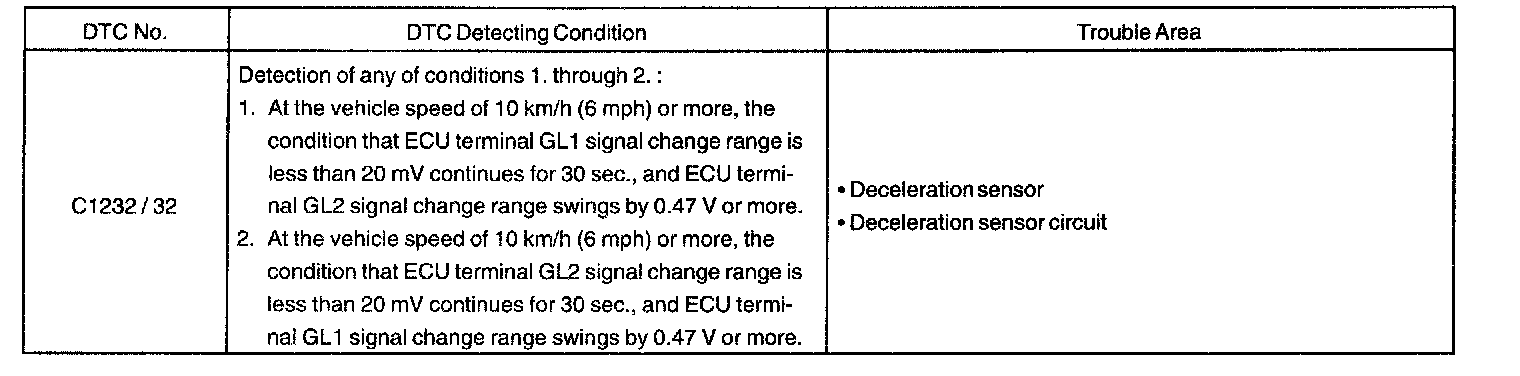

DTC Detecting Condition:
CIRCUIT DESCRIPTION

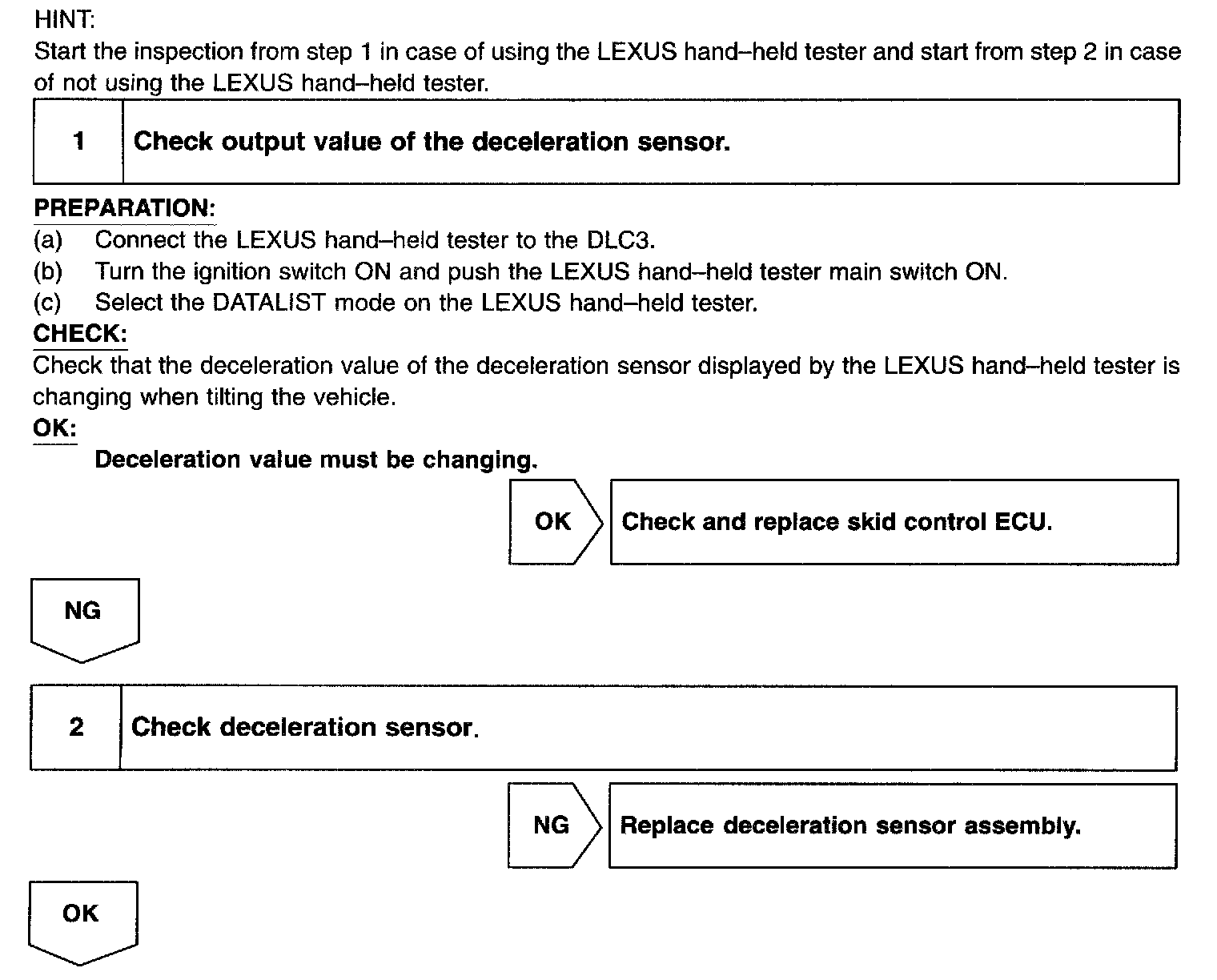

Step 1 - 2:

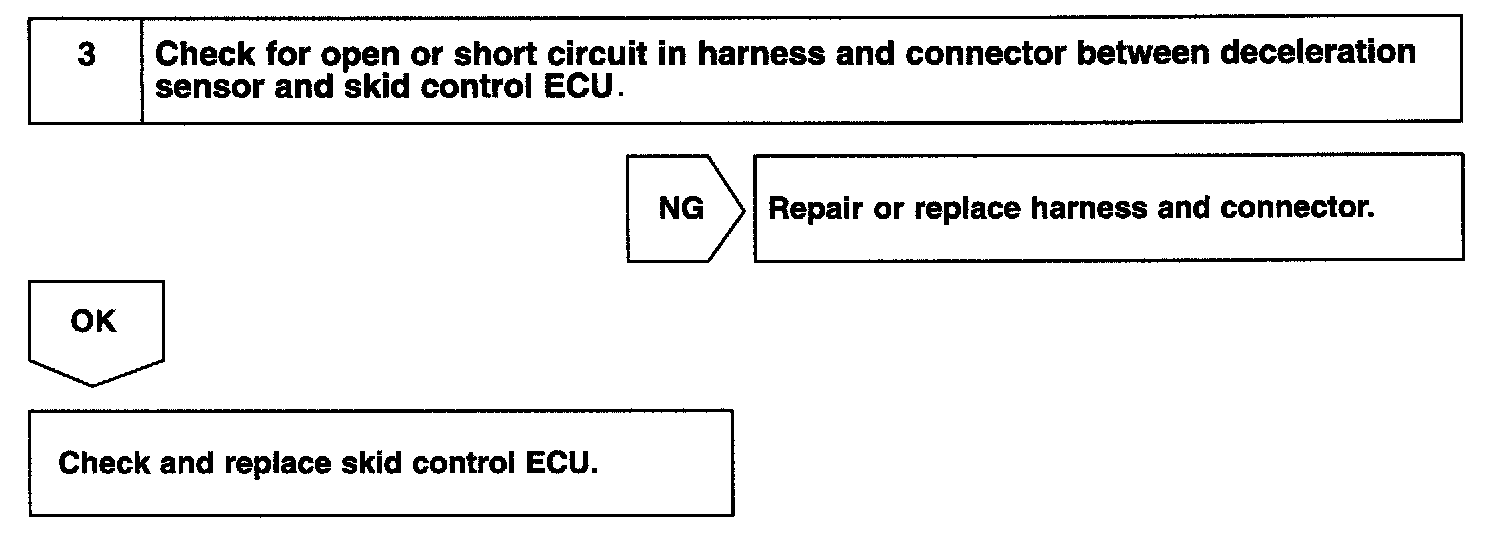

Step 3:
INSPECTION PROCEDURE
