DTC C1207 PARK/NEUTRAL POSITION SWITCH (PARK/REVERSE POSITION CIRCUIT)

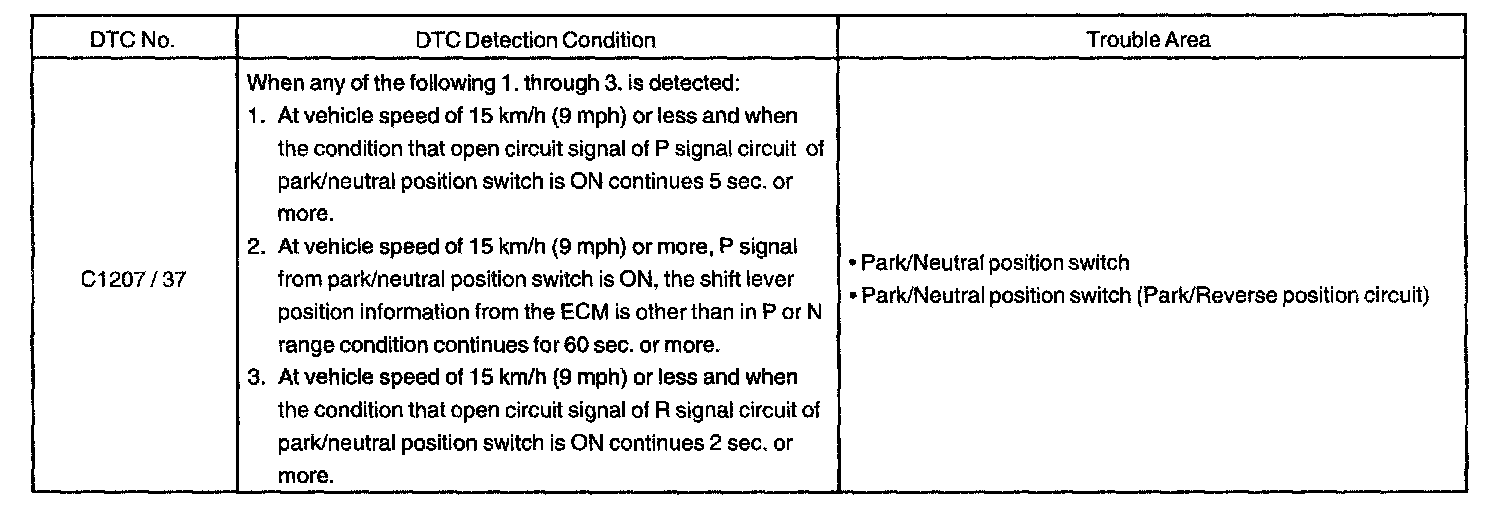

DTC Detection Condition:
CIRCUIT DESCRIPTION

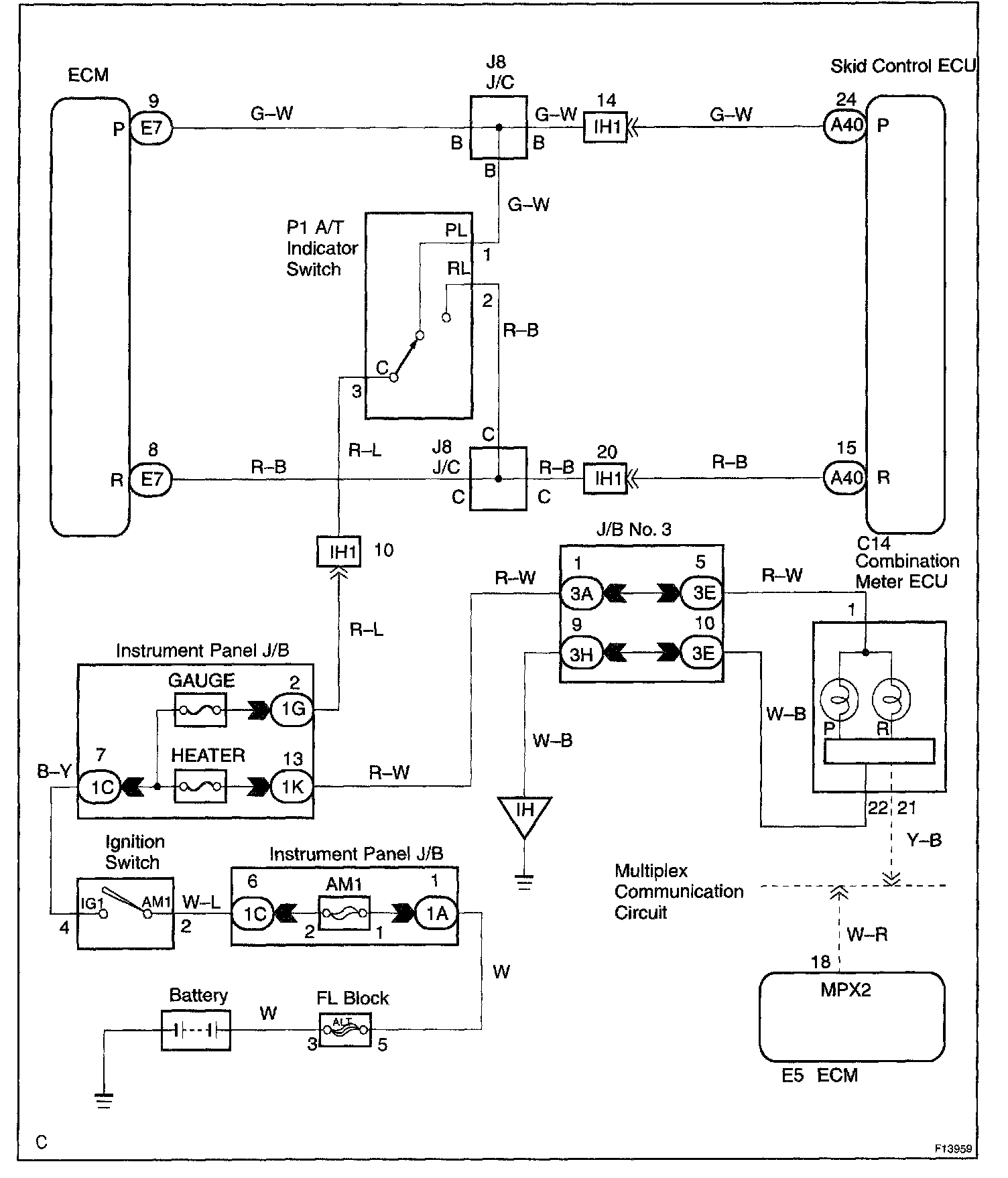

Wiring Diagram:

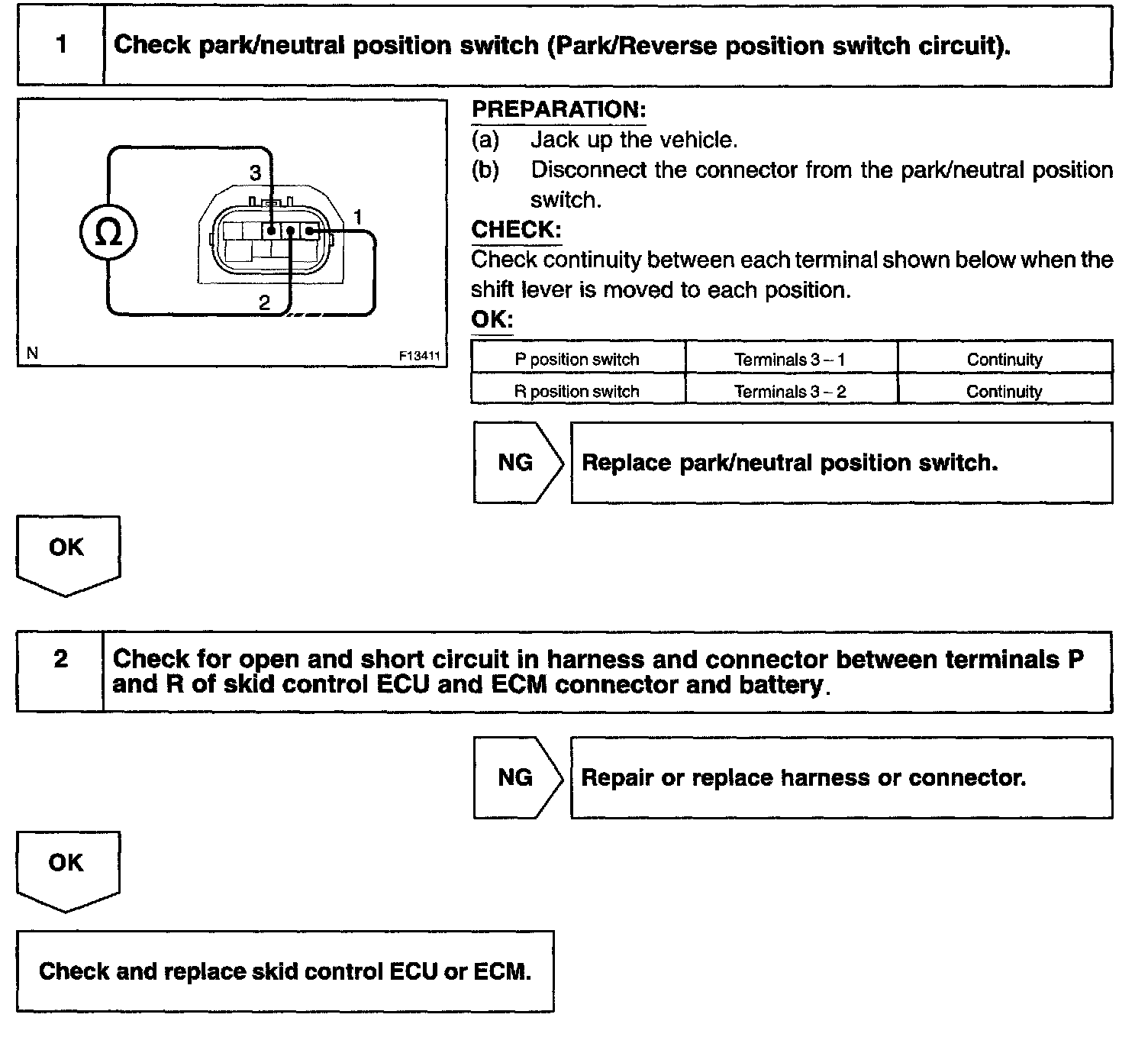

Step 1 - 2:
INSPECTION PROCEDURE
