C0274

DTC C0274 B+ SHORT CIRCUIT OF ABS MOTOR RELAY CIRCUIT

CIRCUIT DESCRIPTION

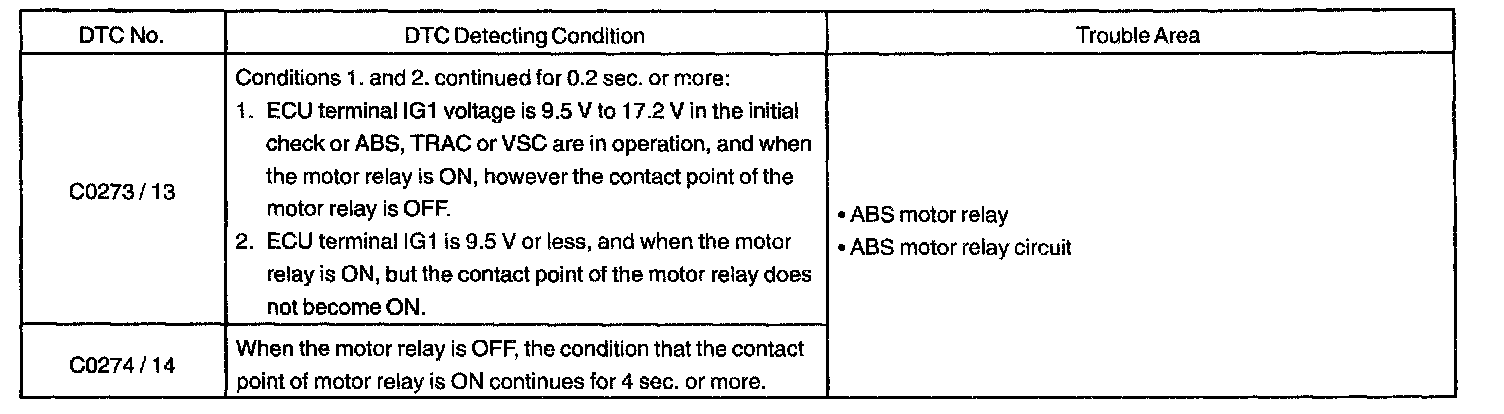

DTC Detecting Condition:

The ABS motor relay supplies power to the ABS pump motor. While the ABS & BA & TRAC & VSC are activated, the ECU switches the motor relay ON and operates the ABS pump motor.

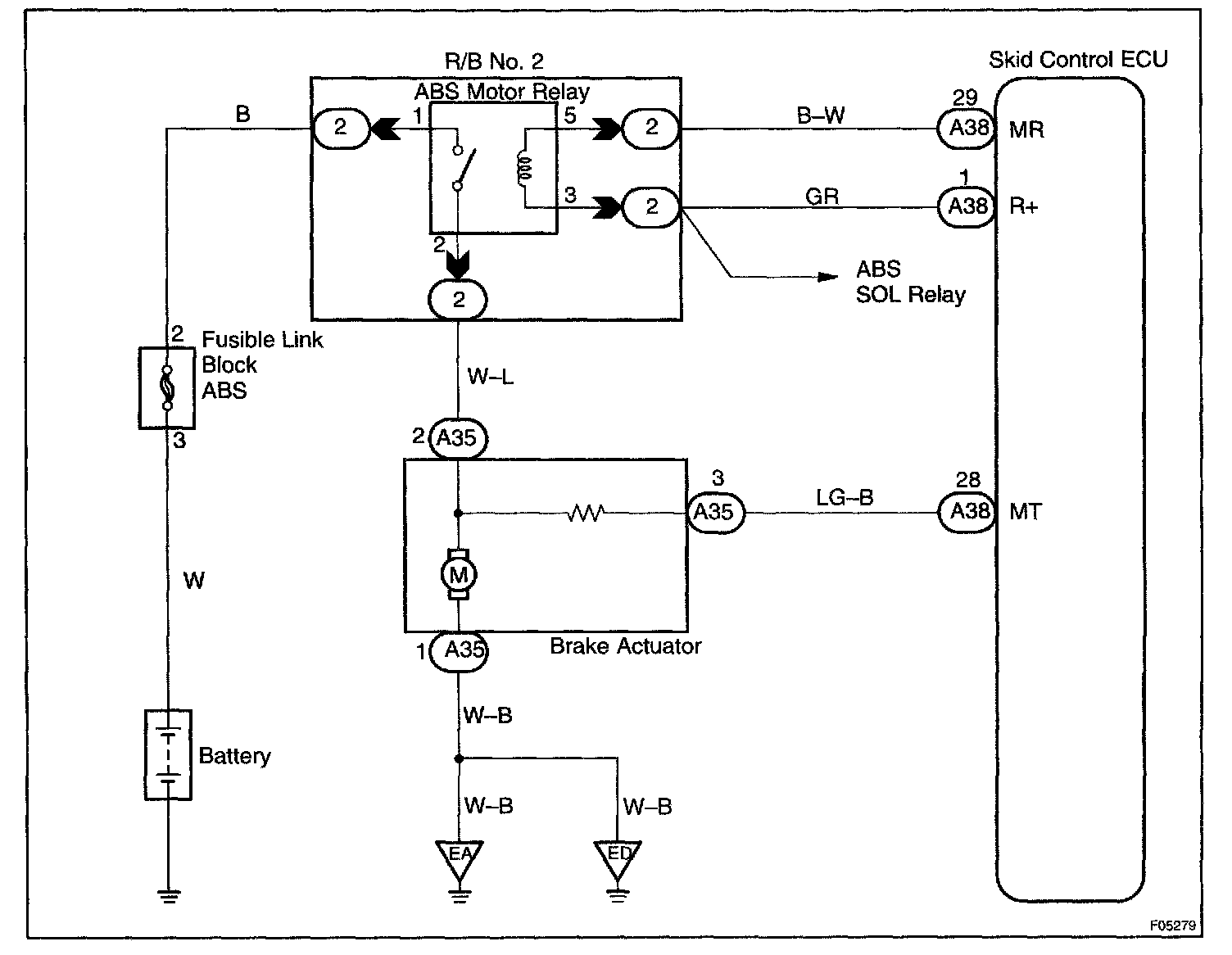

Wiring Diagram:

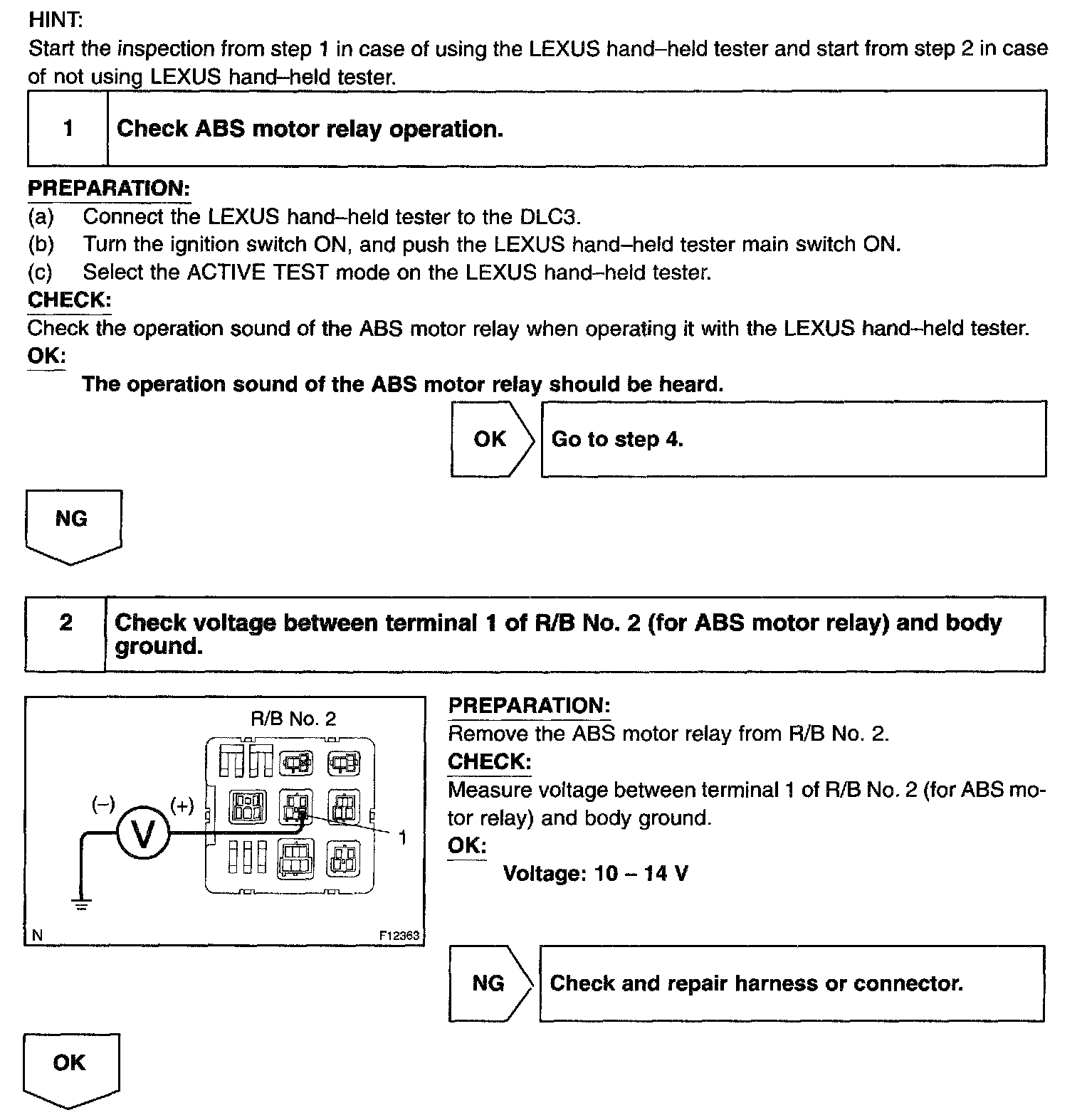

Step 1 - 2:

Step 3:

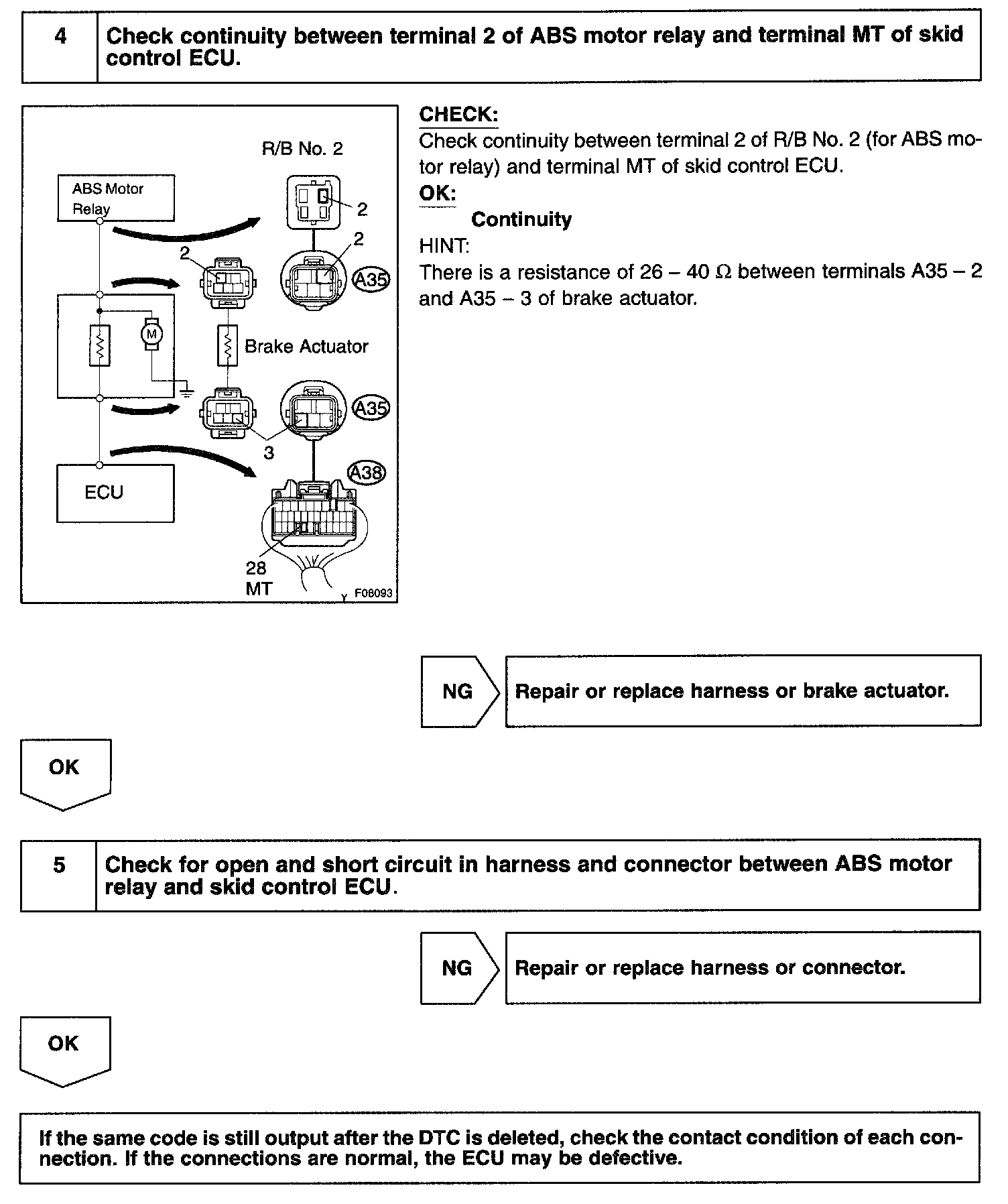

Step 4 - 5:

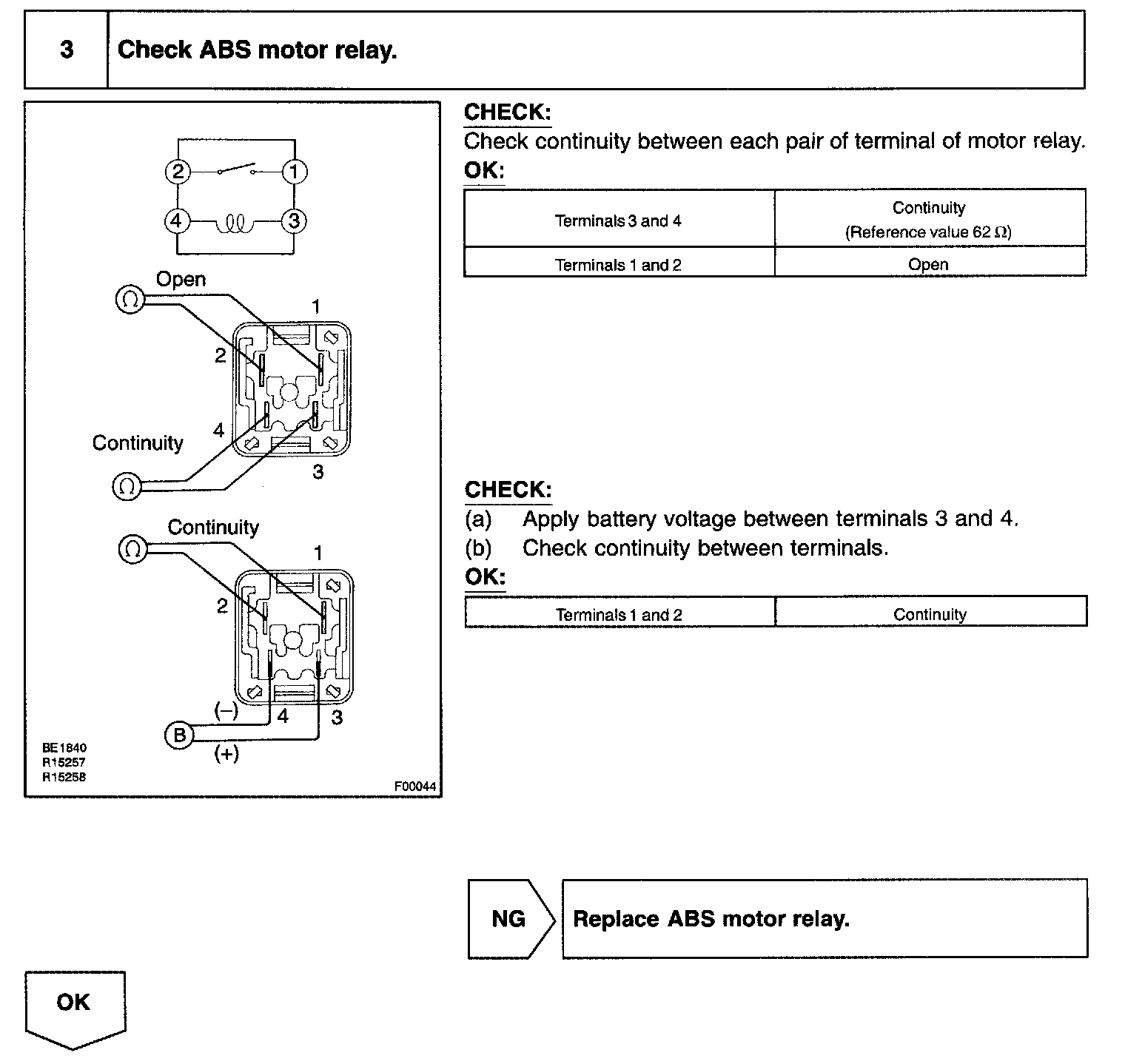

INSPECTION PROCEDURE
