B1443

DTC B1443 AIR OUTLET DAMPER CONTROL SERVOMOTOR CIRCUIT

CIRCUIT DESCRIPTION

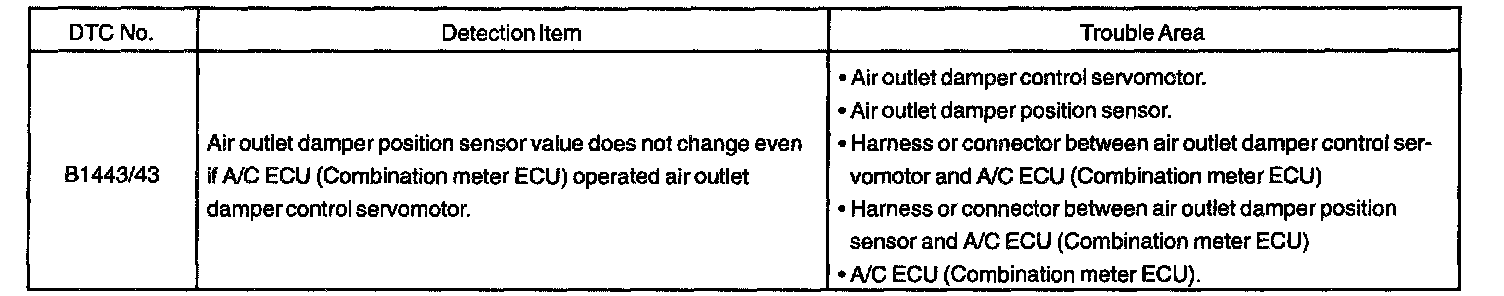

Detection Item:

This circuit turns the servomotor and changes each mode damper position by the signals from the A/C ECU (Combination meter ECU). When the AUTO switch is on, the A/C ECU (Combination meter ECU) changes the mode automatically between (FACE), (BI-LEVEL) and (FOOT) according to the temperature setting.

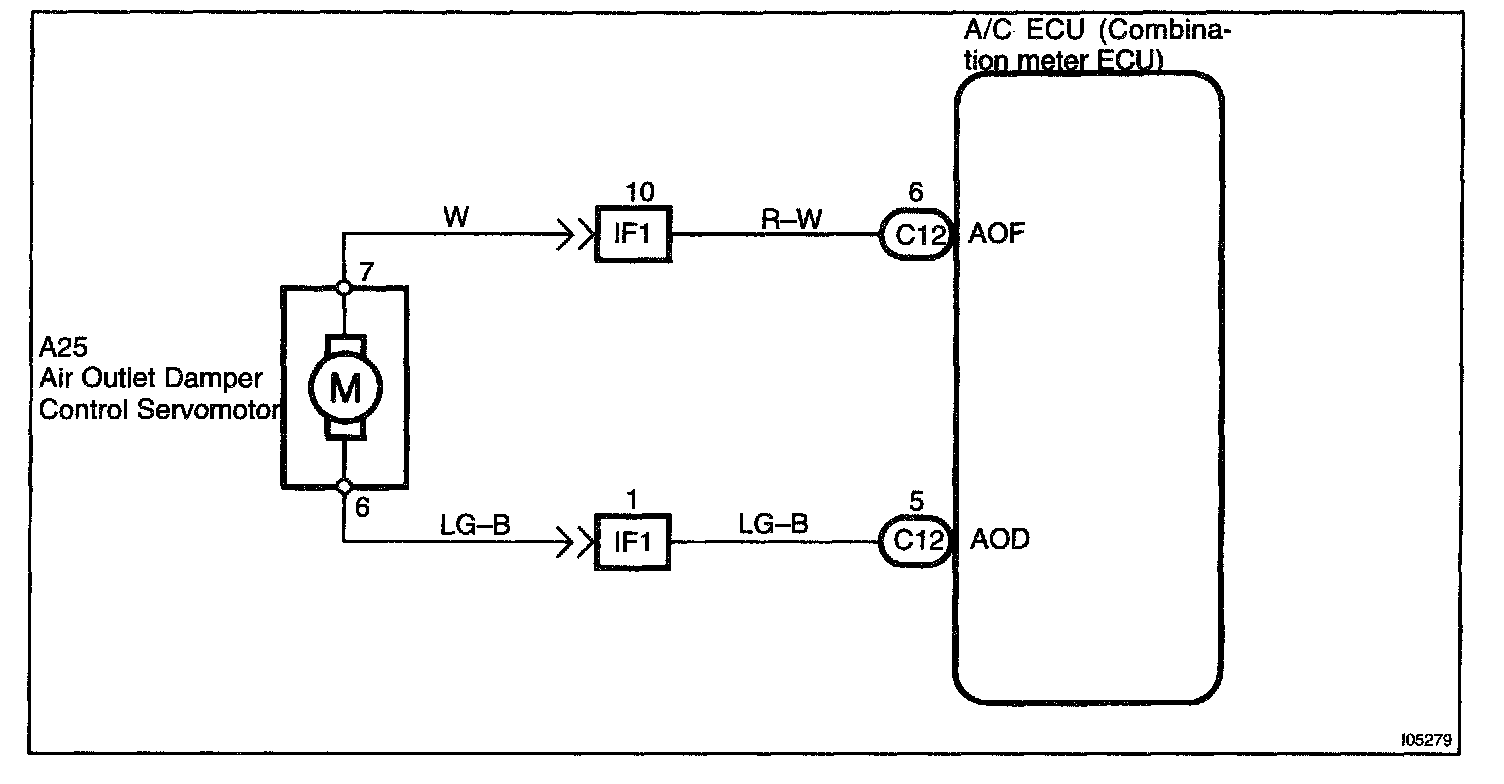

Wiring Diagram:

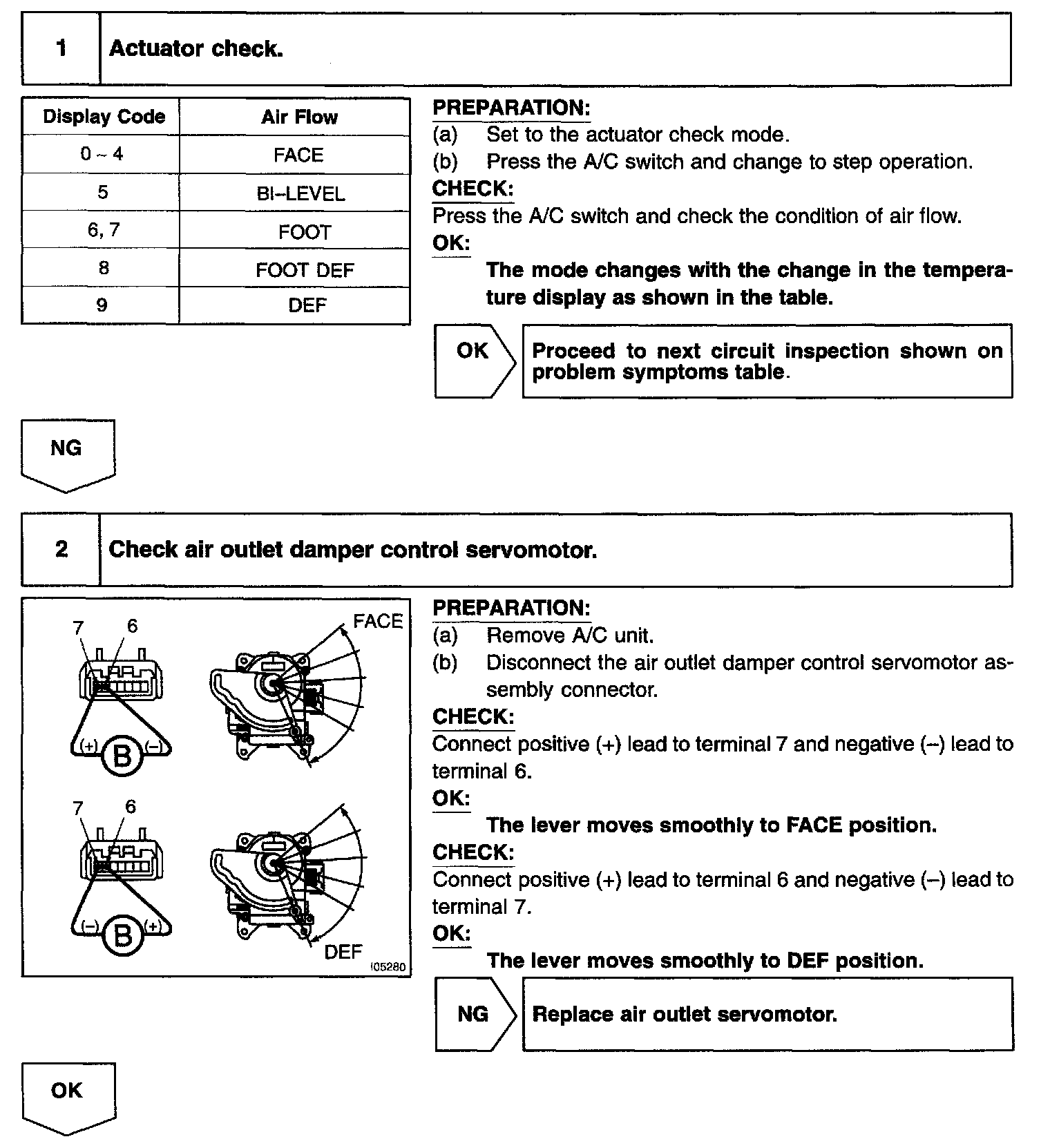

Step 1 - 2:

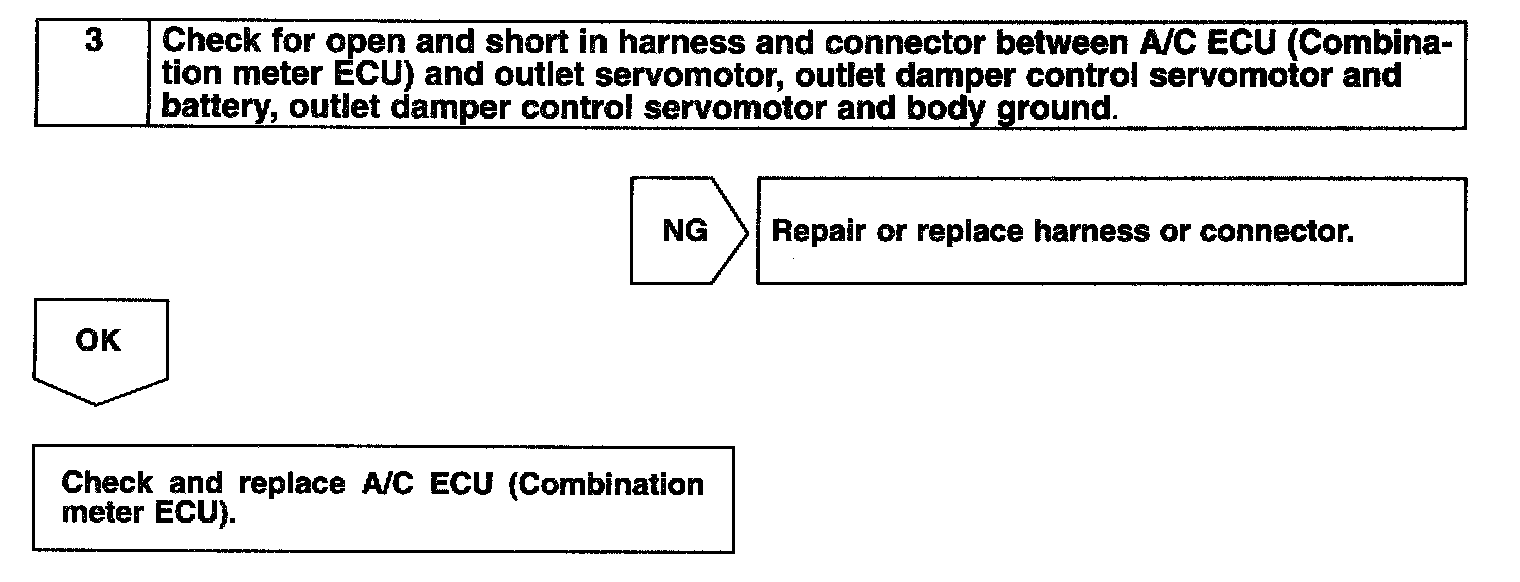

Step 3:

INSPECTION PROCEDURE
