B1442

DTC B1442 AIR INLET DAMPER CONTROL SERVOMOTOR CIRCUIT

CIRCUIT DESCRIPTION

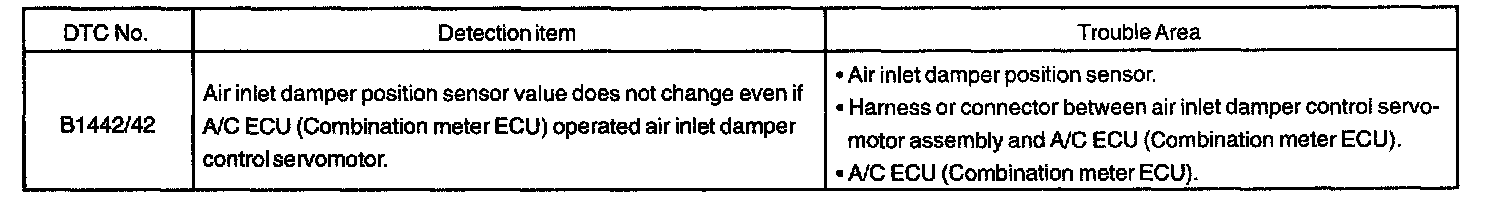

Detection Item:

The air inlet damper control servomotor is controlled by the A/C ECU (Combination meter ECU) and moves the air inlet damper to the desired position.

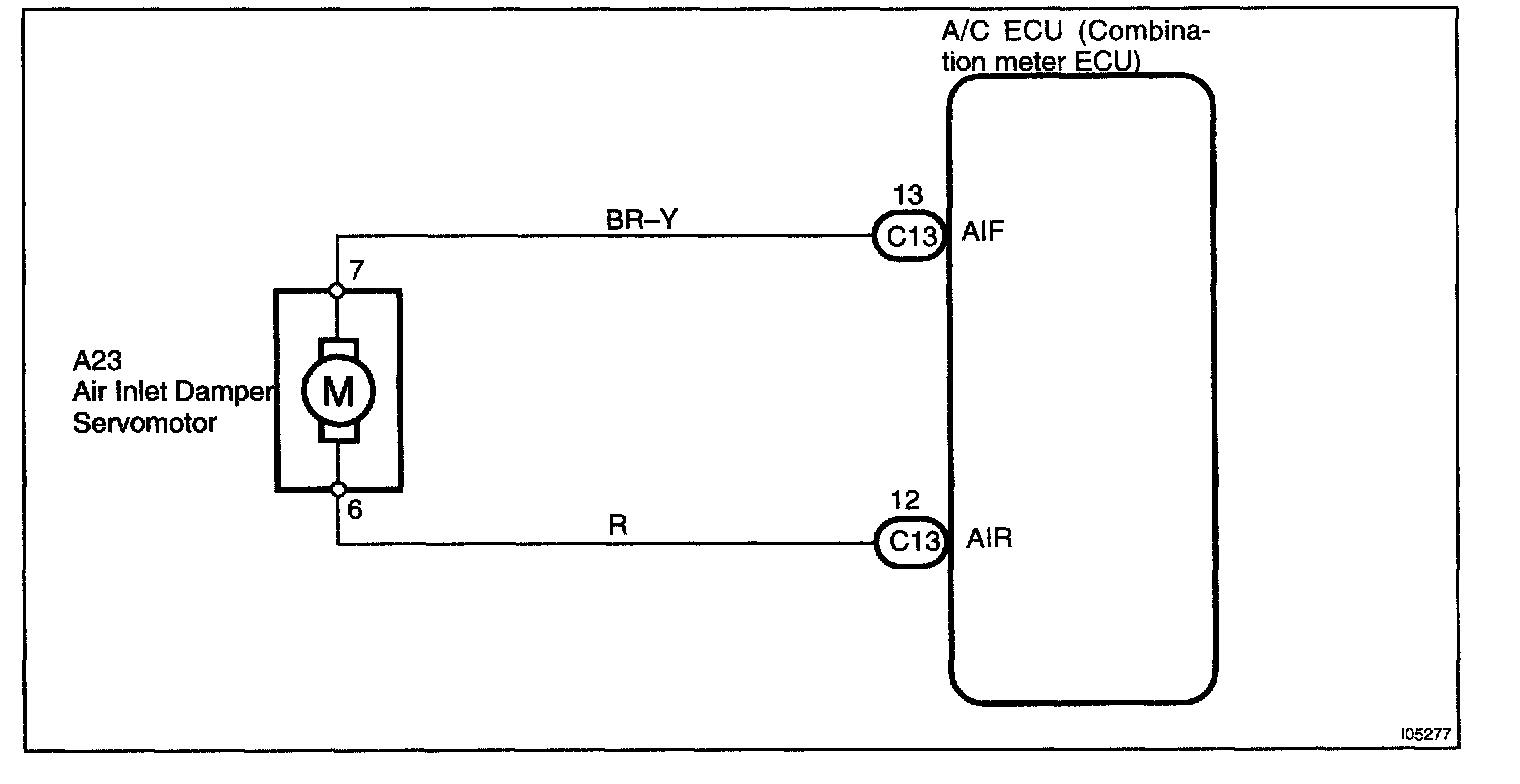

Wiring Diagram:

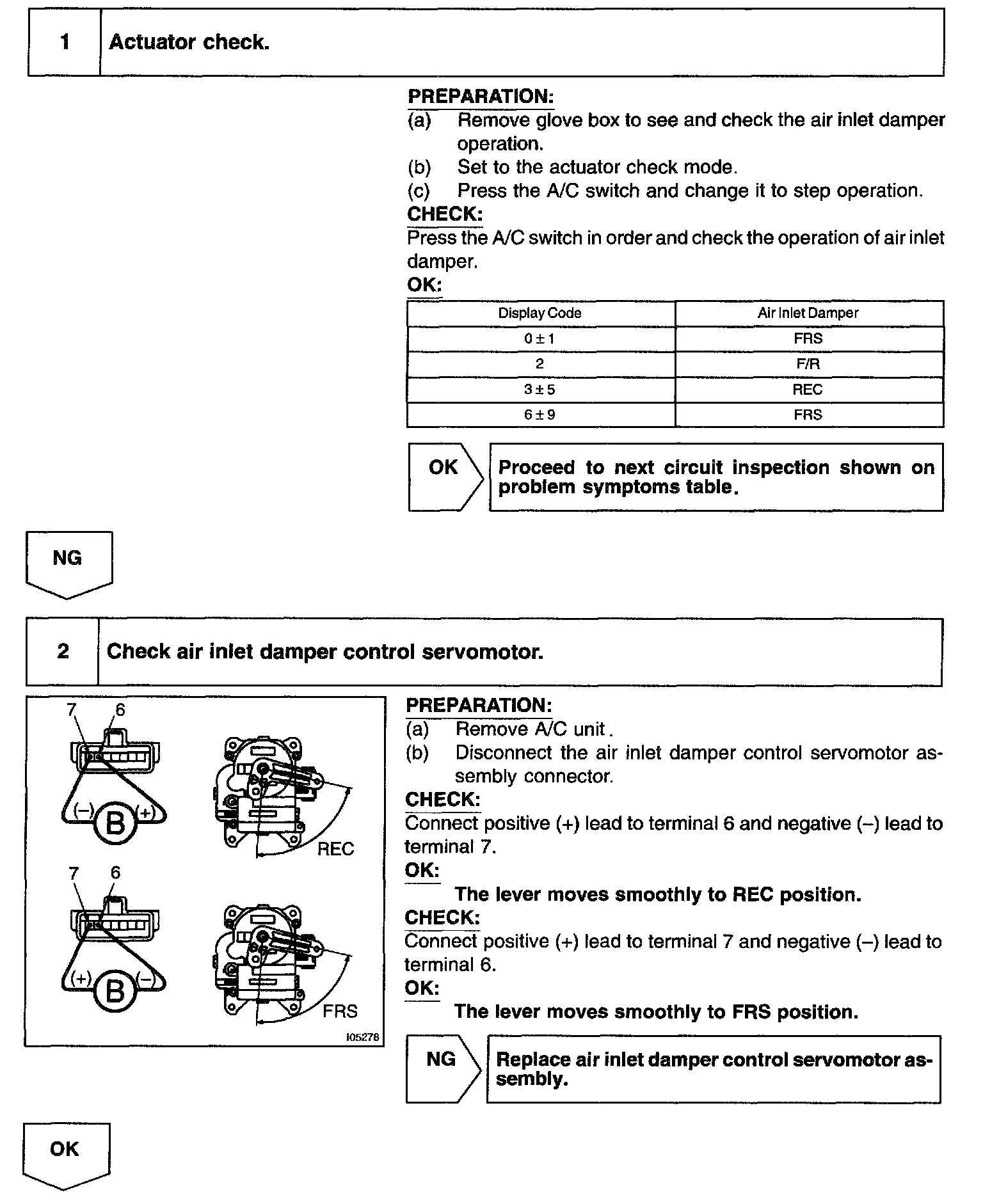

Step 1 - 2:

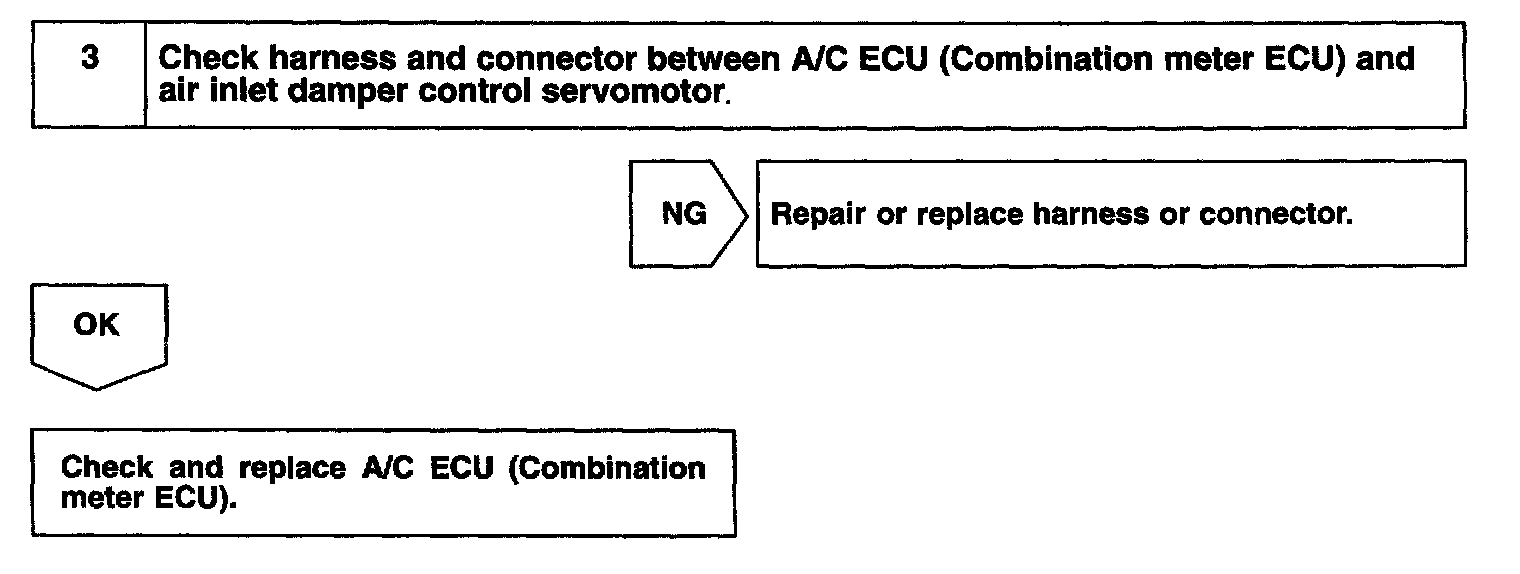

Step 3:

INSPECTION PROCEDURE
