B1433

DTC B1433 AIR OUTLET DAMPER POSITION SENSOR CIRCUIT

CIRCUIT DESCRIPTION

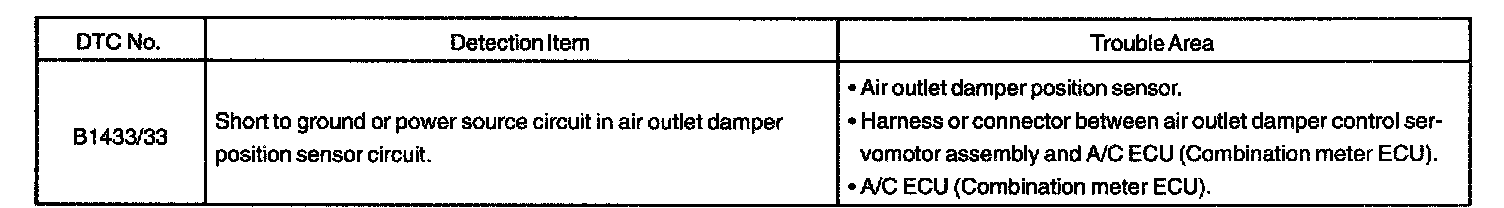

Detection Item:

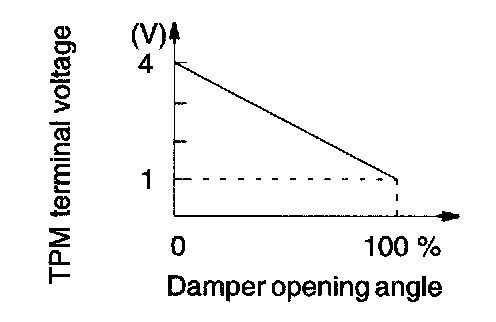

This sensor detects the position of the air mix damper and sends the appropriate signals to the A/C ECU (Combination meter ECU).

The position sensor is built into the air outlet damper control servomotor assembly.

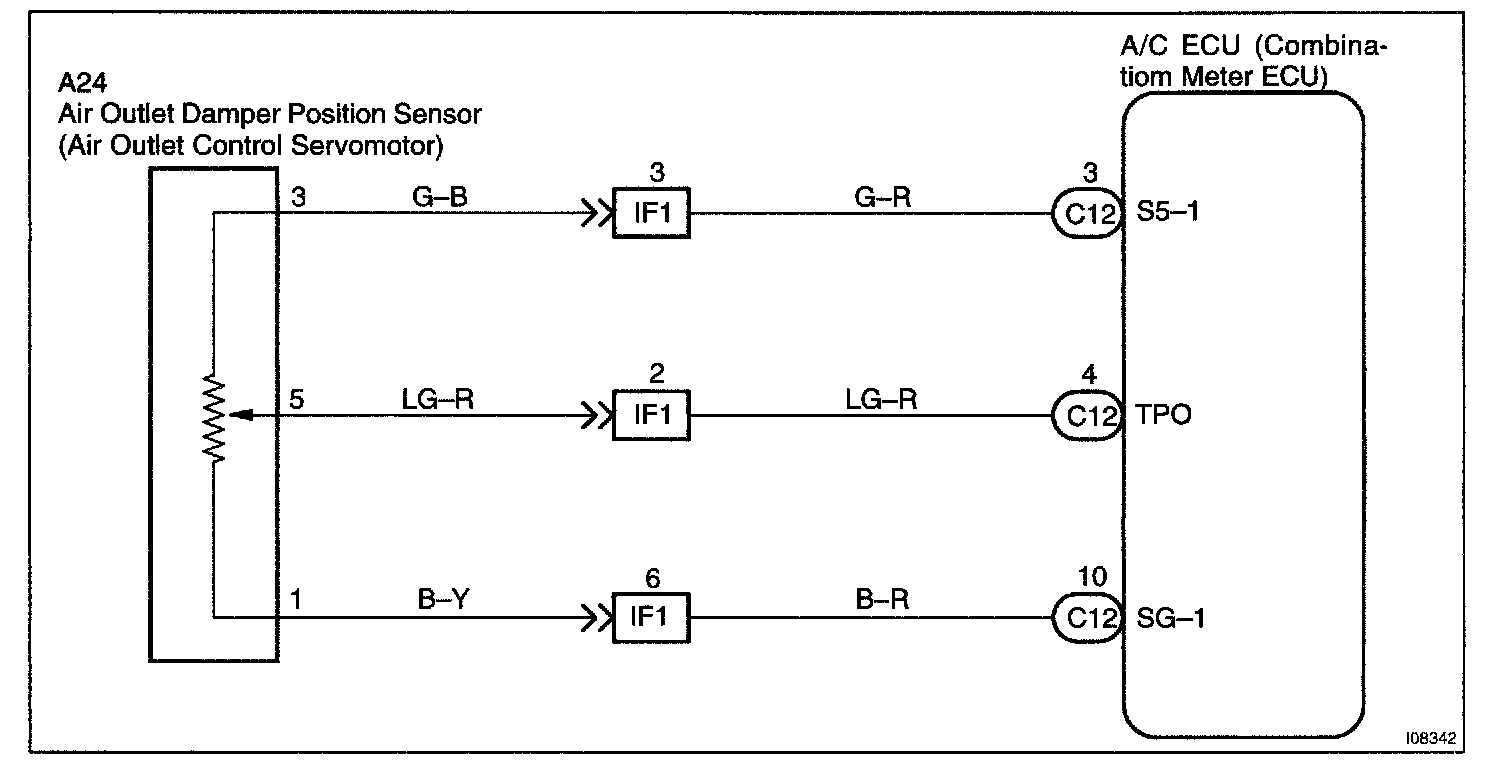

Wiring Diagram:

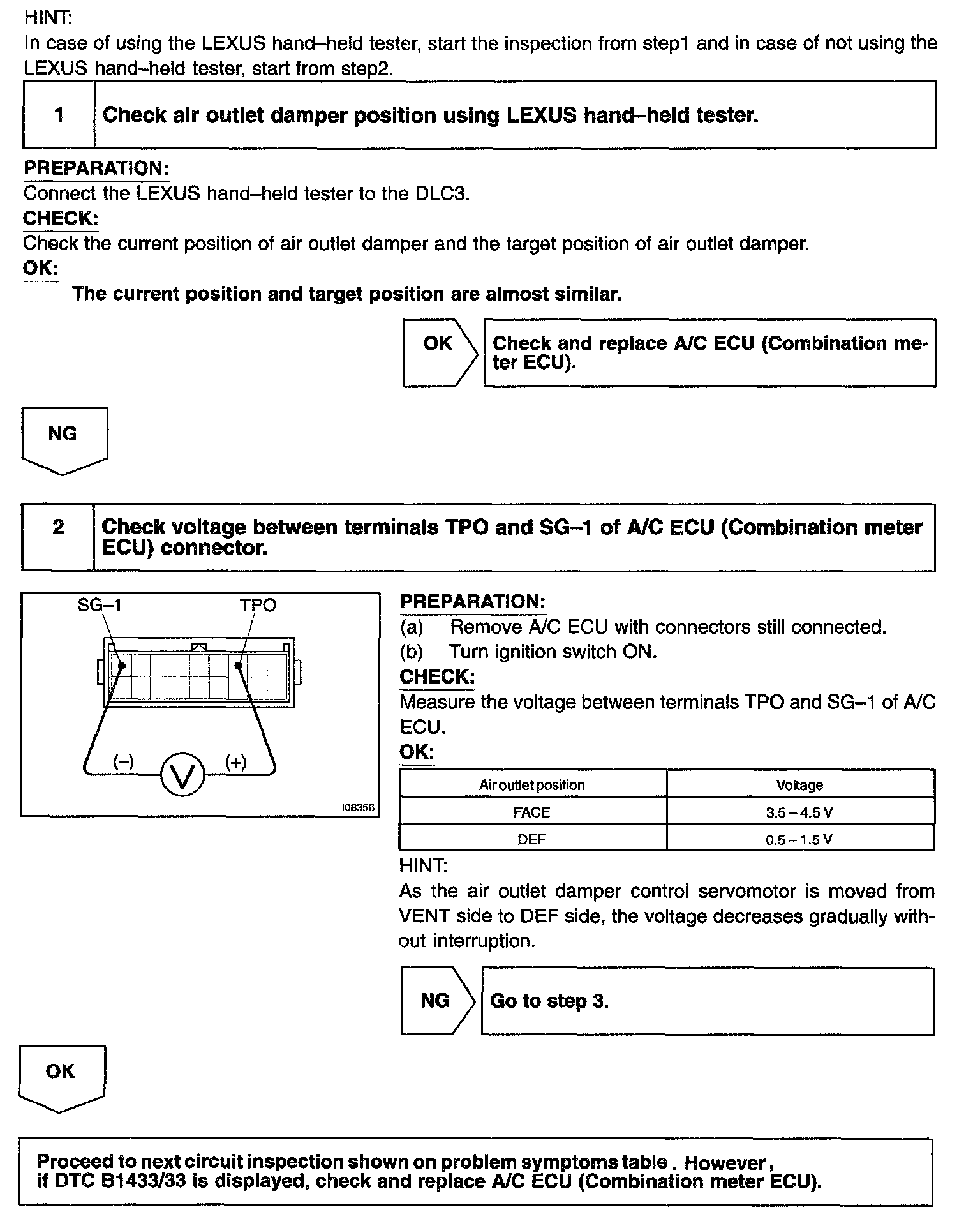

Step 1 - 2:

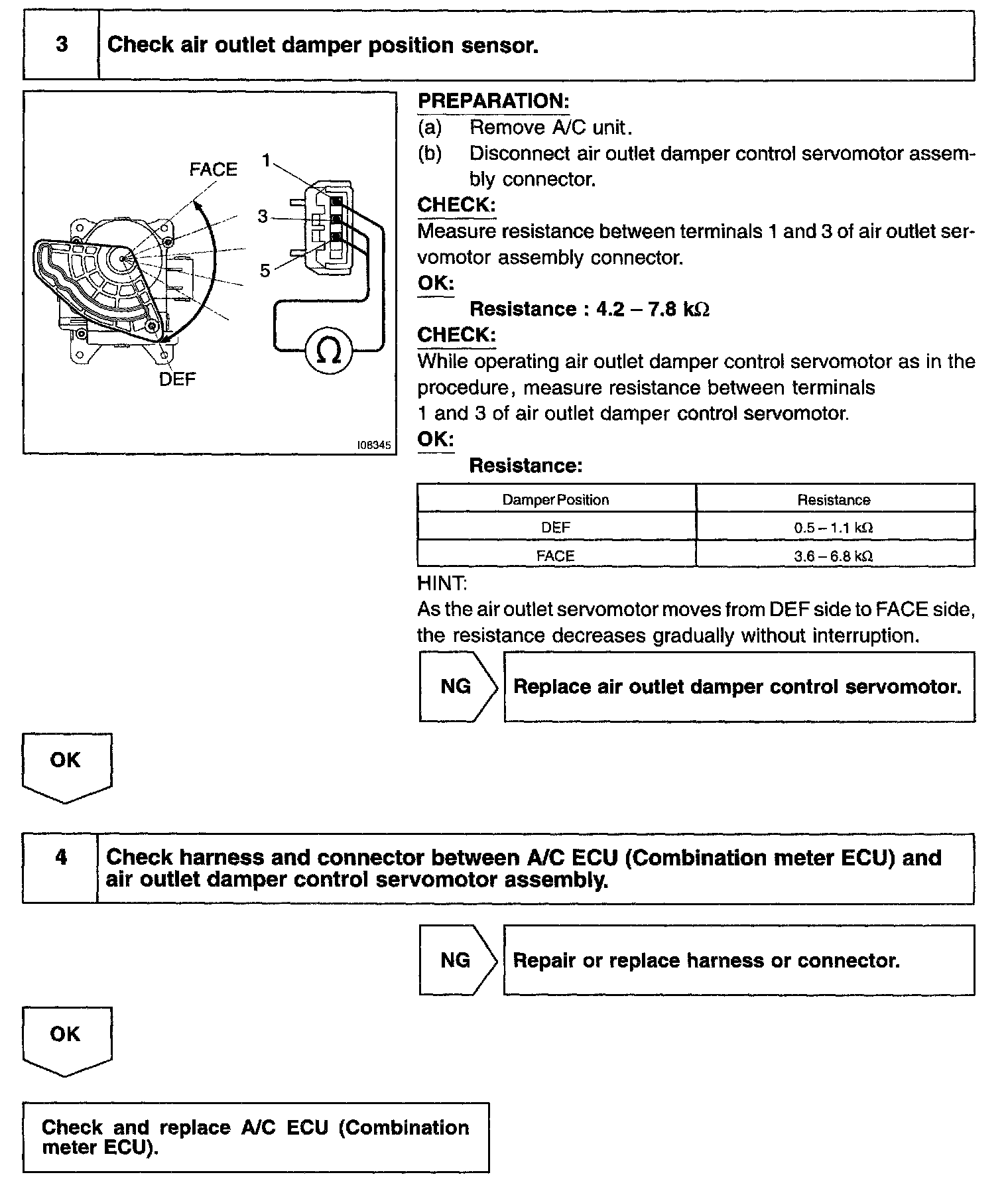

Step 3 - 4:

INSPECTION PROCEDURE
