B1432

DTC B1432 AIR INLET DAMPER POSITION SENSOR CIRCUIT

CIRCUIT DESCRIPTION

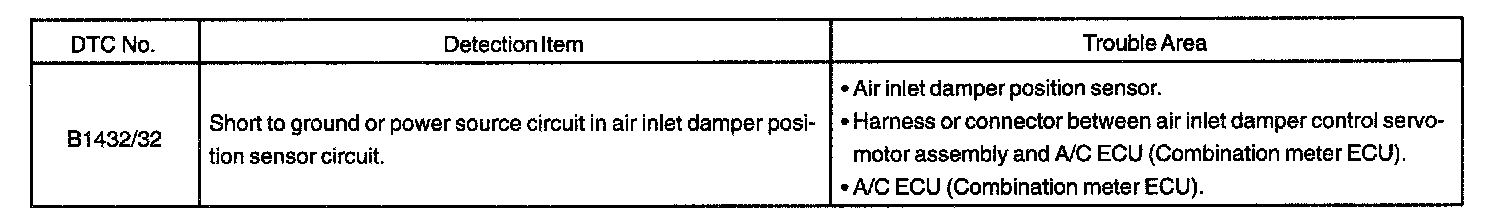

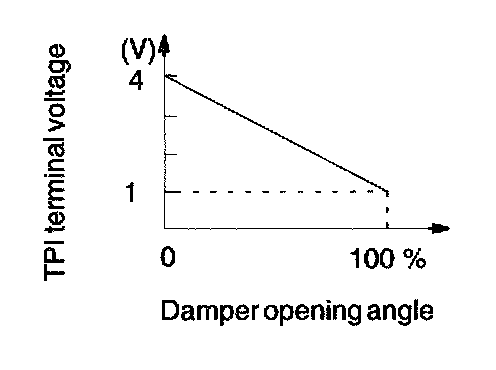

Detection Item:

This sensor detects the position of the air inlet damper and sends the appropriate signals to the A/C ECU (Combination meter ECU).

The position sensor is built into the air inlet damper control servomotor assembly.

Wiring Diagram:

Step 1 - 2:

Step 3 - 4:

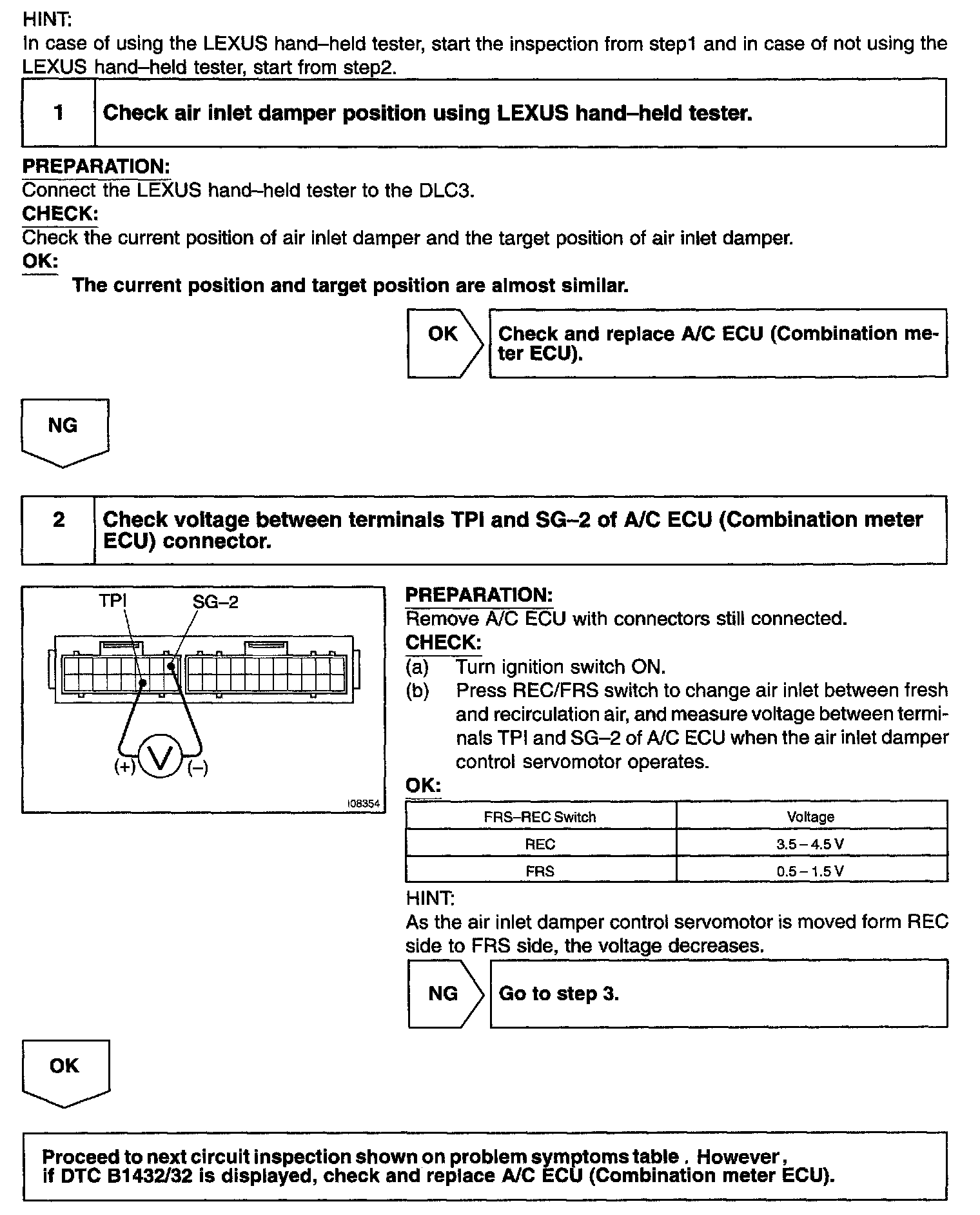

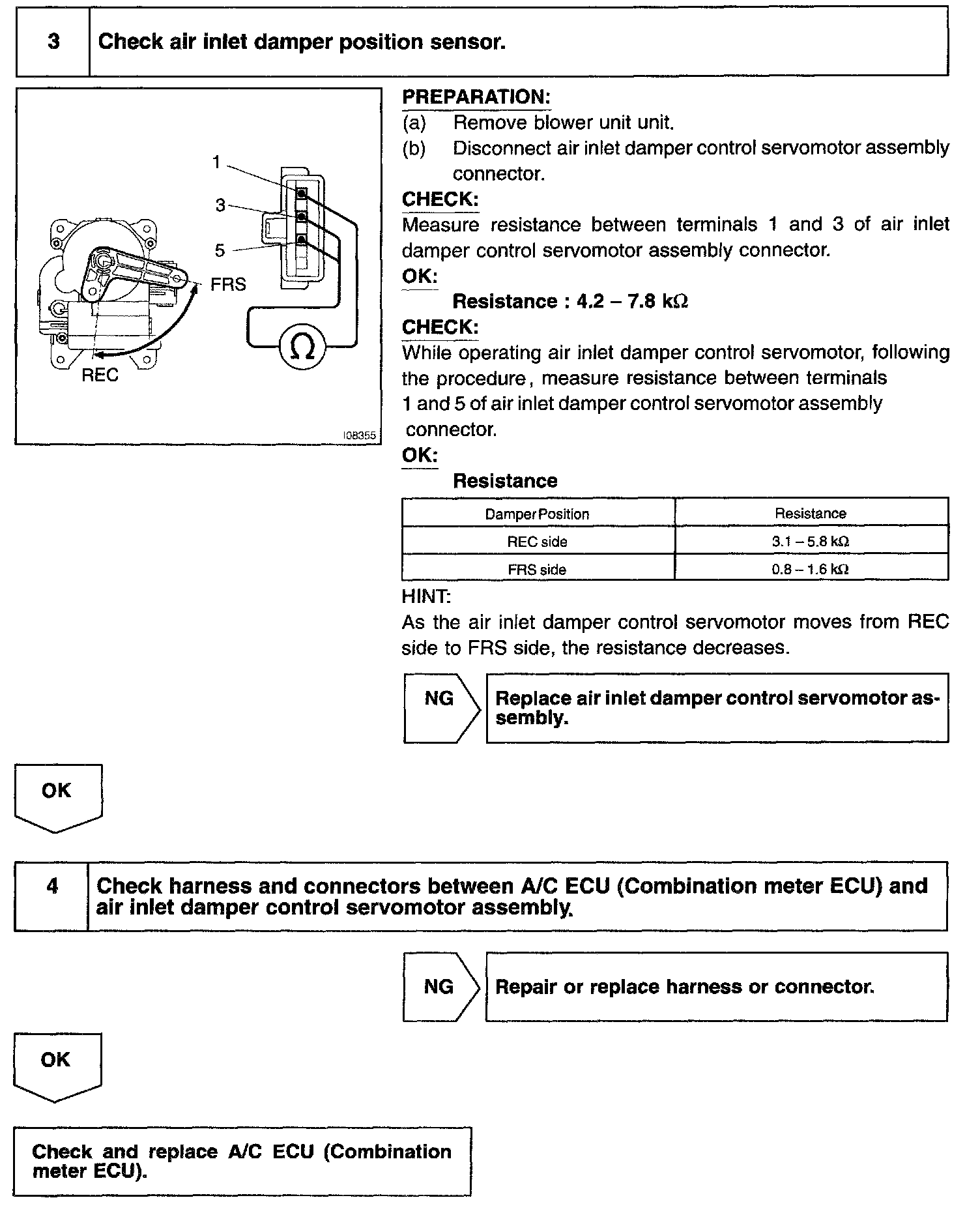

INSPECTION PROCEDURE
