B1413

DTC B1413 EVAPORATOR TEMPERATURE SENSOR CIRCUIT

CIRCUIT DESCRIPTION

Detection Item:

This sensor detects the temperature inside the cooling unit and sends the appropriate signals to the A/C ECU (Combination meter ECU).

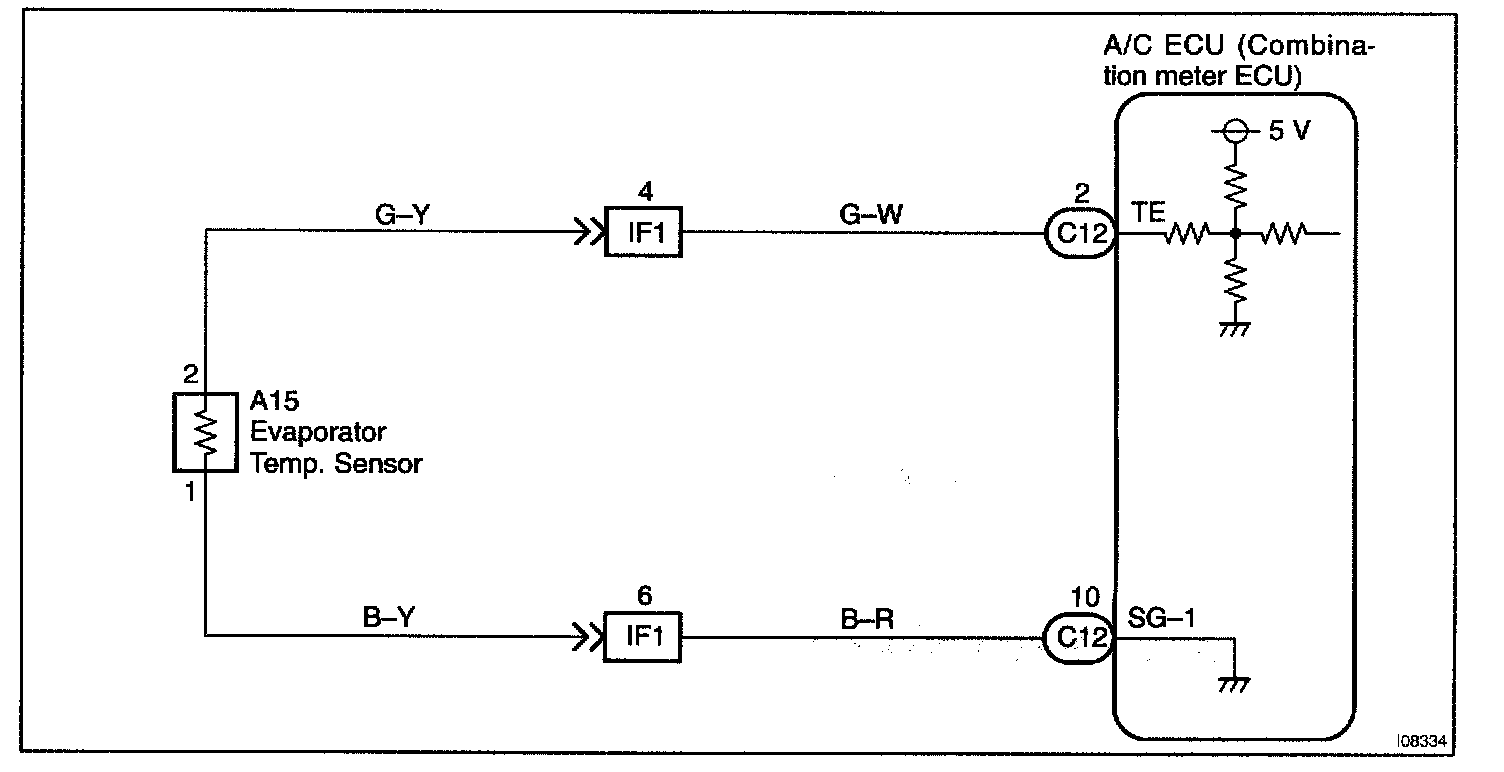

Wiring Diagram:

Step 1 - 2:

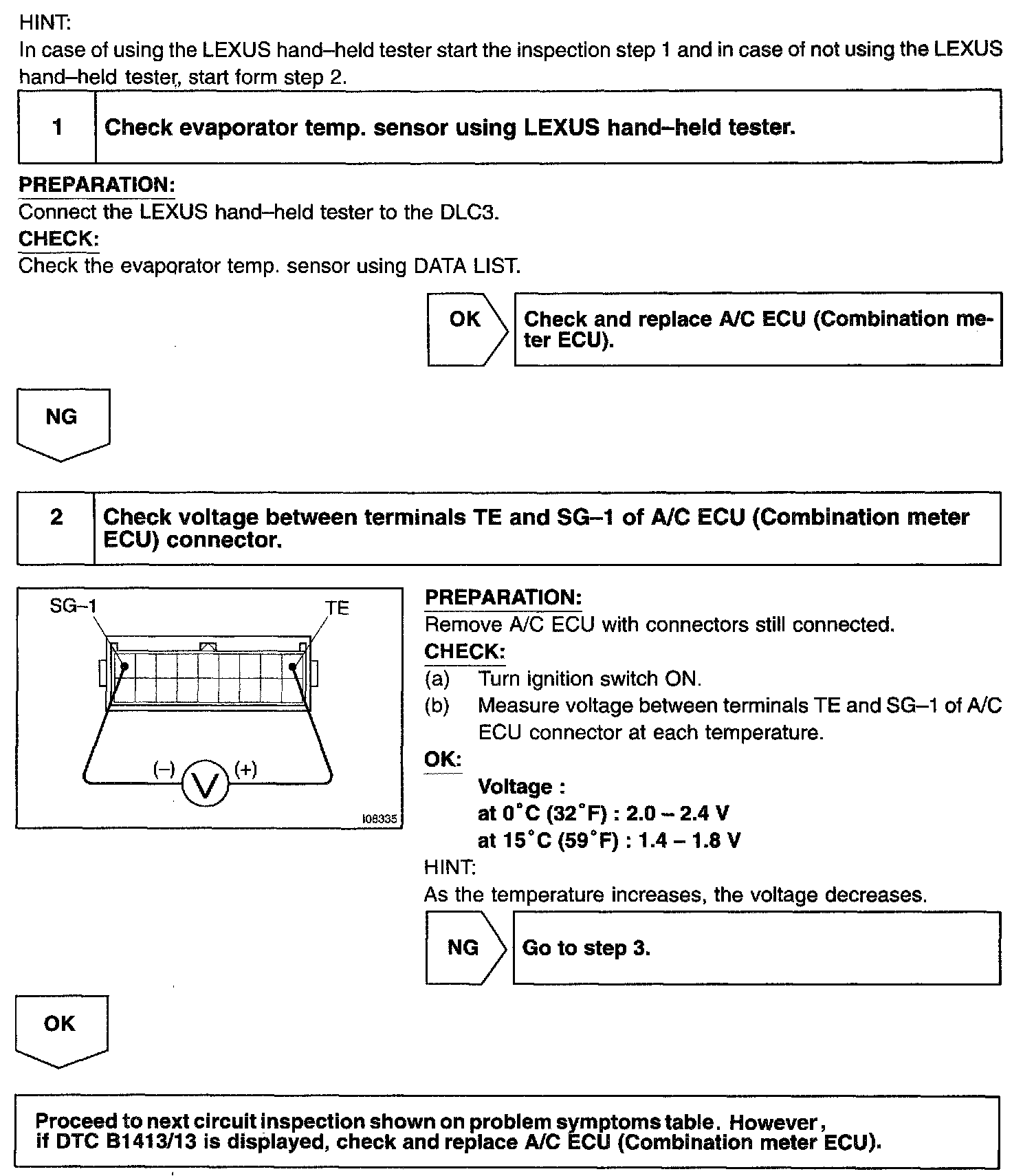

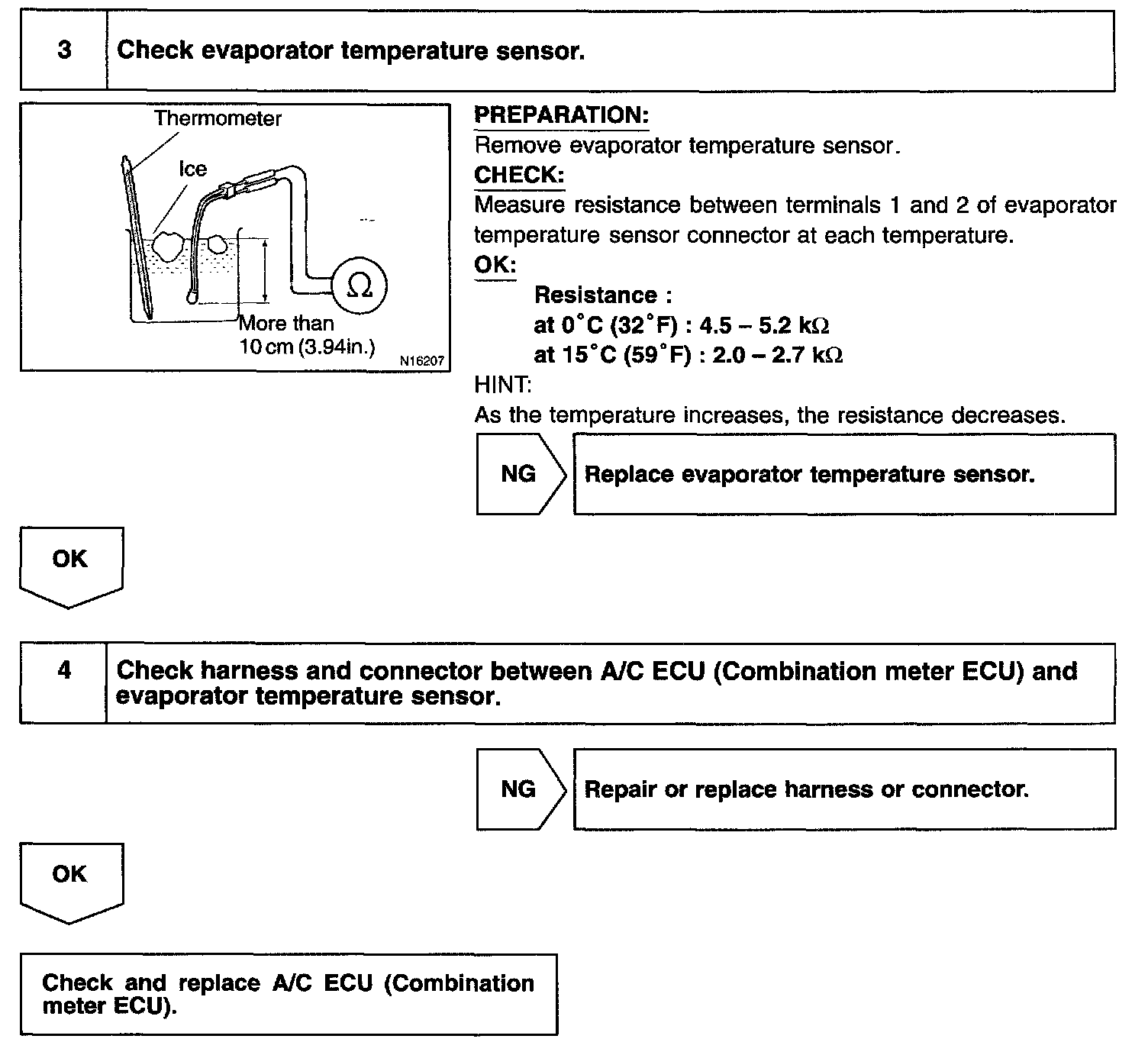

Step 3 - 4:

INSPECTION PROCEDURE
