B1412

DTC B1412 AMBIENT TEMPERATURE SENSOR CIRCUIT

CIRCUIT DESCRIPTION

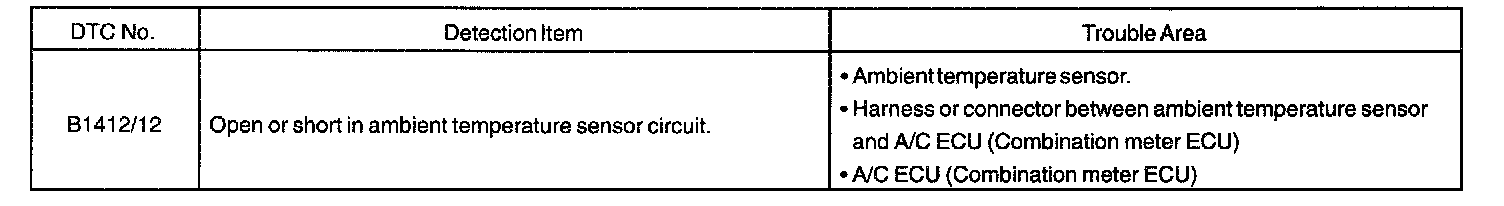

Detection Item:

This sensor detects the ambient temperature and sends the appropriate signals to the A/C ECU (Combination meter ECU).

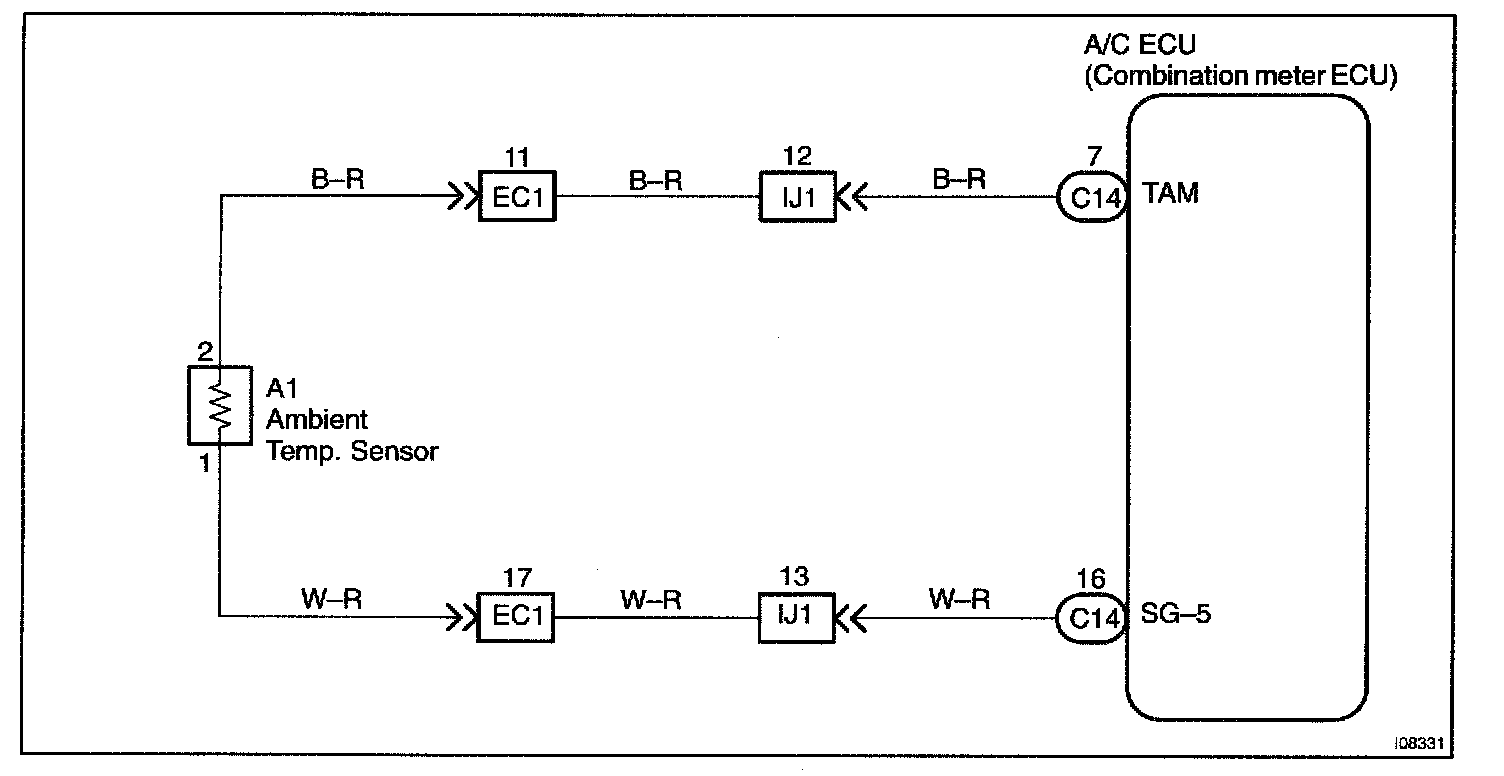

Wiring Diagram:

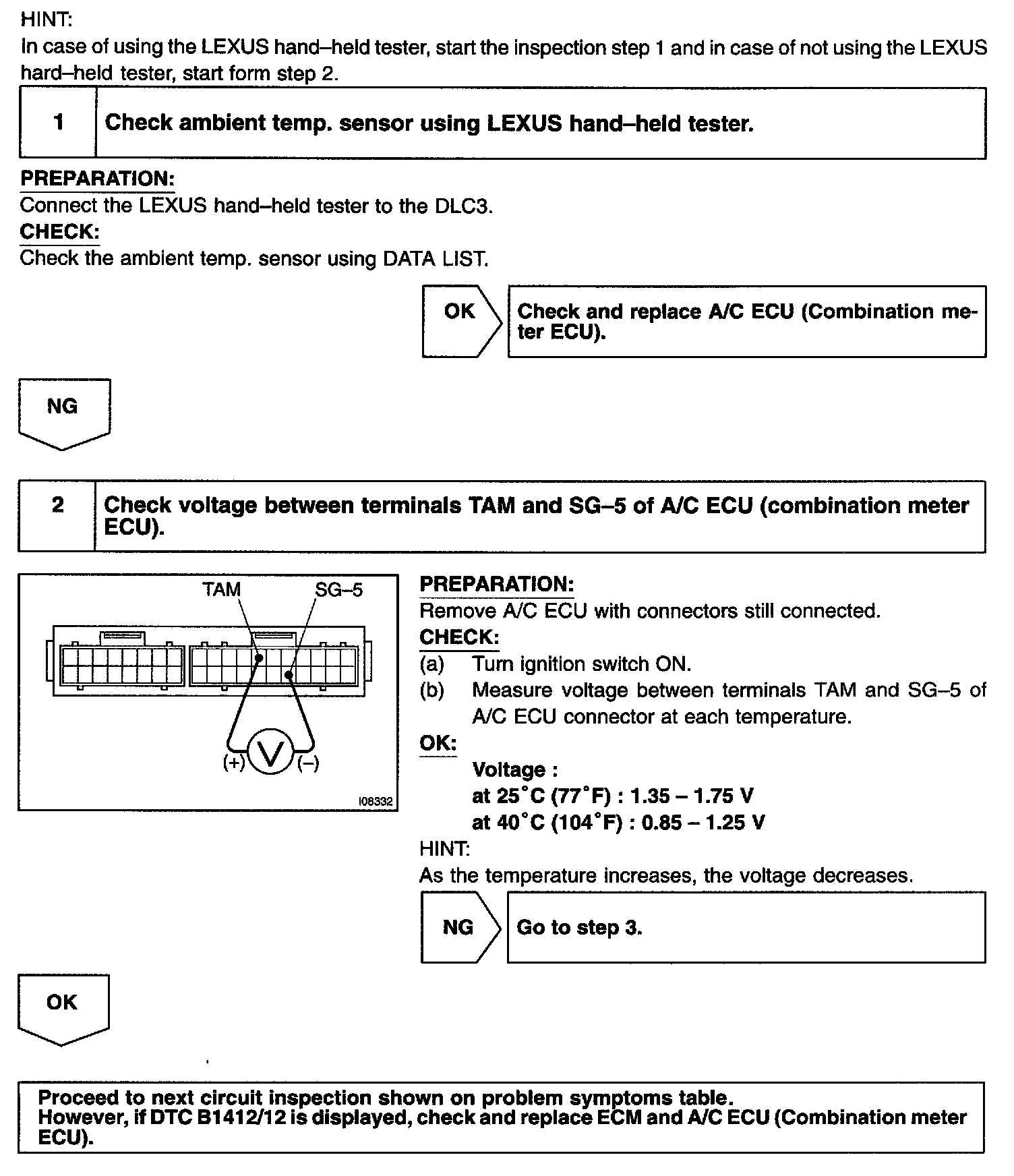

Step 1 - 2:

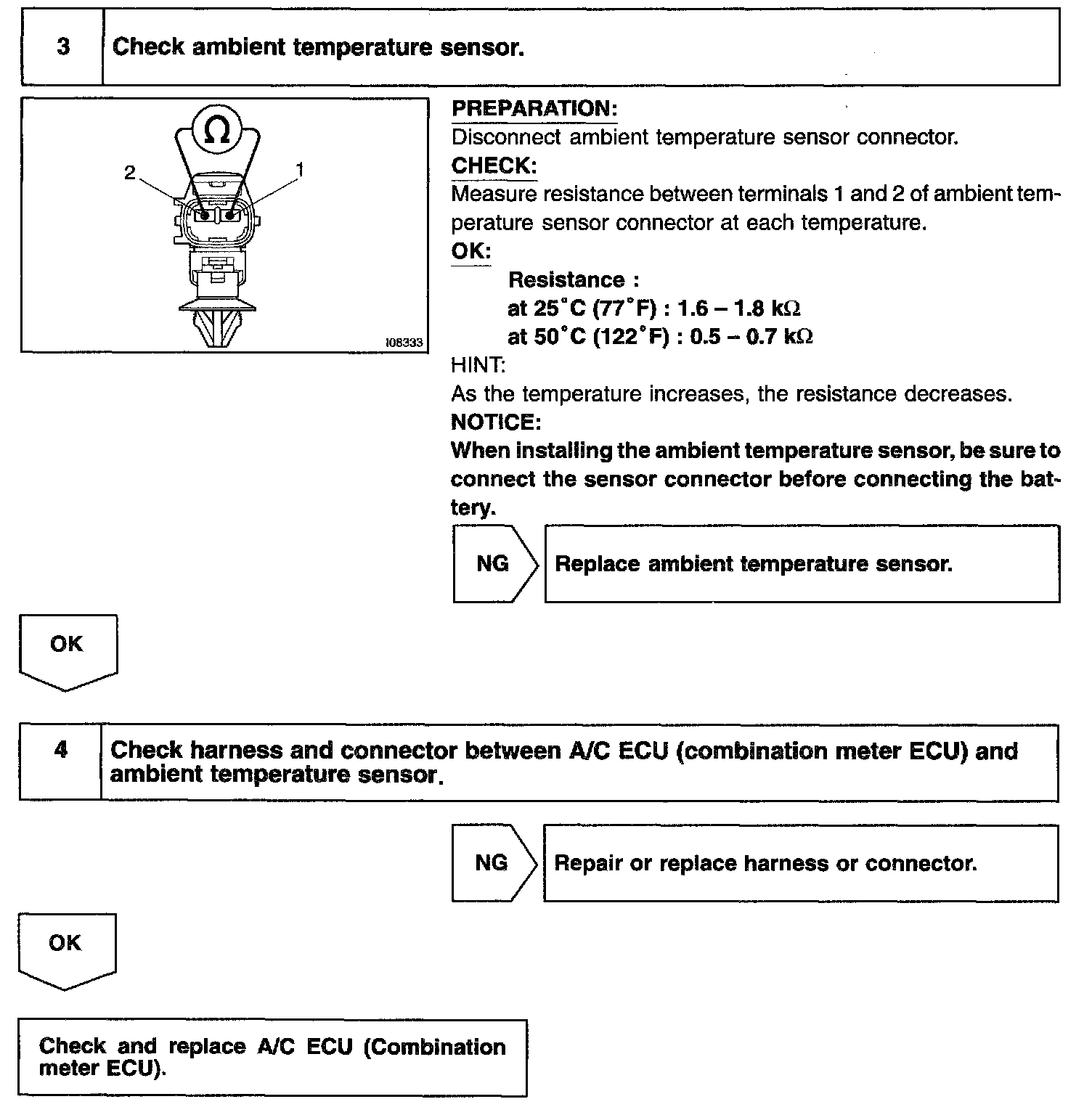

Step 3 - 4:

INSPECTION PROCEDURE
