B1277

DTC B1277 CENTER CLUSTER INTEGRATION PANEL COMMUNICATION STOP

CIRCUIT DESCRIPTION

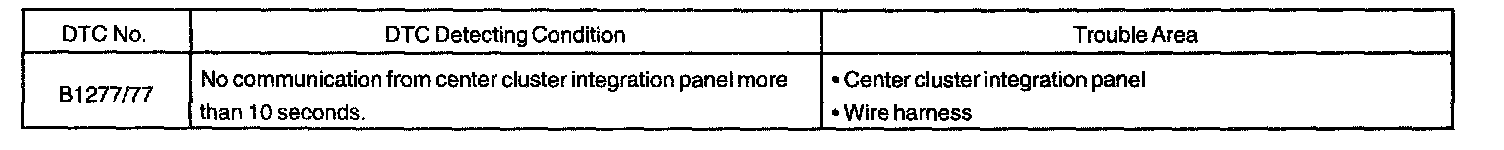

DTC Detecting Condition:

This DTC is output when communication stops between center cluster integration panel and Body ECU.

Wiring Diagram:

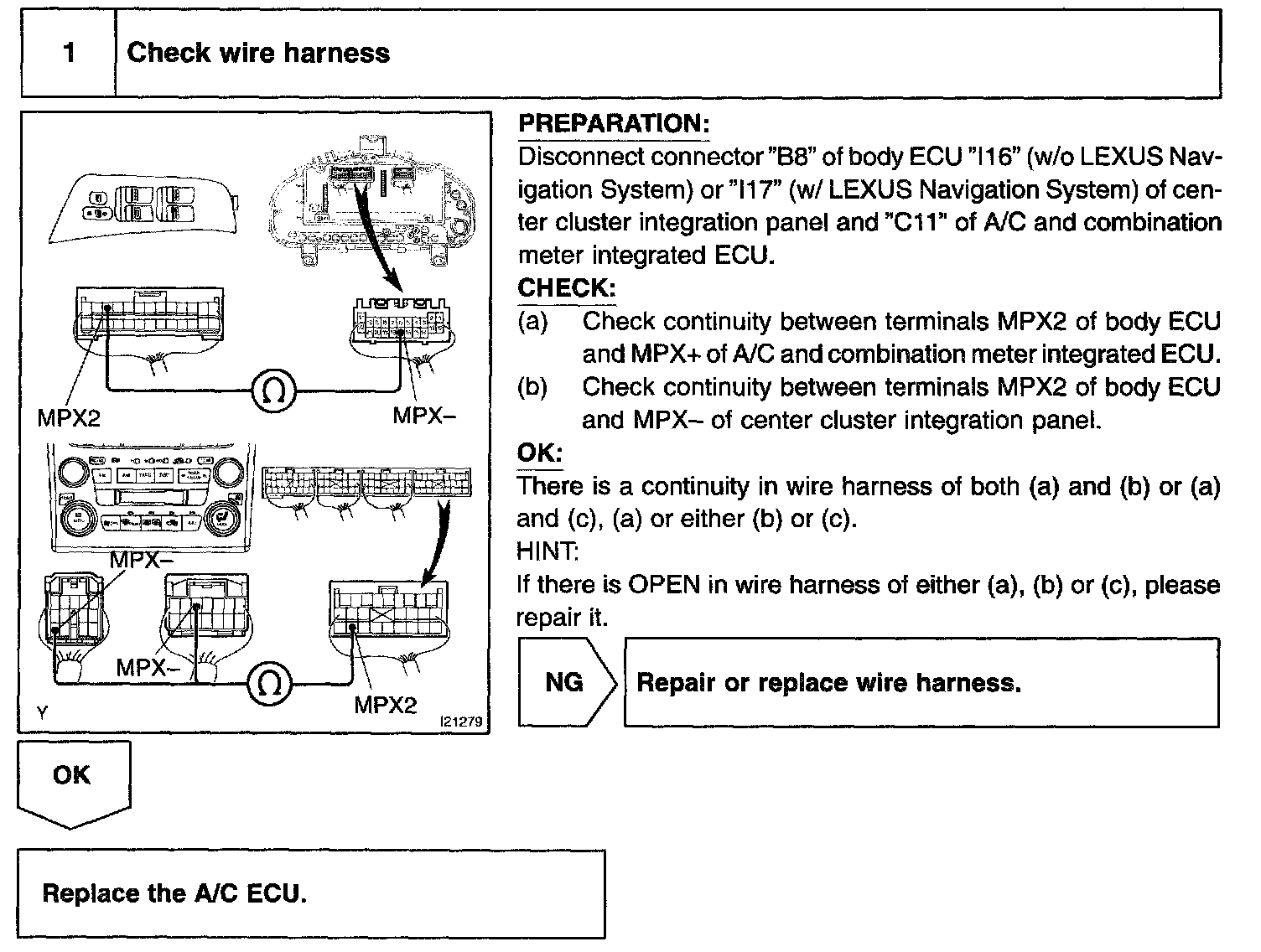

Step 1:

INSPECTION PROCEDURE
