B1276

DTC B1276 A/C AND COMBINATION METER INTEGRATED ECU COMMUNICATION STOP

CIRCUIT DESCRIPTION

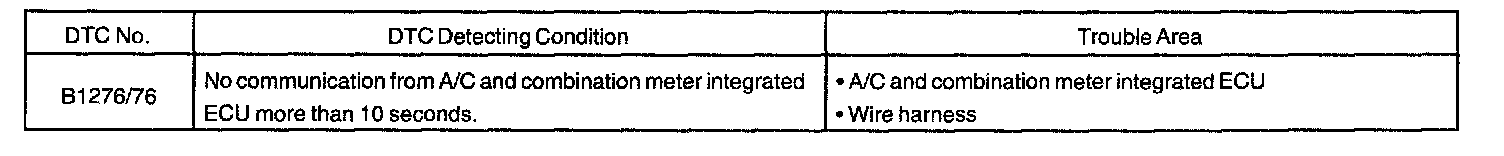

DTC Detecting Condition:

This DTC is output when communication stops between A/C and combination meter integrated ECU and Body ECU.

Wiring Diagram:

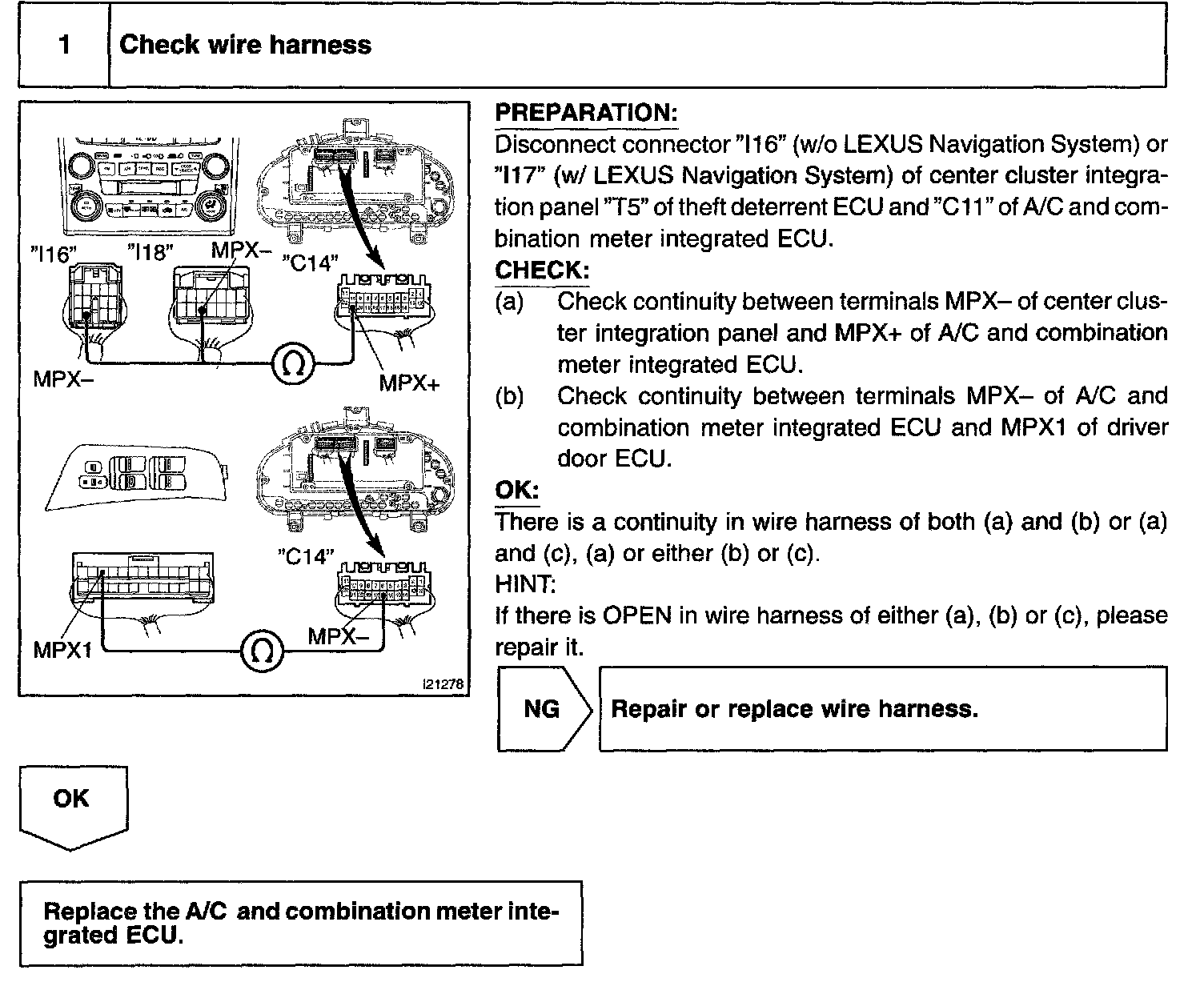

Step 1:

INSPECTION PROCEDURE
