B1273

DTC B1273 SLIDING ROOF ECU COMMUNICATION STOP (W/ SLIDING ROOF VEHICLE ONLY)

CIRCUIT DESCRIPTION

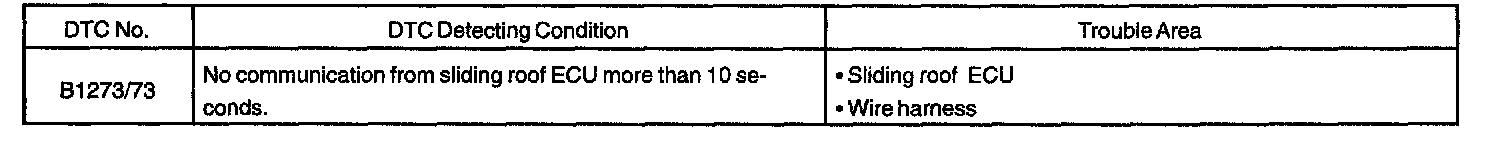

DTC Detecting Condition:

This DTC is output when communication stops between sliding roof ECU and body ECU.

Wiring Diagram:

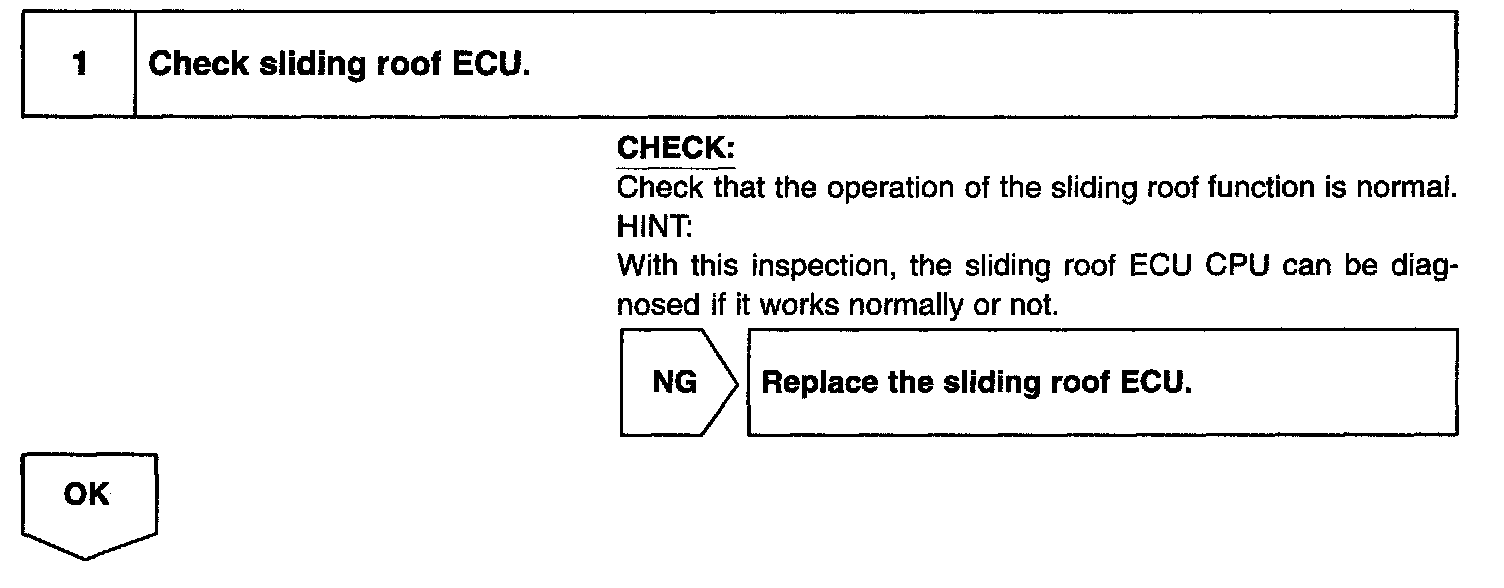

Step 1:

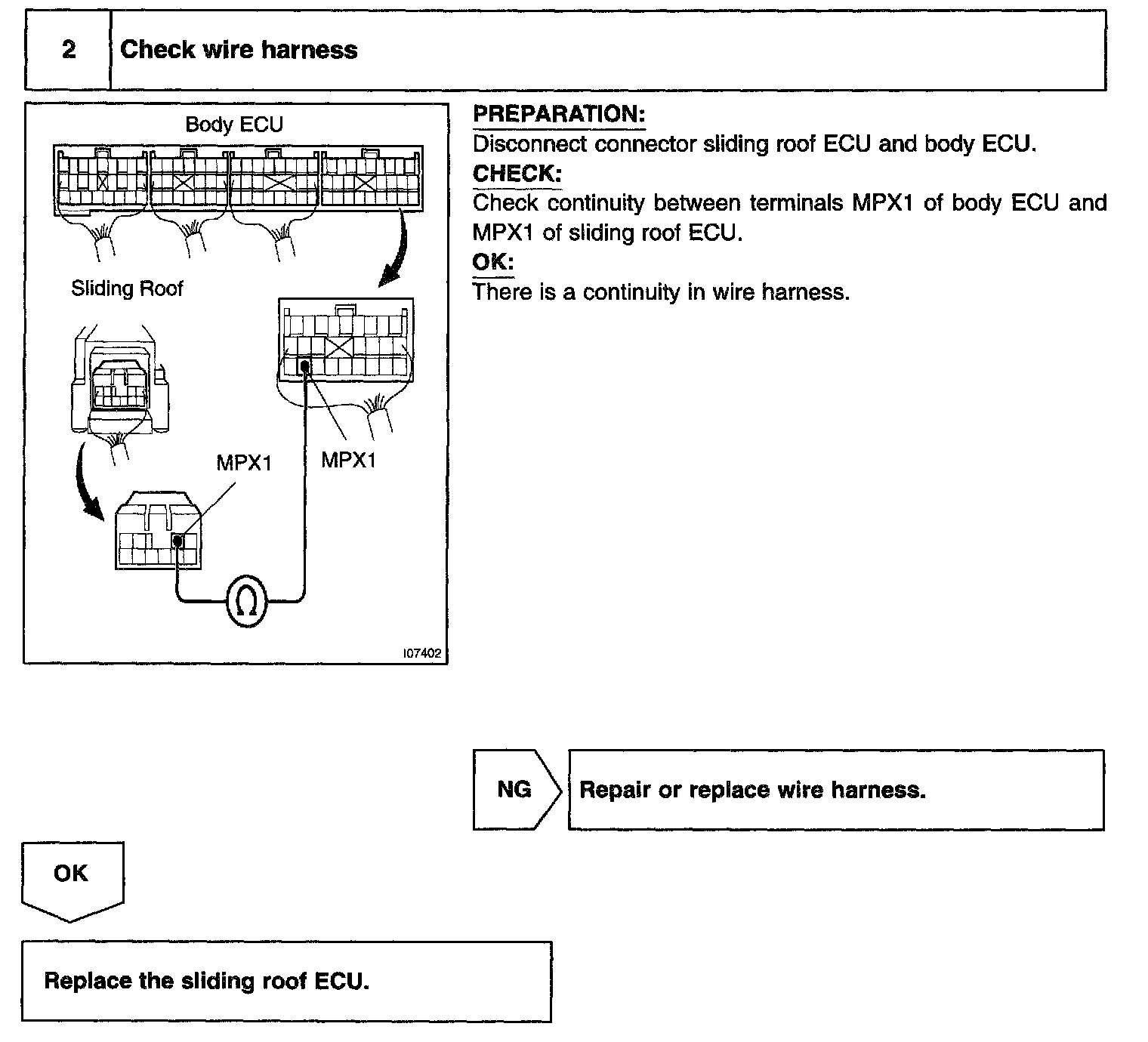

Step 2:

INSPECTION PROCEDURE
