B1237

DTC B1237 JAM PROTECTION LIMIT SWITCH CIRCUIT ON REAR LEFT DOOR

CIRCUIT DESCRIPTION

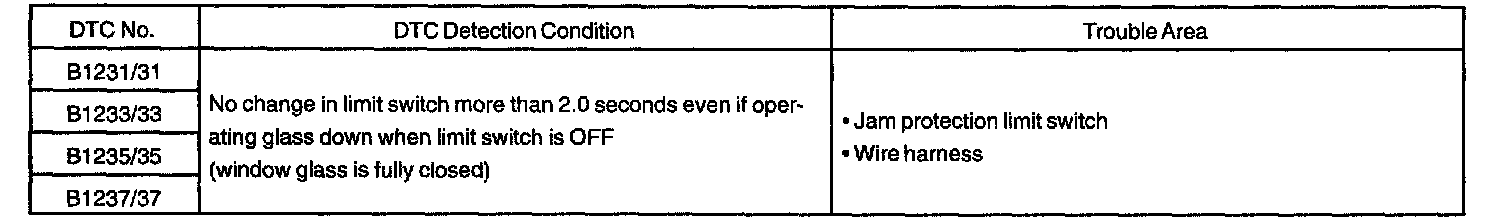

DTC Detection Condition:

These DTCs are output when a malfunction of limit switch within power window motor is detected.

HINT: Please refer to power window control system for switch inspection, and to each door system of Diagnostics section for wire harness inspection.
