B1234

DTC B1234 JAM PROTECTION PULSE SWITCH CIRCUIT ON PASSENGER DOOR

CIRCUIT DESCRIPTION

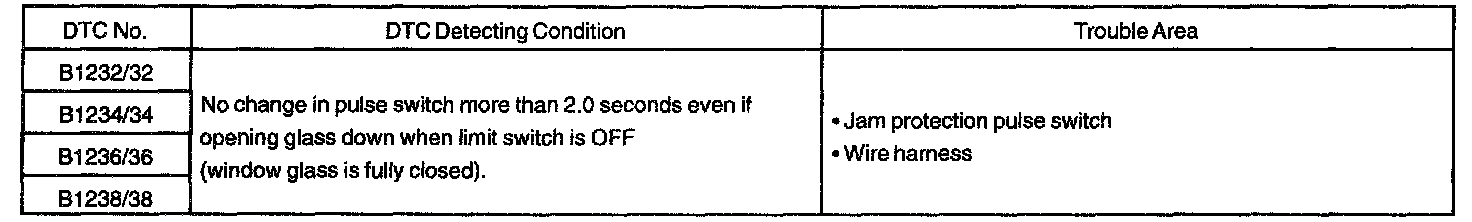

DTC Detecting Condition:

These DTCs are output when a malfunction of pulse switch within power window motor is detected.

HINT: Please refer to power window control system for switch inspection, and to each door system of Diagnostics section for wire harness inspection.
