B1215

DTC B1215 SYSTEM COMMUNICATION BUS MALFUNCTION (GND SHORT)

CIRCUIT DESCRIPTION

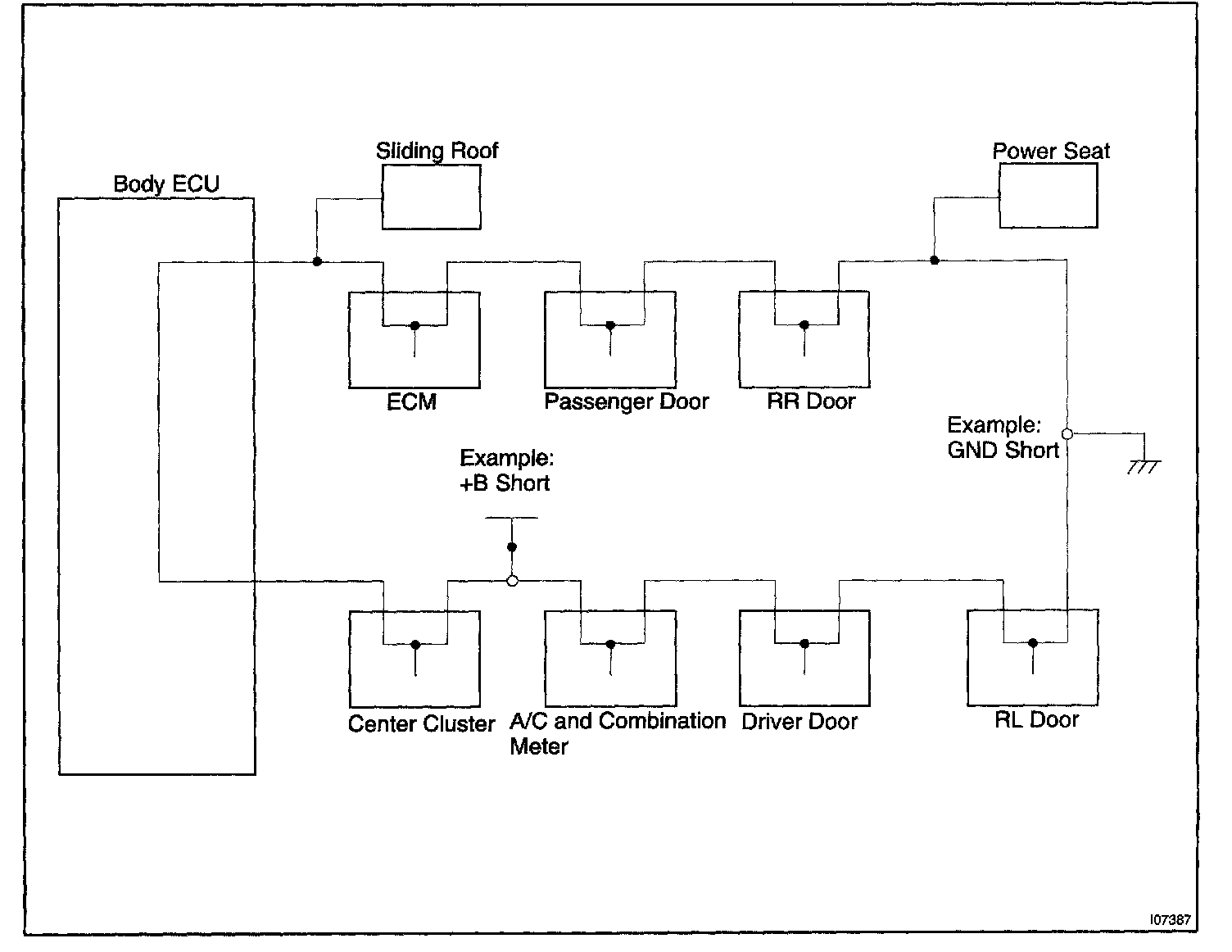

This DTC is output when +B or GND short occurs on door system communication bus. If +B or GND short is detected on door system communication bus, separate it by bus cut relay in body ECU to prevent while communication buses failure.

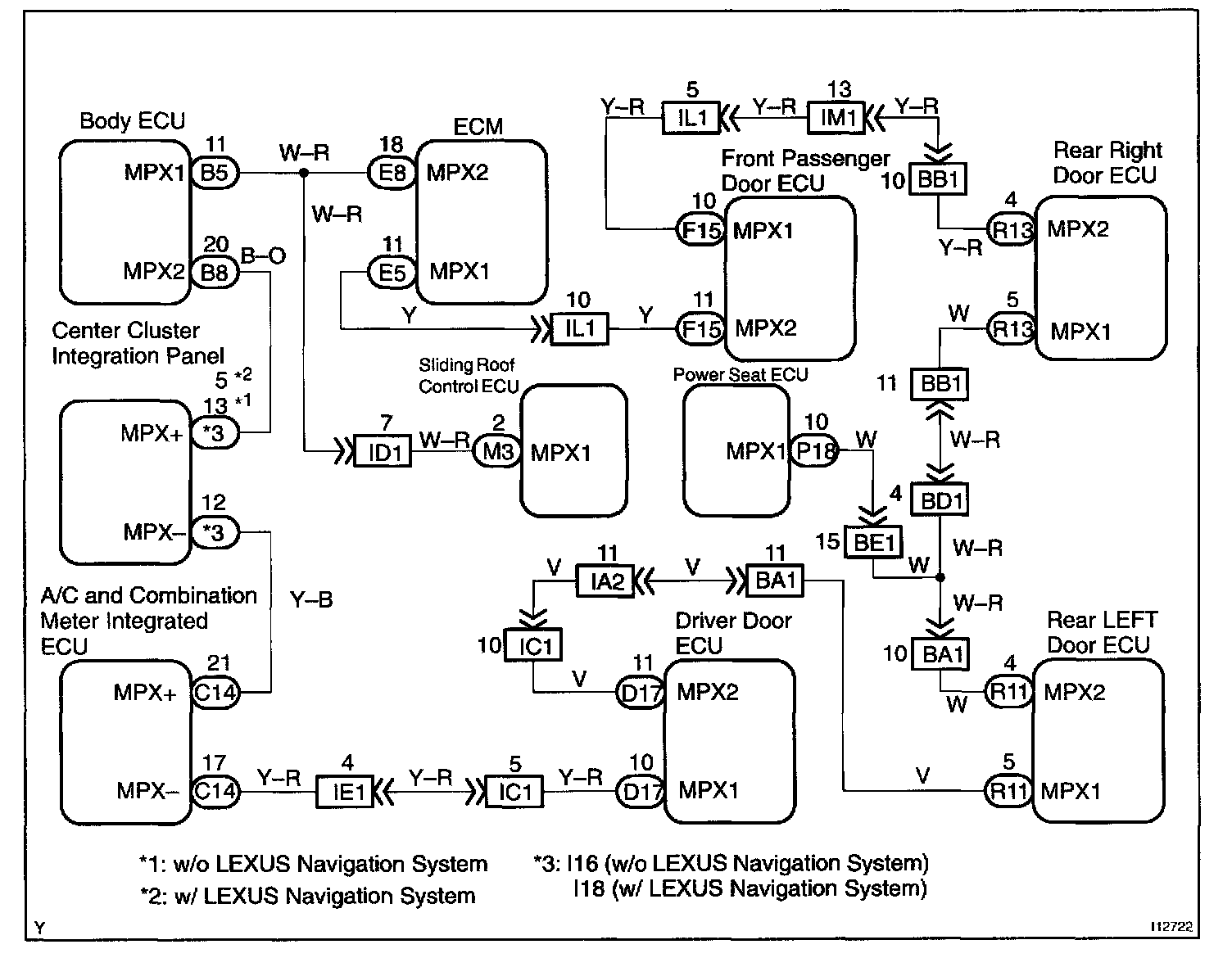

Wiring Diagram:

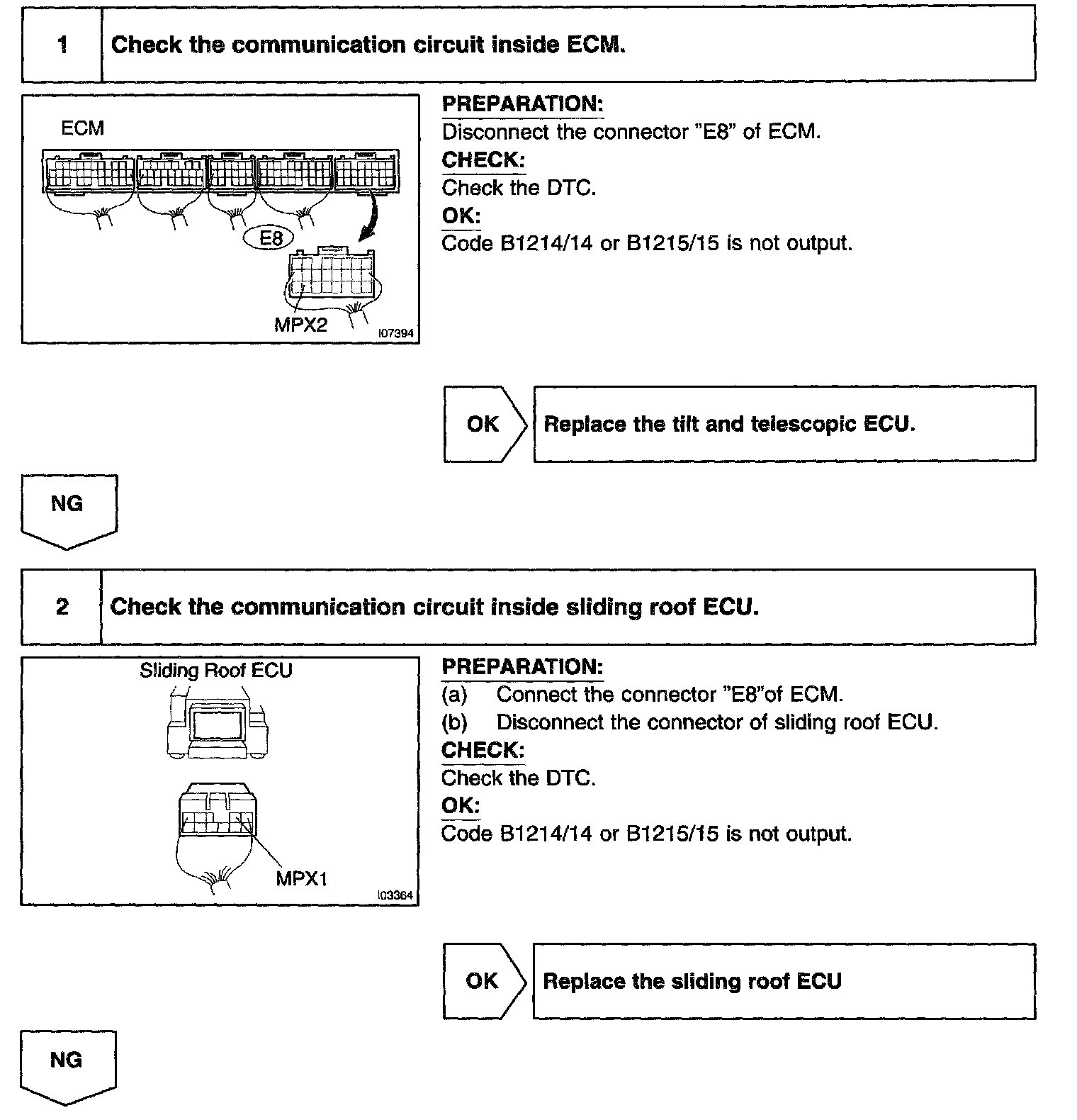

Step 1 - 2:

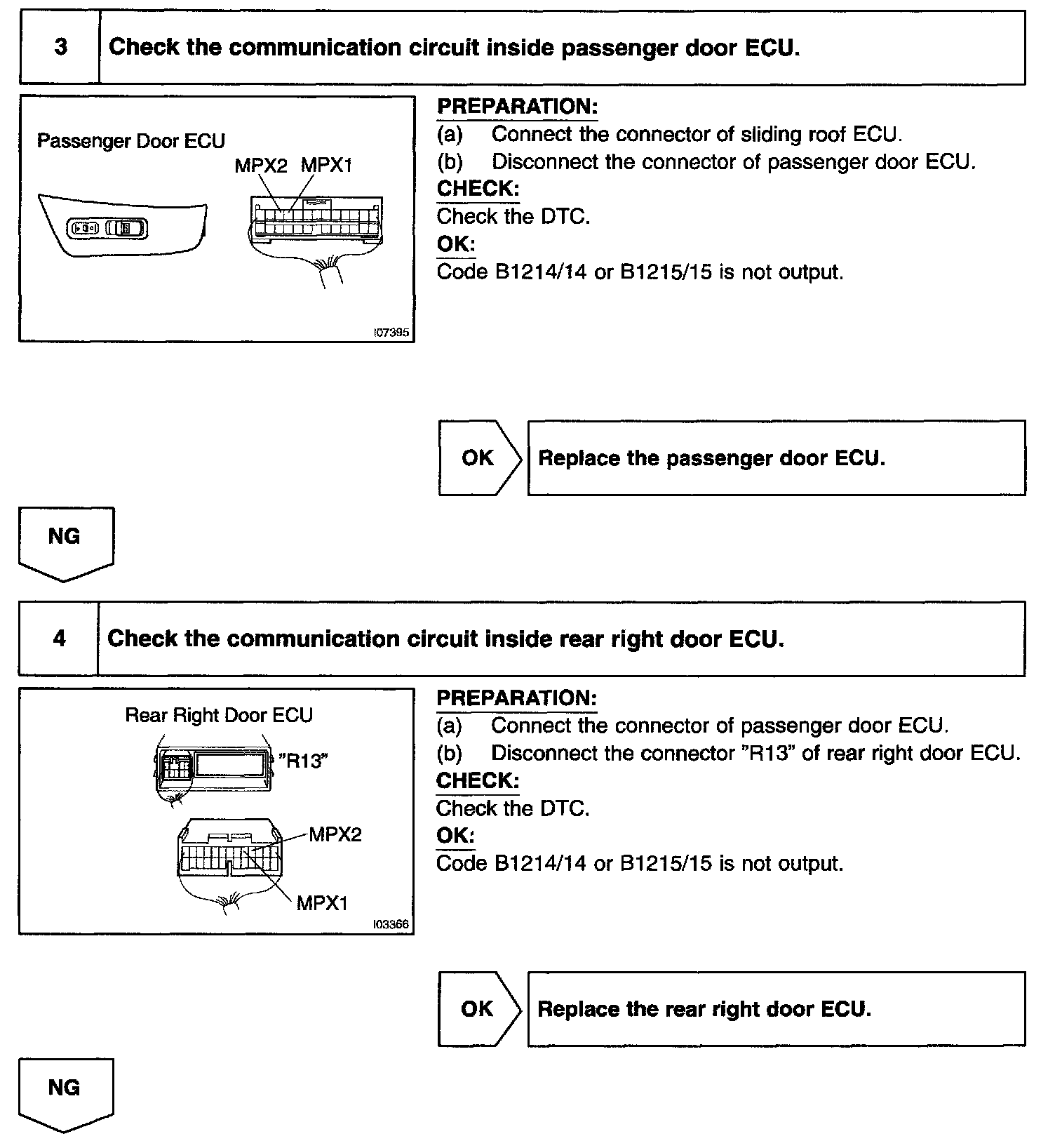

Step 3 - 4:

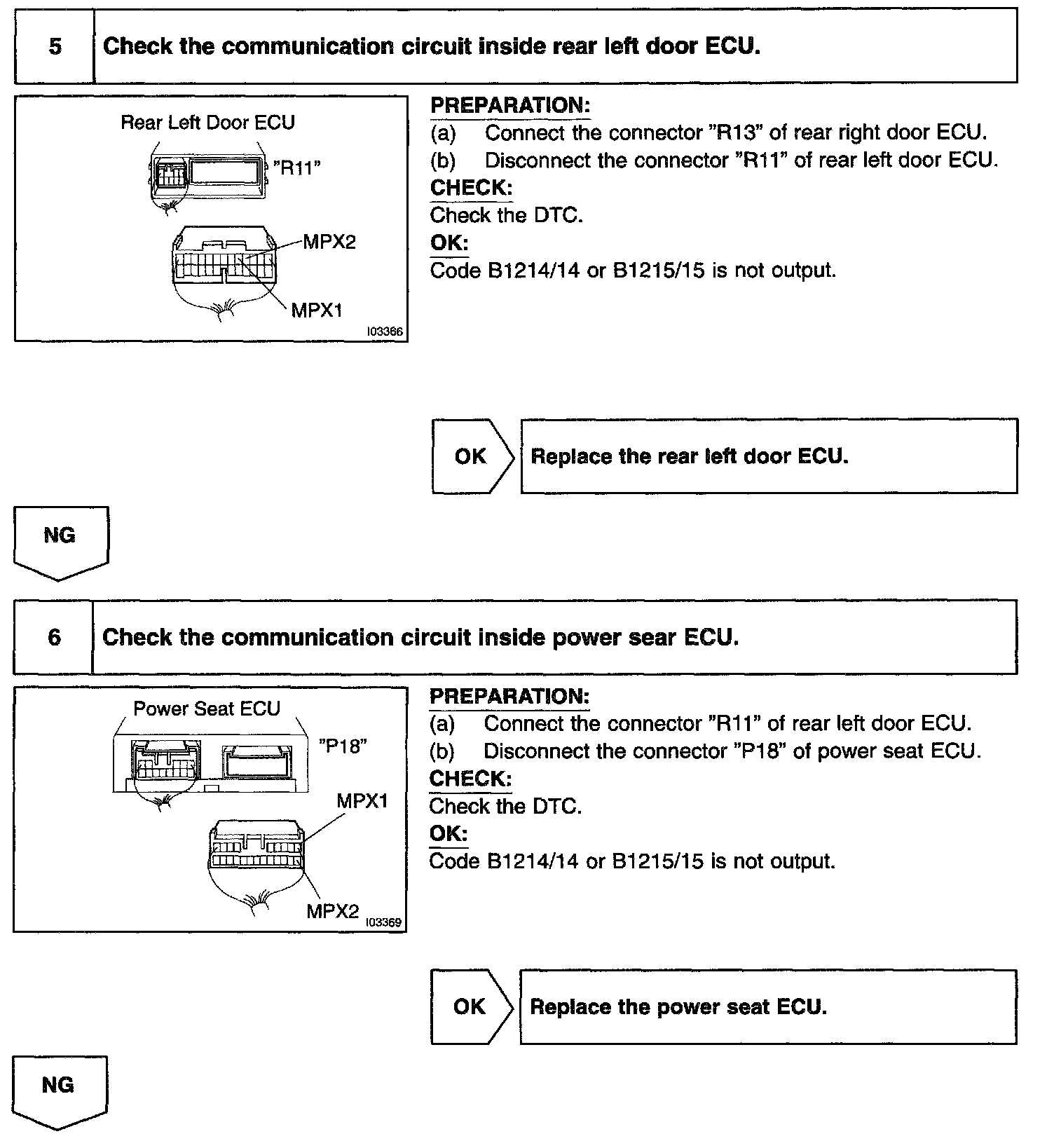

Step 5 - 6:

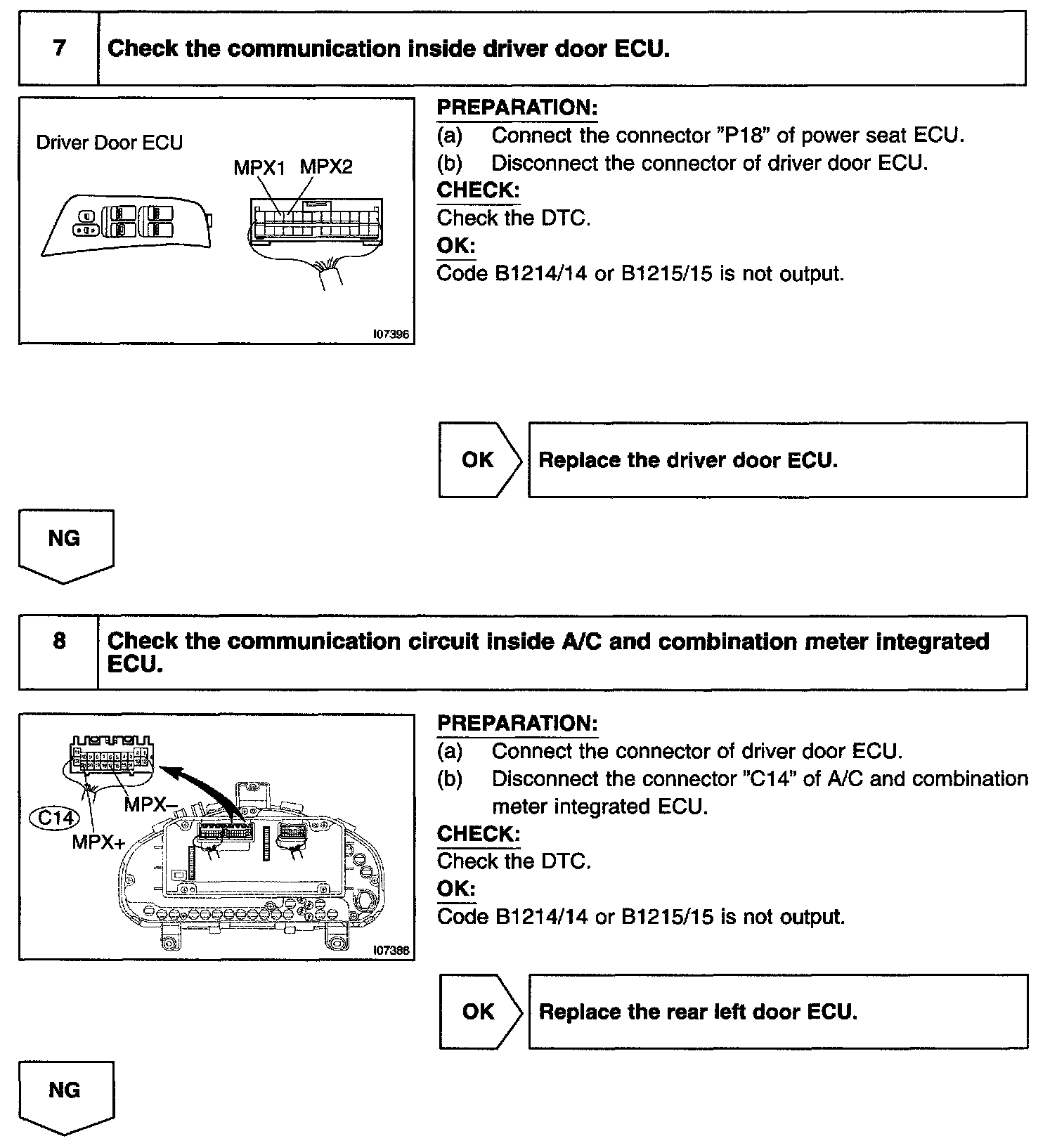

Step 7 - 8:

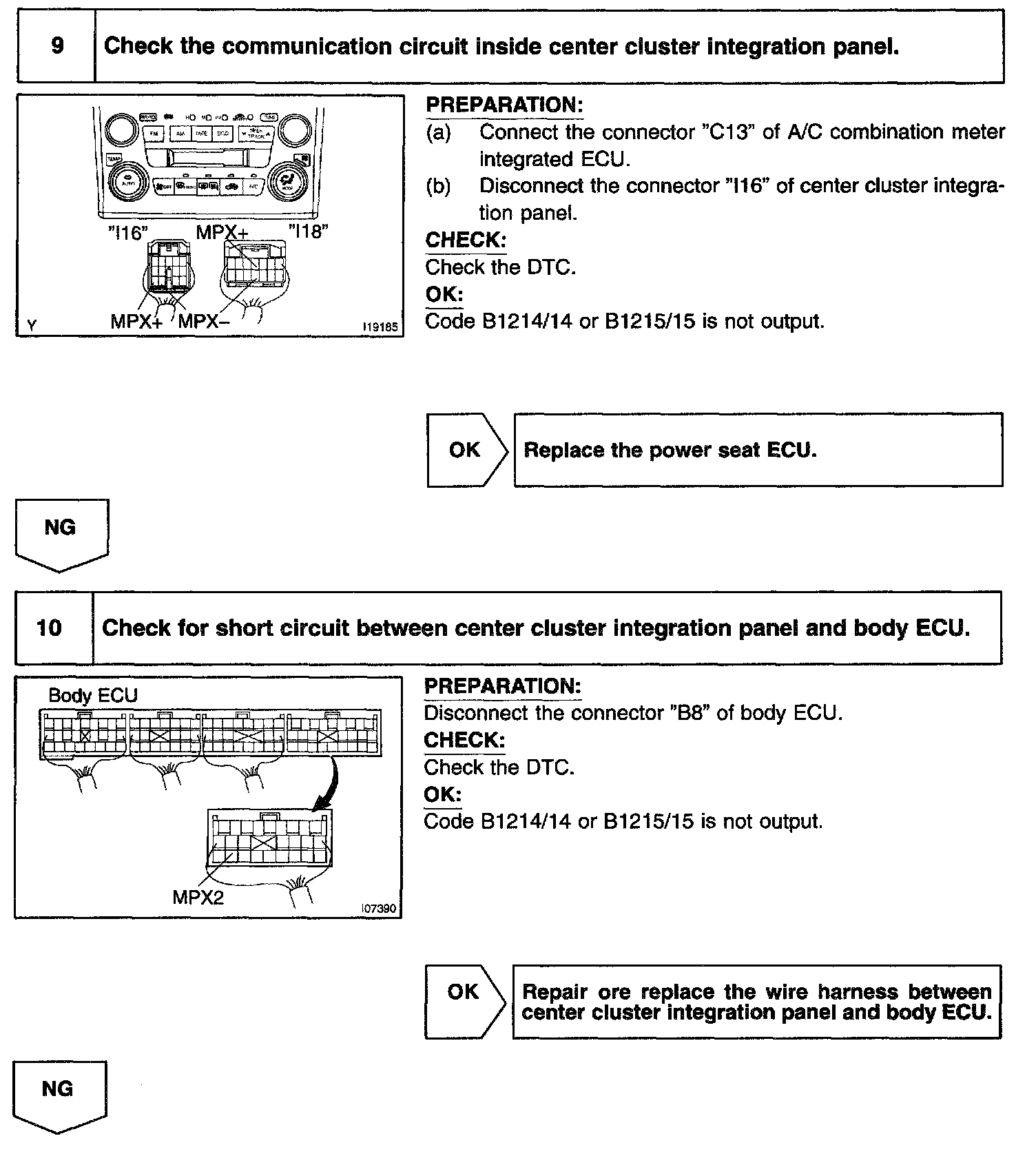

Step 9 - 10:

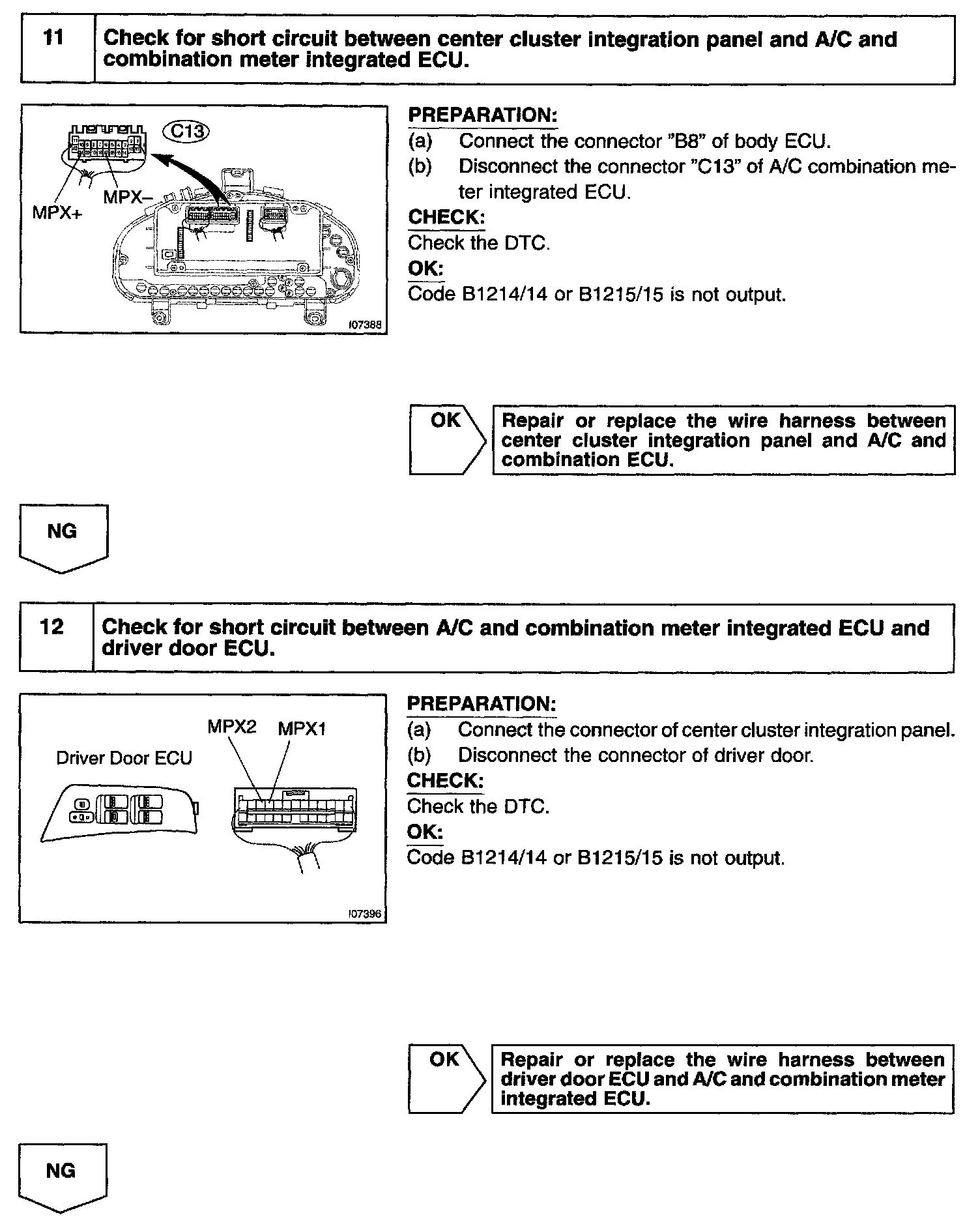

Step 11 - 12:

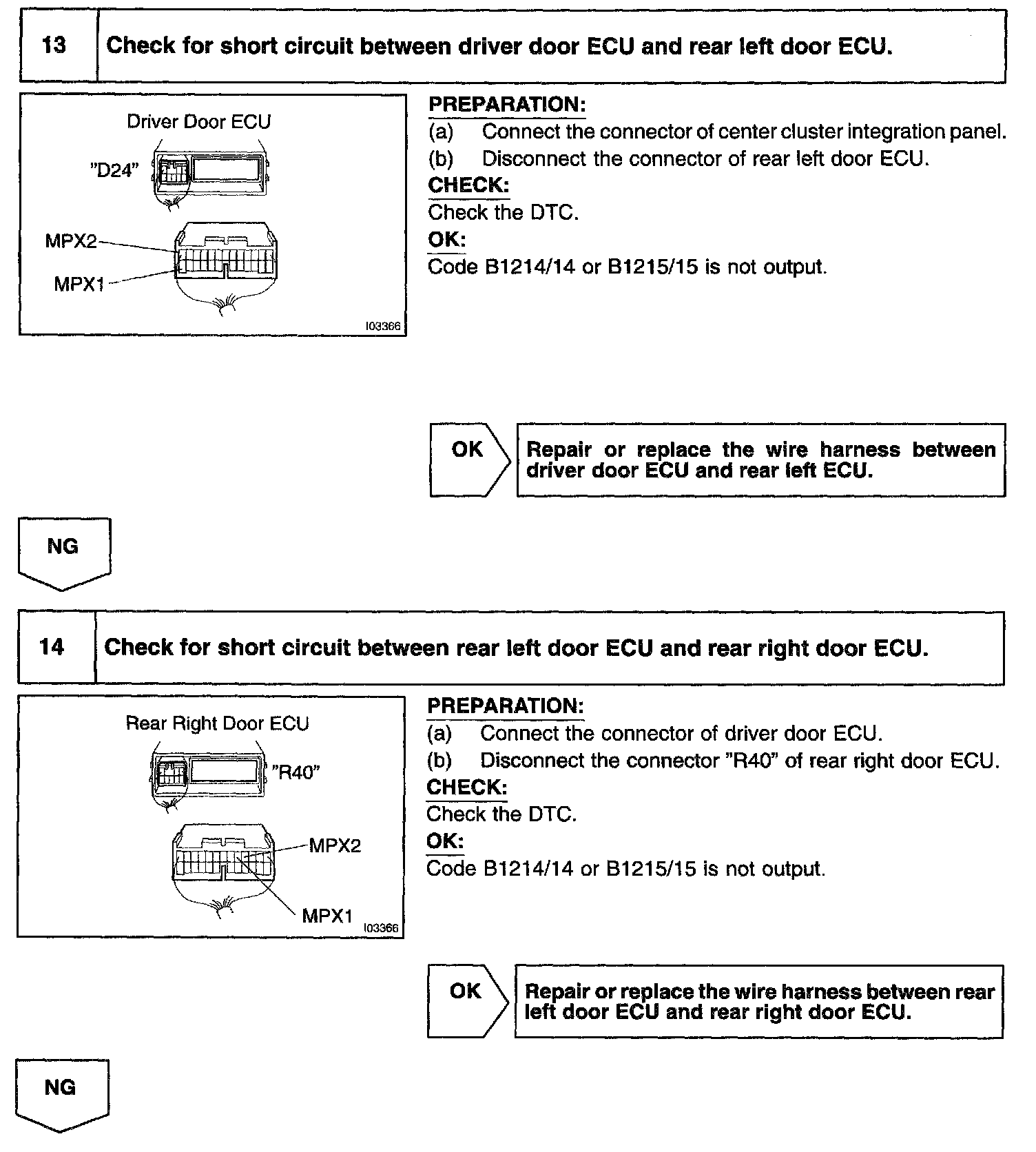

Step 13 - 14:

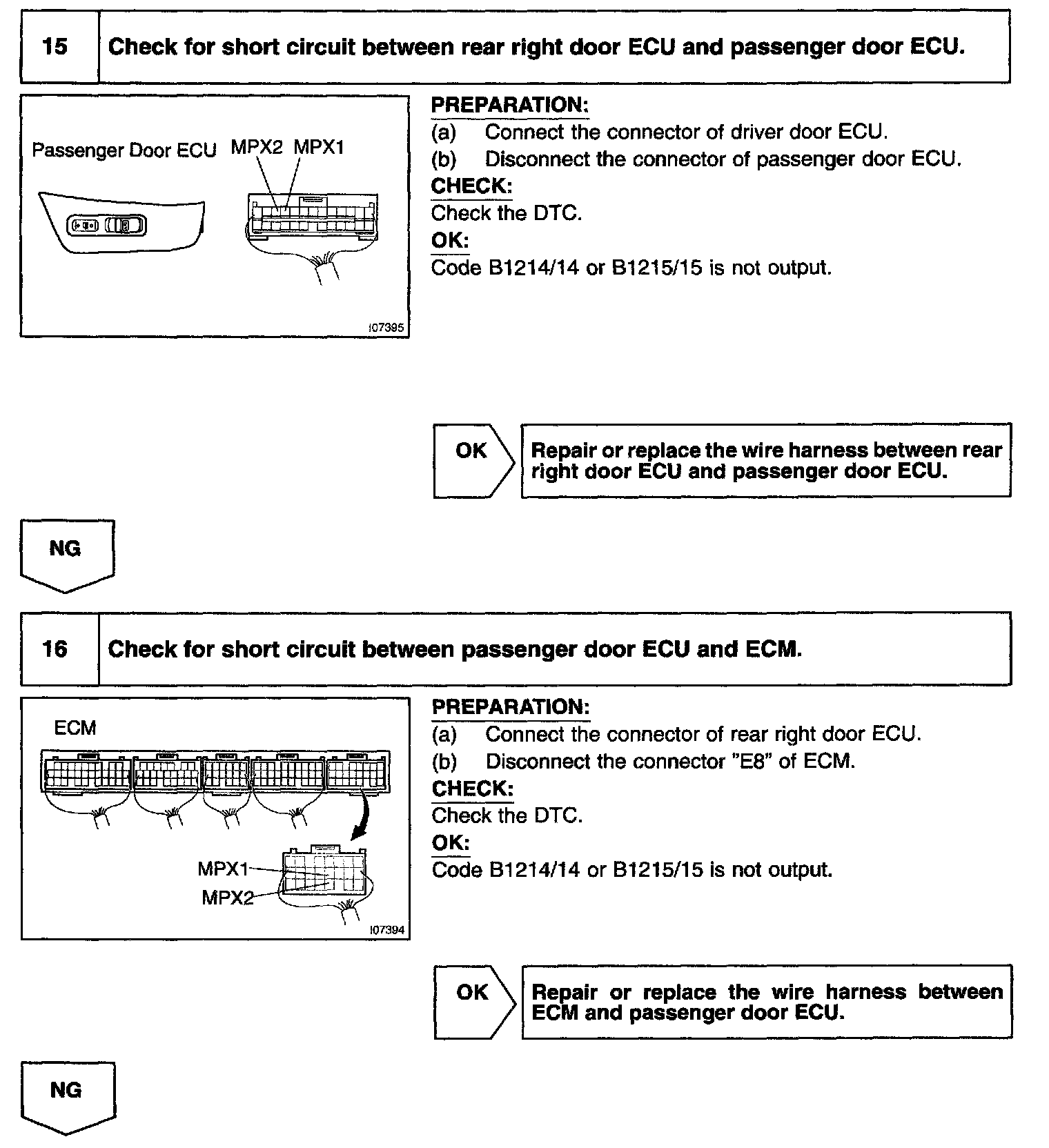

Step 15 - 16:

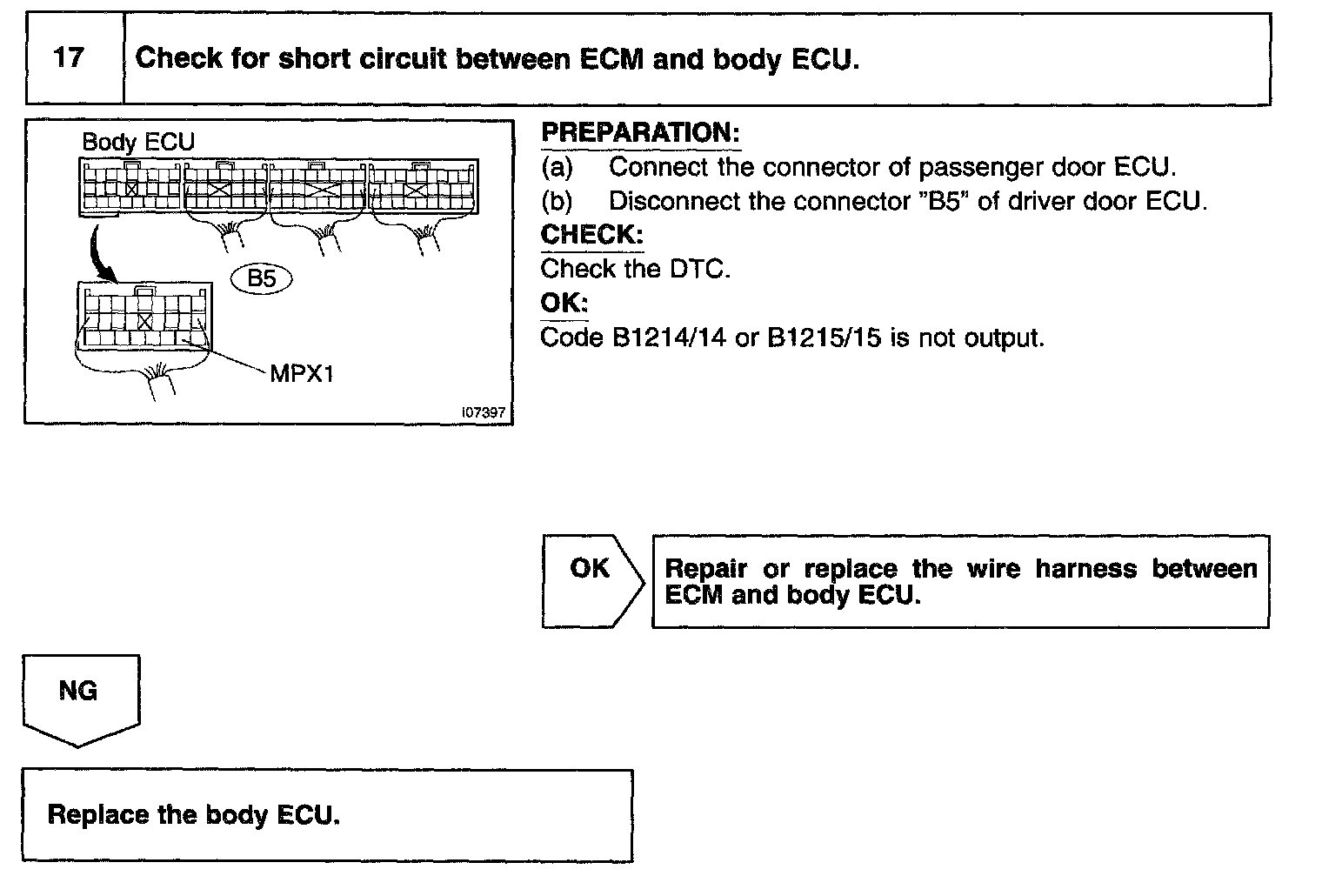

Step 17:

INSPECTION PROCEDURE
