B1212

DTC B1212 FRONT PASSENGER DOOR ECU COMMUNICATION STOP

CIRCUIT DESCRIPTION

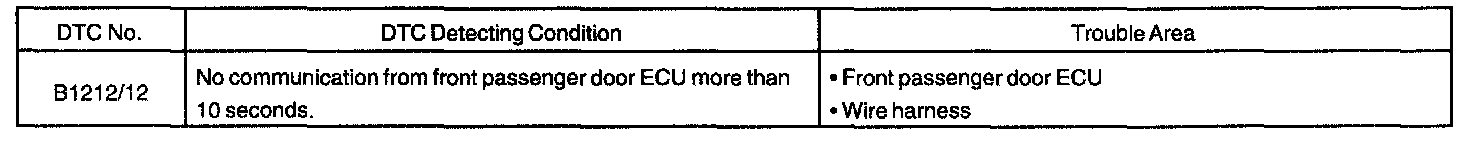

DTC Detecting Condition:

This DTC is output when communication stops between front passenger door ECU and body ECU.

Wiring Diagram:

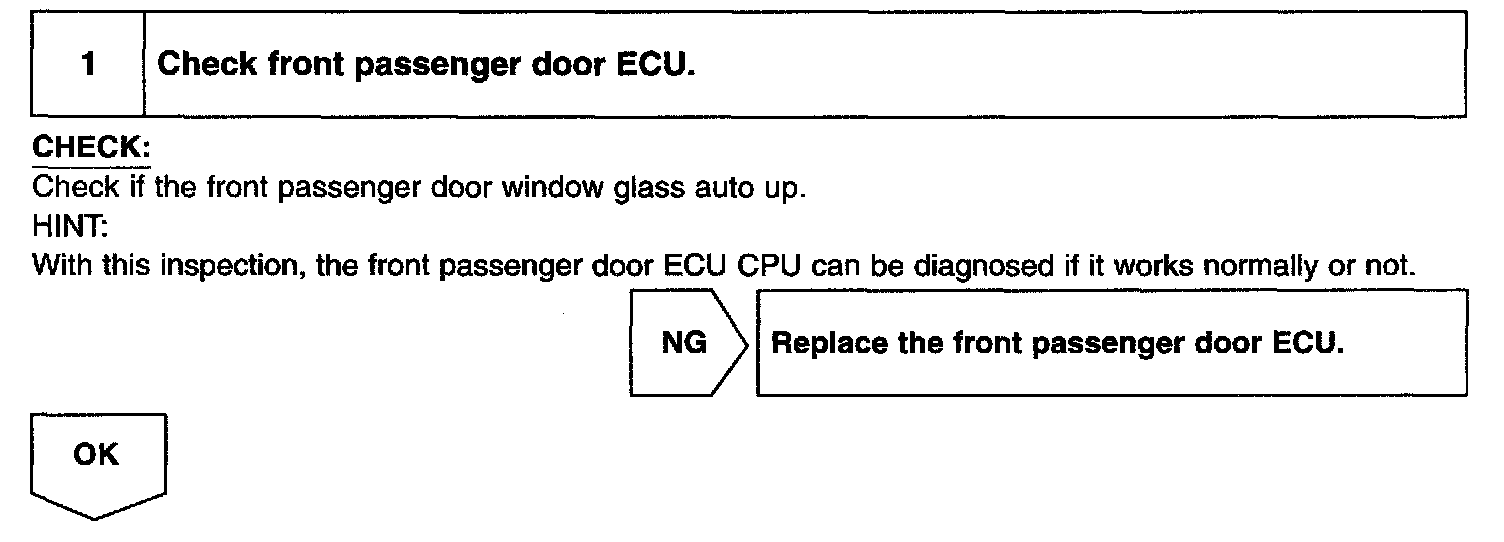

Step 1:

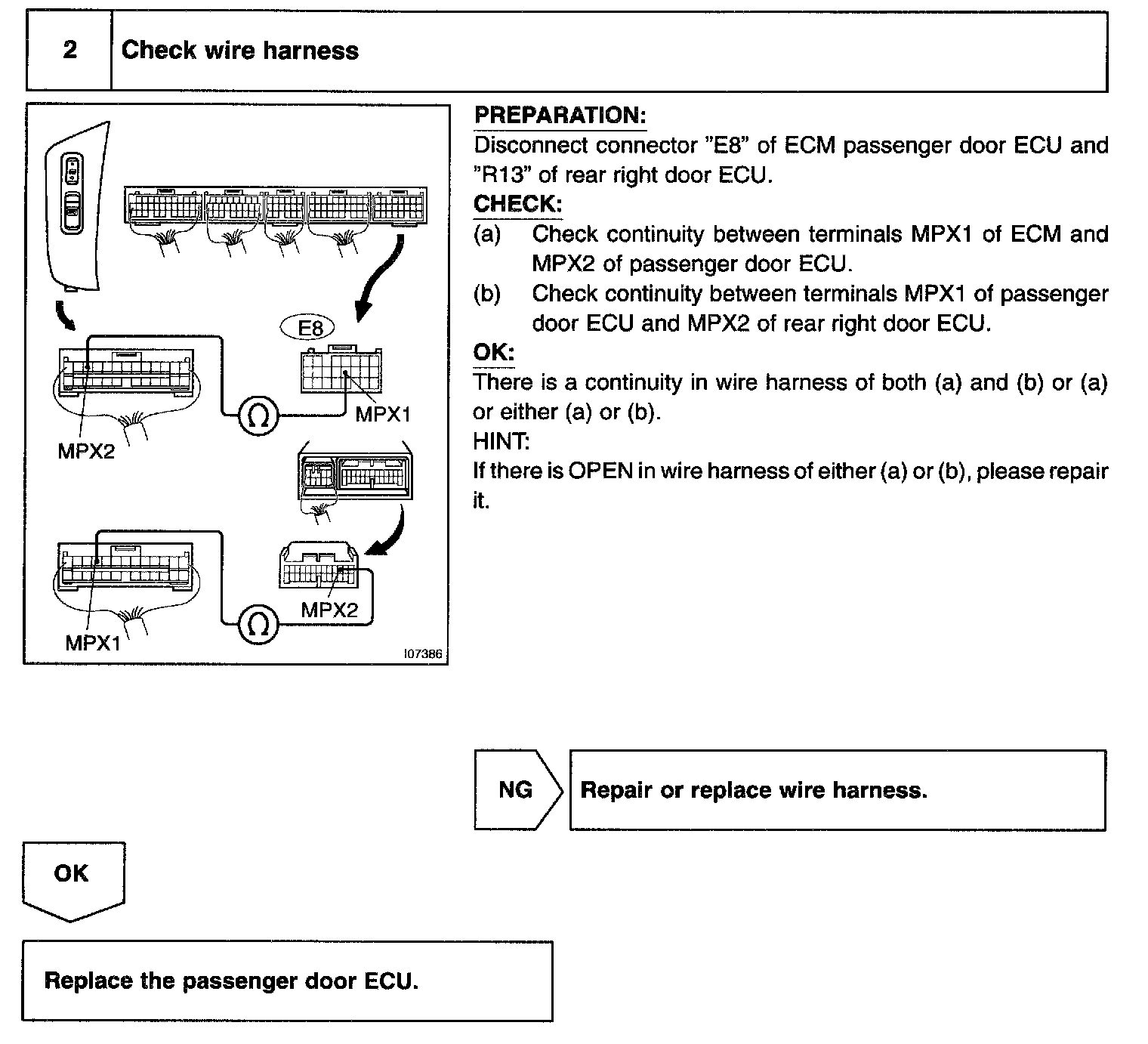

Step 2:

INSPECTION PROCEDURE
