Splice Locations

Body:

Splice Location
B1 Floor No.2 Wire
B2
B3 Roof Wire
B4 Roof Wire
B5 Roof Wire
B6 Roof Wire
B7 Floor Wire
B8 Back Door No.1 Wire
B9 Rear Door RH Wire
B10 Back Door No.1 Wire
B11

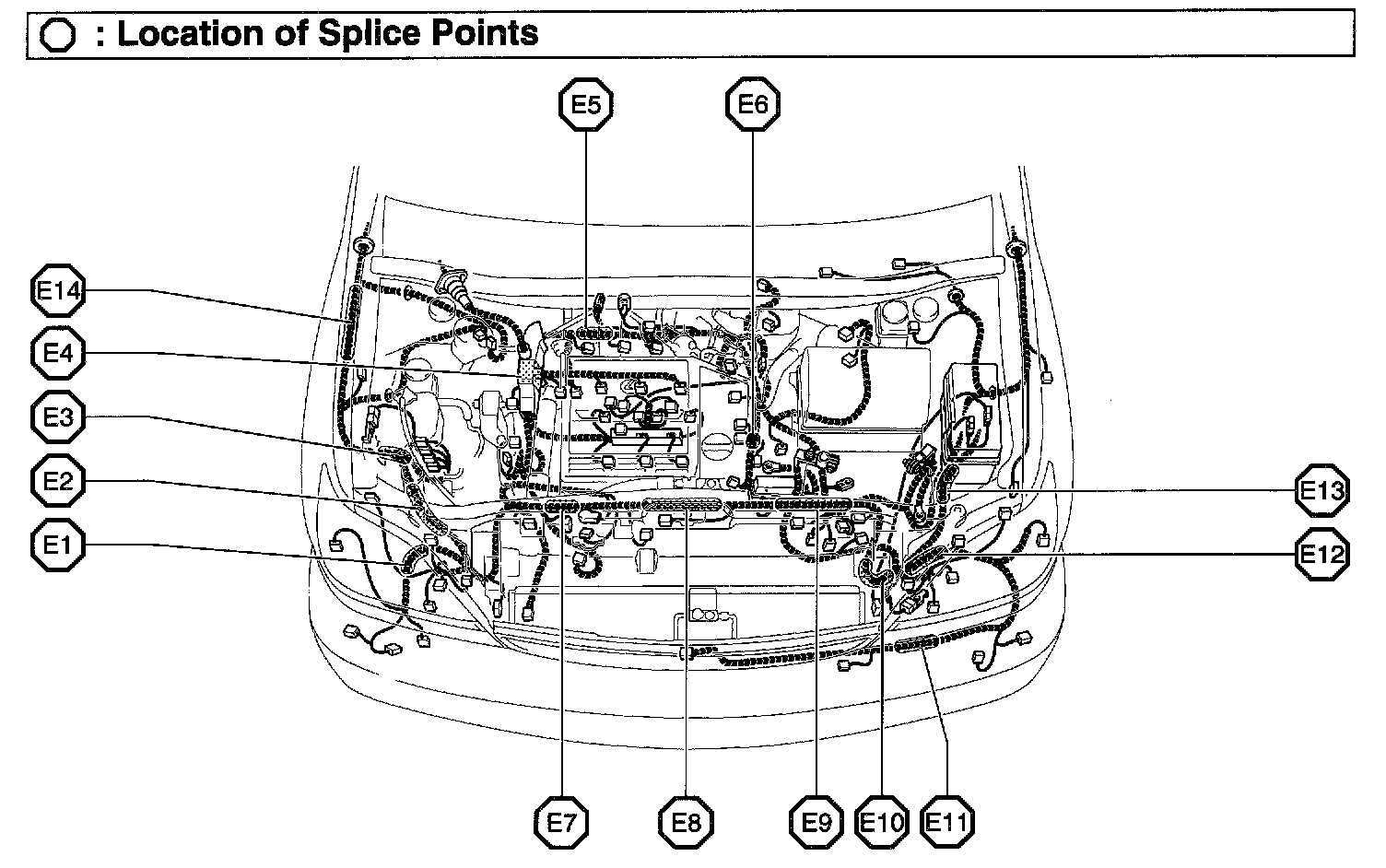

Engine Compartment:

Splice Location
E1 Engine Room Main Wire
E2 Engine Room Main Wire
E3 Engine Room Main Wire
E4 Engine Wire
E5 Engine Wire
E6 Engine Wire
E7 Engine Room Main Wire
E8 Engine Room Main Wire
E9 Engine Room Main Wire
E10 Engine Room Main Wire
E11
E12 Engine Room Main Wire
E13
E14 Engine Room Main Wire

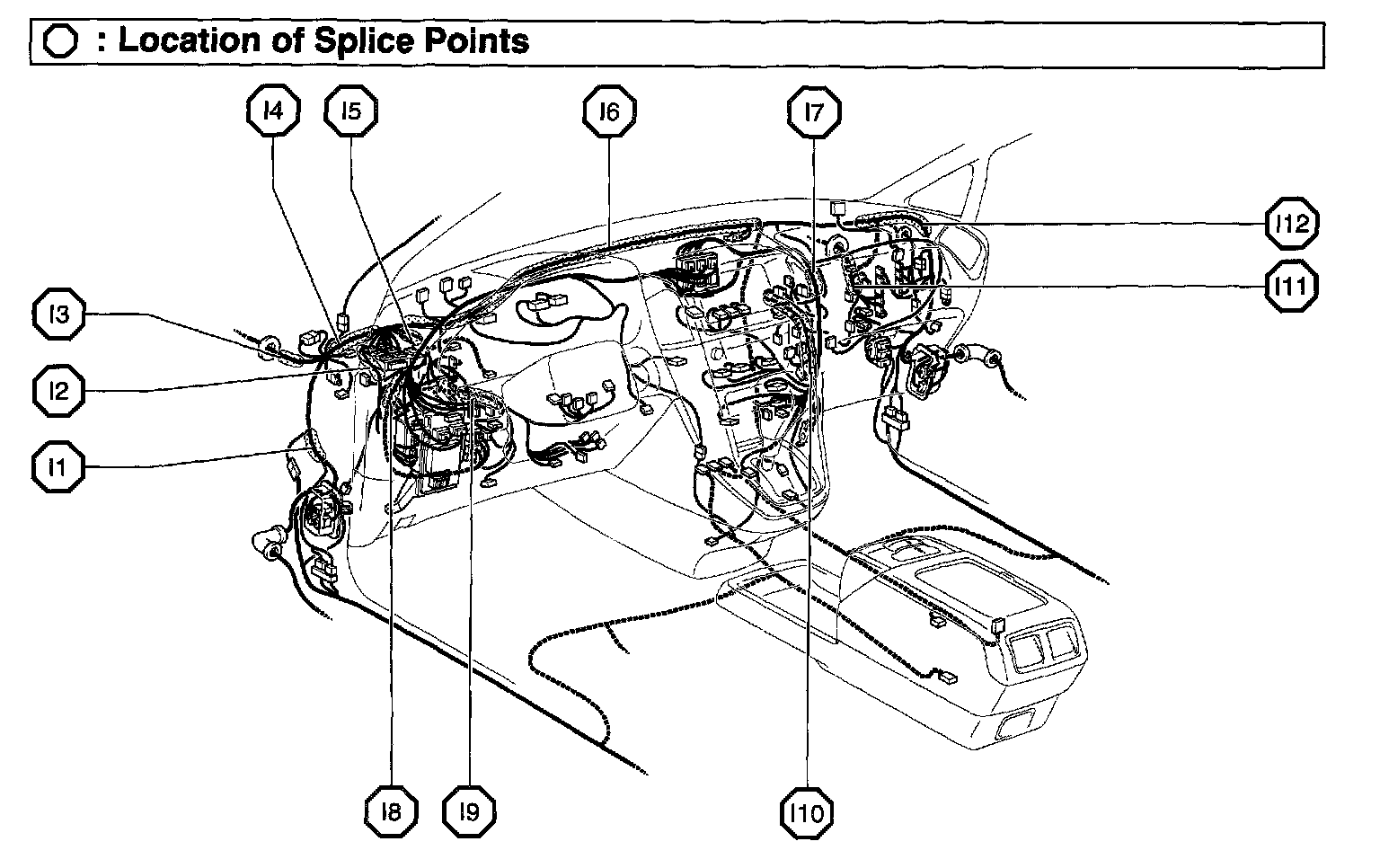

Instrument Panel / Center Console:

Splice Location
I1 Cowl Wire
I2 Cowl Wire
I3 Cowl Wire
I4 Cowl Wire
I5 Cowl Wire
I6 Cowl Wire
I7 Instrument Panel Wire
I8 Instrument Panel Wire
I9 Cowl Wire
I10 A/C Sub No.2 Wire
I11 Engine Wire
I12 Cowl Wire
