Home >> Lexus Truck >> 2001 >> RX 300 AWD V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Catalytic Converter >> Locations

Catalytic Converter: Locations

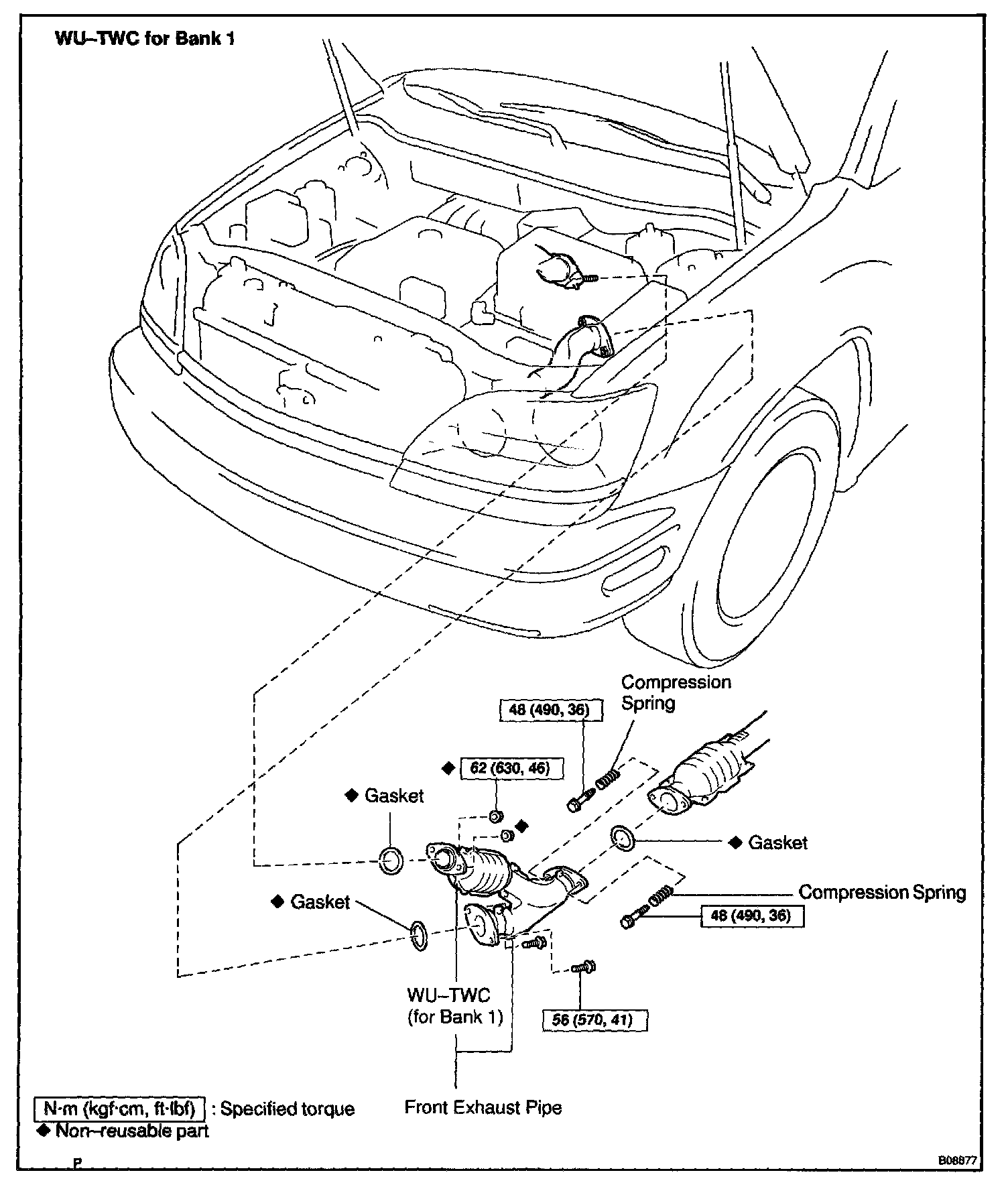

WU-TWC For Bank 1:

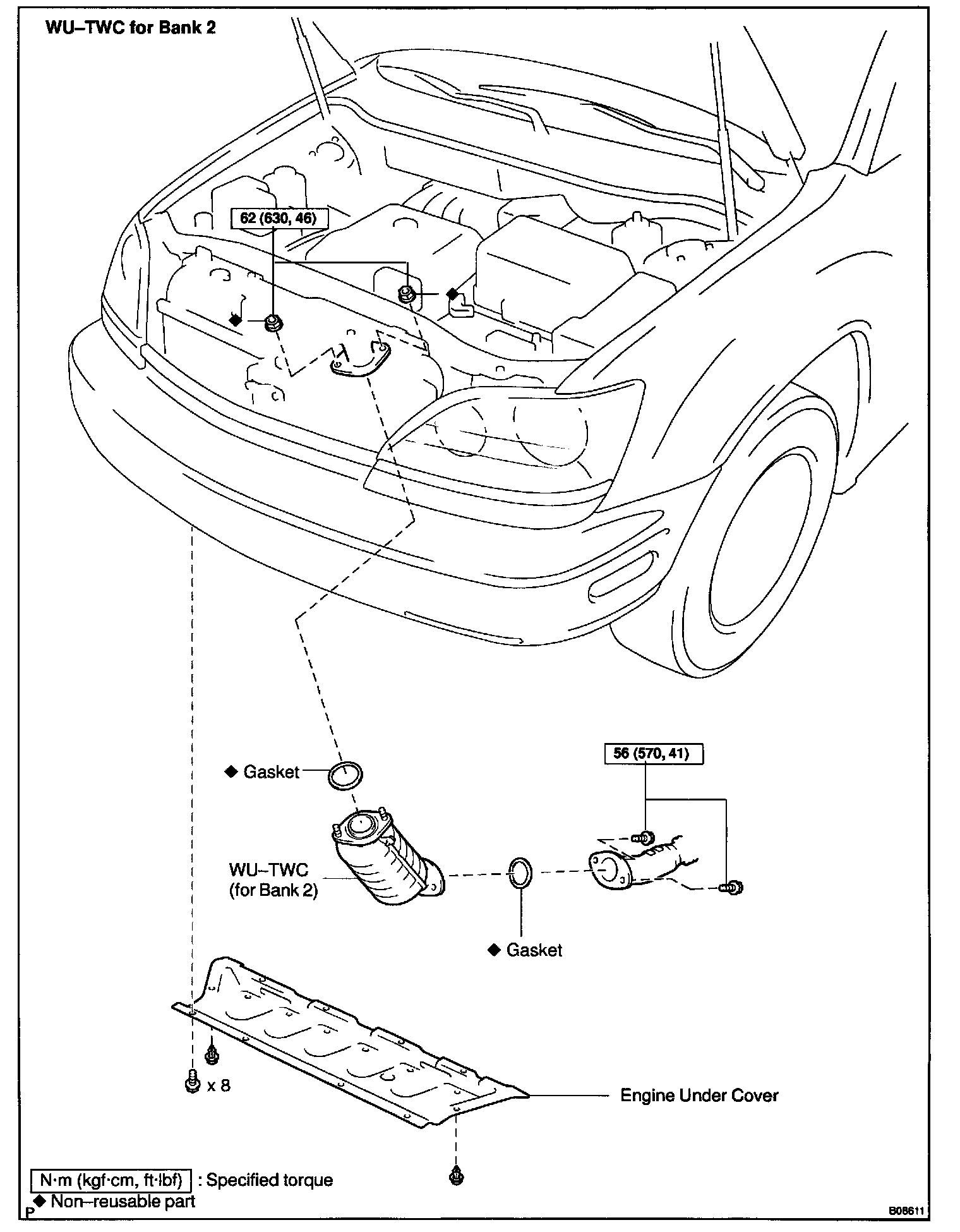

WU-TWC For Bank 2:

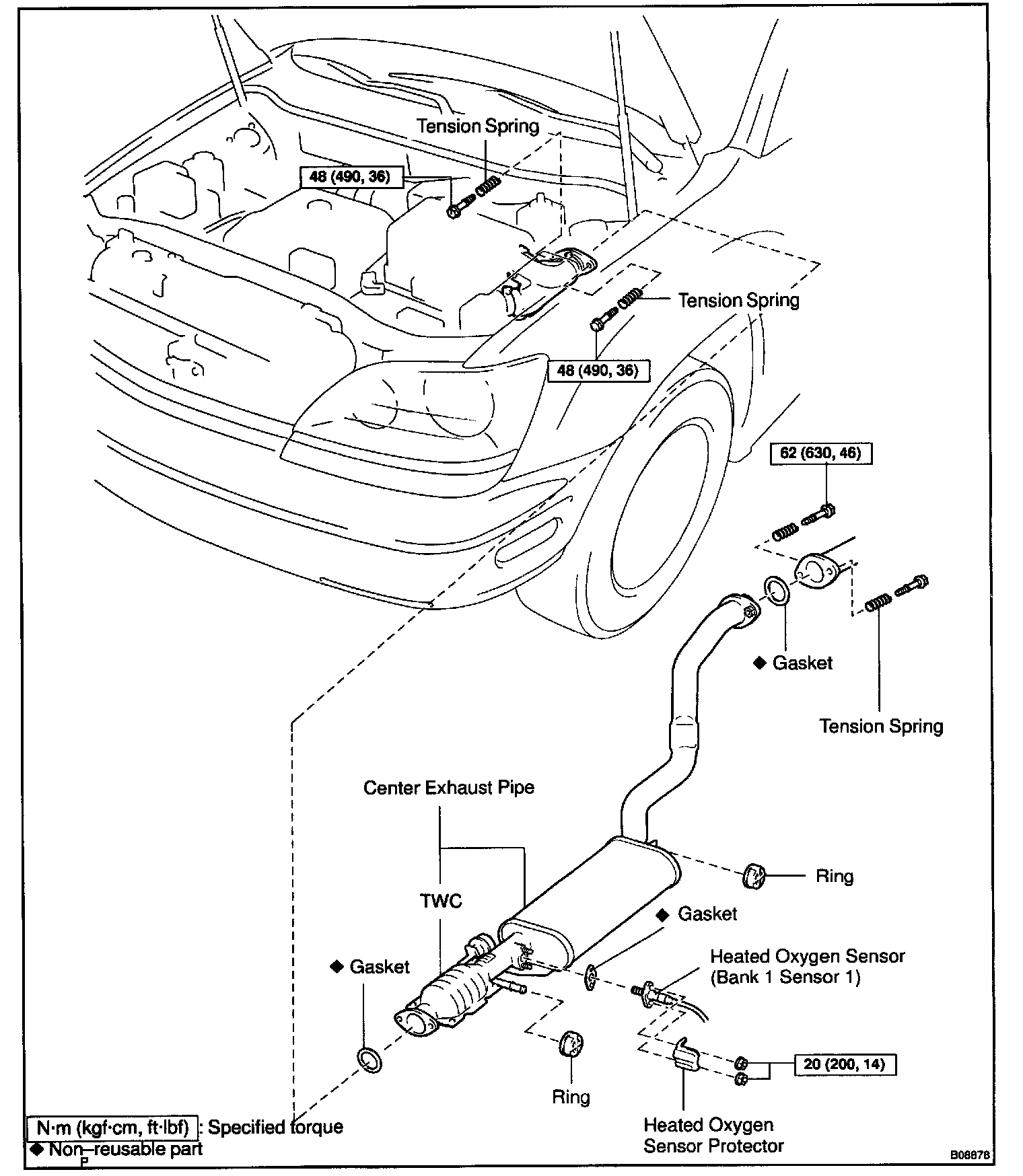

Three-Way Catalytic Converter (TWC):
