Hazard Switch Circuit

CIRCUIT DESCRIPTION
Body ECU activates the flasher relay during warning of the theft deterrent system and flashers the hazard

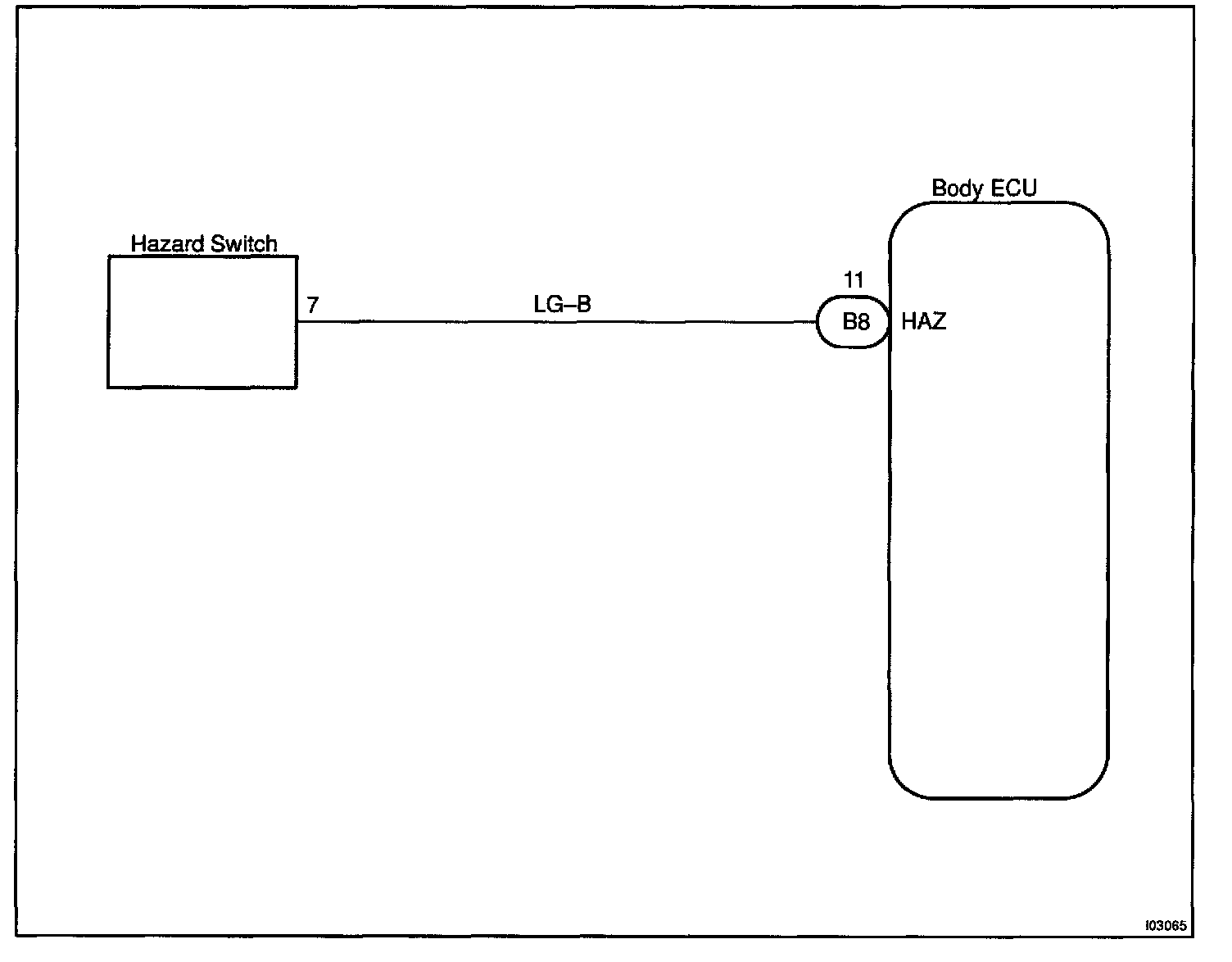

Wiring Diagram:

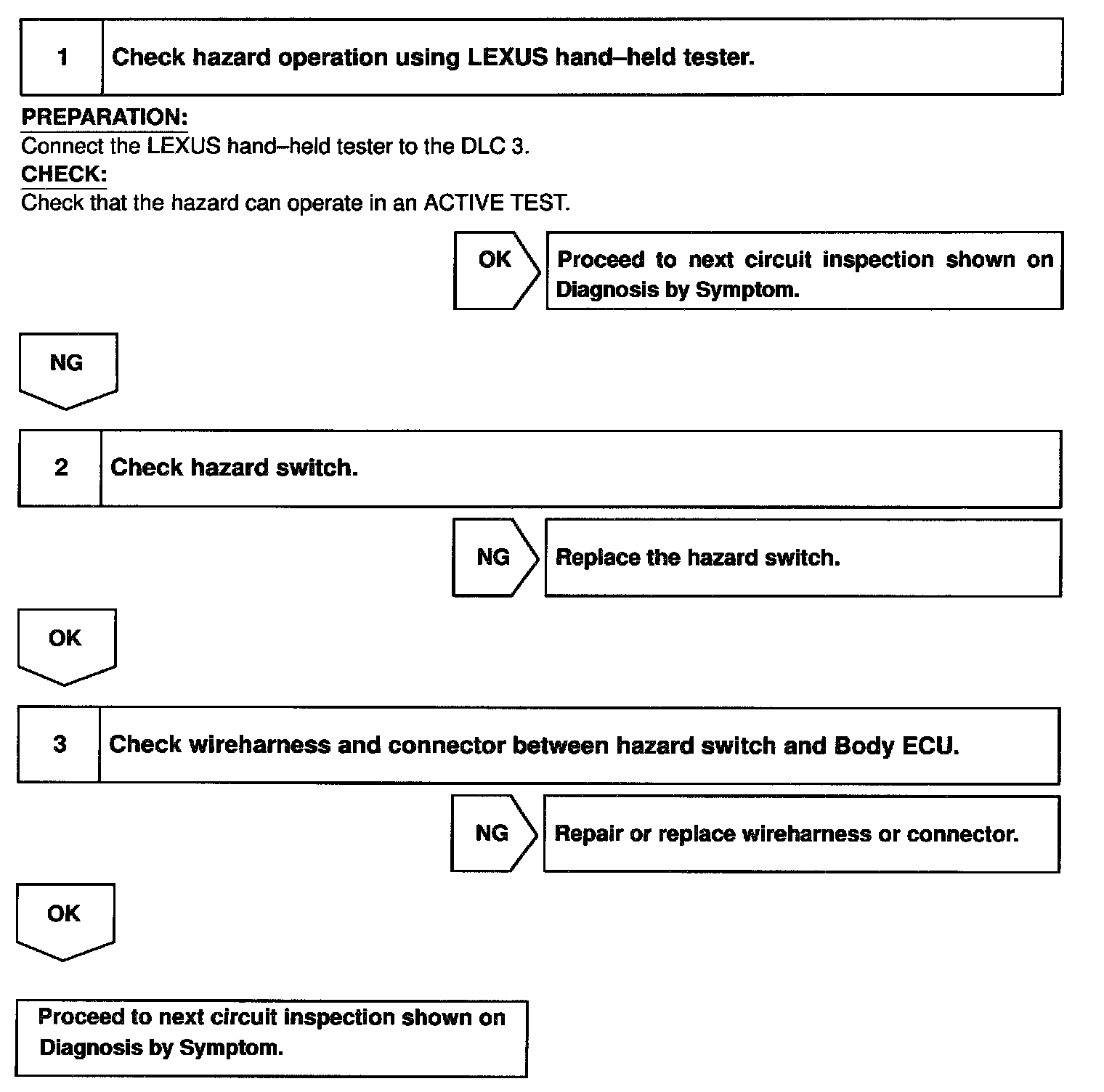

Steps 1 - 3:

INSPECTION PROCEDURE

HINT: In case of using the LEXUS hand-held tester, start the inspection from step 1 and incase of not using the LEXUS hand-held tester, start from step 2.
