Lexus Truck
>>
2001
>>
RX 300 AWD V6-3.0L (1MZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Seats
>>
Seat Temperature Element
Seat Temperature Element

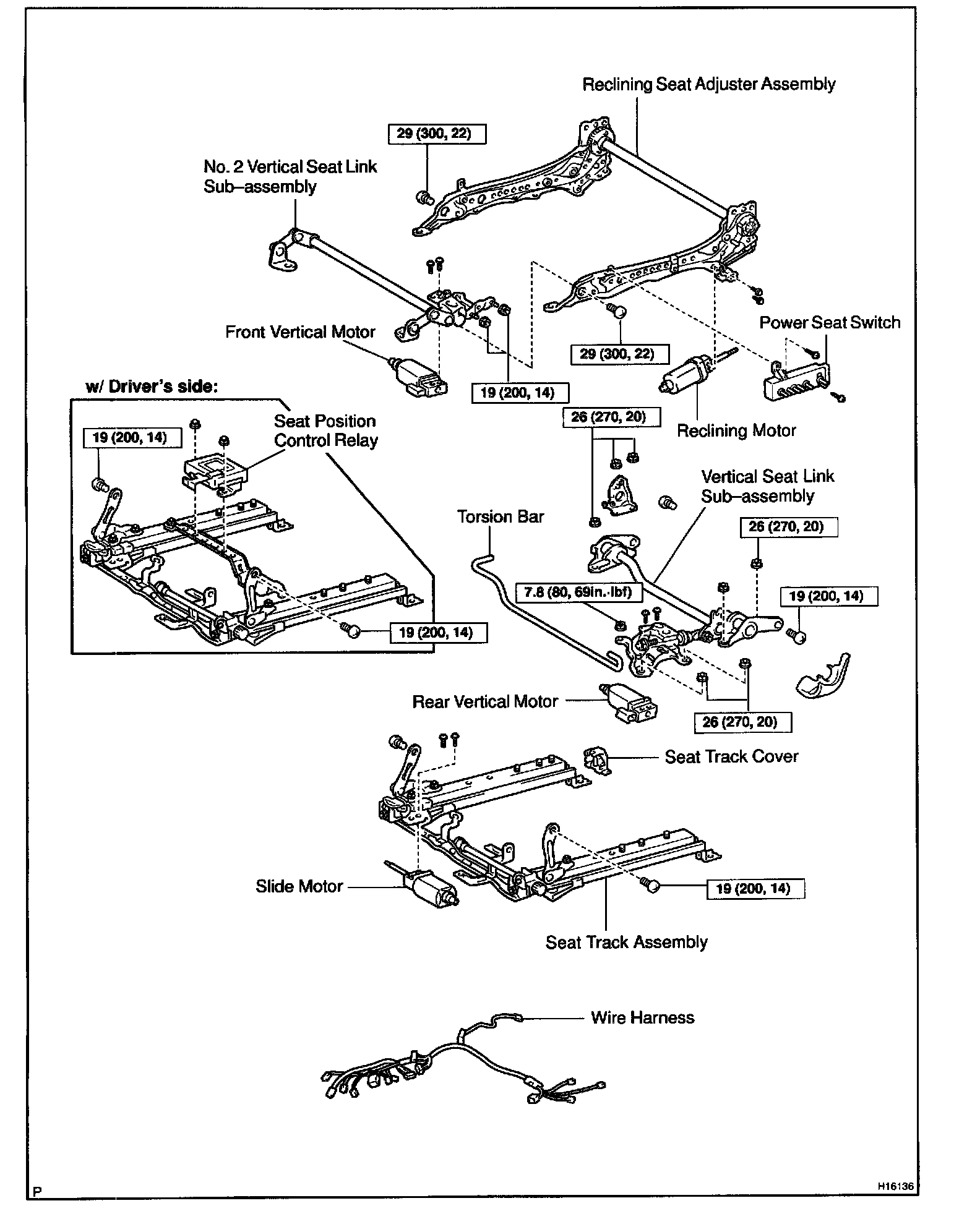

Front Seat (Part 1):

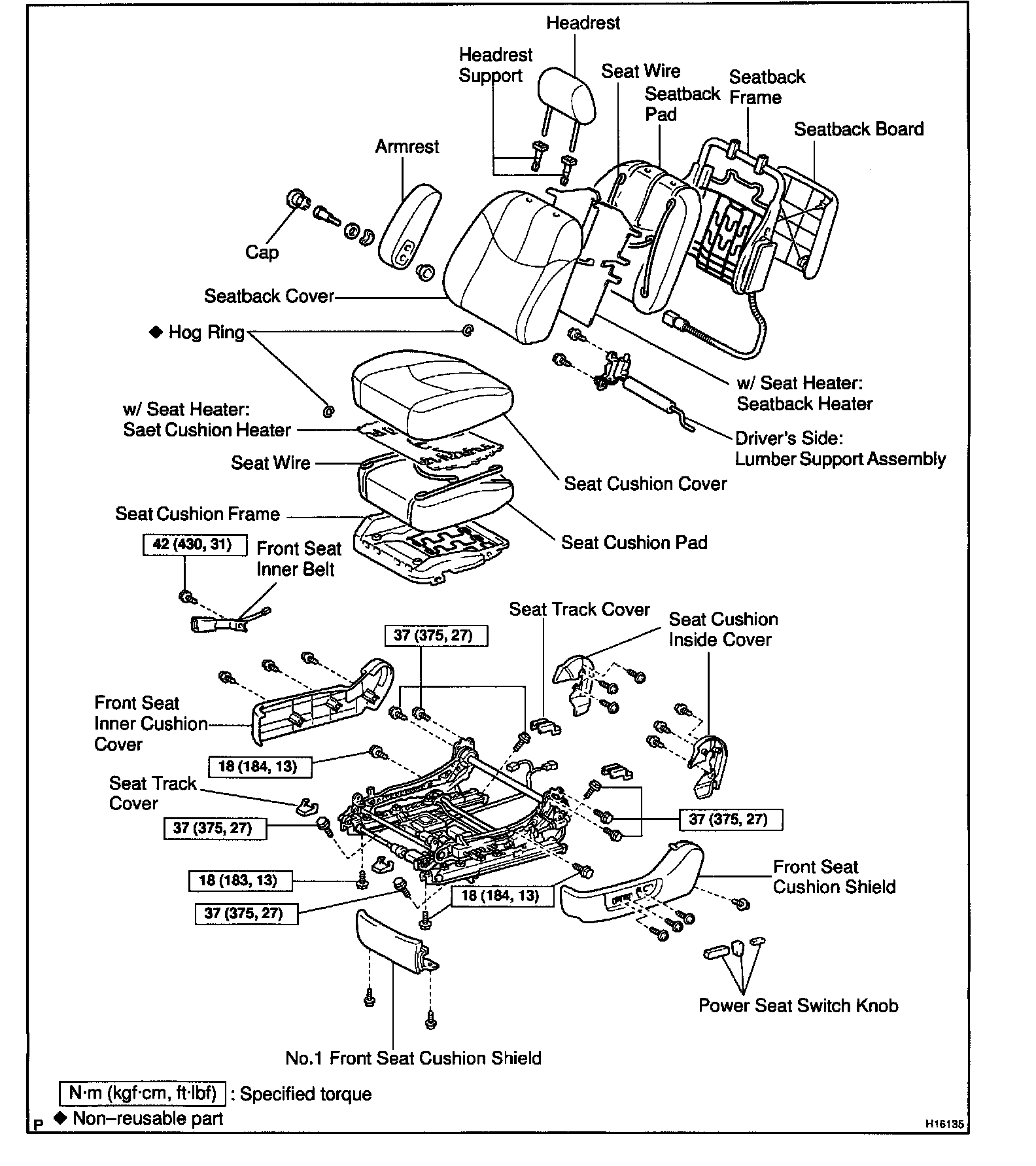

Front Seat (Part 2):
