Park/Neutral Position Switch Circuit

CIRCUIT DESCRIPTION
When the shift position is except D, a signal is sent from the neutral start switch to the ECU. When this signal is input during cruise control driving, the ECU cancels the cruise control.

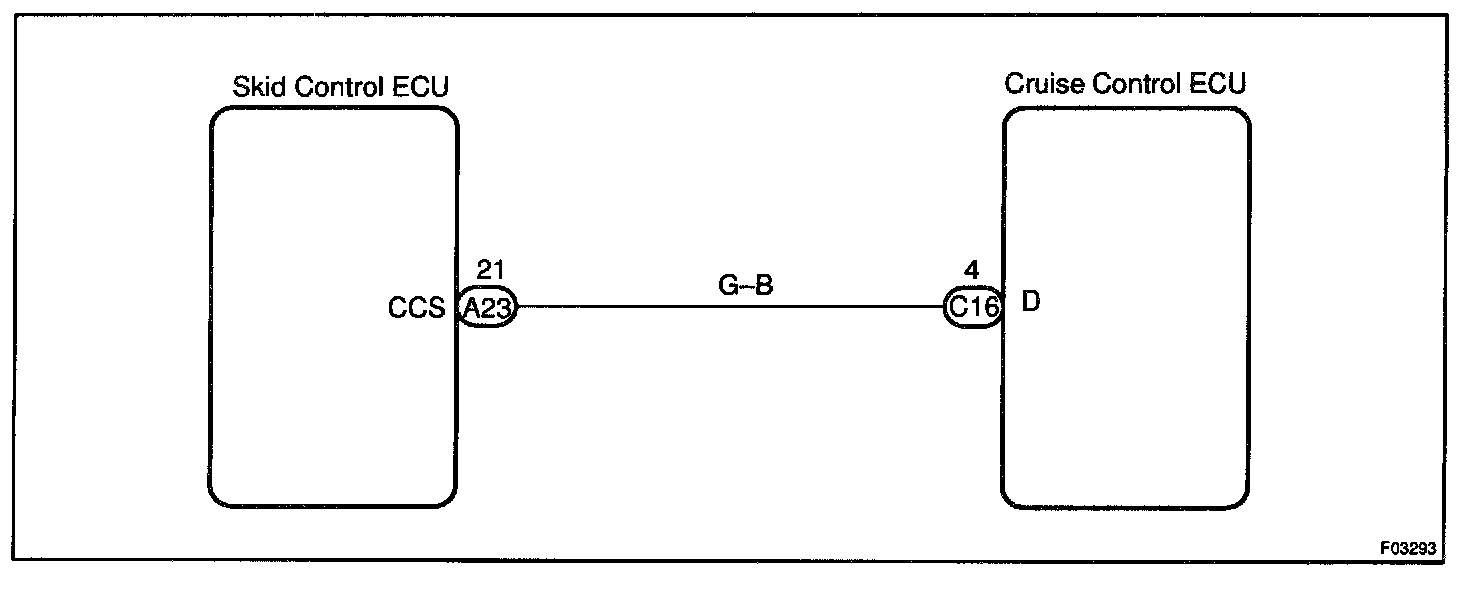

Wiring Diagram:

Step 1:

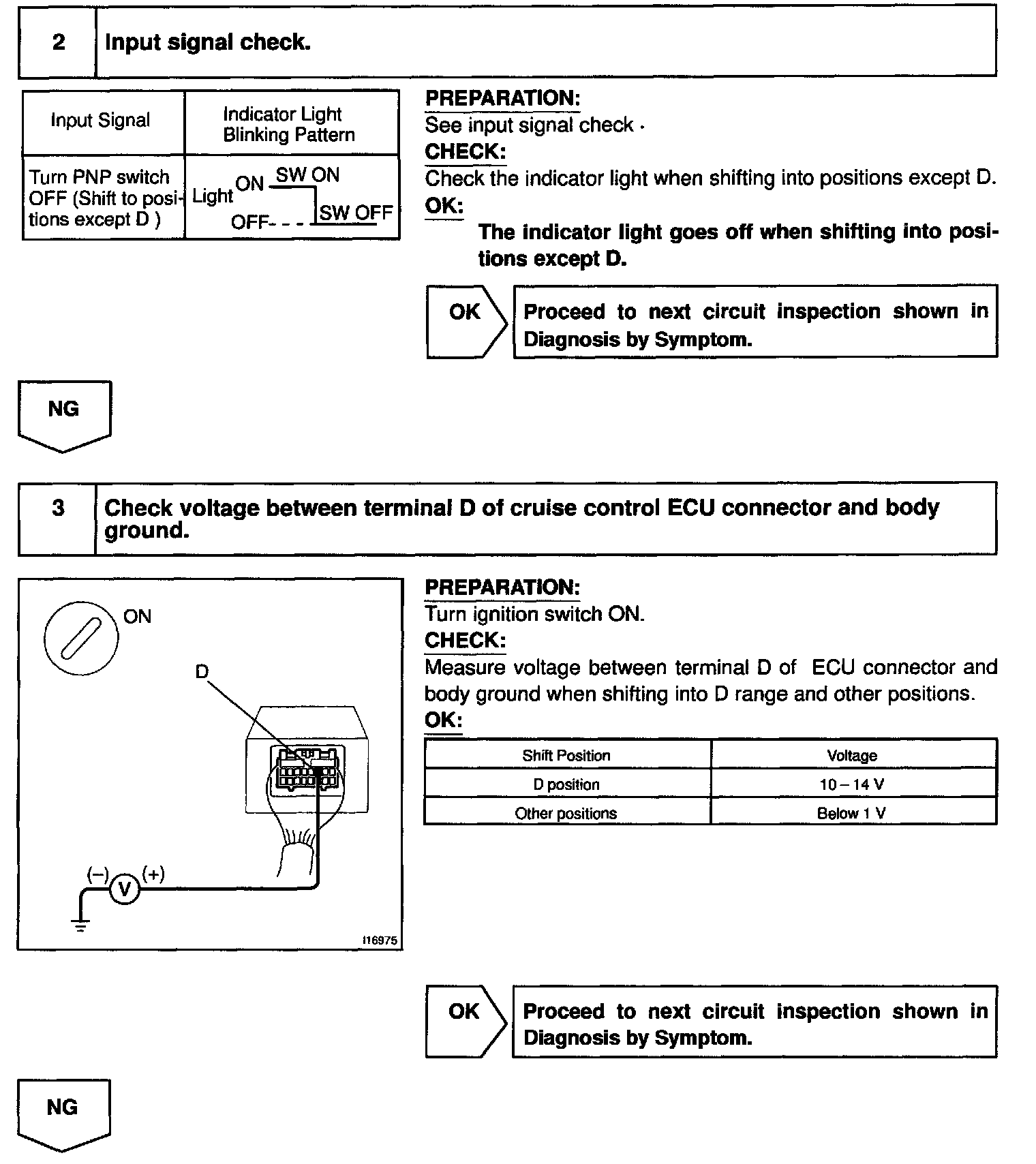

Steps 2 - 3:

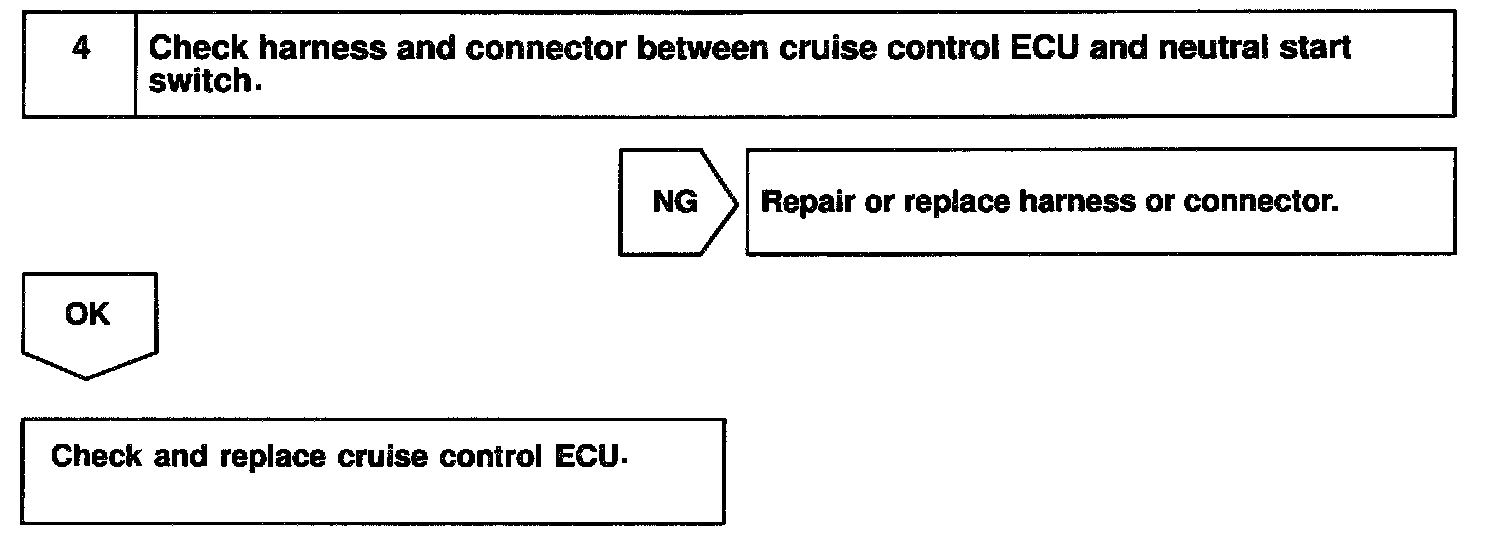

Step 4:

INSPECTION PROCEDURE
