Lexus Truck
>>
2001
>>
RX 300 AWD V6-3.0L (1MZ-FE)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Position Sensor Circuit
Position Sensor Circuit

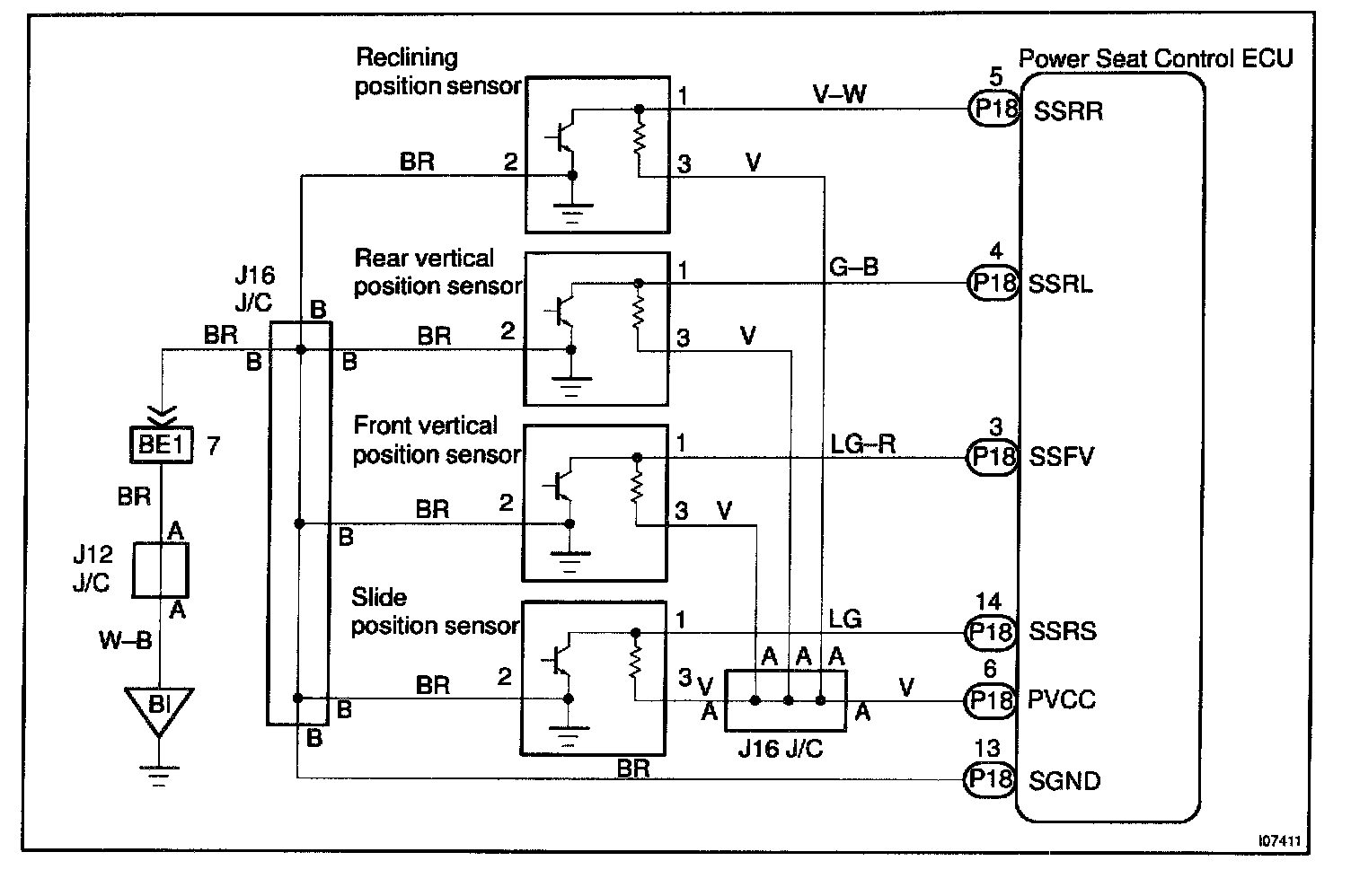

Wiring Diagram:

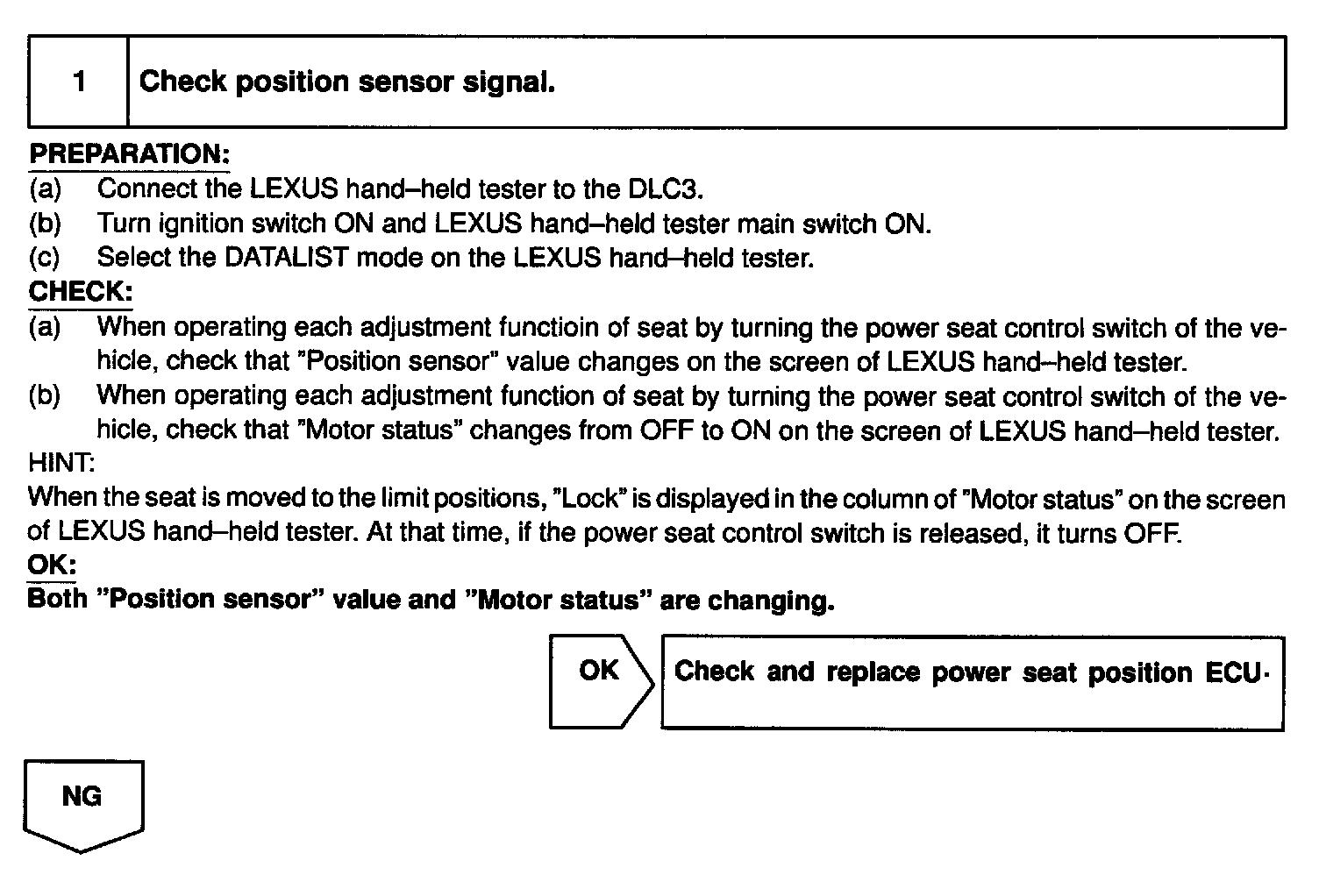

Step 1:
Steps 2 - 3:
INSPECTION PROCEDURE
HINT:
If there is not the LEXUS hand-held tester begin with STEP 2
