ECU Power Source Circuit
ECU Power Source Circuit
CIRCUIT INSPECTION

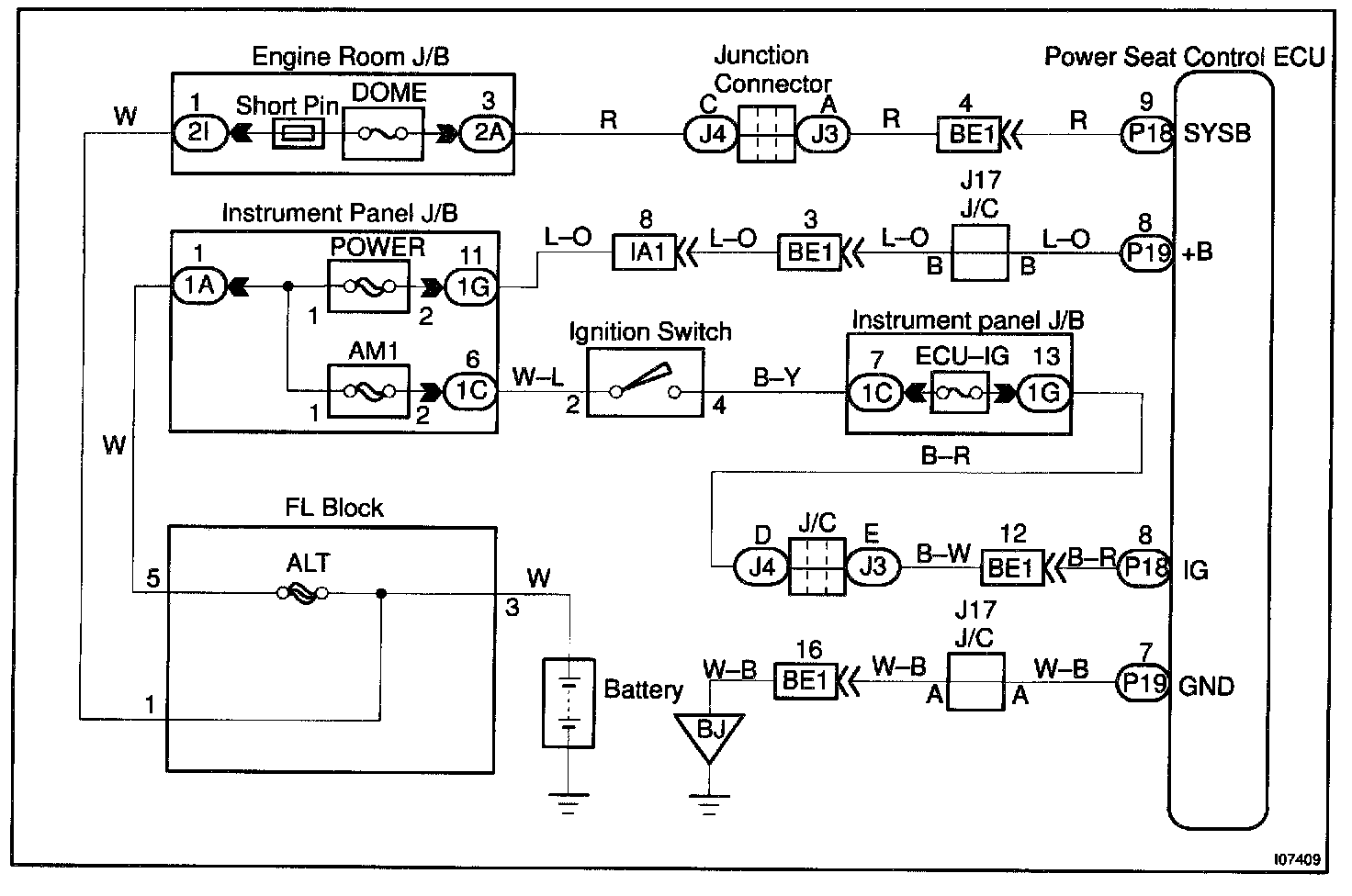

Wiring Diagram:
Wiring Diagram:

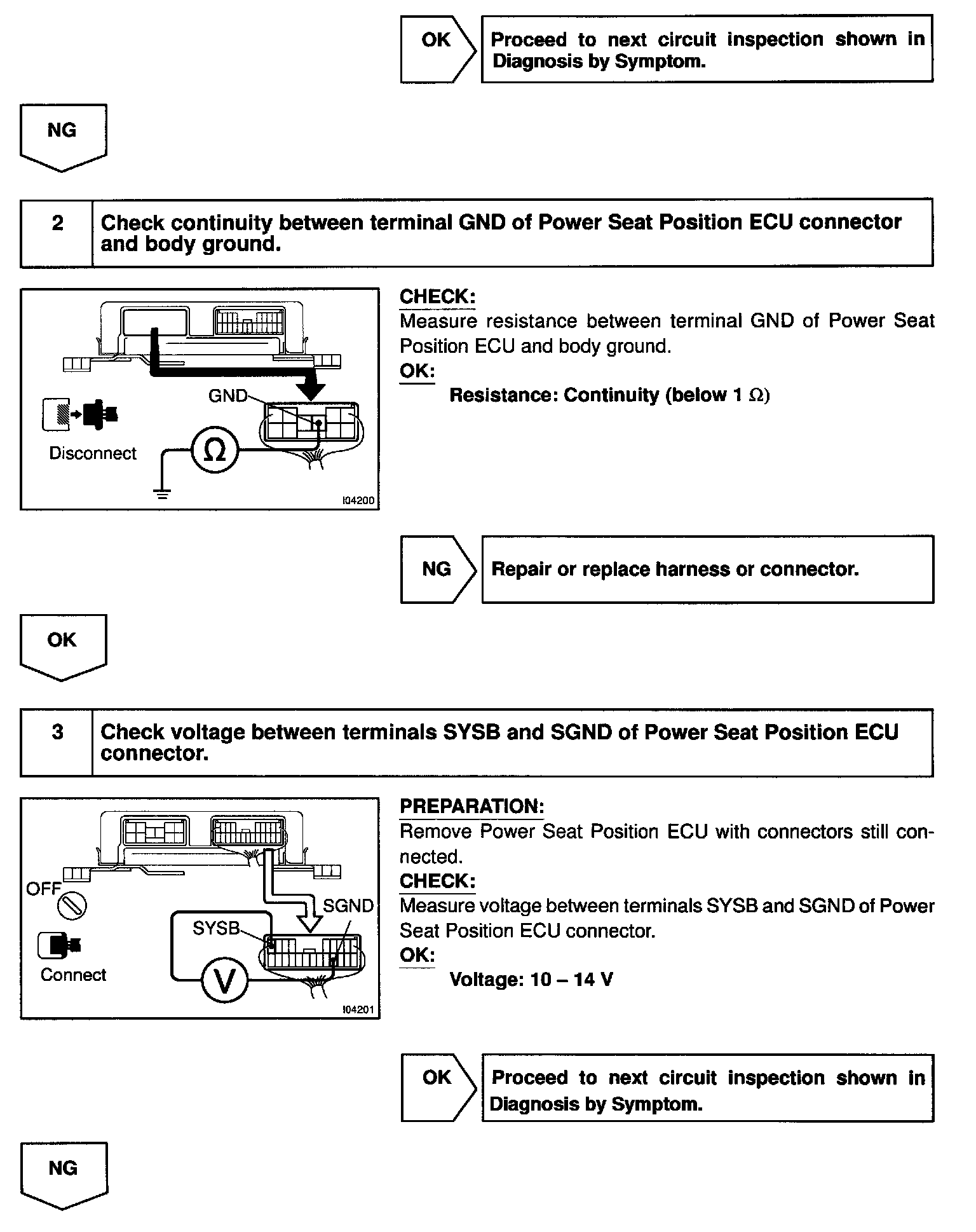

Steps 1 (continued) - 3:

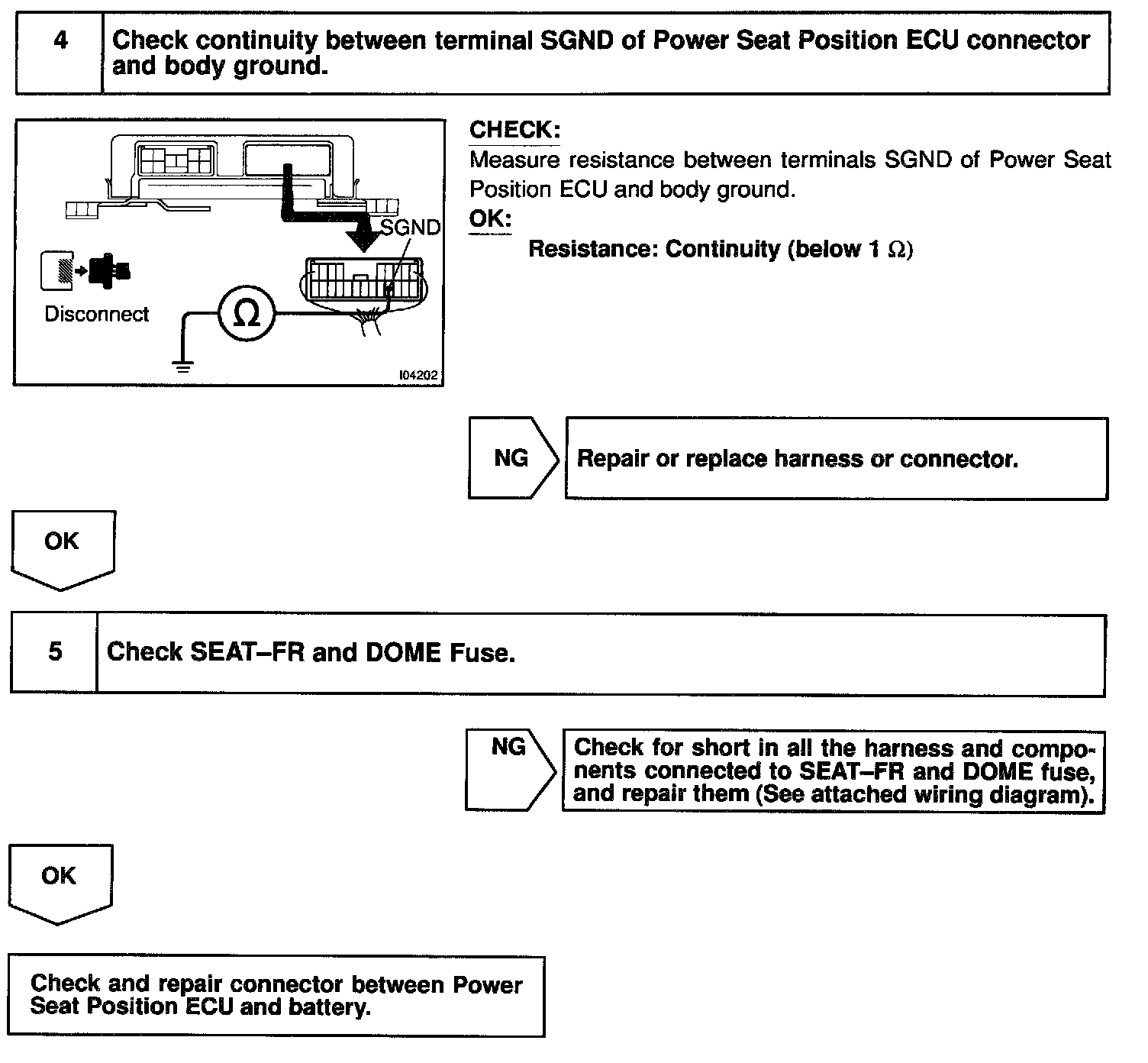

Steps 4 - 5:
INSPECTION PROCEDURE
