Sliding Roof Gear Assembly With ECU Circuit

CIRCUIT INSPECTION

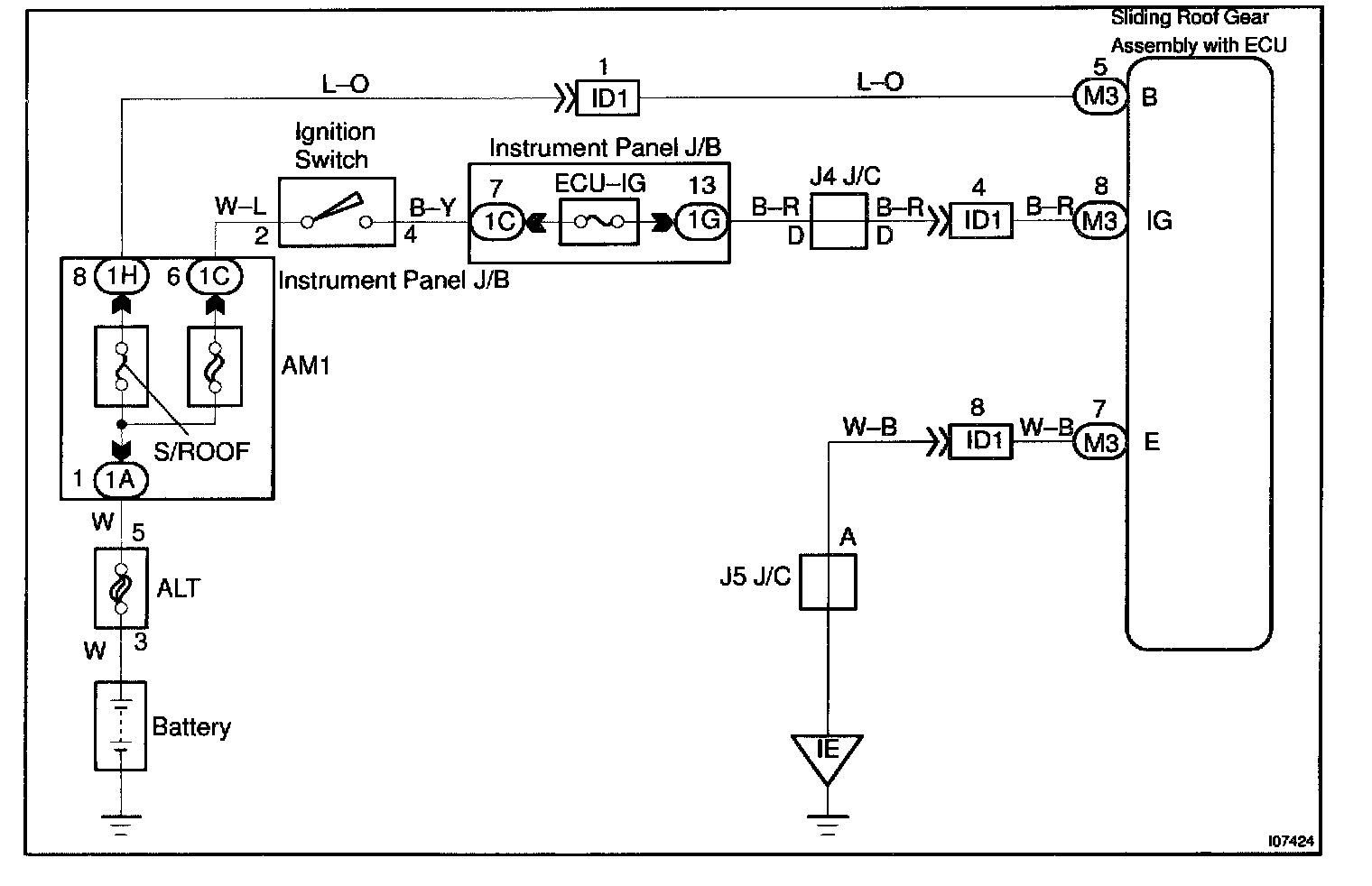

Wiring Diagram:

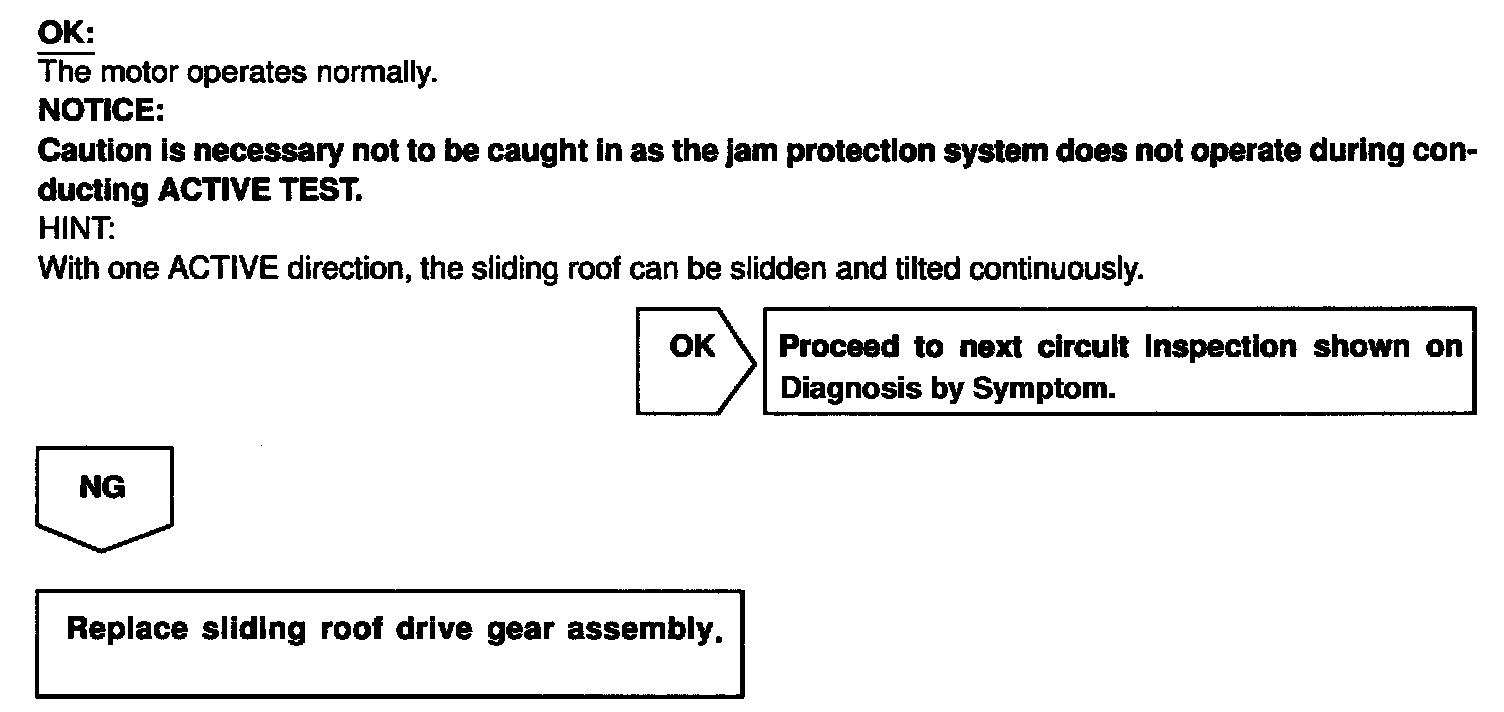

Step 1:

Step 1(continued):

INSPECTION PROCEDURE

HINT: If there is not the LEXUS hand-held tester replace sliding roof drive gear assembly.
