Component Tests and General Diagnostics

INSPECTION

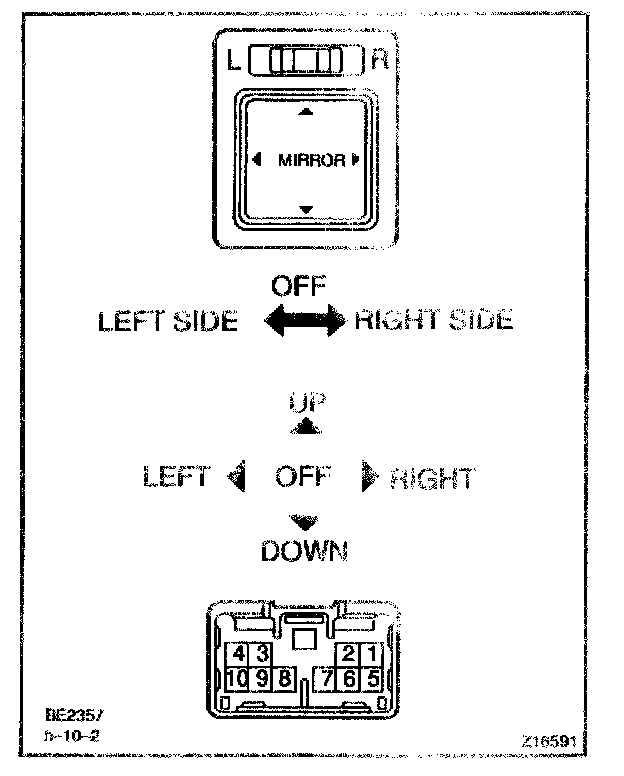

1. INSPECT MIRROR CONTROL SWITCH CONTINUITY

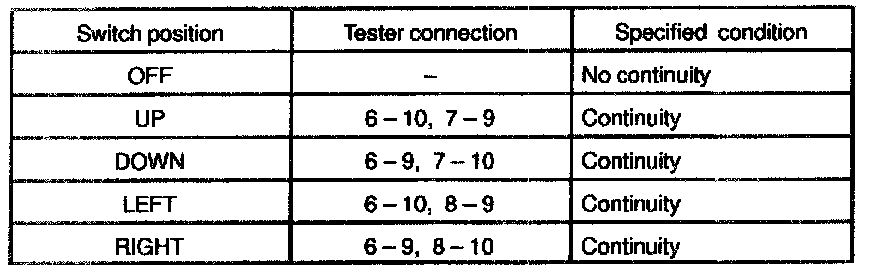

Left side:

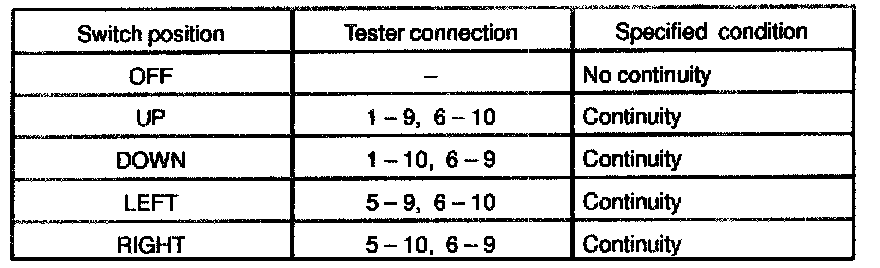

Right side:
If continuity is not as specified, replace the switch.




2. INSPECT MIRROR MOTOR OPERATION

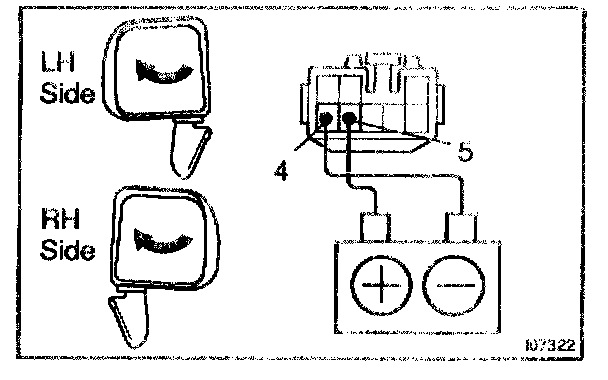

a. Connect the positive (+) lead from the battery to terminal 5 and negative (-) lead to terminal 4, check that the mirror turns to left side.

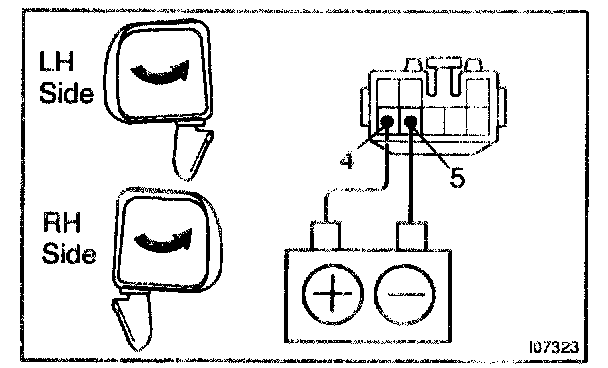

b. Reverse the polarity, check that the mirror turns to right side.

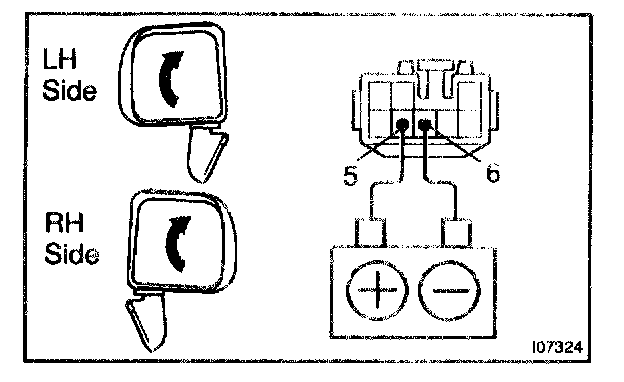

c. Connect the positive (+) lead from the battery to terminal 5 and the negative (-) lead to terminal 6, check that the mirror turns upward.




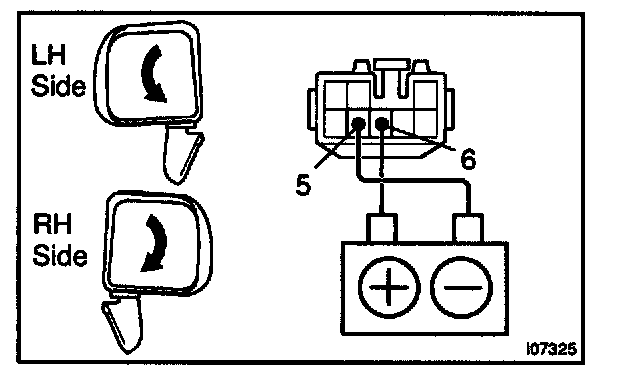

d. Reverse the polarity, check that the mirror turns down ward.
If operation is not as specified, replace the mirror assembly.
