Rear Right Door Control System
Rear Right Door Control System

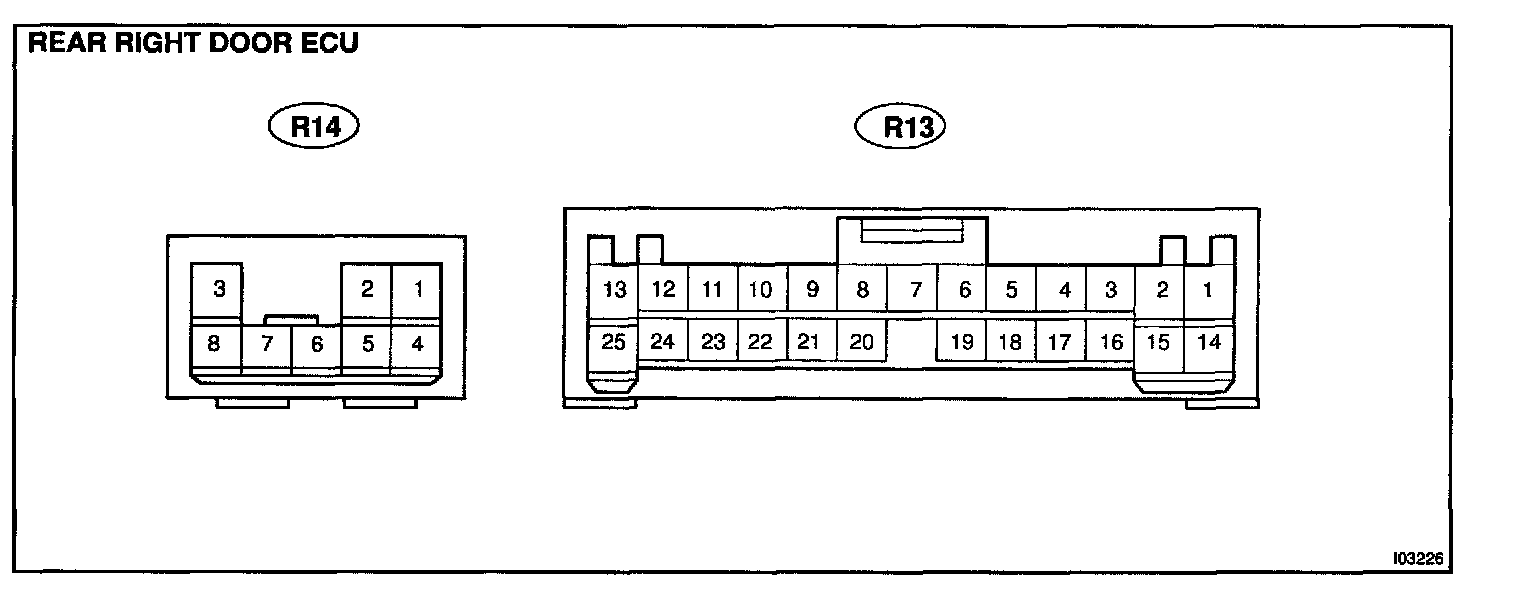

Rear Right Door ECU - Connector View:

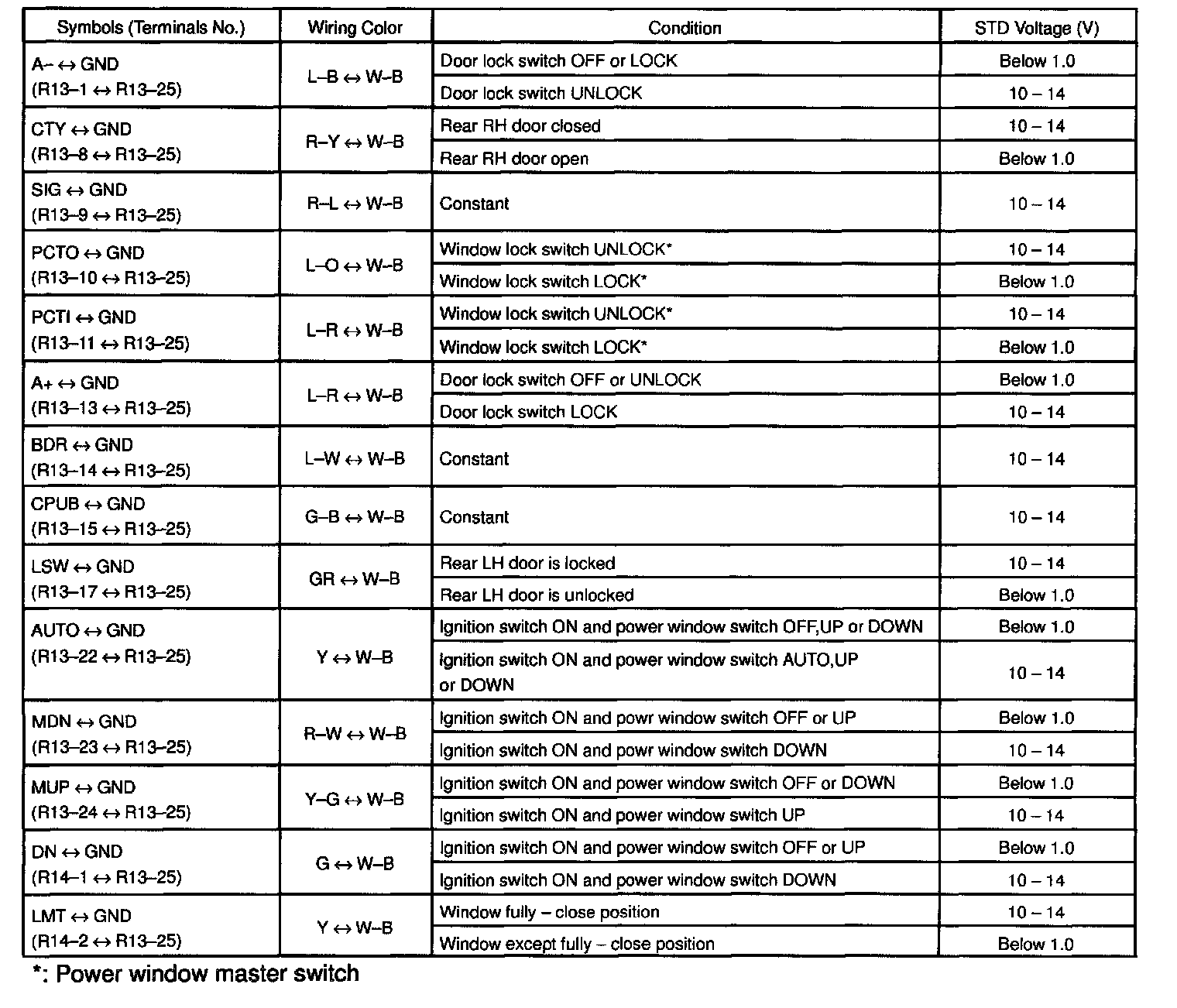

Rear Right Door ECU - Pinouts (Part 1):

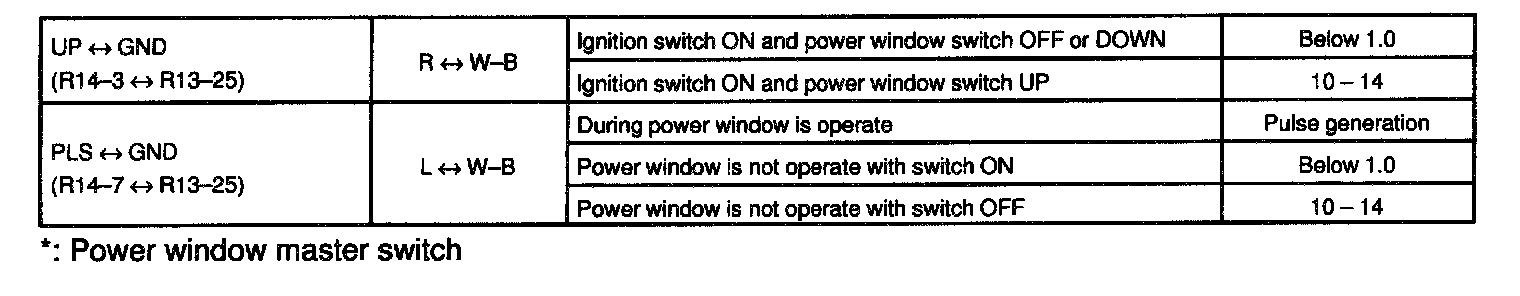

Rear Right Door ECU - Pinouts (Part 2):
