Rear Left Door Control System
Rear Left Door Control System

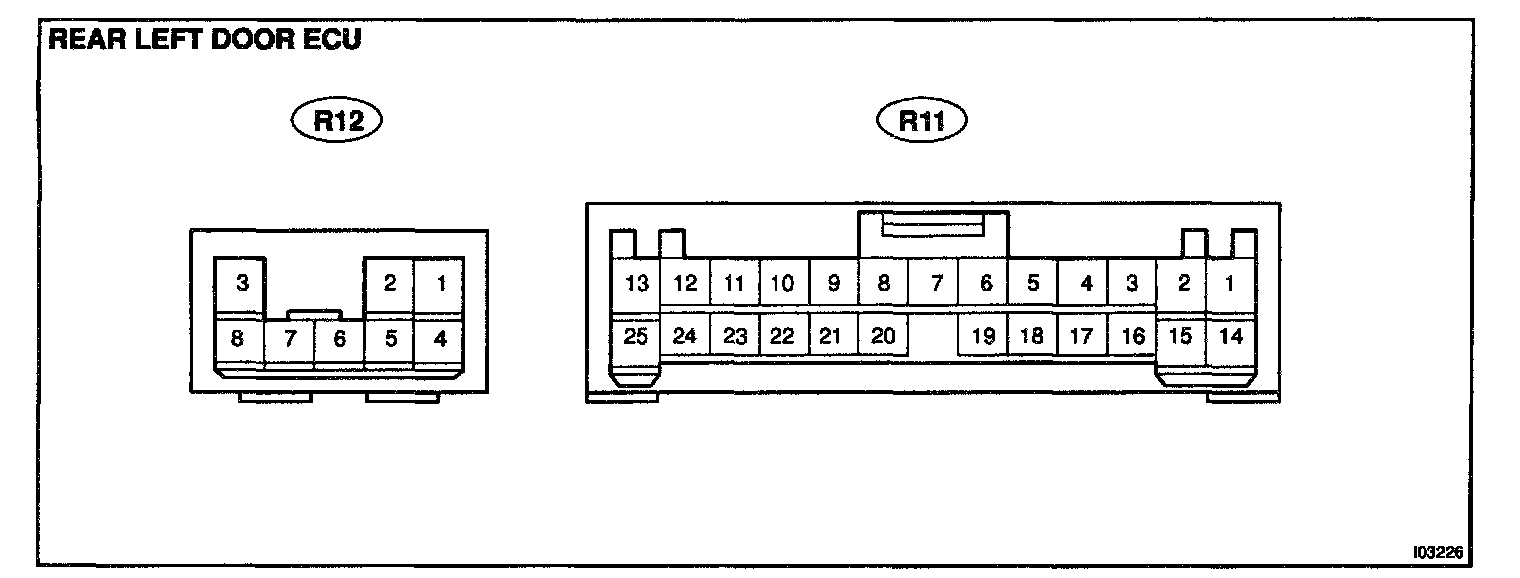

Rear Left Door ECU - Connector View:

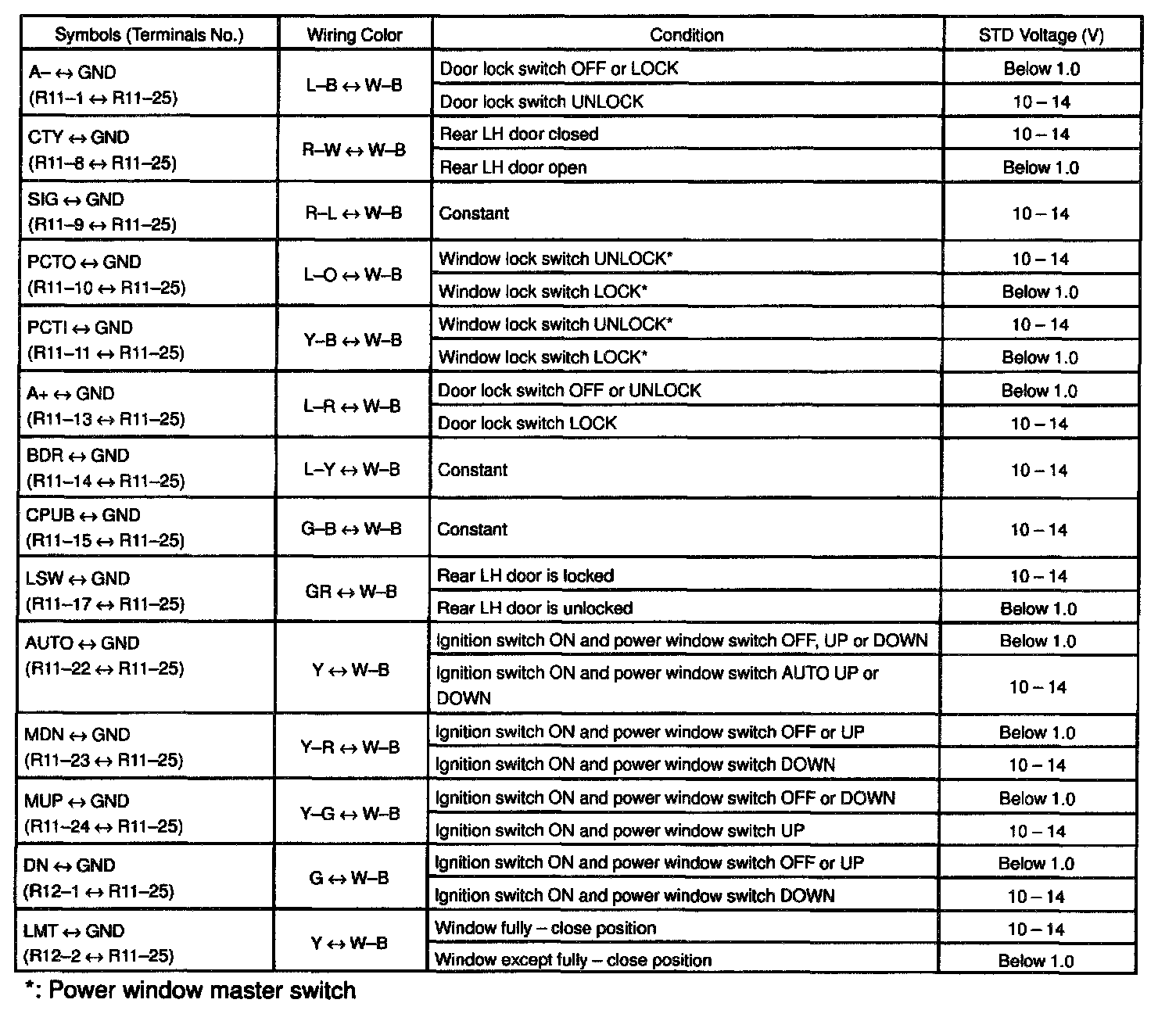

Rear Left Door ECU - Pinouts (Part 1):
Rear Left Door ECU - Pinouts (Part 2):
