4. Display Check Mode

4. DISPLAY CHECK MODE

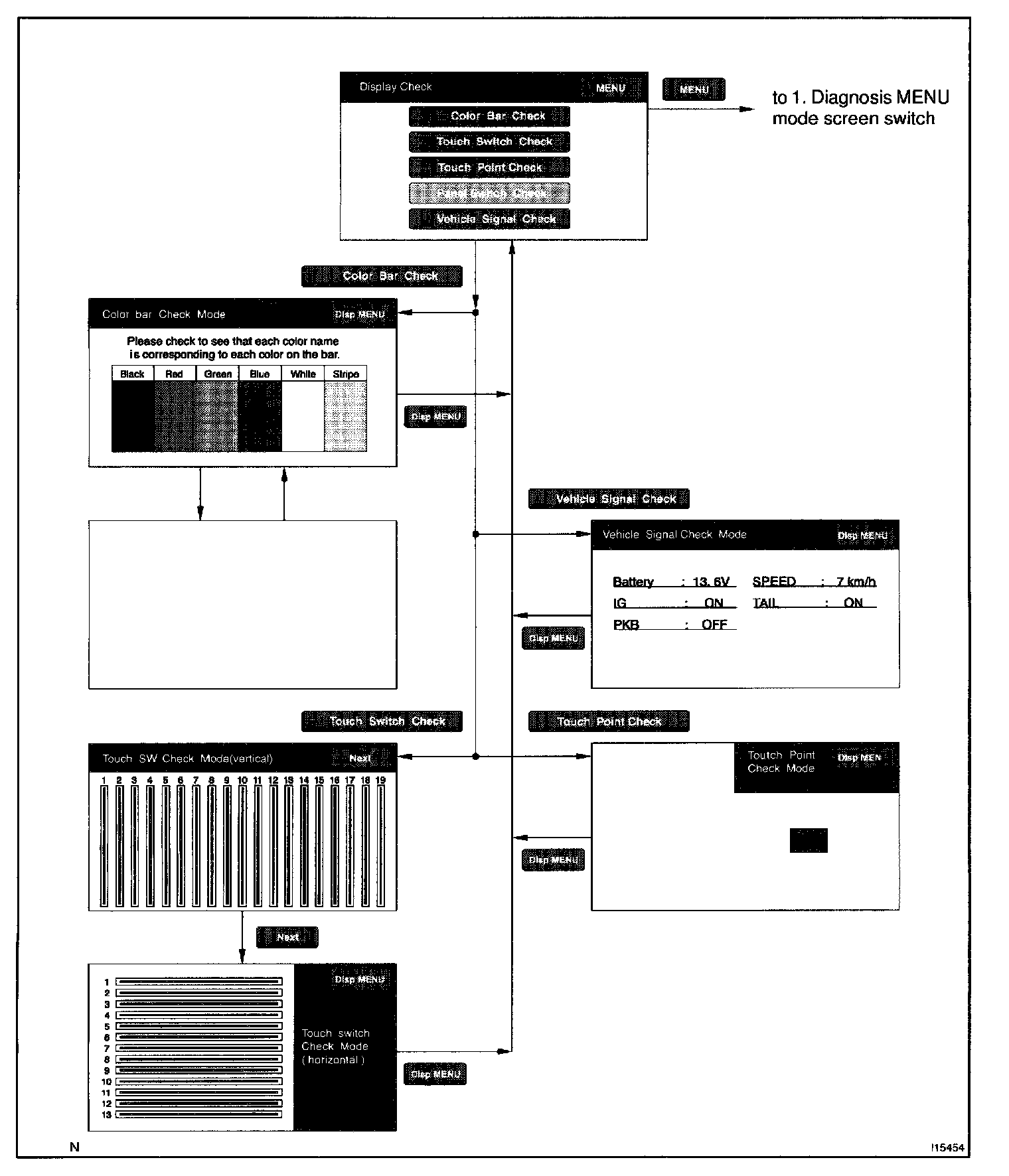

HINT: Display Check Mode is operated as follows.

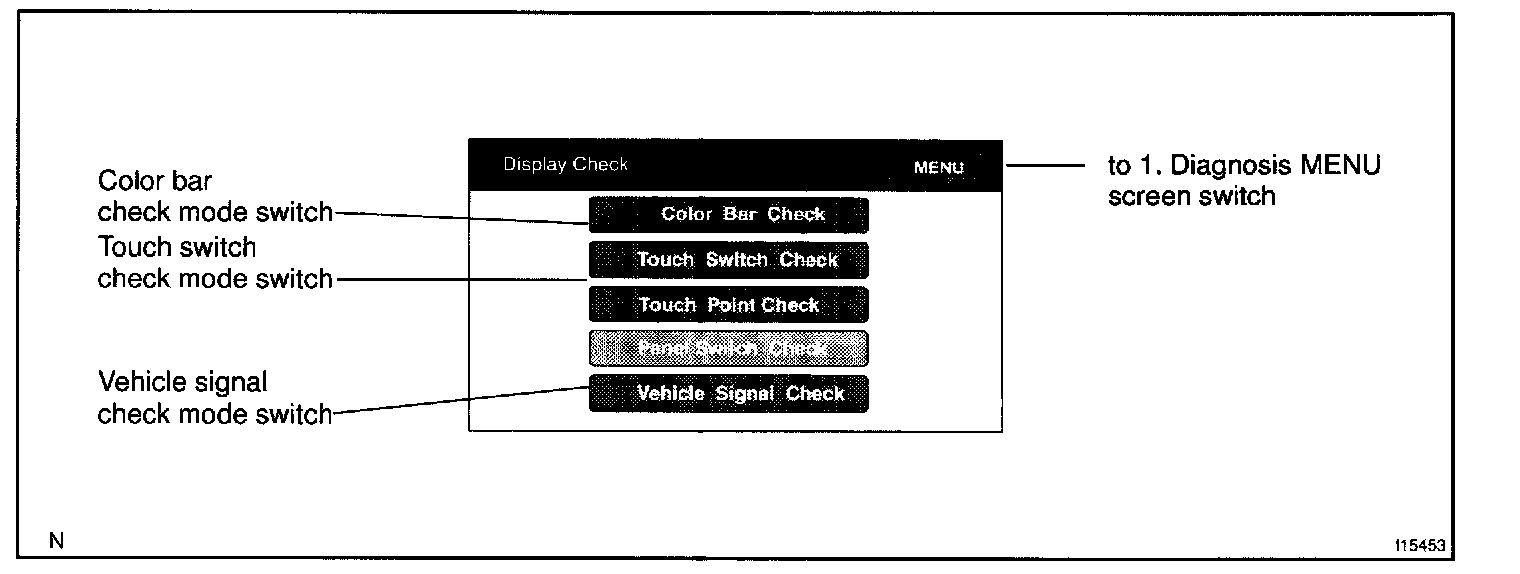

a. DISPLAY CHECK MENU SCREEN
1. Various screens to check the display are started from this screen.
2. Color Bar Check Mode Switch
Pressing this switch activates the Color Bar Check Mode screen.
3. Touch Switch Check Mode Switch
Pressing this switch activates the Touch Switch Check Mode screen.
4. Vehicle Signal Check Mode Switch
Pressing this switch activates the Vehicle Signal Check Mode screen.
5. Diagnosis MENU Screen Switch
Pressing this switch activates the Diagnosis MENU screen.

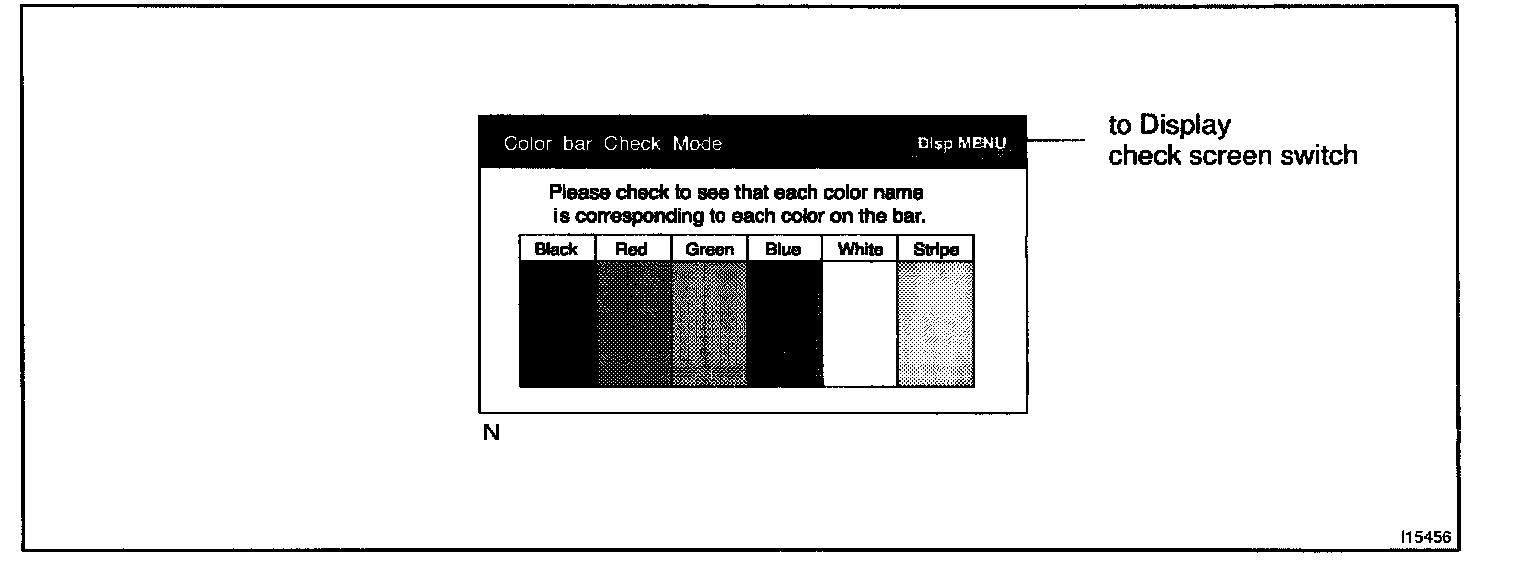

b. COLOR BAR CHECK MODE SCREEN
1. Color display is checked in this screen.
2. Color Bar: Black, Red, Green, Blue, White and Stripe is displayed in bars.
If a bar is touched, color or stripe of the bar is appeared all over the screen. When touched again, it returns to the previous screen.

3. Display Check Screen Switch
Pressing this switch activates the Display Check Mode screen.

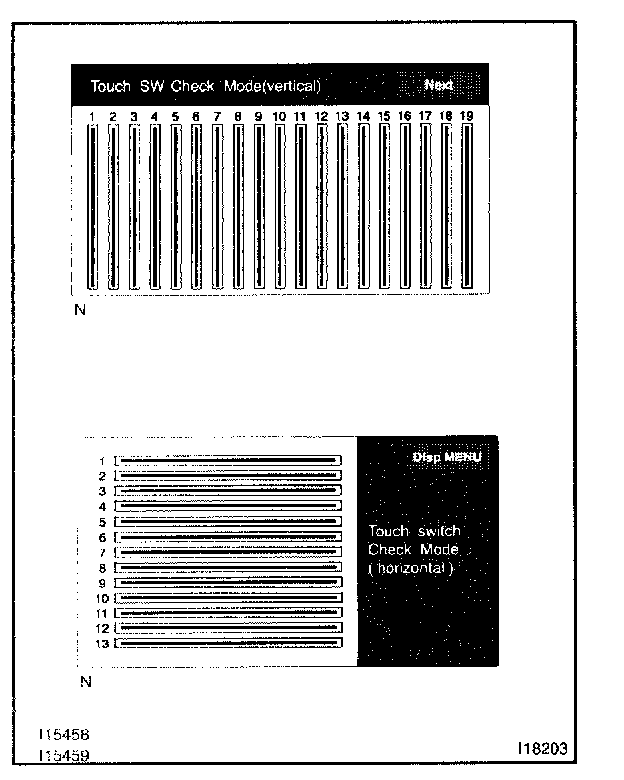

c. TOUCH SWITCH CHECK MODE SCREEN
1. Operating condition is checked line by line in the Touch Switch Check Mode screen.

2. Check Line:
Lines are displayed by using infrared beams in this screen.
Once a beam is blocked off by touching the screen with a fingertip the blocked part of the line is deleted.

3. Horizontal Line Check Screen Switch:
Pressing this switch activates a screen in which beams of horizontal lines are checked.

4. Display Check Mode Switch
Pressing this switch activates the Display Check Mode screen.

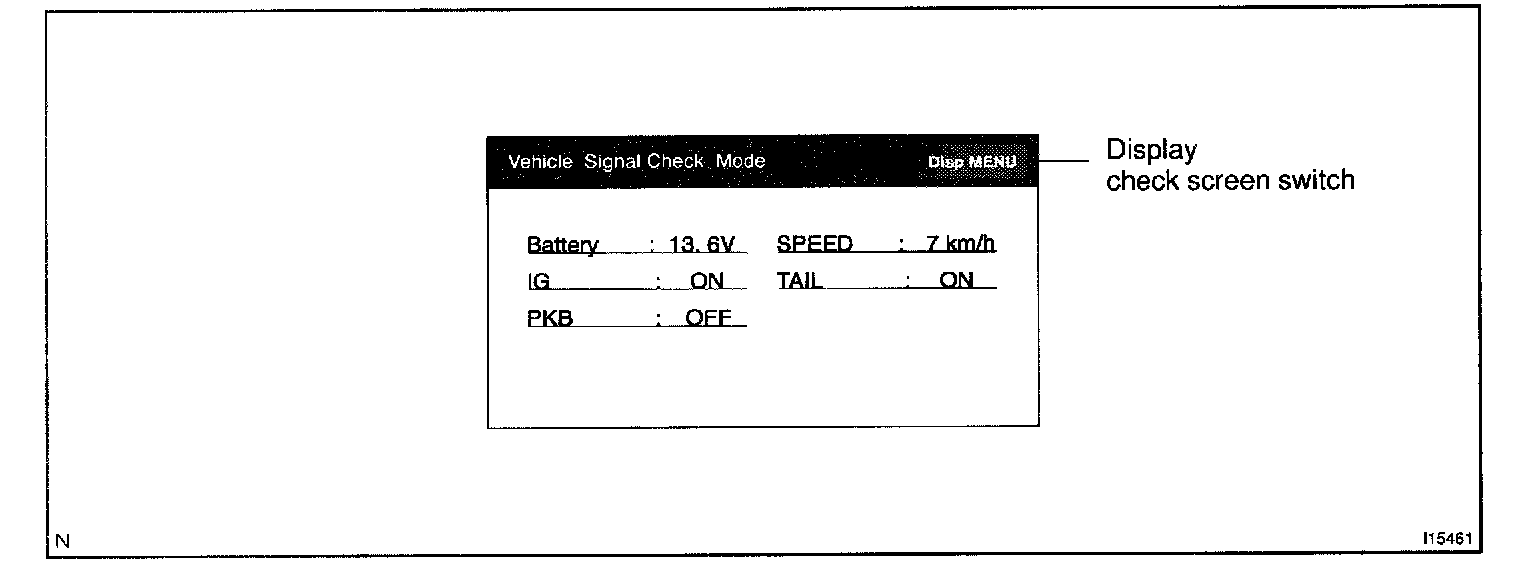

d. VEHICLE SIGNAL CHECK MODE SCREEN
1. Status of the Vehicle Signal which has been loaded into the display is checked in this screen.
2. Signal Description
Battery: Displays battery voltage in V.
IC: Displays ON or OFF of the ignition switch.
PKB: Displays ON (applied) or OFF (released) of the parking brake.
SPEED: Displays the vehicle speed in km/h.
TAIL: Displays ON or OFF of the tail light switch.

3. Display Check Screen Switch
Pressing this switch activates the Display Check Mode screen.

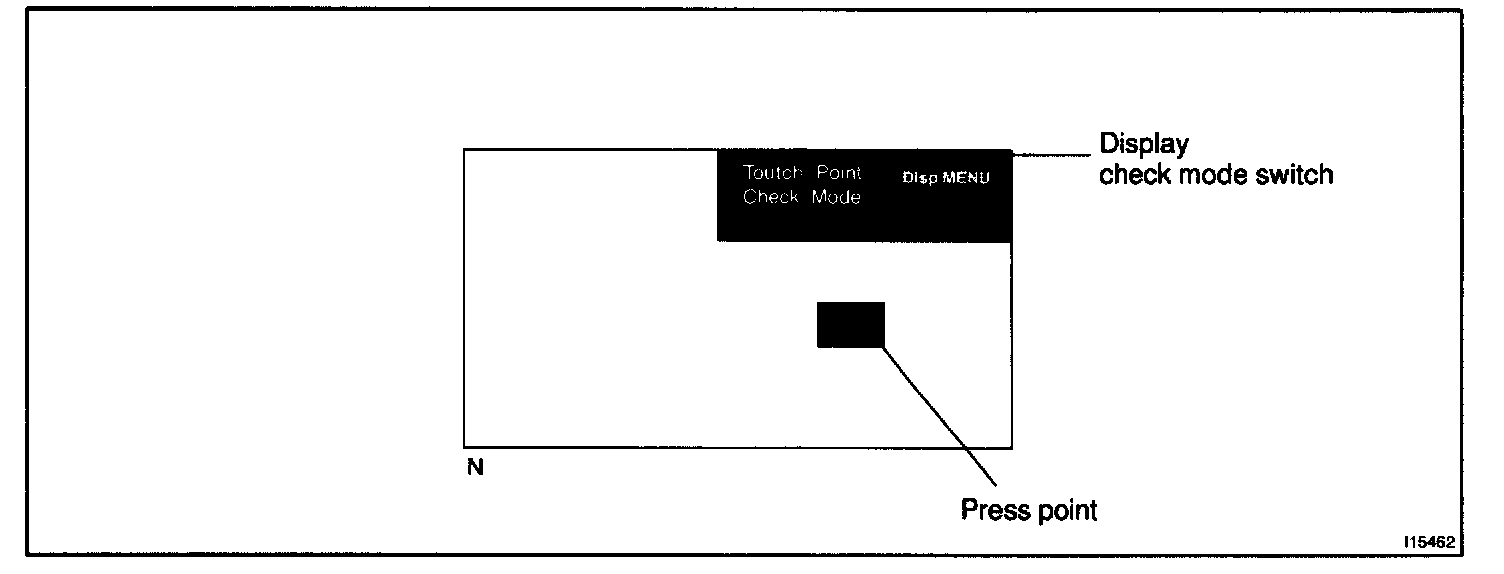

e. TOUCH POINT CHECK MODE SCREEN
1. In this screen, the position detected by the pressure sensing touch switch is checked.
2. Press point: The detected point is indicated by a cross-hair cursor.
3. Display Check Screen Switch
Pressing this switch activates the Display Check Mode screen.
