1. Diagnosis System Mode

1. DIAGNOSIS SYSTEM MODE

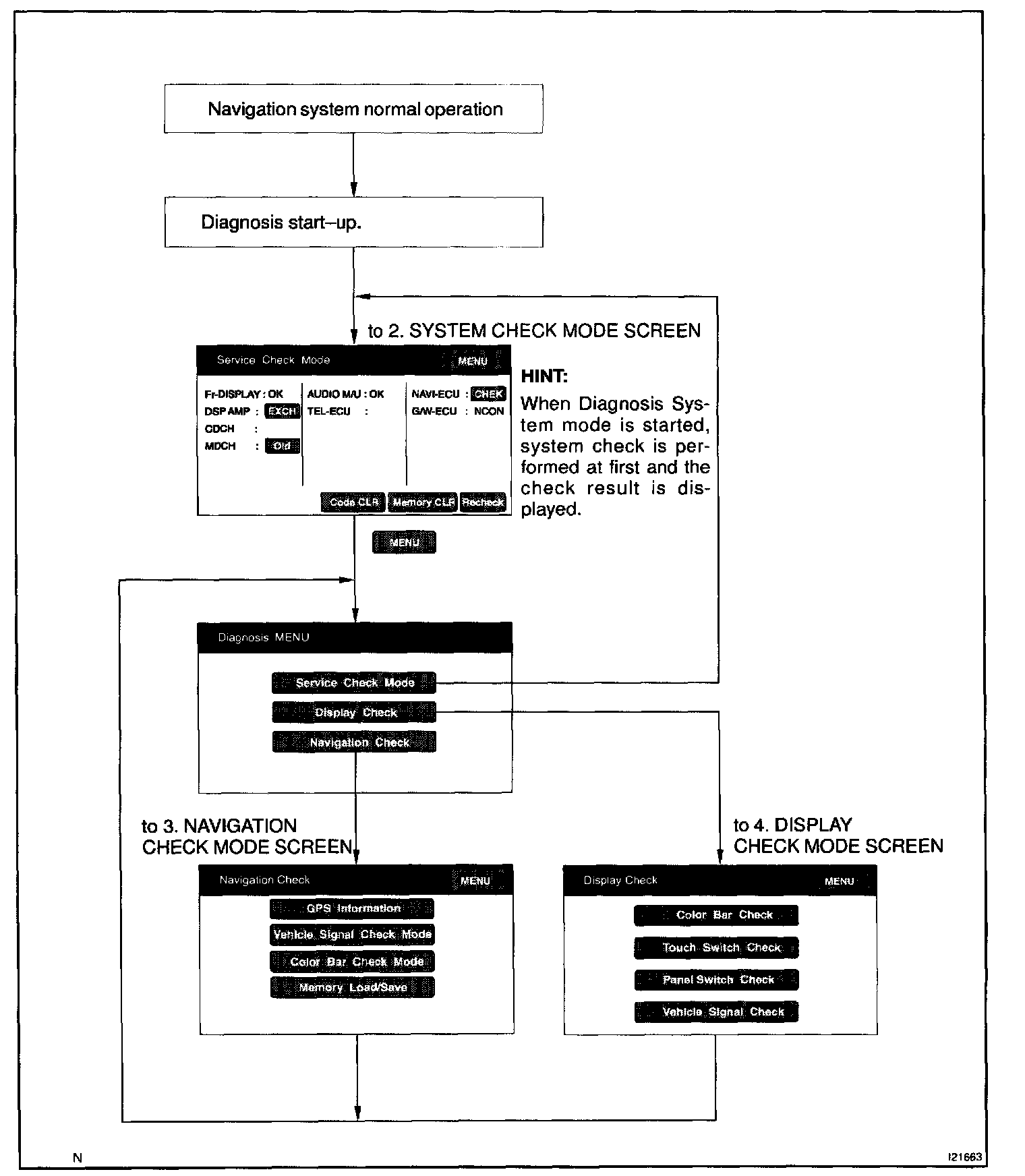

HINT: Diagnosis System Mode is operated as follows.

a. DIAGNOSIS START-UP
To start the diagnosis menu, there are 3 ways: using a diagnosis check wire and using a switch.




b. START-UP BY SWITCH OPERATION (Touch panel)
1. Vehicle speed is 0 km/h (0 mph).
2. Parking brake switch is pressed.
3. Press the "INFO" switch to display the Screen Adjustment screen.

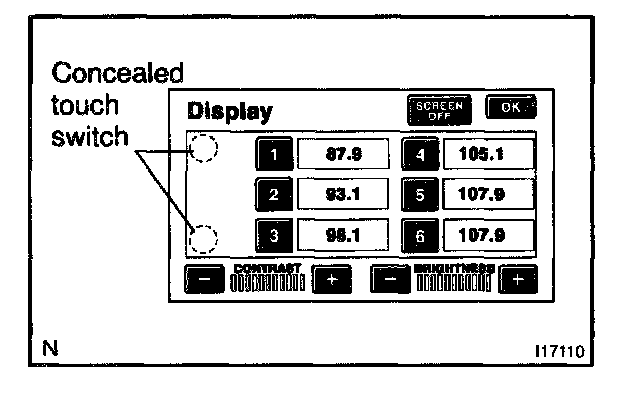

4. Repeatedly touch the upper and lower bottom parts of the left end of the screen 3 times.




c. FINISHING DIAGNOSIS SYSTEM MODE
Turn the ignition switch from ACC to OFF to finish the mode, if it is started by switch operation.
