Pinout Values and Diagnostic Parameters

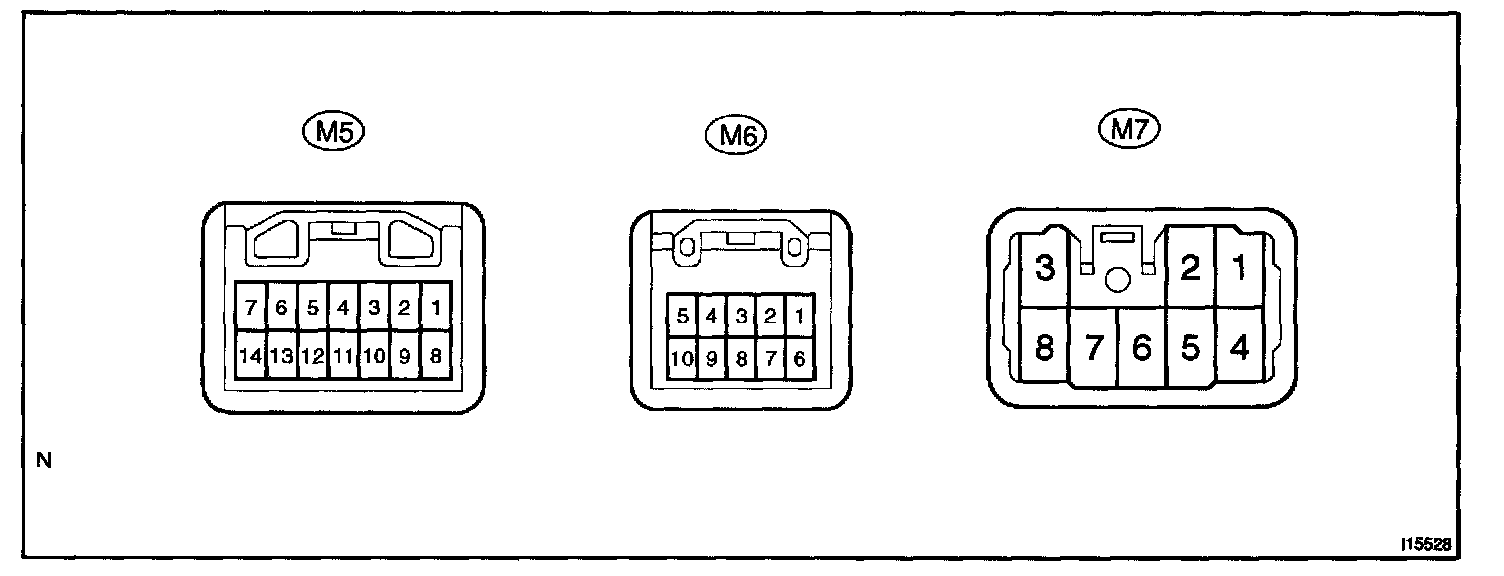

ECU(Multi Display) - Connector View:

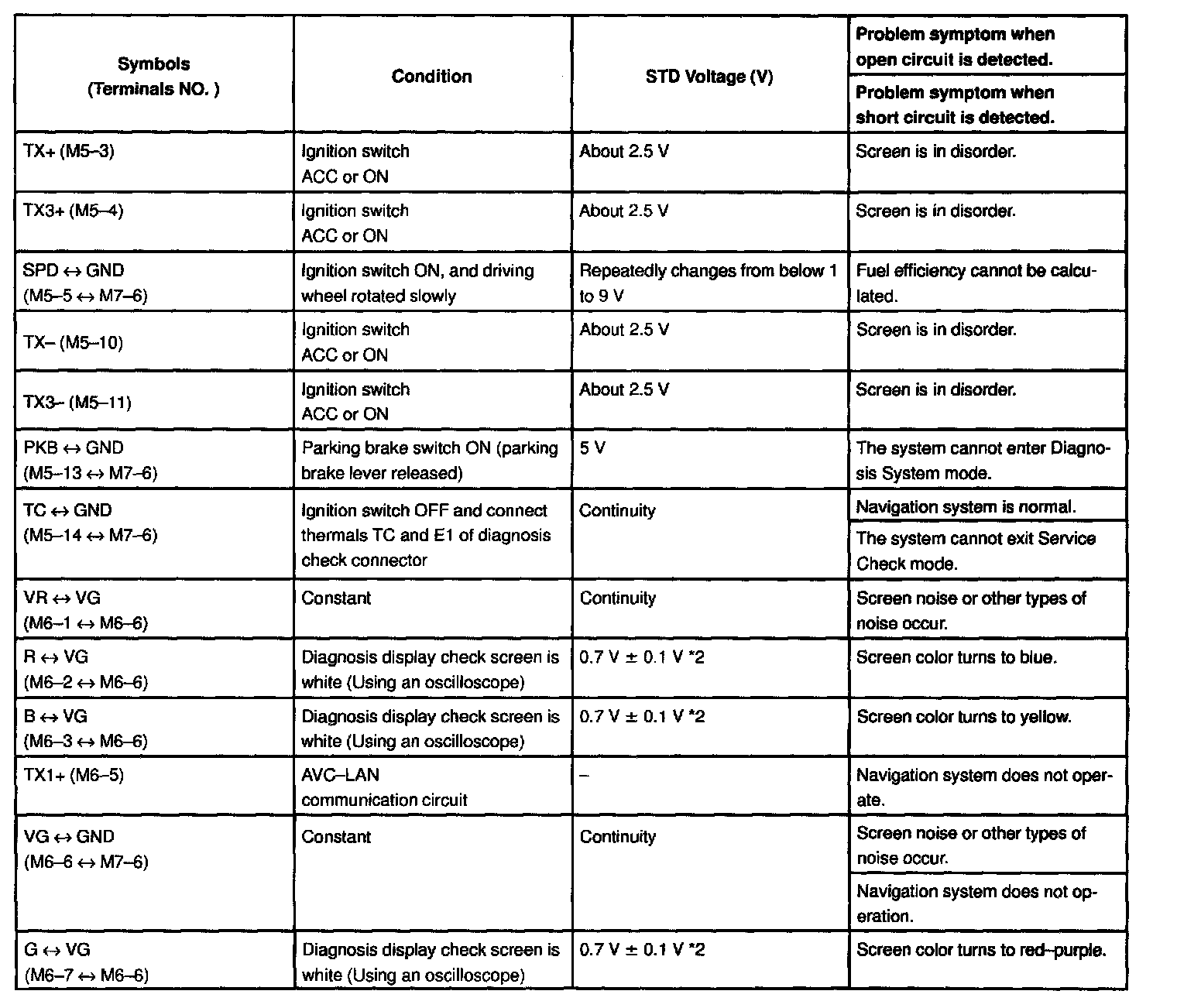

ECU(Multi Display) - Pinouts (Part 1):

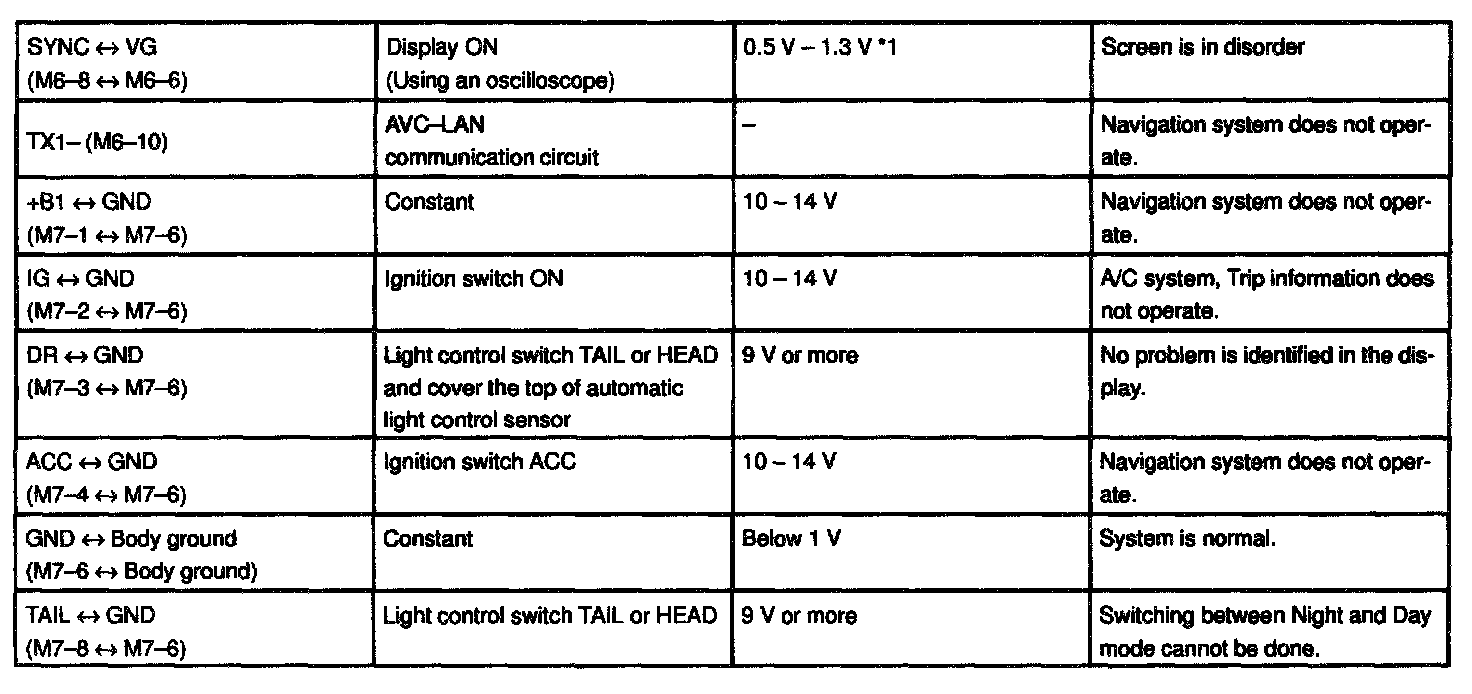

ECU(Multi Display) - Pinouts (Part 2):

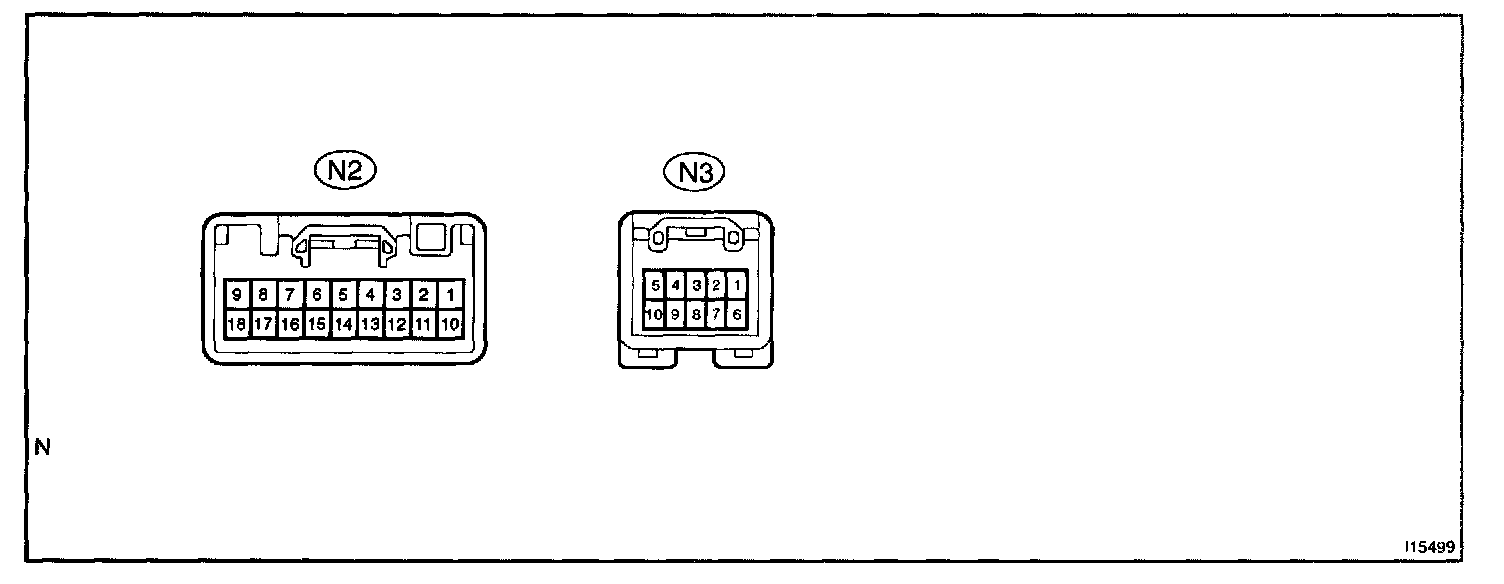

Navigation ECU - Connector View:

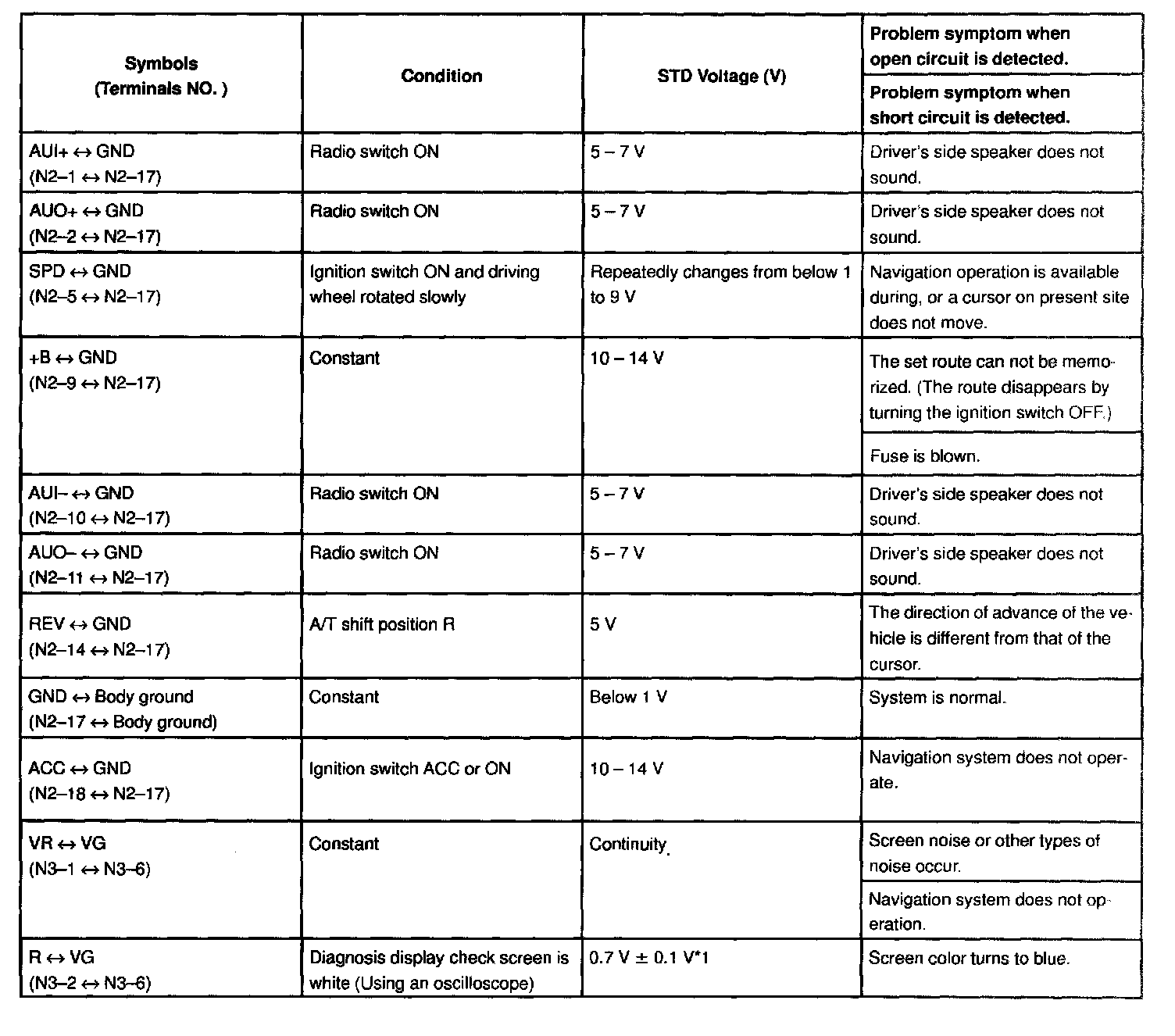

Navigation ECU - Pinouts (Part 1):

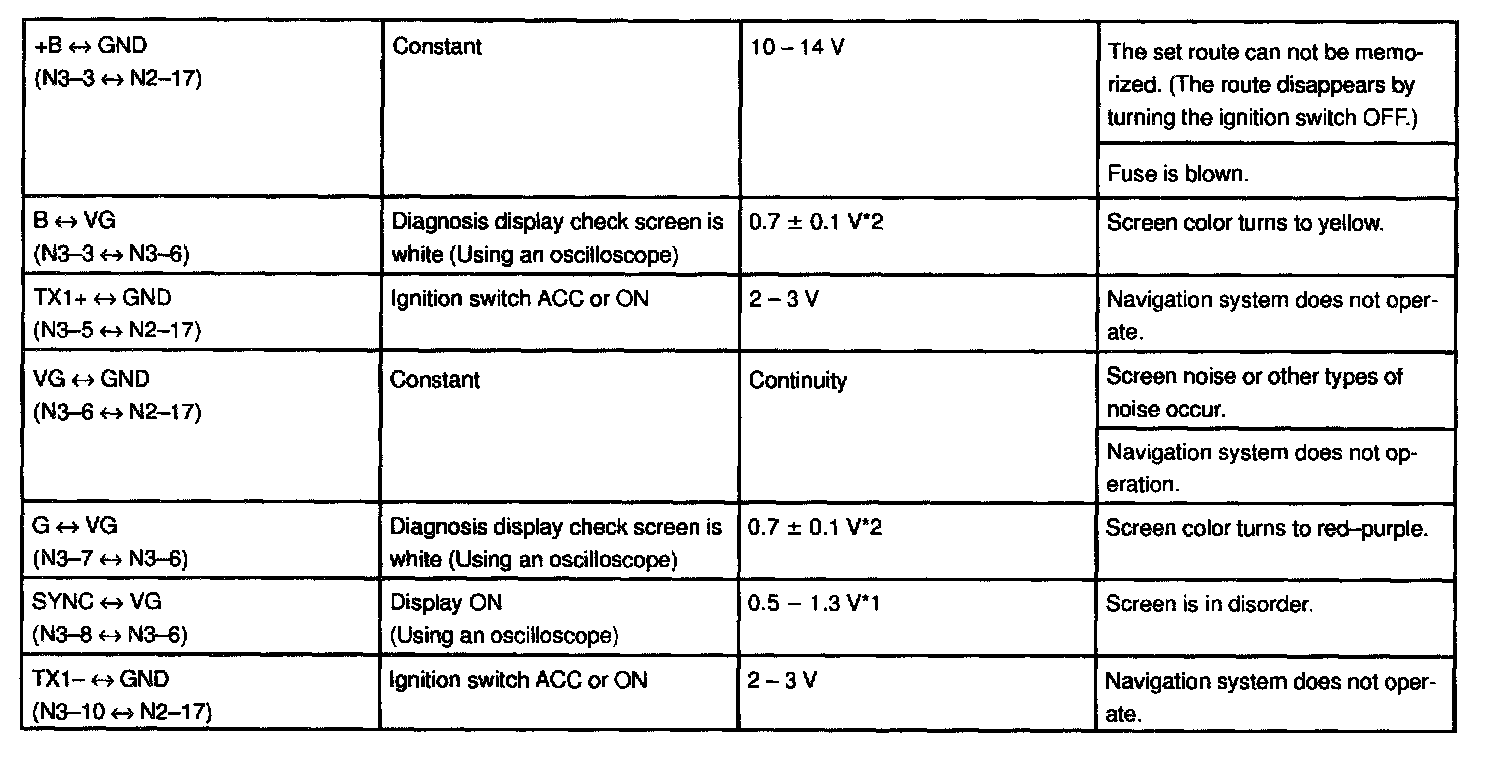

Navigation ECU - Pinouts (Part 2):

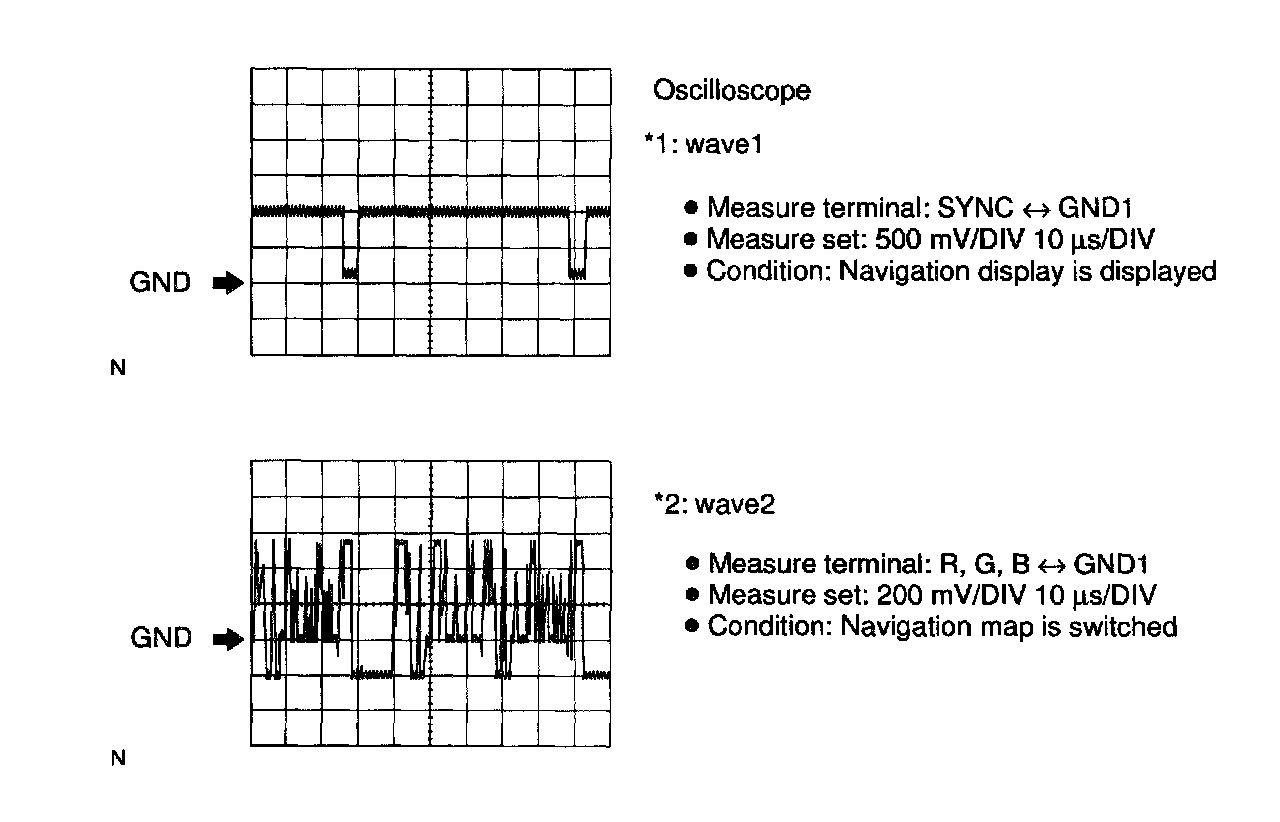

Navigation ECU - Oscilloscope:
