P0773

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The shift solenoid valve SL is turned ON and OFF by signals from the ECM to control the hydraulic pressure acting on the lock-up relay valve, which then controls operation of the lock-up clutch.

Fail safe function:
If the ECM detects a malfunction, it turns the shift solenoid valve SL OFF.

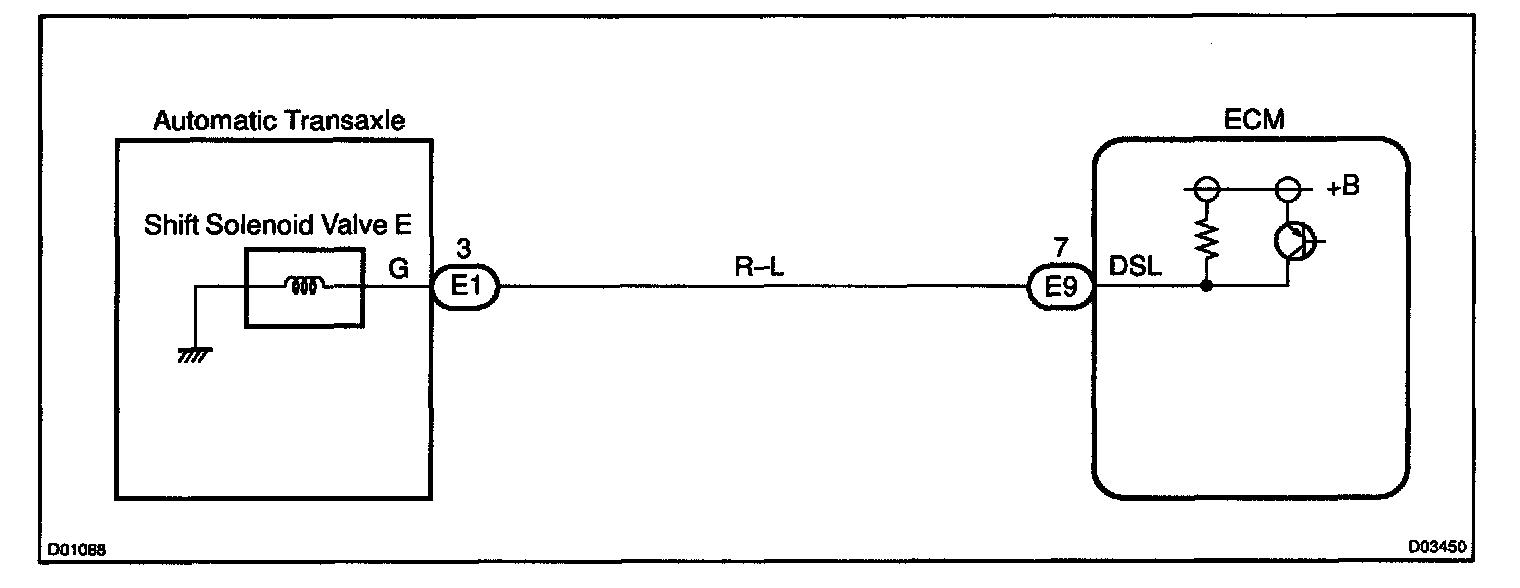

Wiring Diagram:

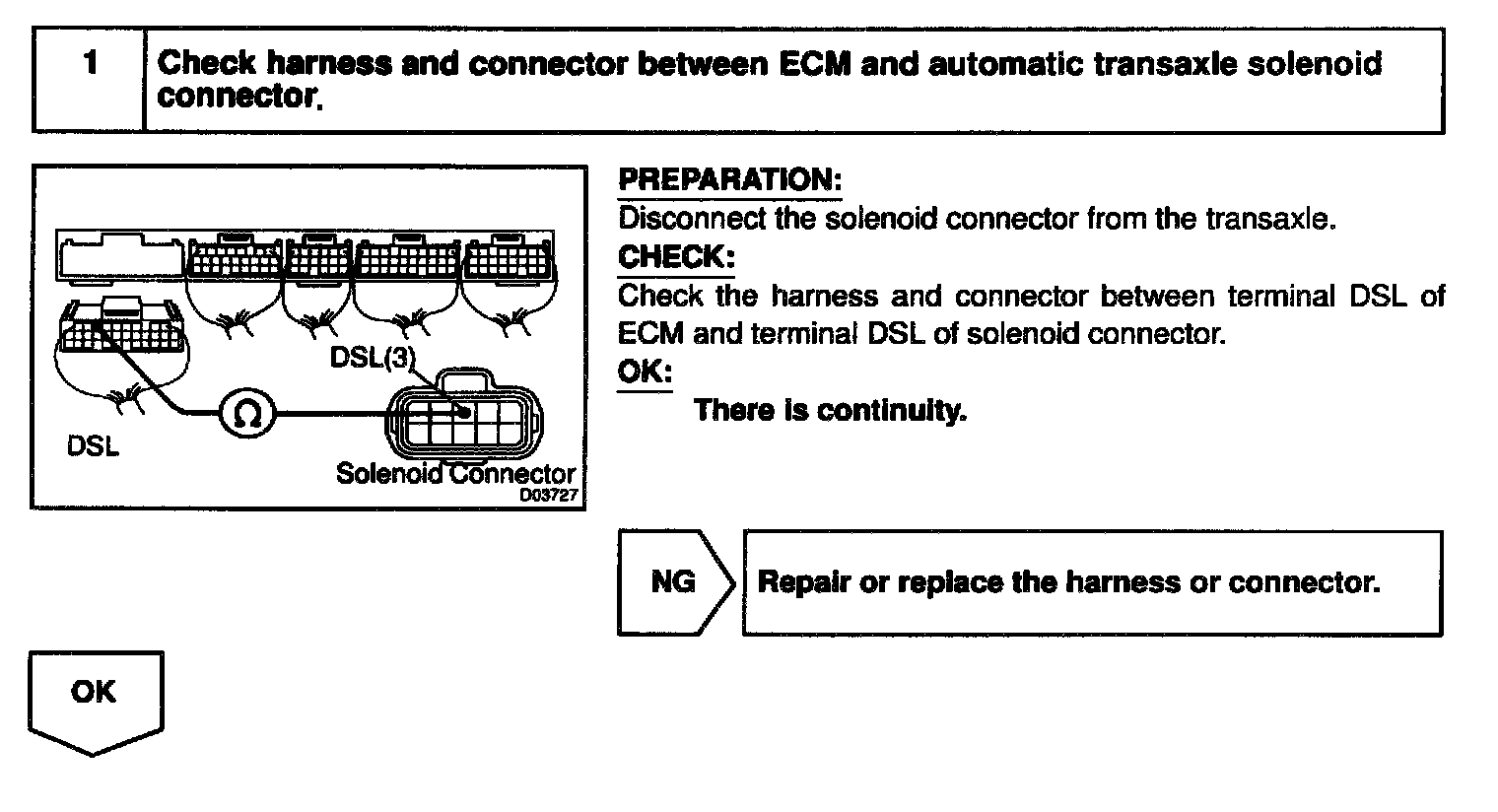

Step 1:

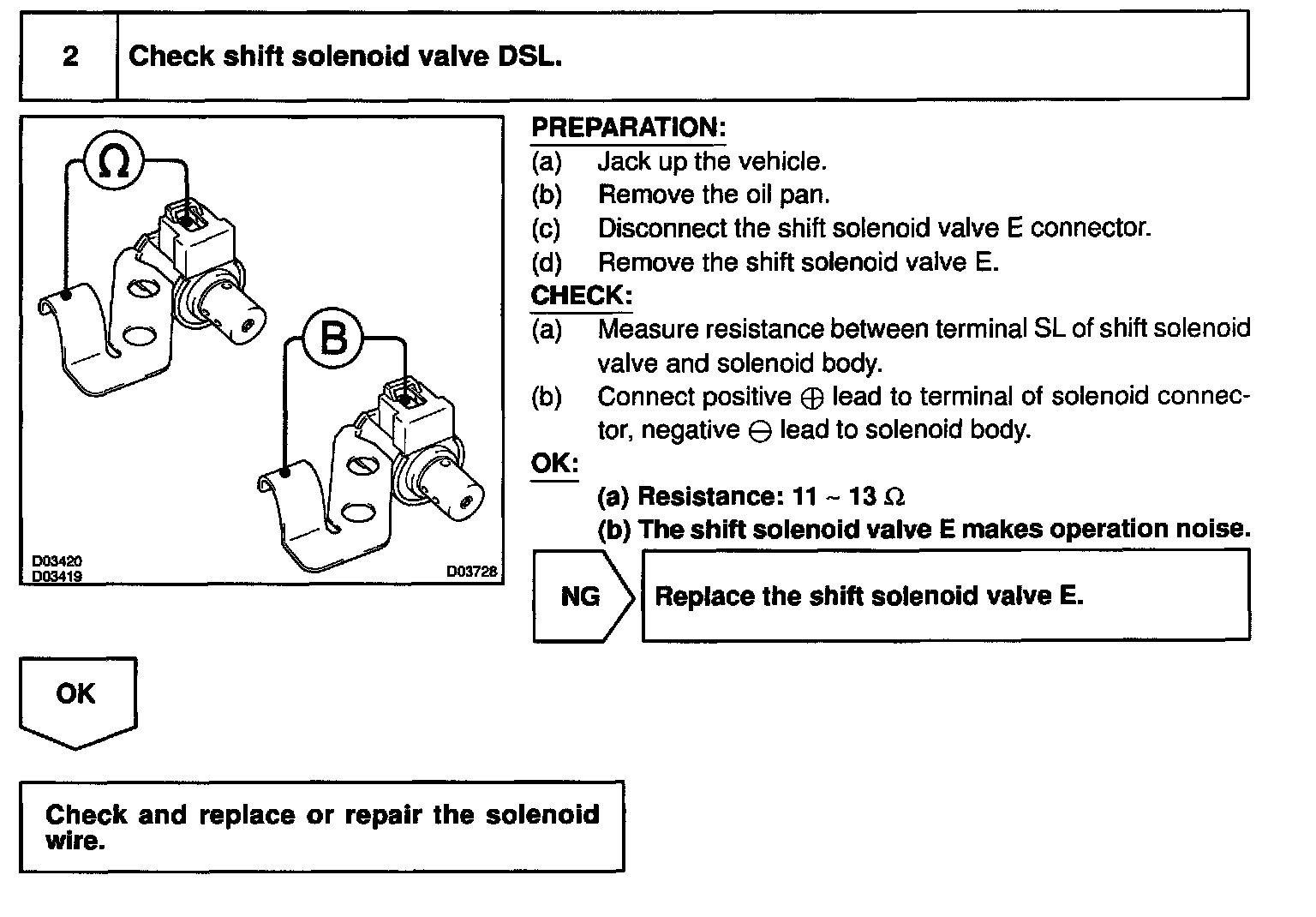

Step 2:

INSPECTION PROCEDURE
