DTC 21

CIRCUIT DESCRIPTION

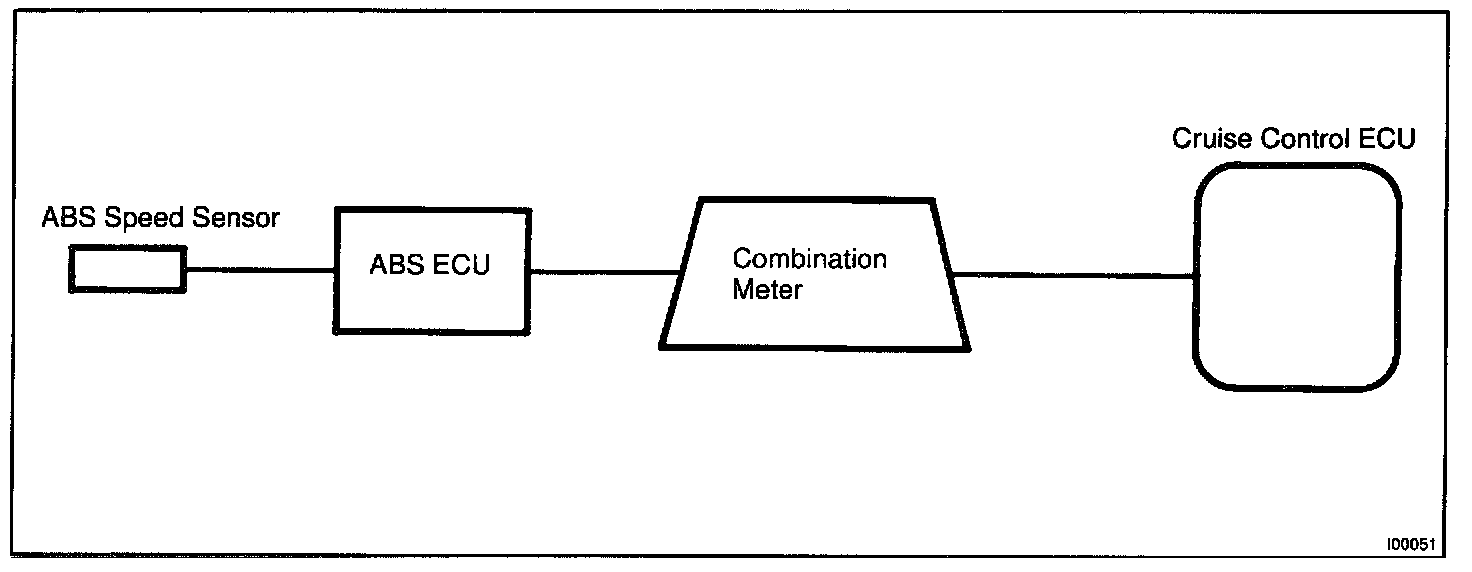

The vehicle speed sensor circuit is sent to cruise control ECU as vehicle speed signal. For each rotation of the shaft, the vehicle speed sensor sends a signal through the combination meter to the cruise control ECU (See the following chart). The ECU calculates the vehicle speed from this pulse frequency.

Detection Item:

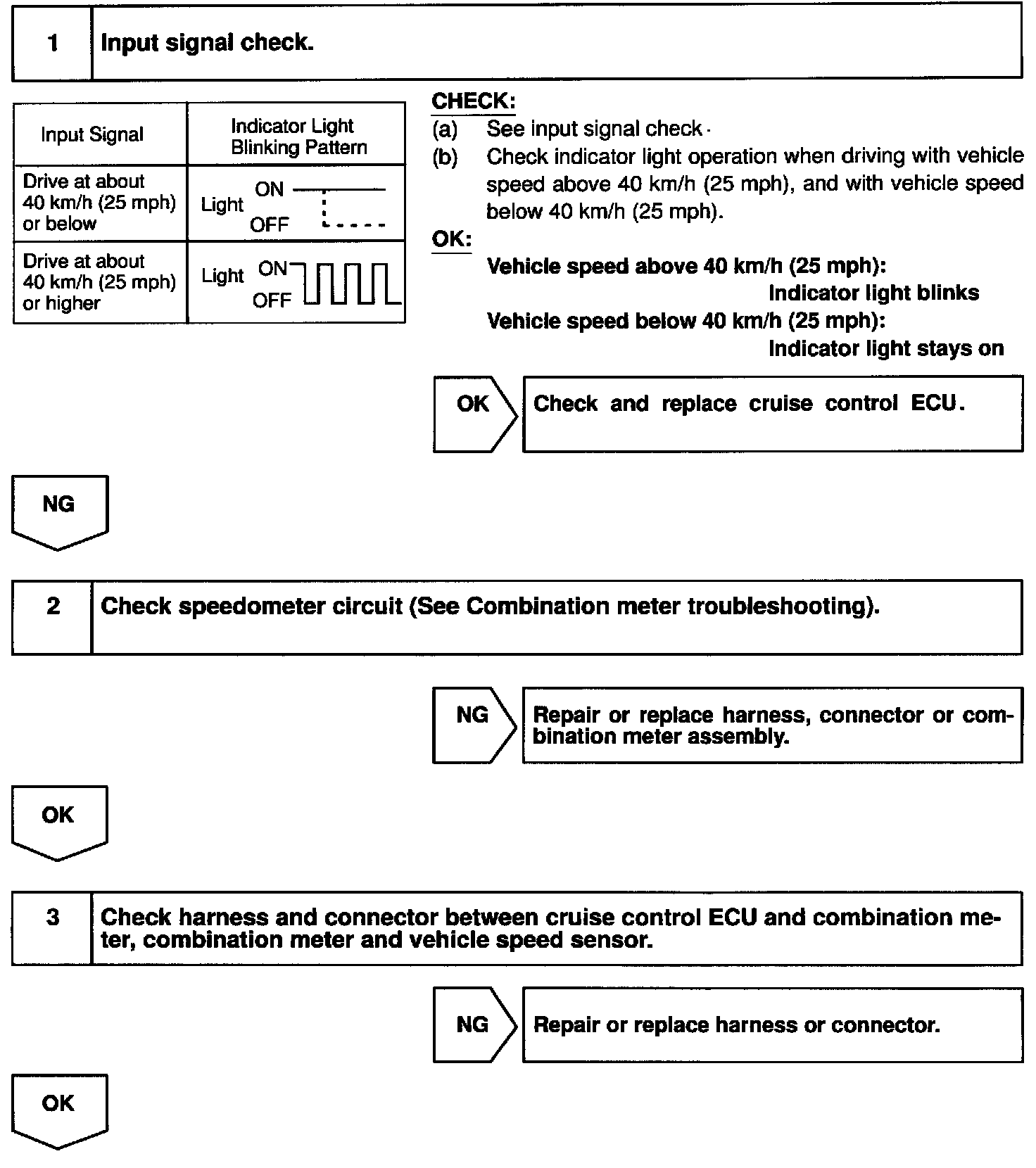

Steps 1 - 3:

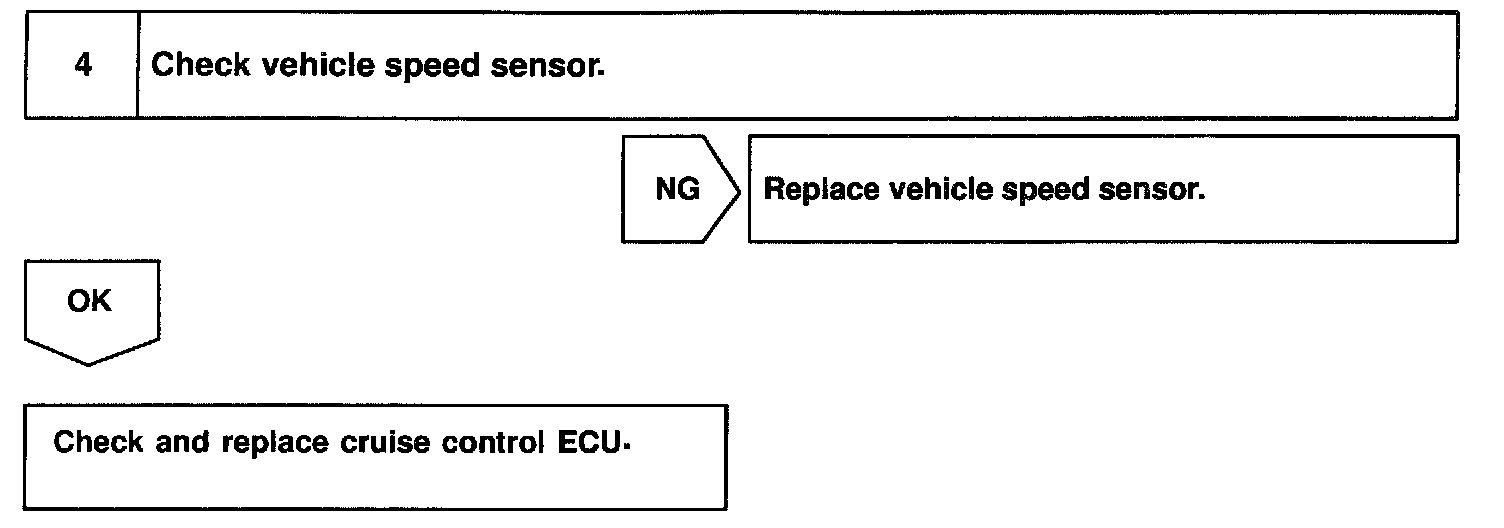

Step 4:

INSPECTION PROCEDURE
