Navigation System

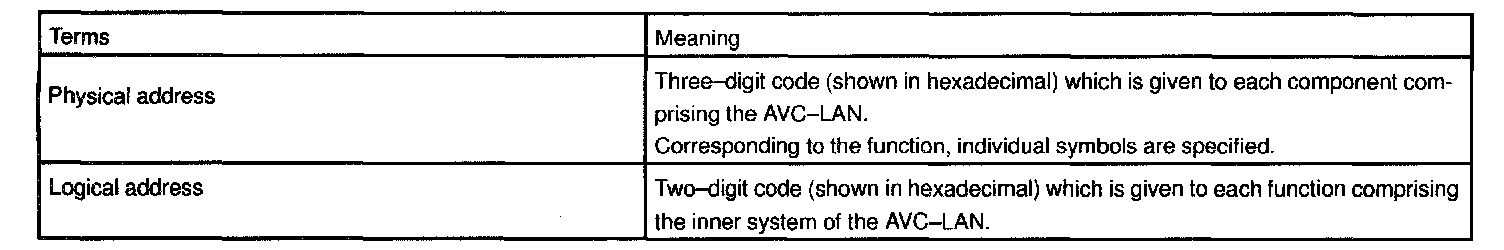

1. PHYSICAL ADDRESS: 110 MULTI DISPLAY

HINT:
- *1: Even if no failure is detected, it may be stored depending on the battery condition or voltage for starting an engine
- *2: It is stored when 180 sec. has passed after the power supply connector is pulled out after engine start.
- *3: It may be stored when the engine key is turned again after engine start.
- *4: It may be stored when the engine key is turned 1 min. again after engine start.

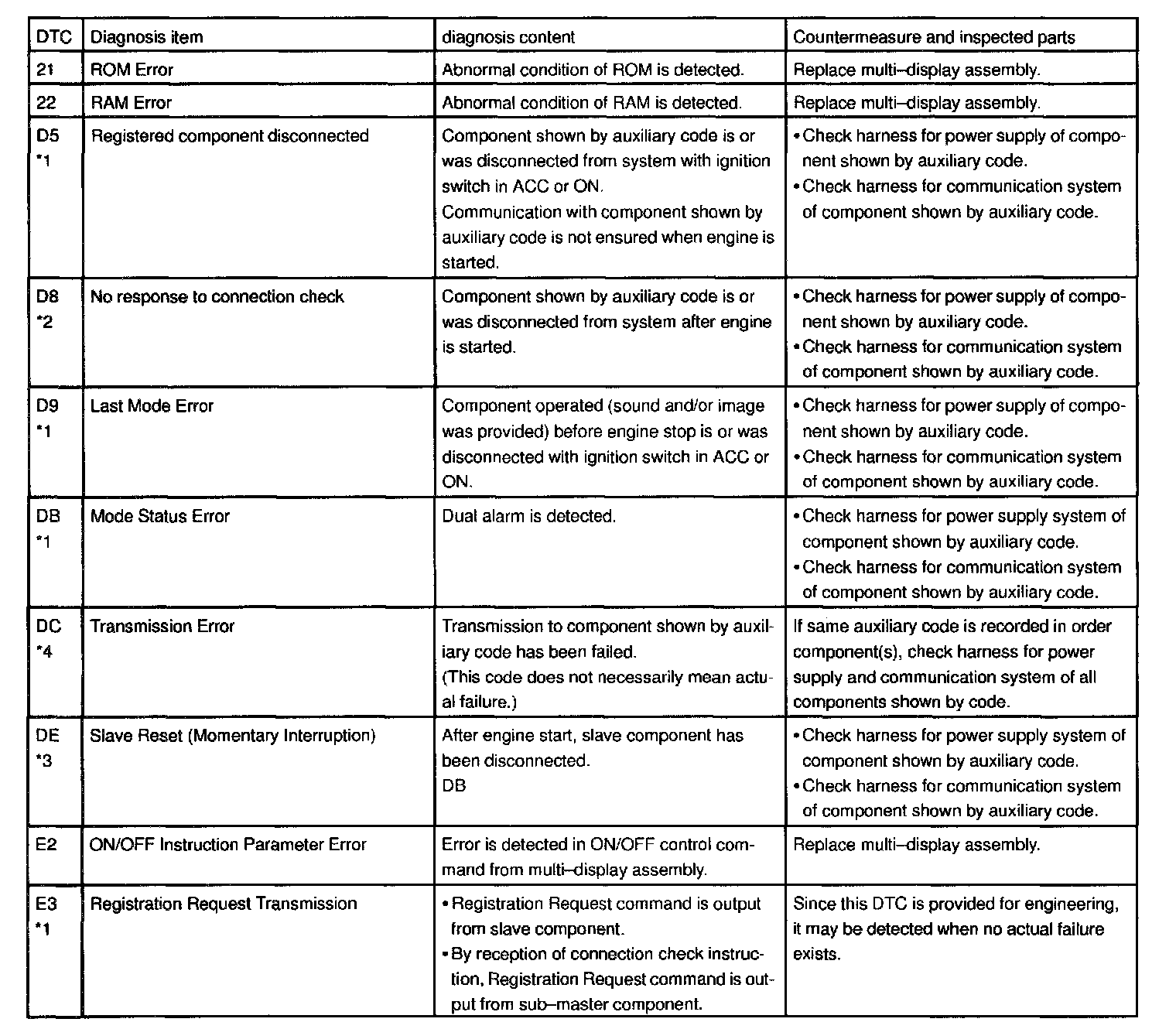

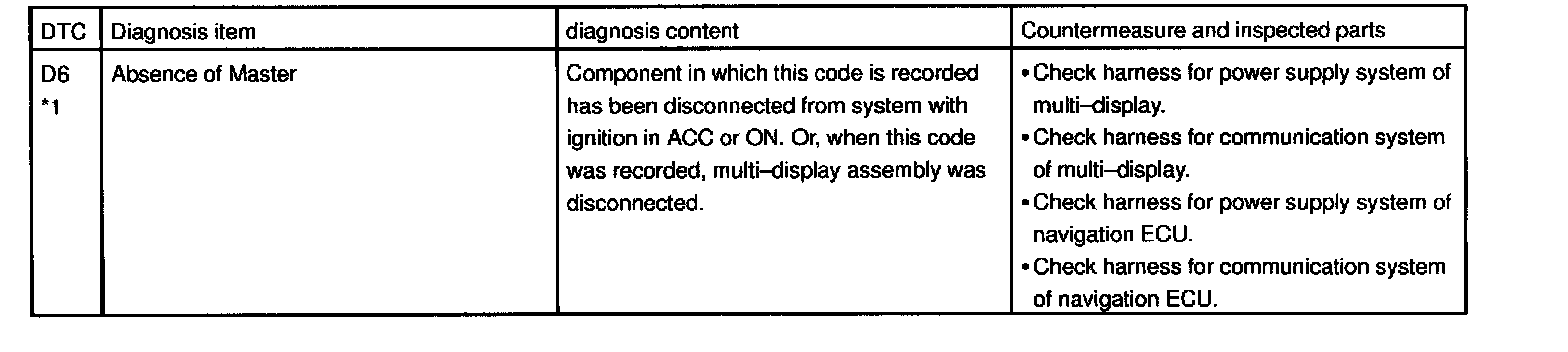

a. Logical address: 01 (Communication control)

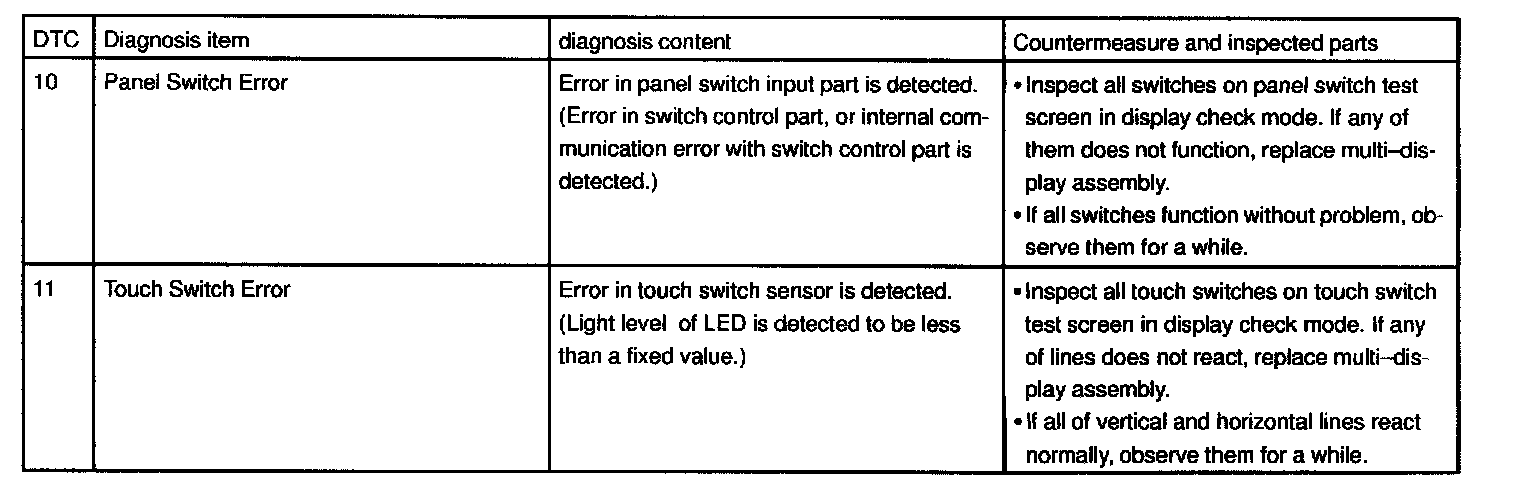

b. Logical address: 21 (Switch)

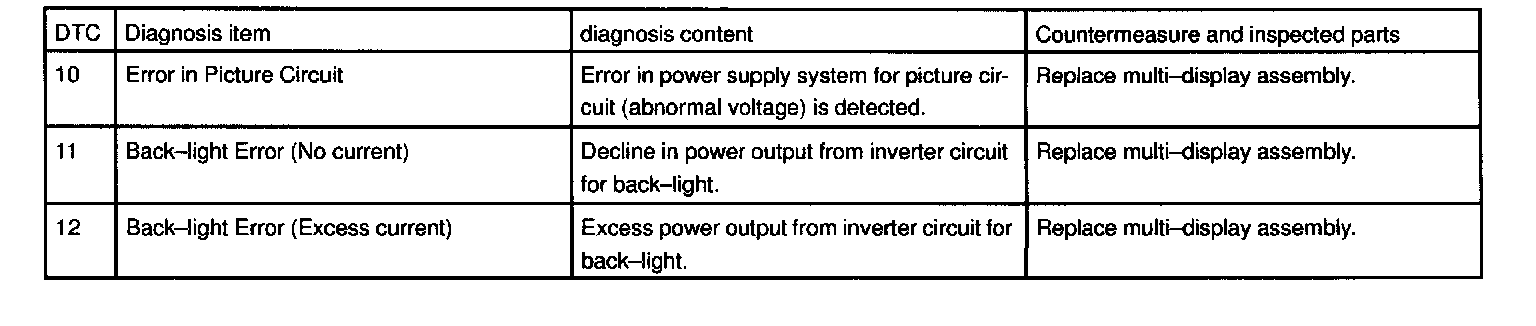

c. Logical address: 34 (Front passenger monitor)

2. PHYSICAL ADDRESS: 1C4 GATEWAY ECU

HINT: *1: When 210 sec. has passed after pulling out the power supply connector of the master component with the ignition switch in ACC or ON, this code is stored.

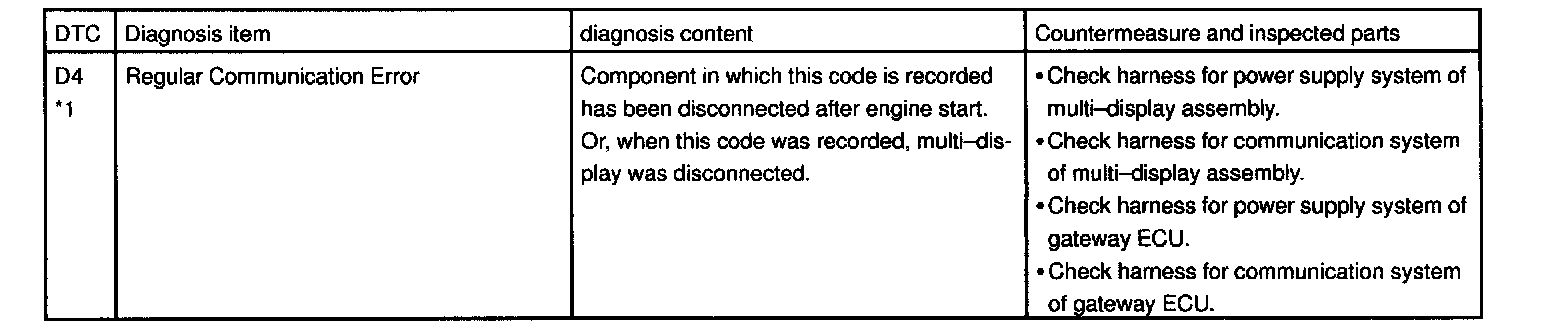

Logical address: 01 (Communication control)

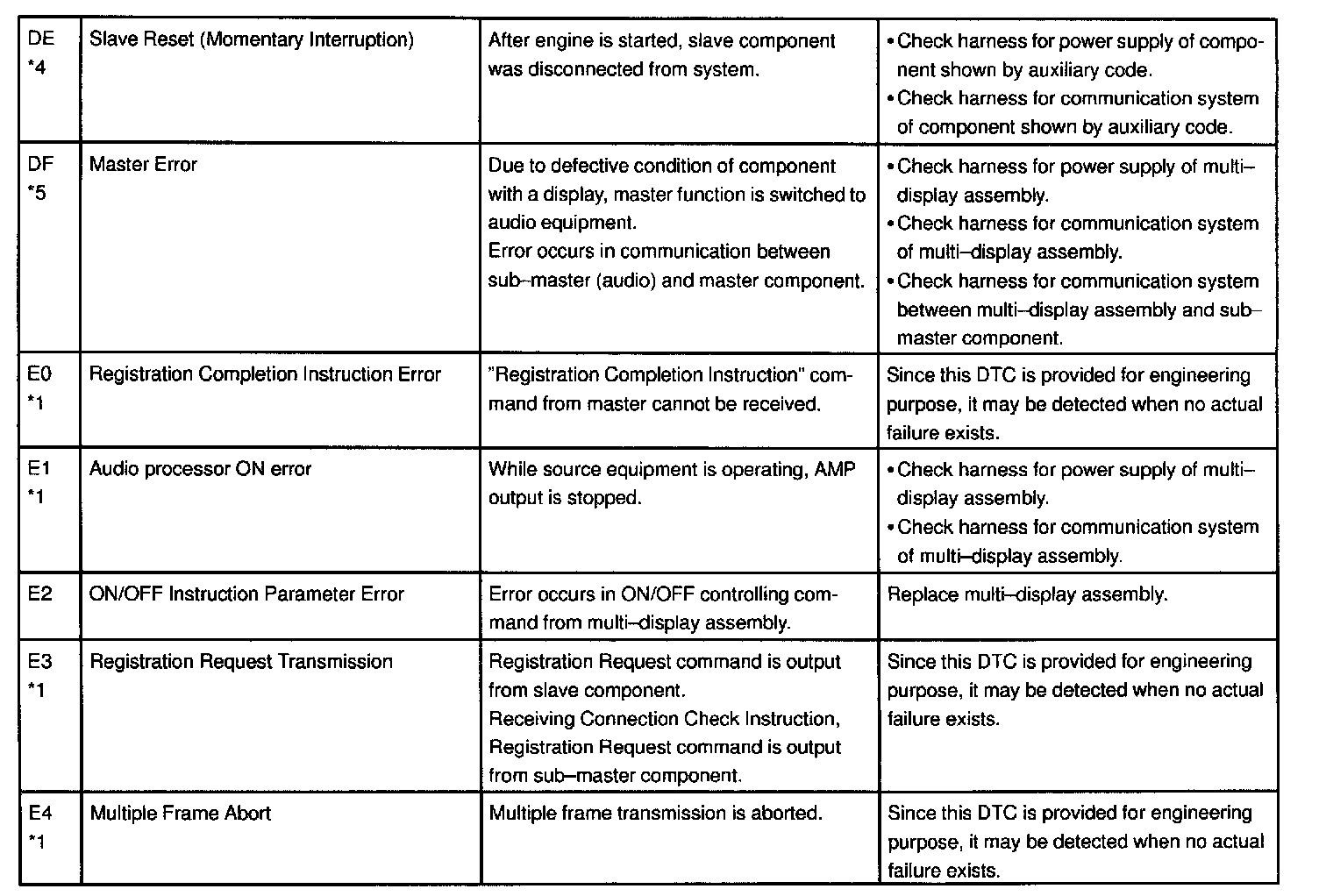

3. PHYSICAL ADDRESS: 190 RADIO AND PLAYER

HINT:
- *1: Even if no failure is detected, it may be stored depending on the battery condition or voltage for starting an engine.
- *2: It is stored when 180 Sec. has passed after the power supply connector is pulled out after engine start.
- *3: It may be stored when the engine key is turned 1 mm. again after engine start.
- *4: It may be stored when the engine key is turned again after engine start.
- *5: When 210 sec. has passed after pulling out the power supply connector of the master component with the ignition switch in ACC or ON, this code is stored.

Part 1:

Part 2:

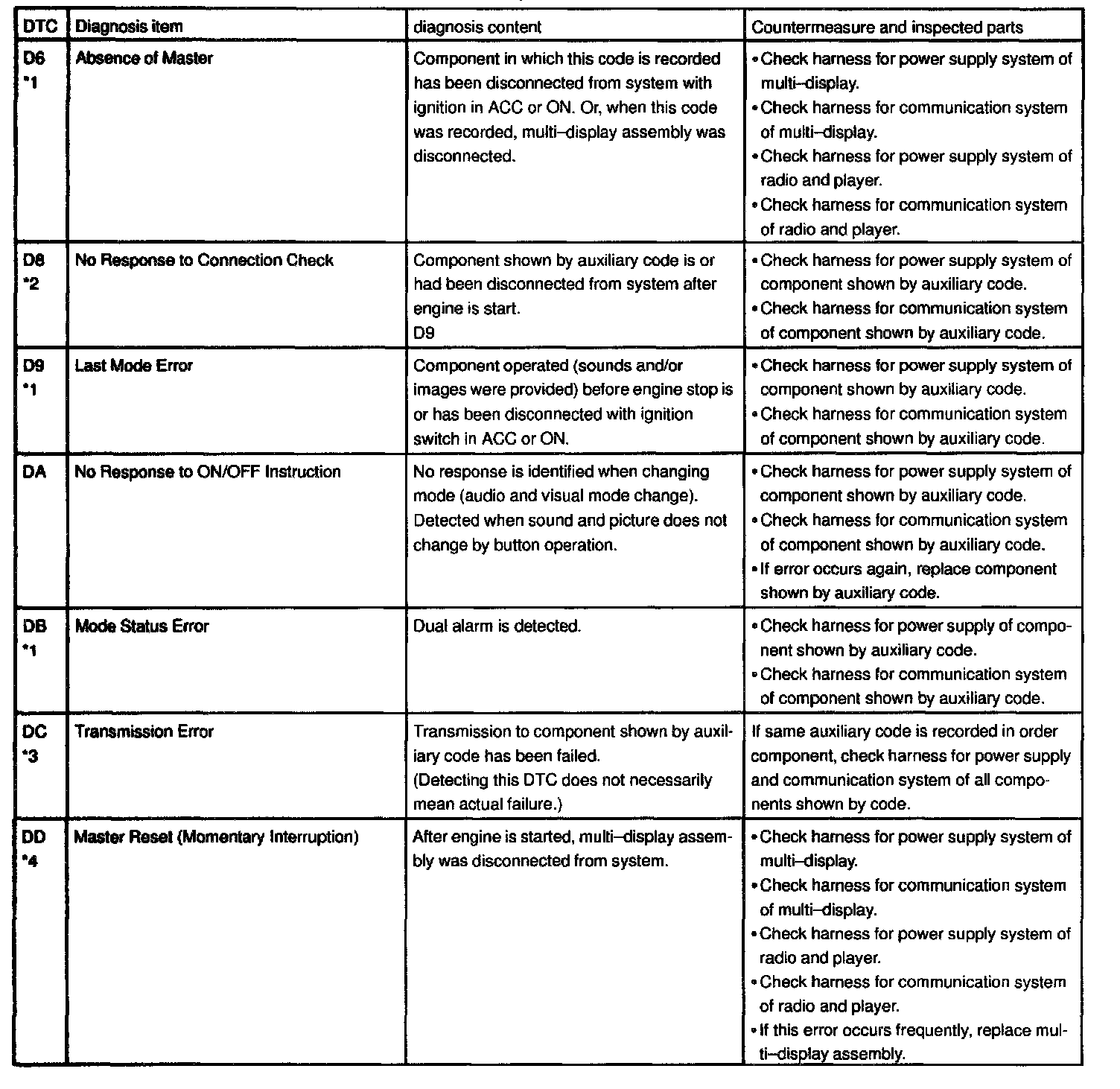

a. Logical address: 01 (Communication control)

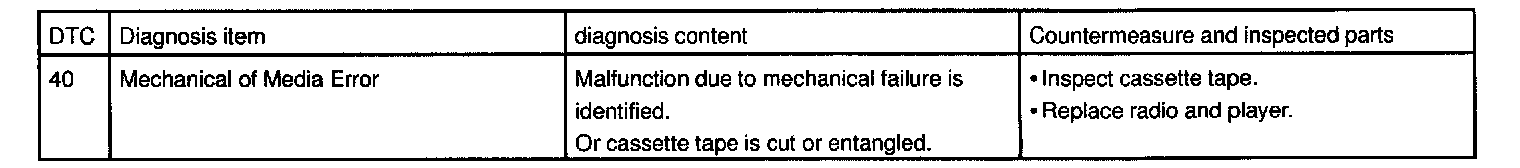

b. Logical address: 61 (Cassette switch)

4. PHYSICAL ADDRESS: 178 NAVIGATION ECU

HINT:
- *1: Even if no failure is detected, it may be stored depending on the battery condition or voltage for starting an engine.
- *2: When 210 sec. has passed after pulling out the power supply connector of the master component with the ignition switch in ACC or ON, this code is stored.
- *3: It may be stored when the engine key is turned 1 mm again after engine start.
- *4: It may be stored when the engine key is turned again after engine start.

Part 1:

Part 2:

a. Logical address: 01 (Communication control)

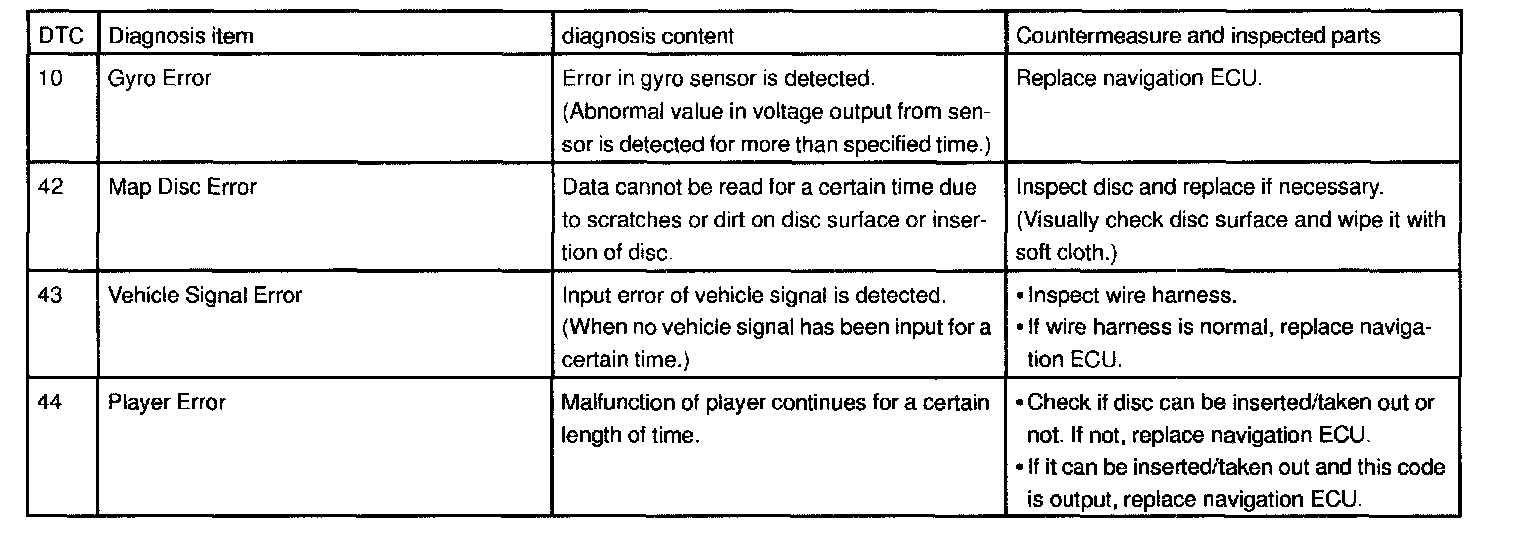

b. Logical address: 58 (Navigation ECU)

Part 1:

Part 2:

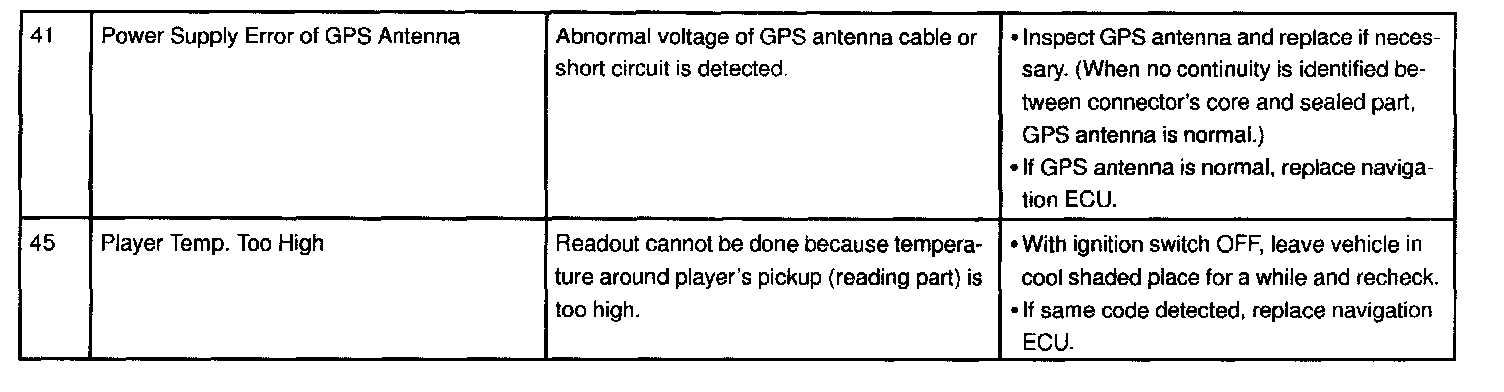

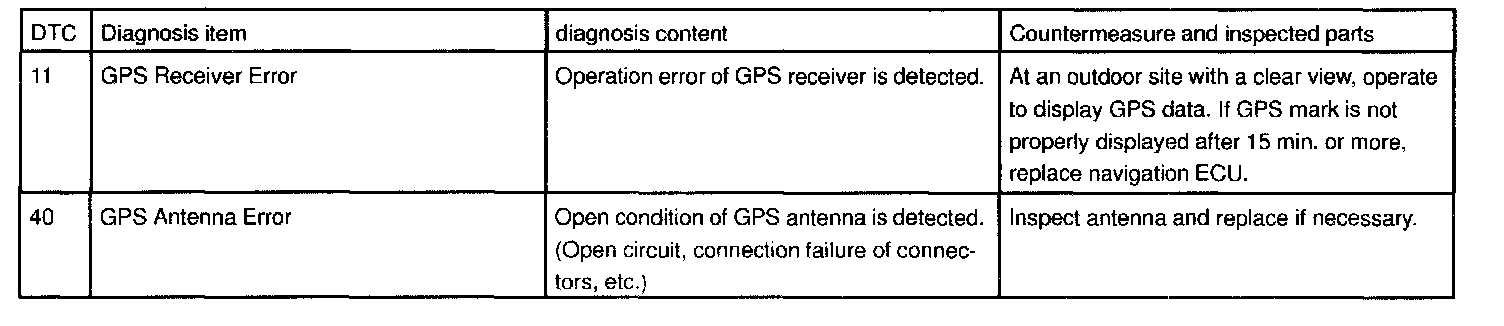

c. Logical address: 80 (GPS receiver)

5. PHYSICAL ADDRESS: 440 STEREO COMPONENT AMPLIFIER

HINT:
- *1: Even if no failure is detected, it may be stored depending on the battery condition or voltage for starting an engine.
- *2: It may be stored when the engine key is turned 1 mm. again after engine start.
- *3: It may be stored when the engine key is turned again after engine start.
- *4: When 210 sec. has passed after pulling out the power supply connector of the master component with the ignition switch in ACC or ON, this code is stored.

Part 1:

Part 2:

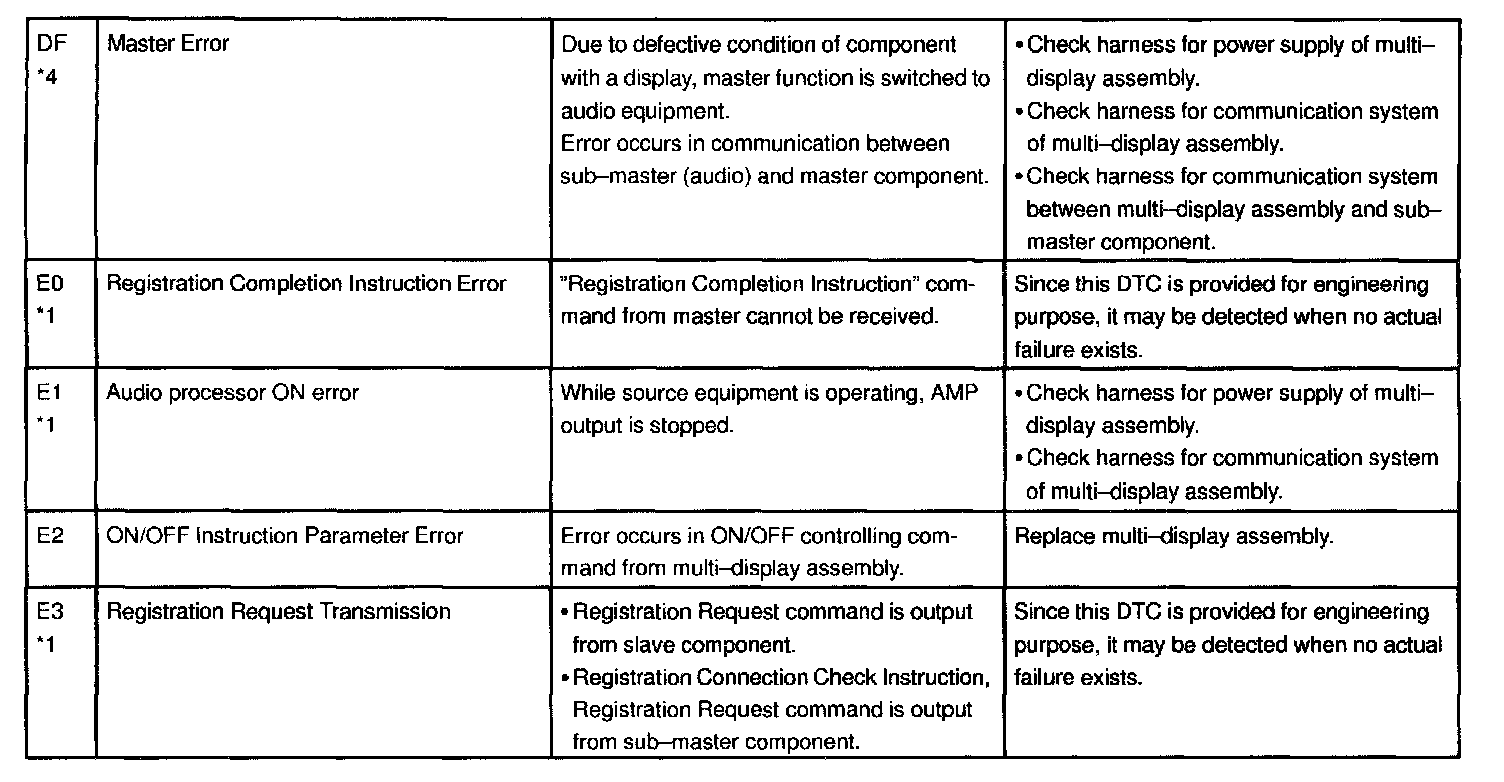

Logical address: 01 (Communication control)

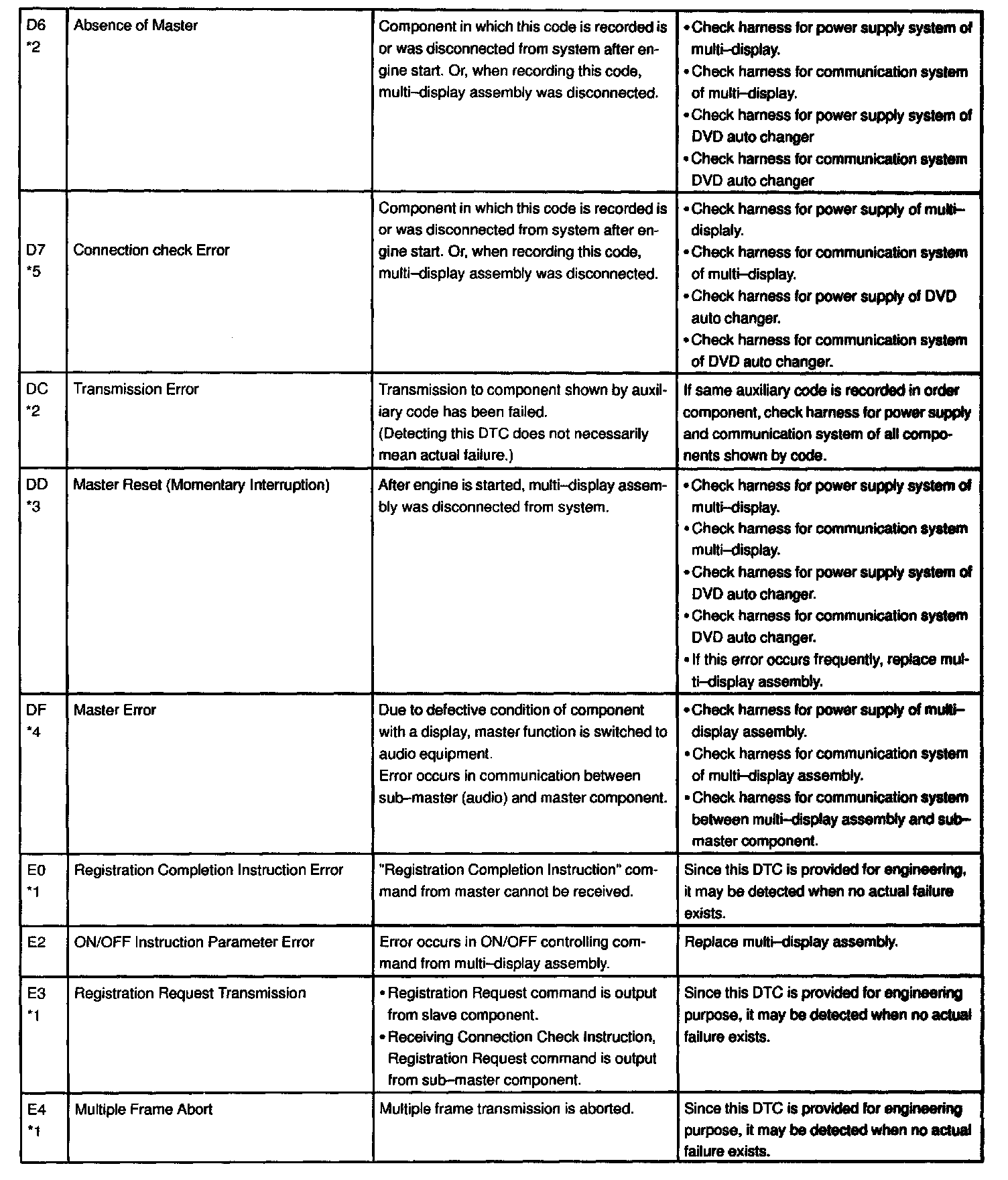

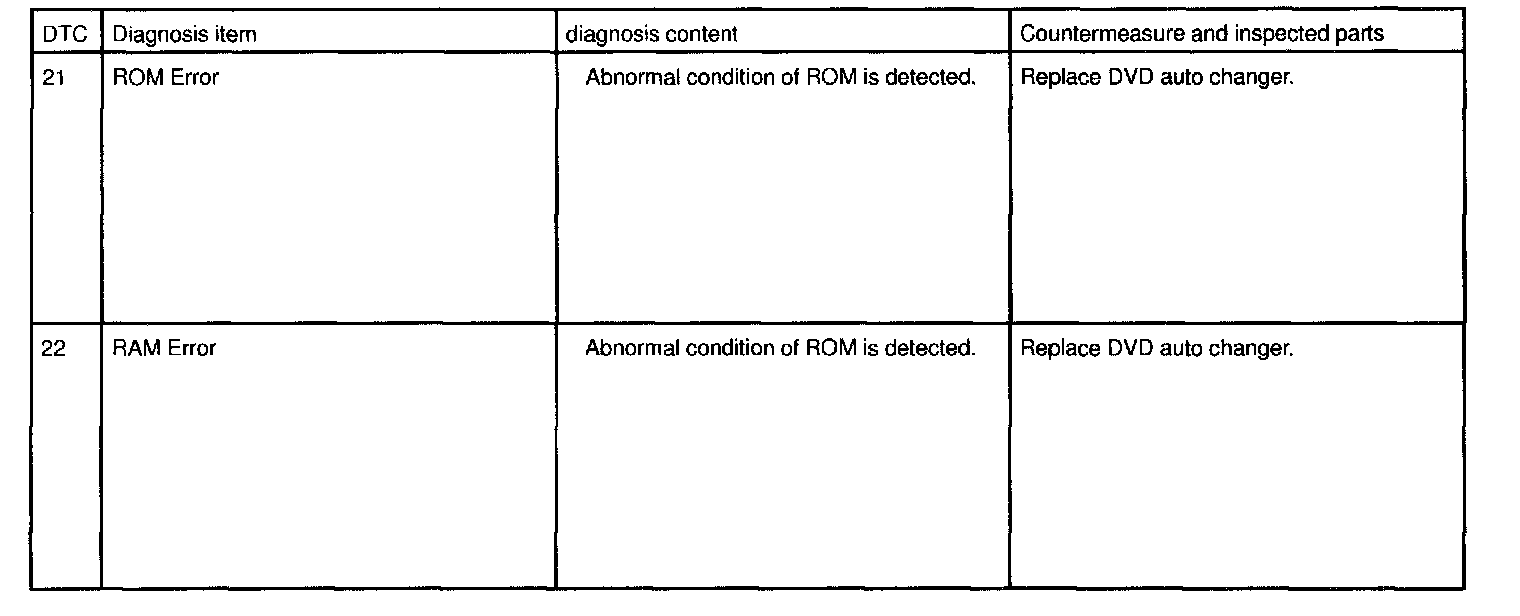

6. PHYSICAL ADDRESS: 250 DVD AUTO CHANGER

HINT:
- *1: Even if no failure is detected, it may be stored depending on the battery condition or voltage for starting an engine.
- *2: It may be stored when the engine key is turned 1 mm. again after engine start.
- *3: It may be stored when the engine key is turned again after engine start.
- *4: It may be stored when the engine key is turned again after engine start.
- *5; When 210 Sec. has passed after pulling out the power supply connector of the master component with the ignition switch in ACC or ON, this code is stored.

Part 1:

Part 2:

Logical address: 01 (Communication control)
