A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Multiplex Communication System
Multiplex Communication System
B1211/11 - B1241/41:
Part 2:

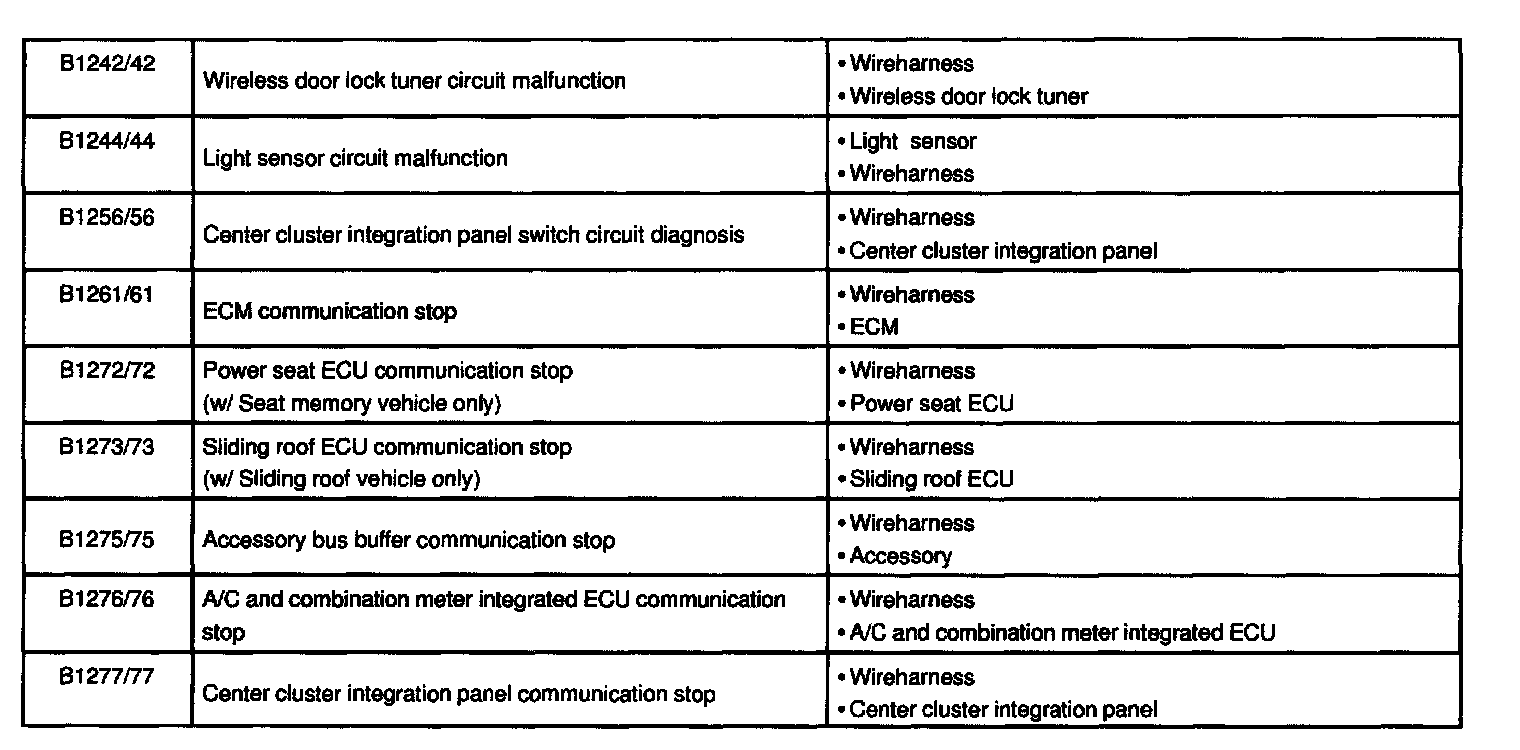

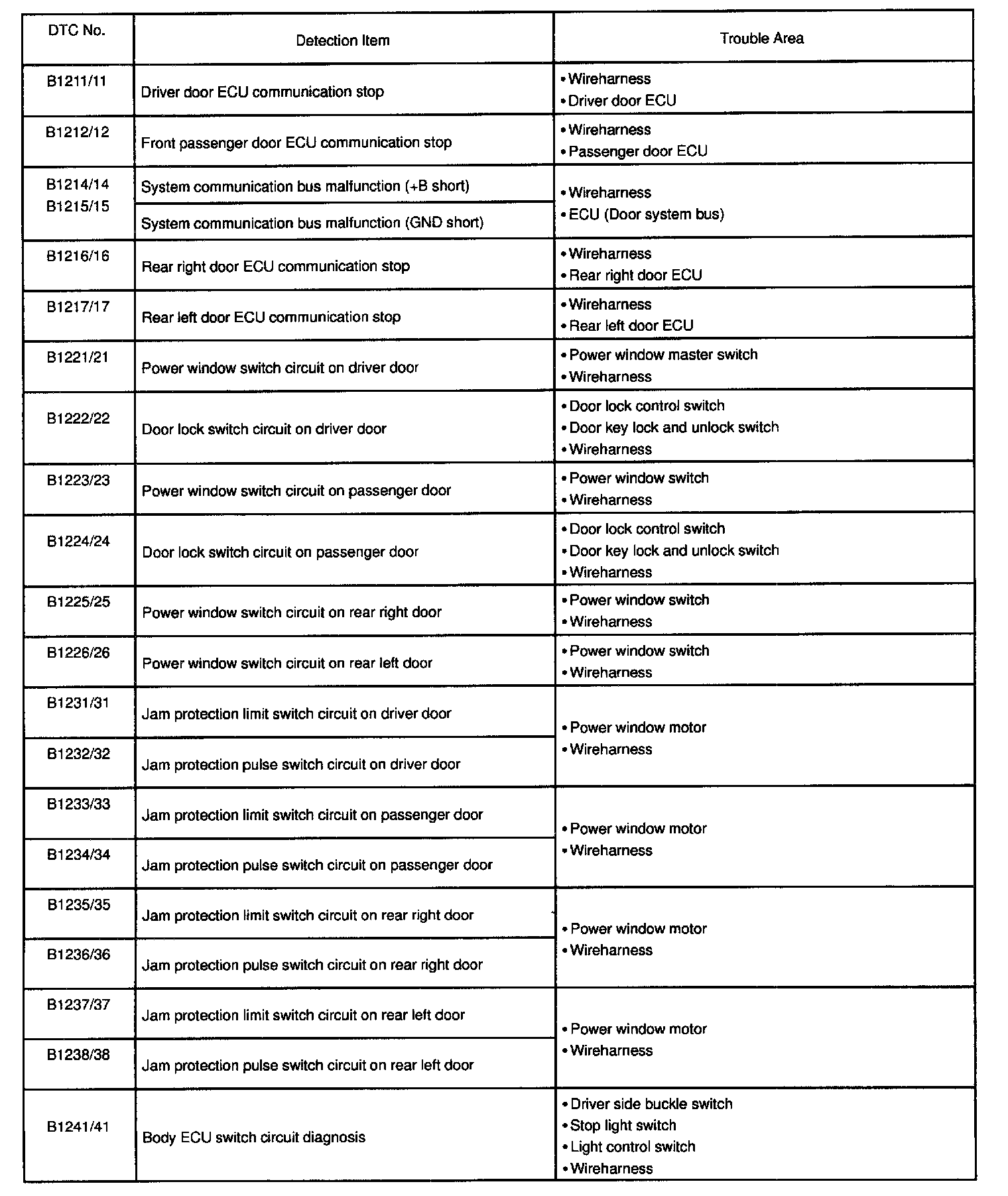

If a malfunction code is displayed during the DTC check, check the circuit listed for that code in the table.
