A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Automatic Transmission System
Automatic Transmission System

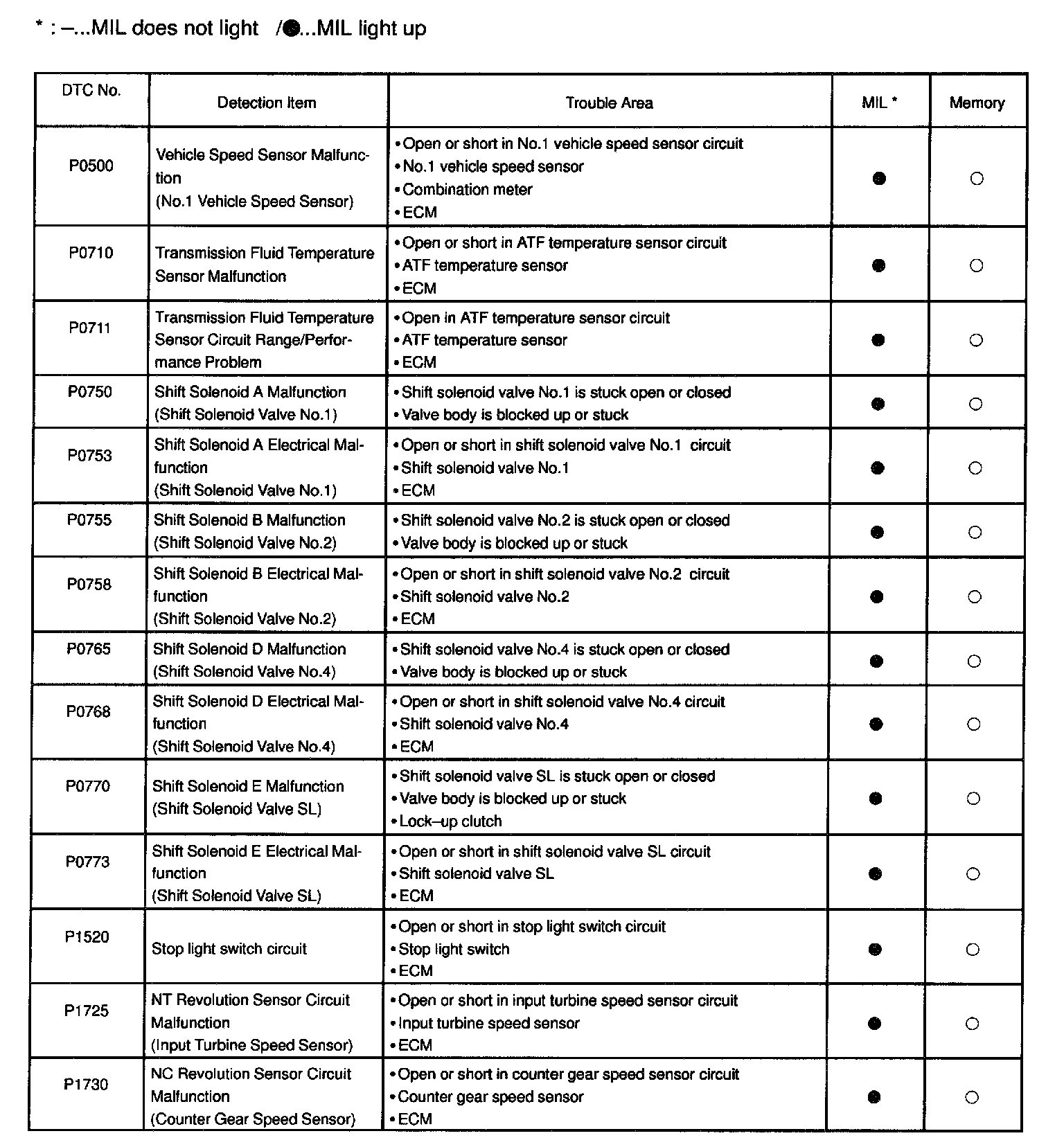

P0500 - P1730:

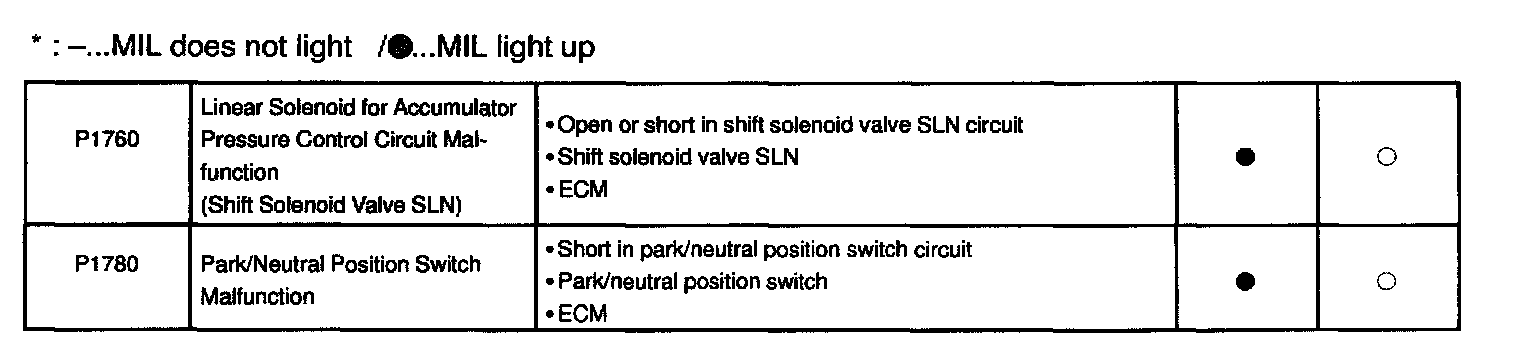

P1760 - P1780:
If a DTC is displayed during the DTC check, check the circuit listed for that code in the table.
