Home >> Lexus Truck >> 2001 >> RX 300 AWD V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> C Code Charts >> C1241

C1241

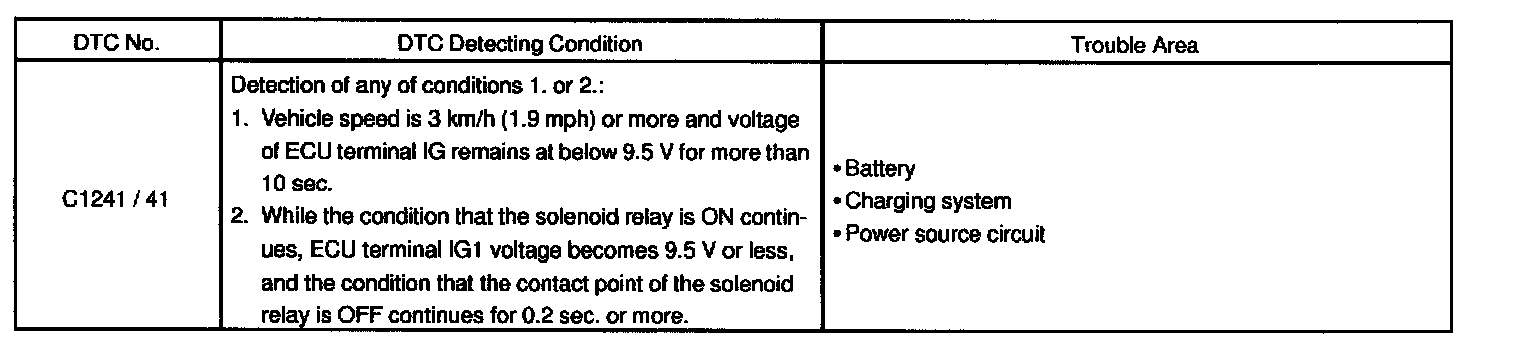

DTC Detecting Condition:




CIRCUIT DESCRIPTION

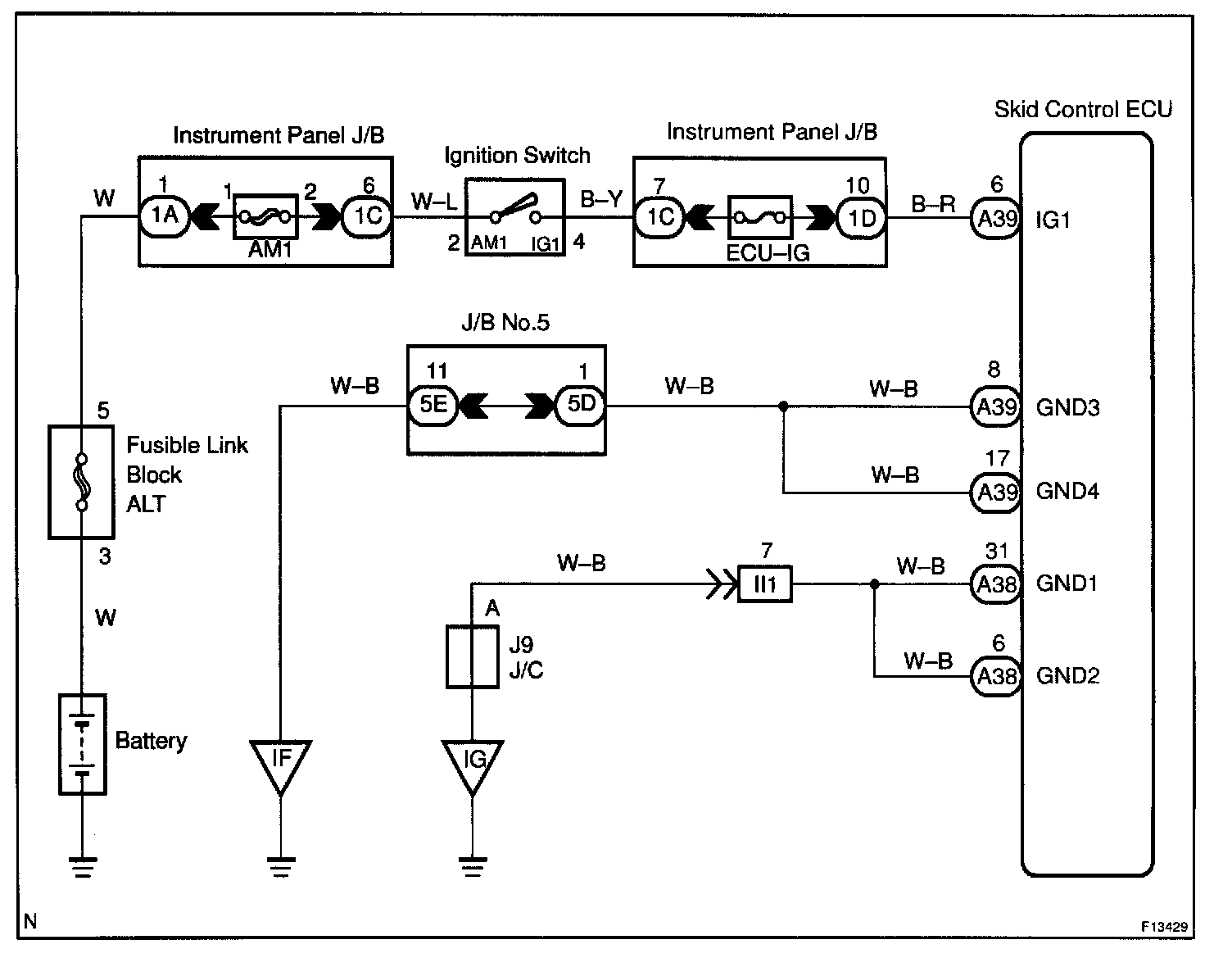

Wiring Diagram:

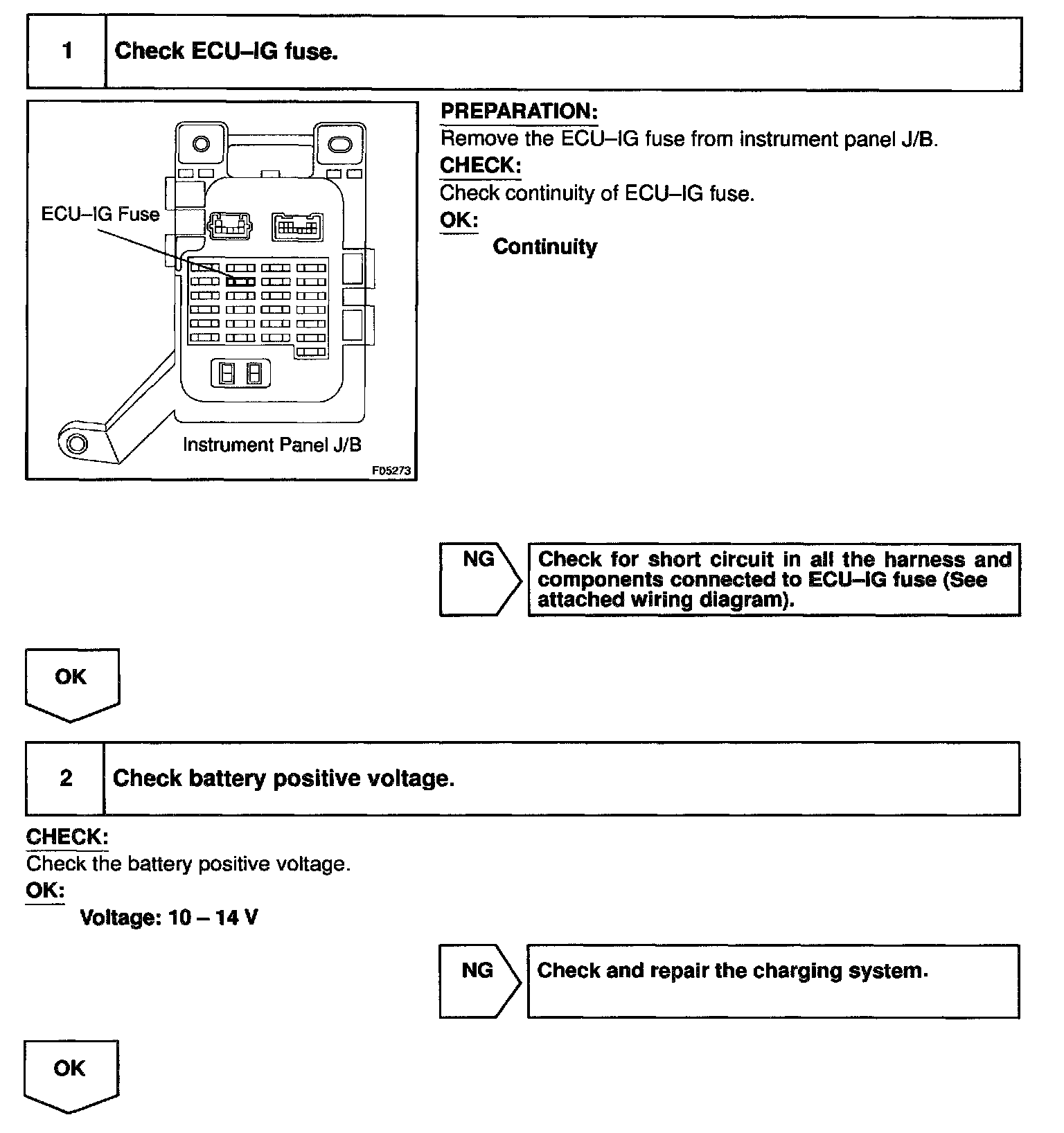

Steps 1 - 2:




Step 3:

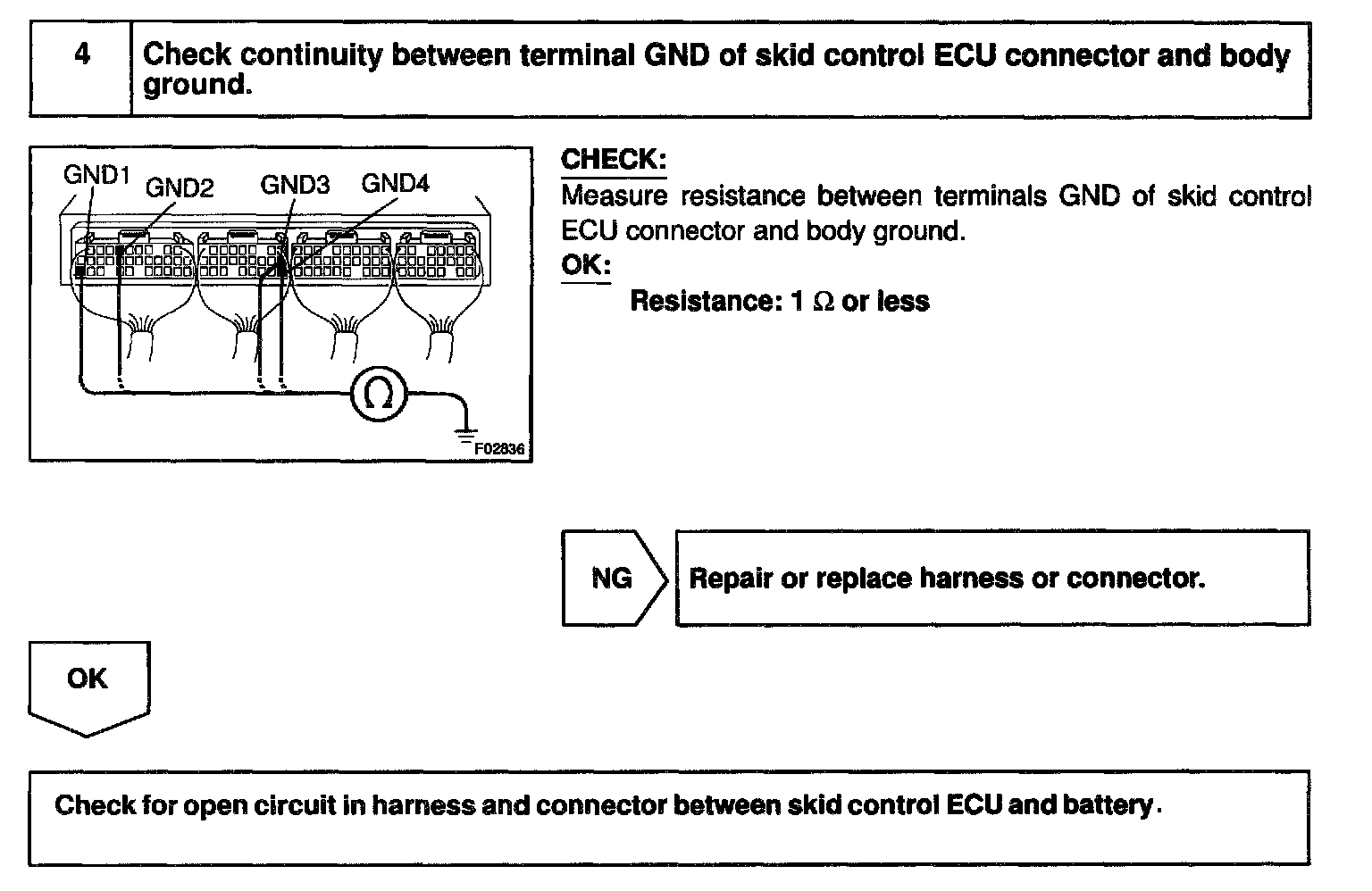

Step 4:




INSPECTION PROCEDURE
