C1207
C1207

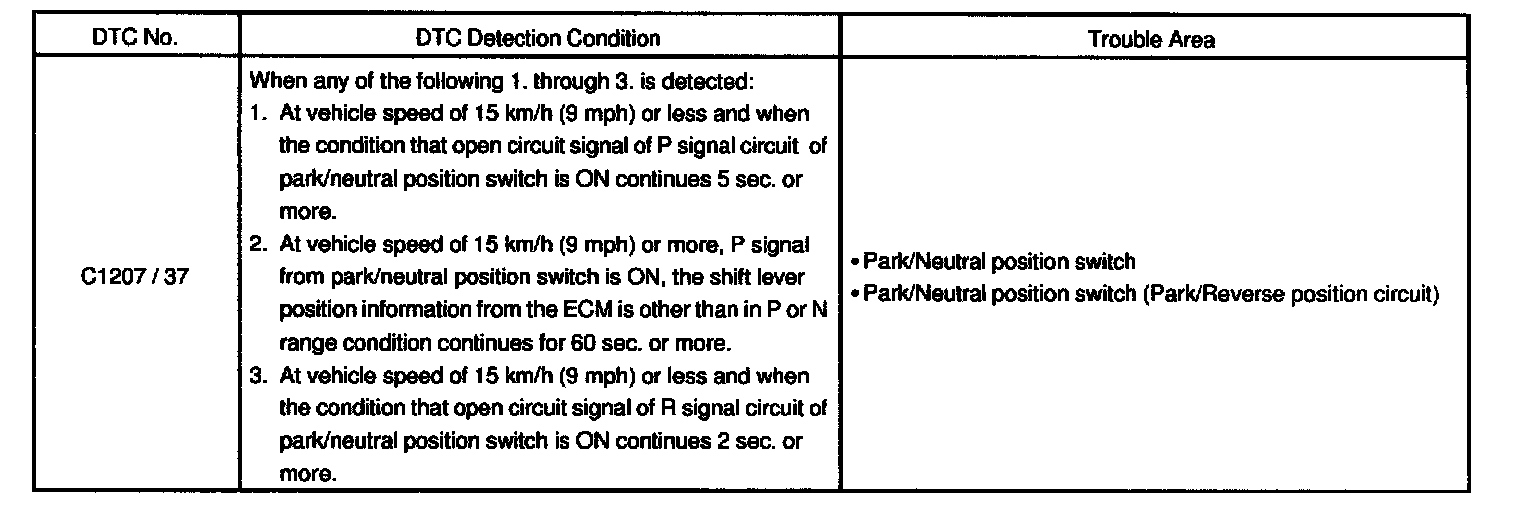

DTC Detection Condition:
CIRCUIT DESCRIPTION

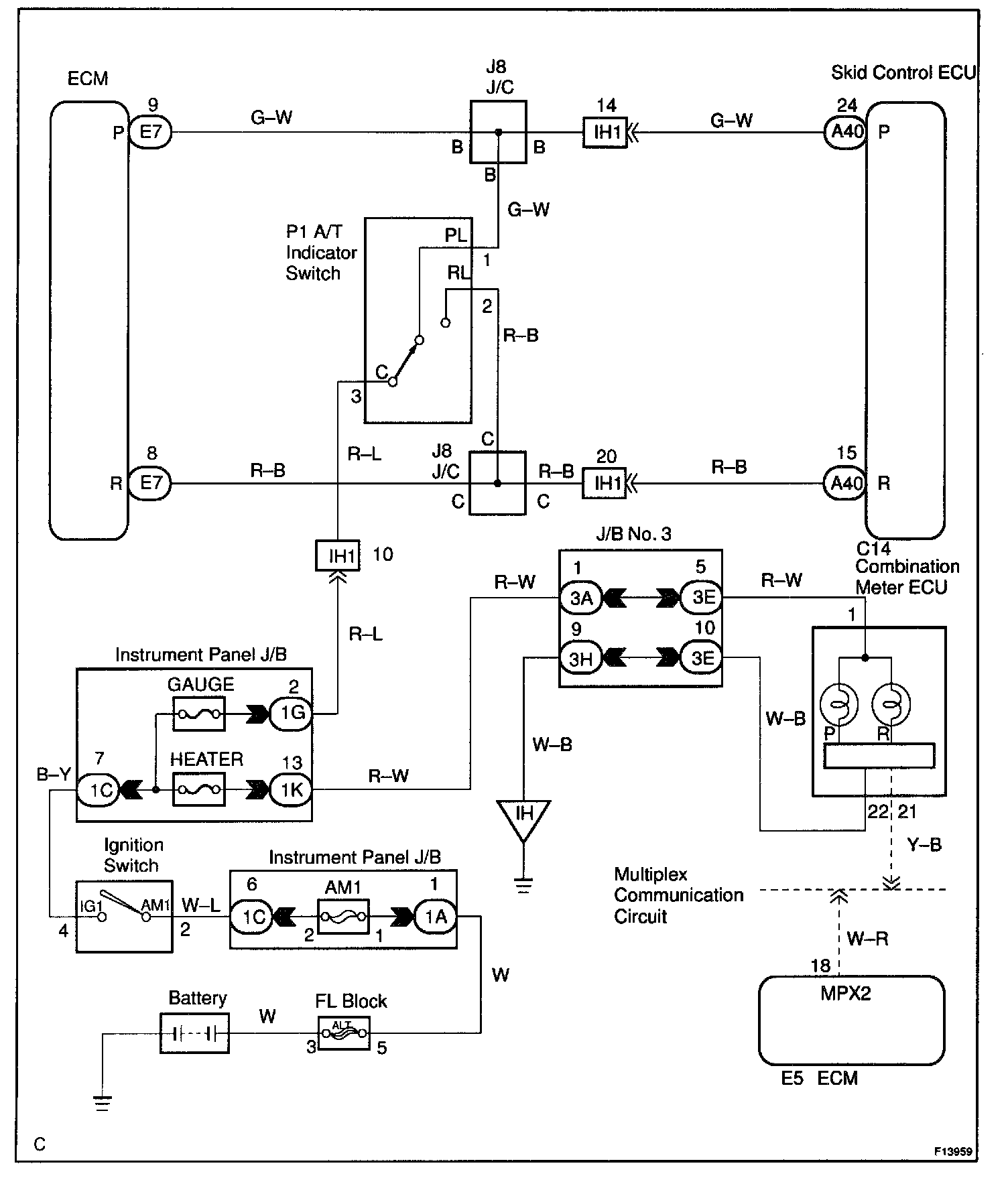

Wiring Diagram:

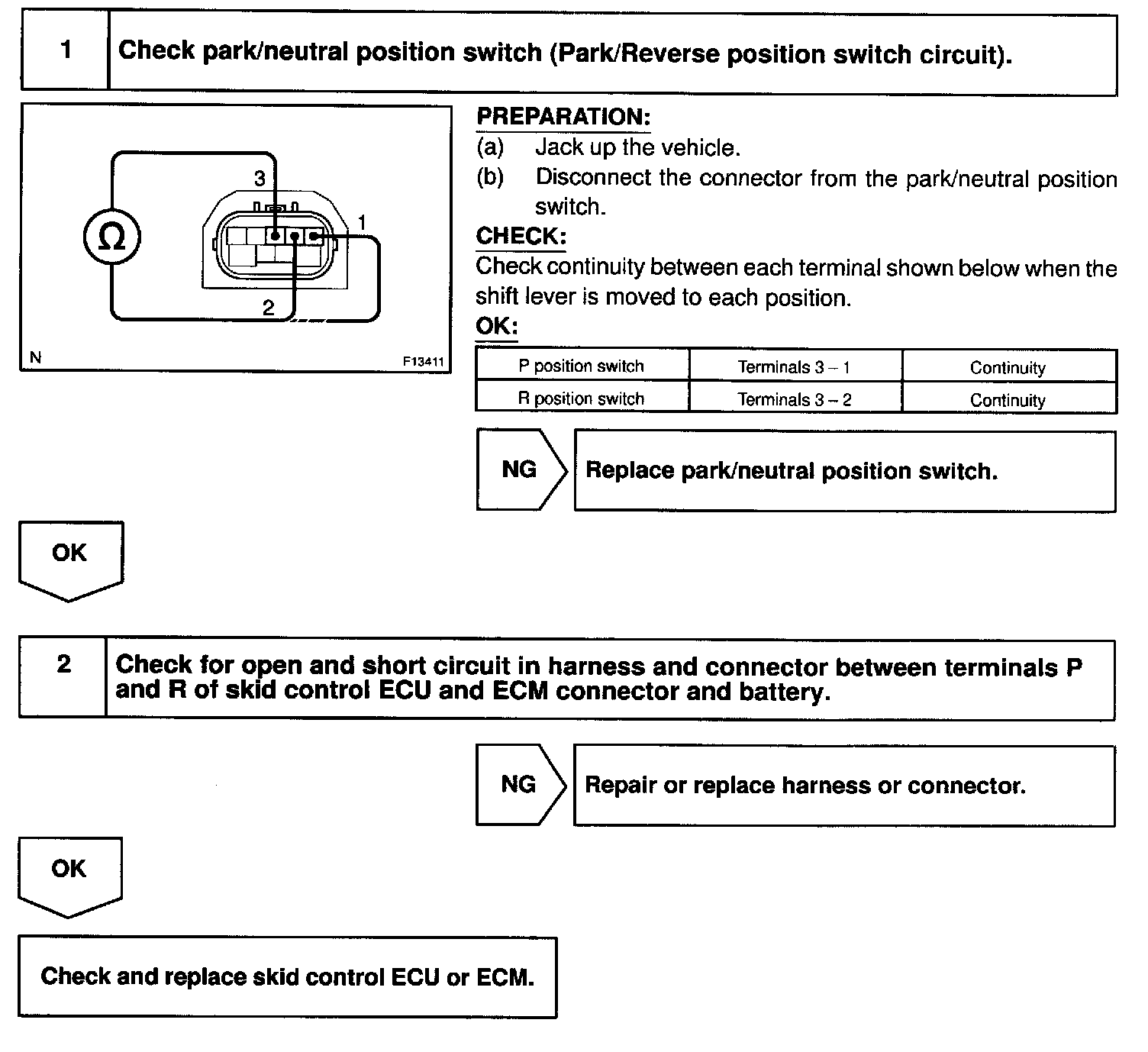

Steps 1 - 2:
INSPECTION PROCEDURE
