C1201

CIRCUIT DESCRIPTION

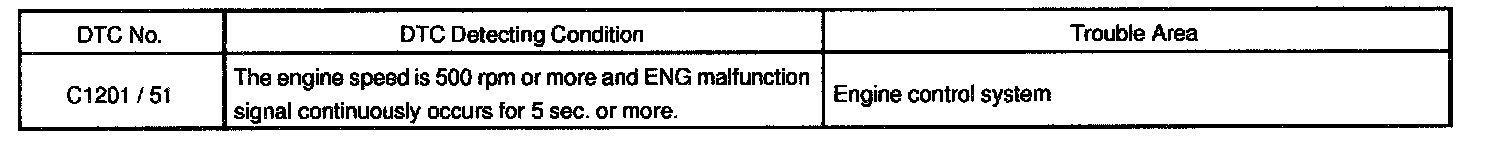

DTC Detecting Condition:




If any trouble occurs in the engine control system, the ECU prohibits BA & TRAC & VSC control.


Step 1:

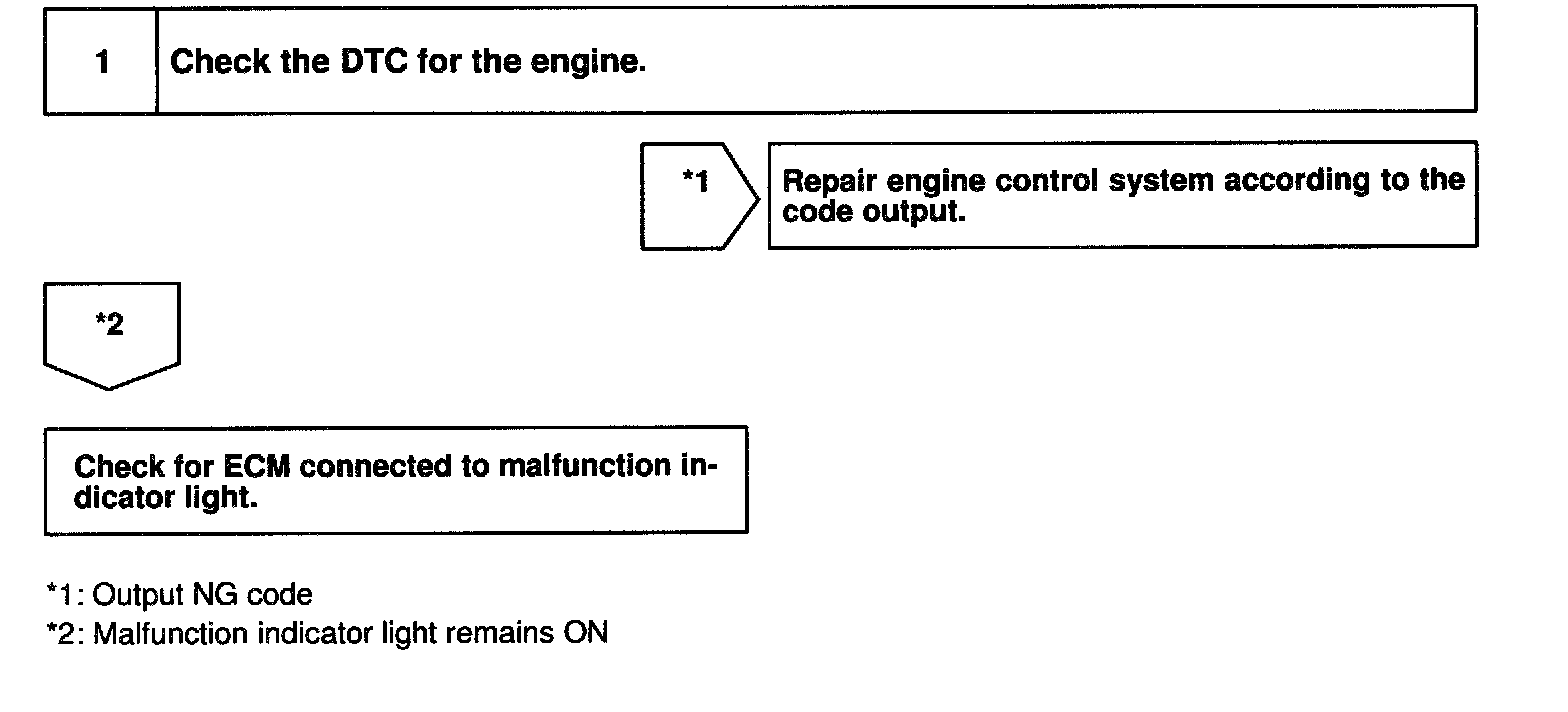

INSPECTION PROCEDURE
