B2785
B2785

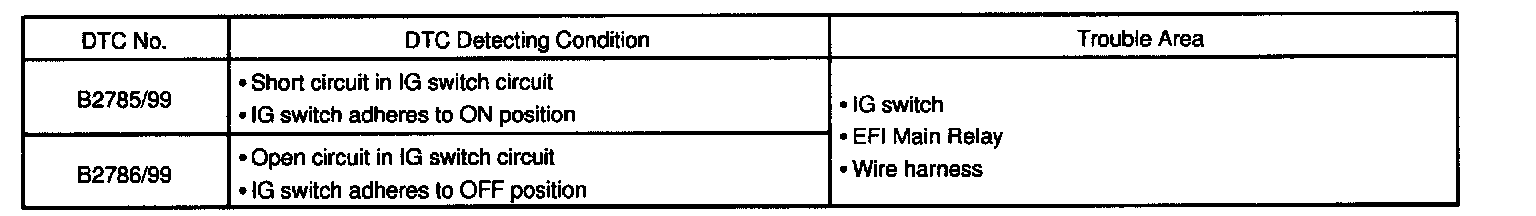

DTC Detecting Condition:
CIRCUIT INSPECTION

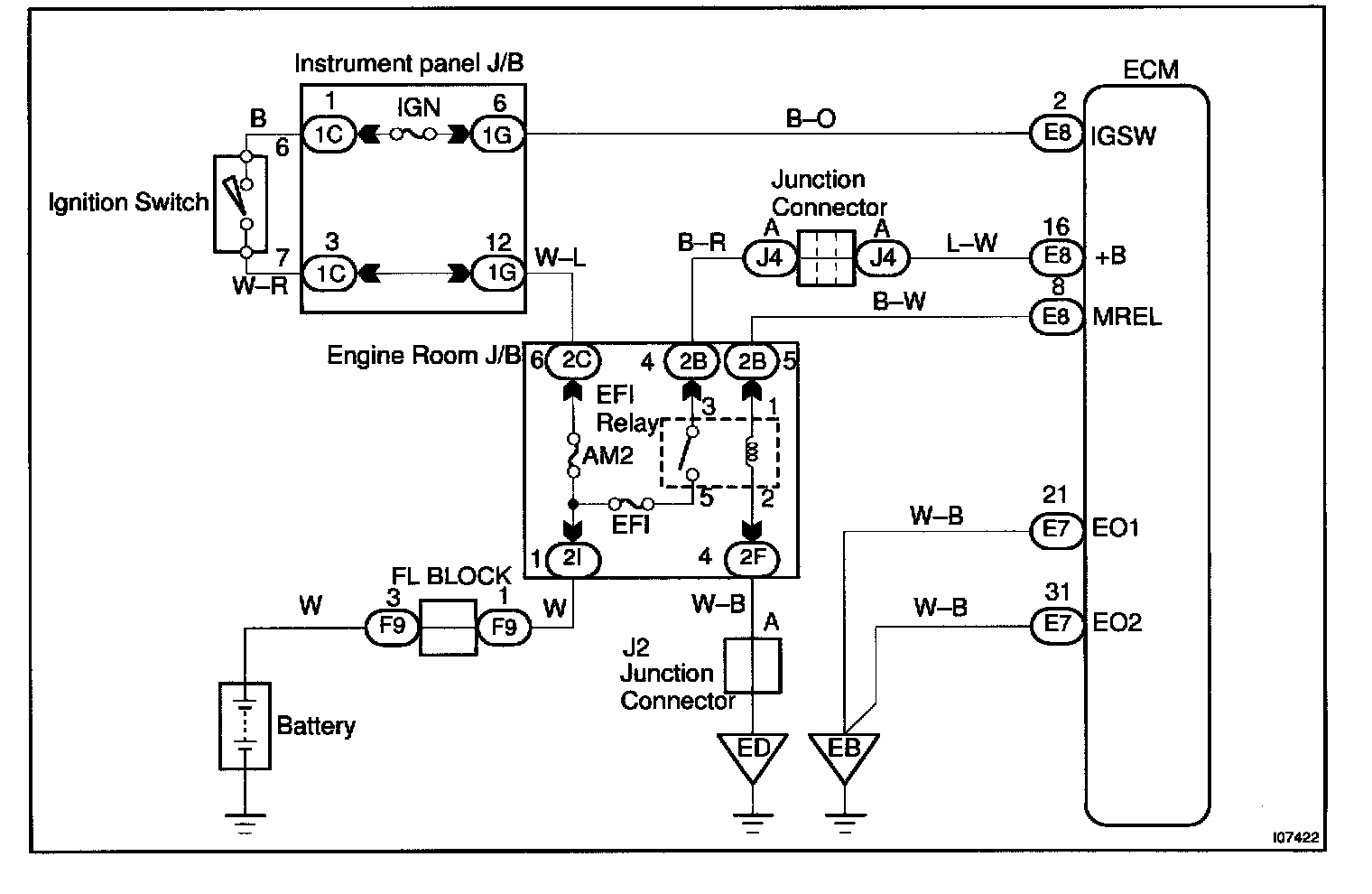

Wiring Diagram:

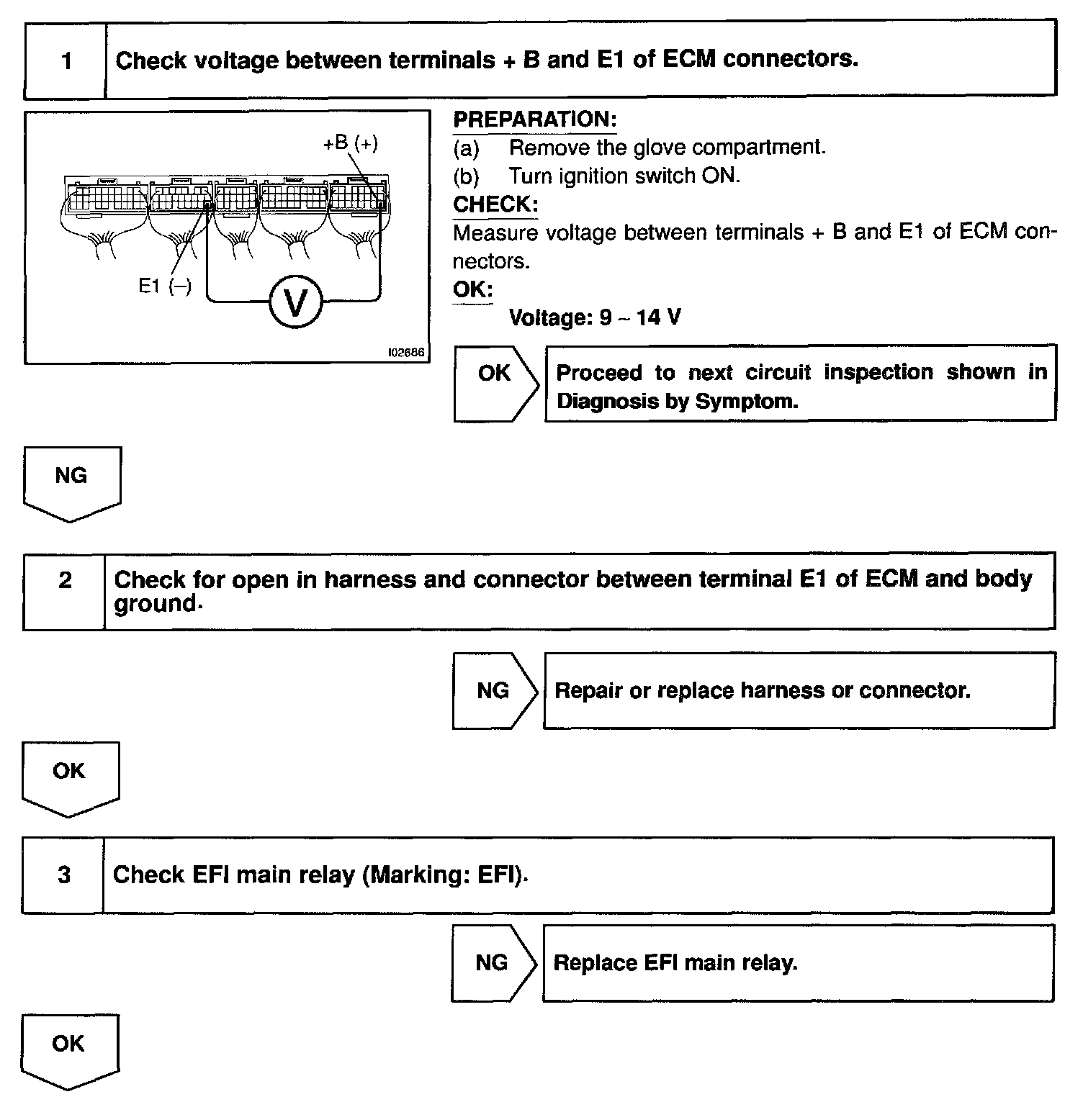

Steps 1 - 3:

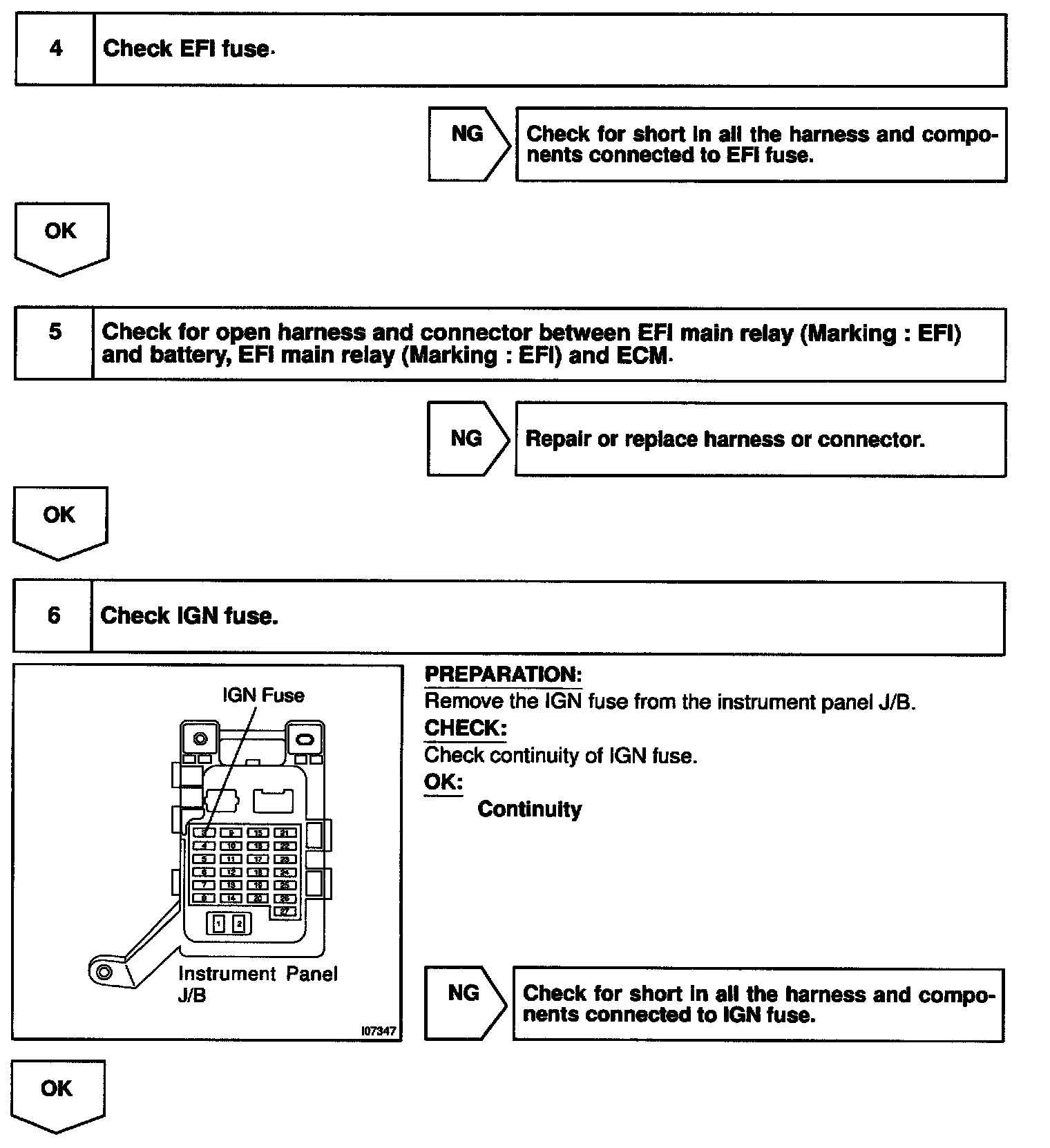

Steps 4 - 6:

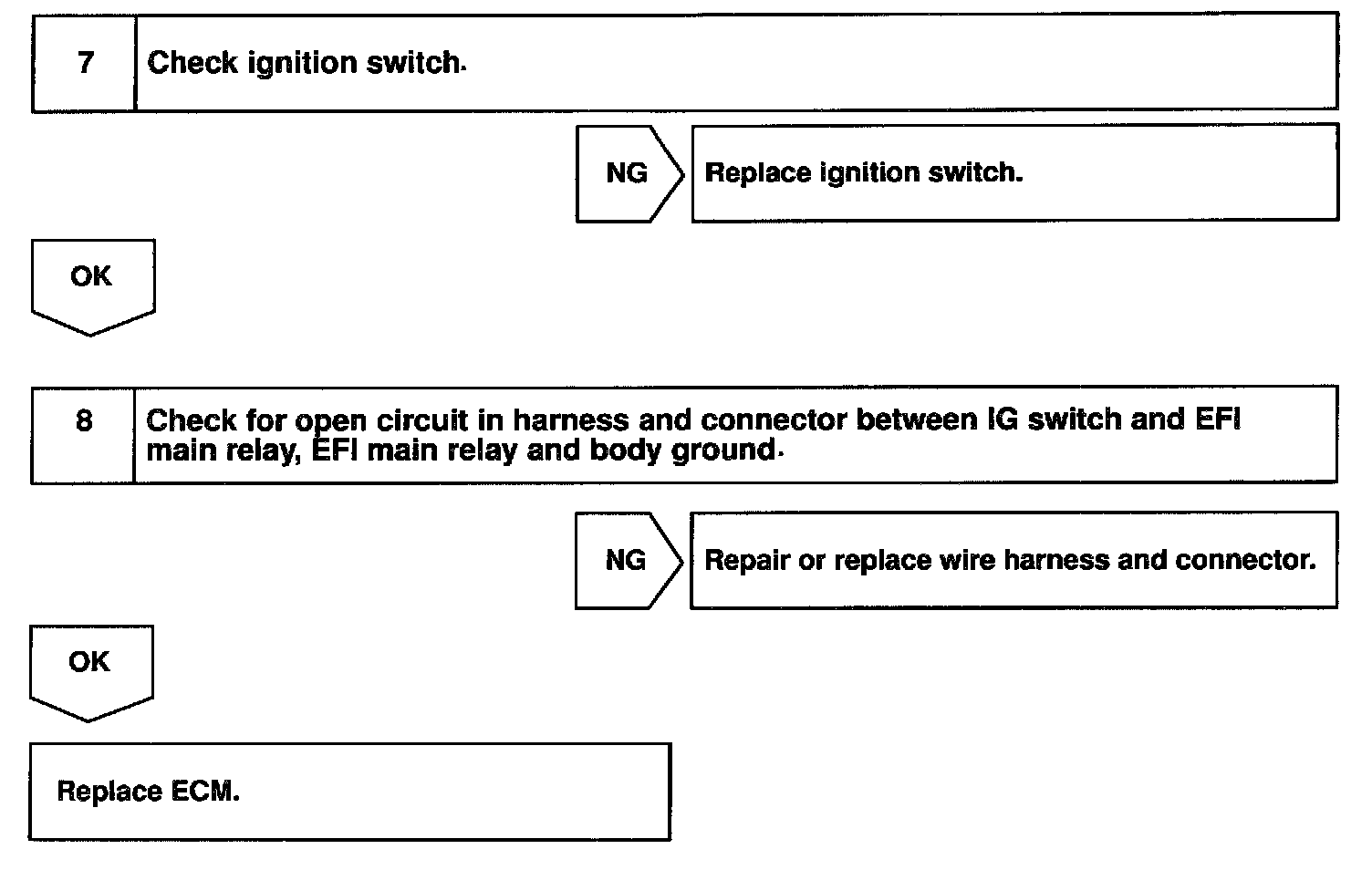

Steps 7 - 8:
INSPECTION PROCEDURE
