B1441

DTC B1441 AIR MIX DAMPER CONTROL SERVOMOTOR CIRCUIT

CIRCUIT DESCRIPTION

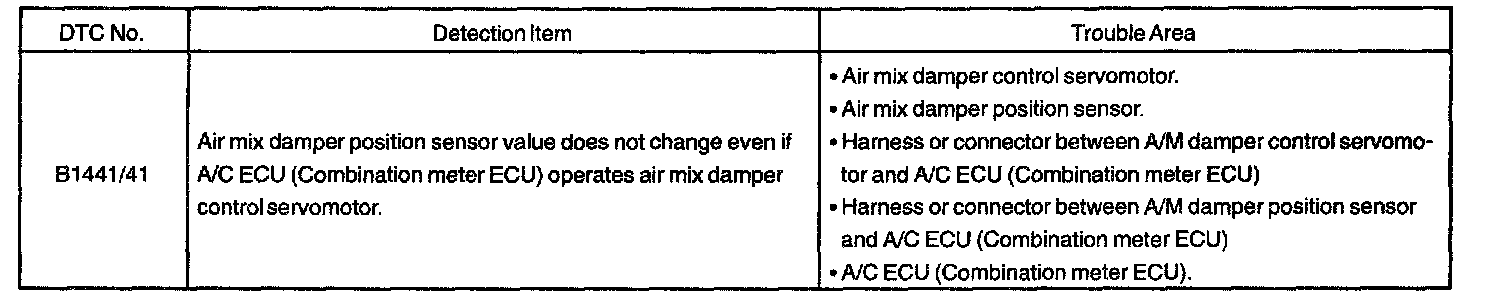

Detection Item:

The air mix damper control servomotor is controlled by the A/C ECU (Combination meter ECU) and moves the air mix damper to the desired position.

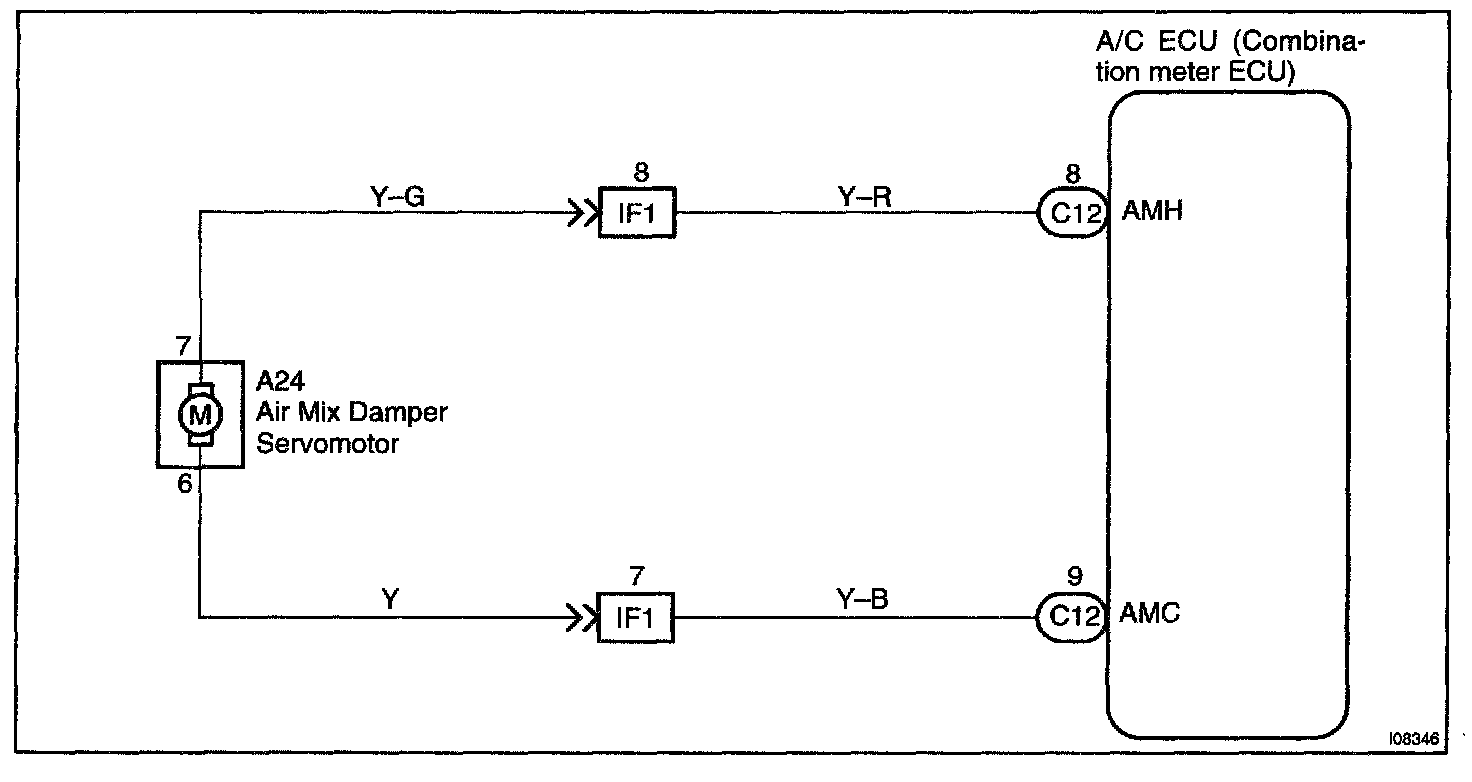

Wiring Diagram:

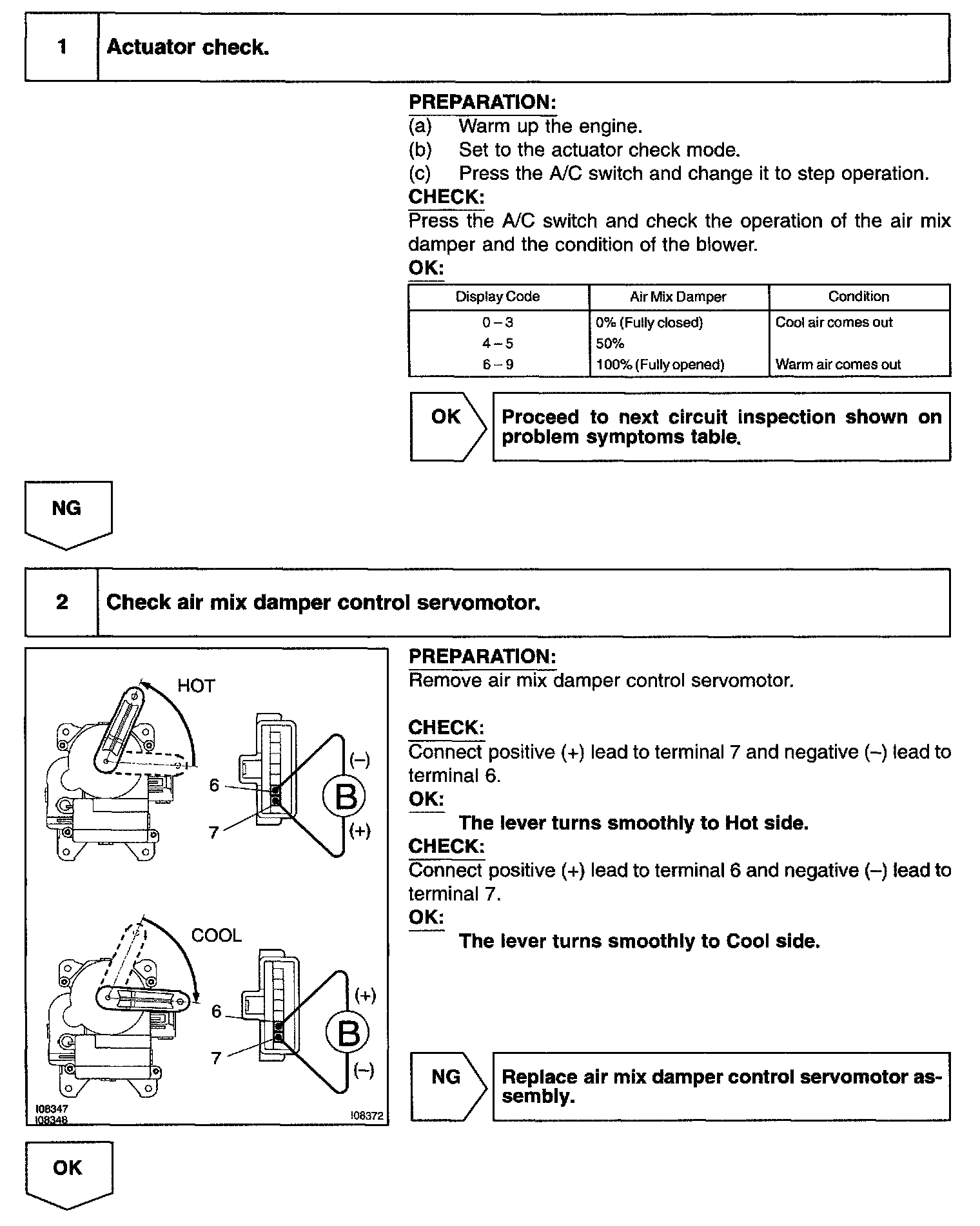

Step 1 - 2:

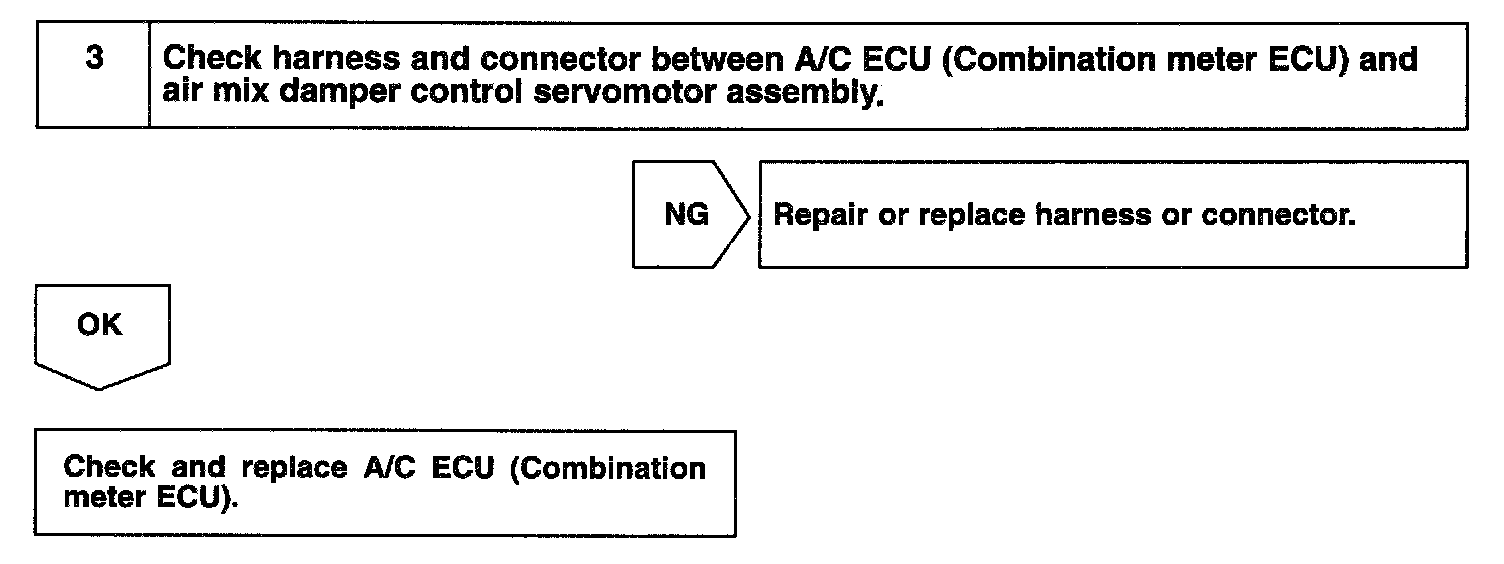

Step 3:

INSPECTION PROCEDURE
