B1413

CIRCUIT DESCRIPTION

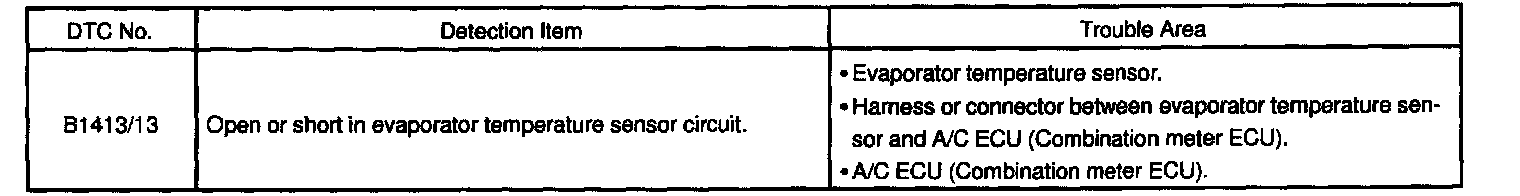

Detection Item:

This sensor detects the temperature inside the cooling unit and sends the appropriate signals to the A/C ECU (Combination meter ECU).

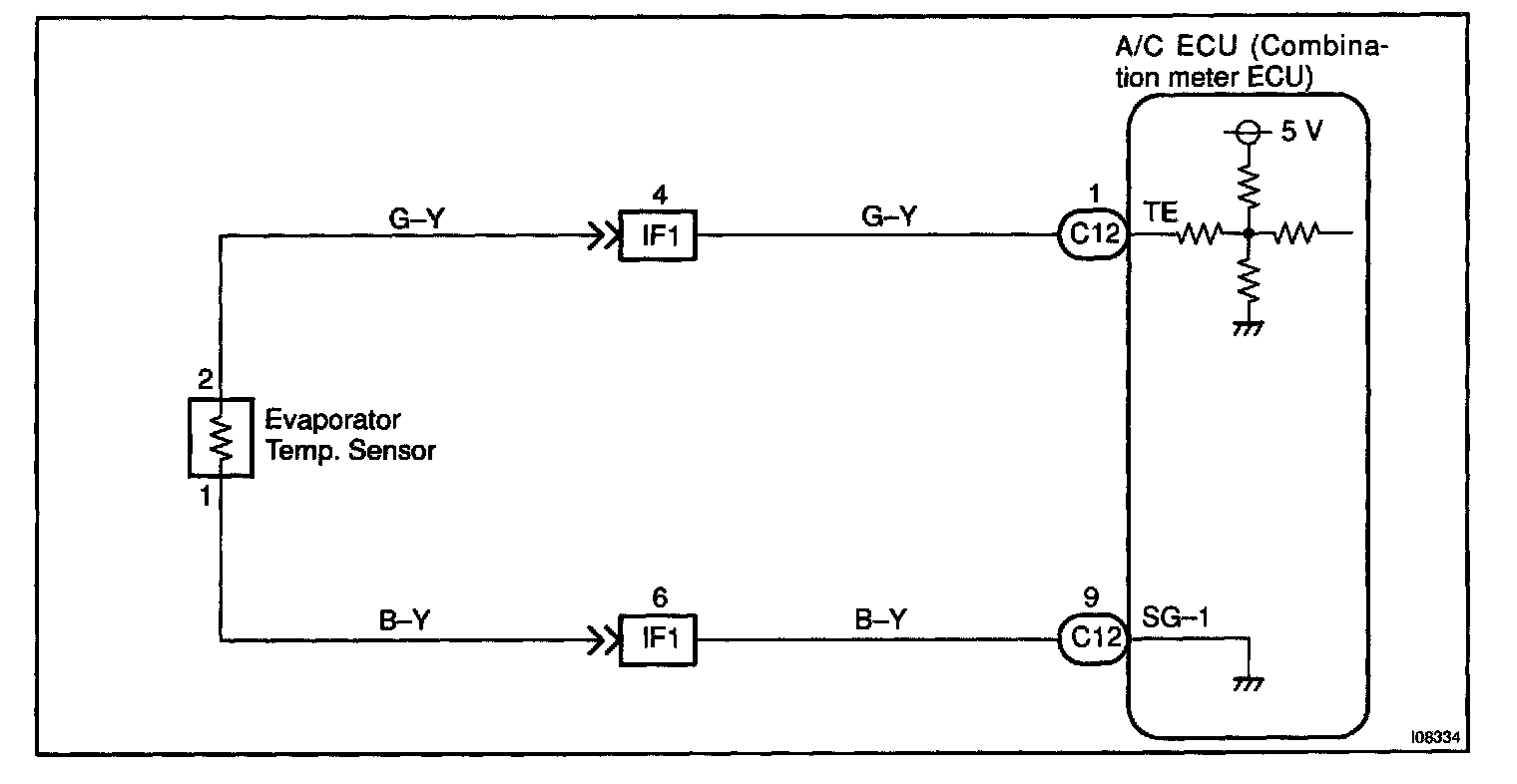

Wiring Diagram:

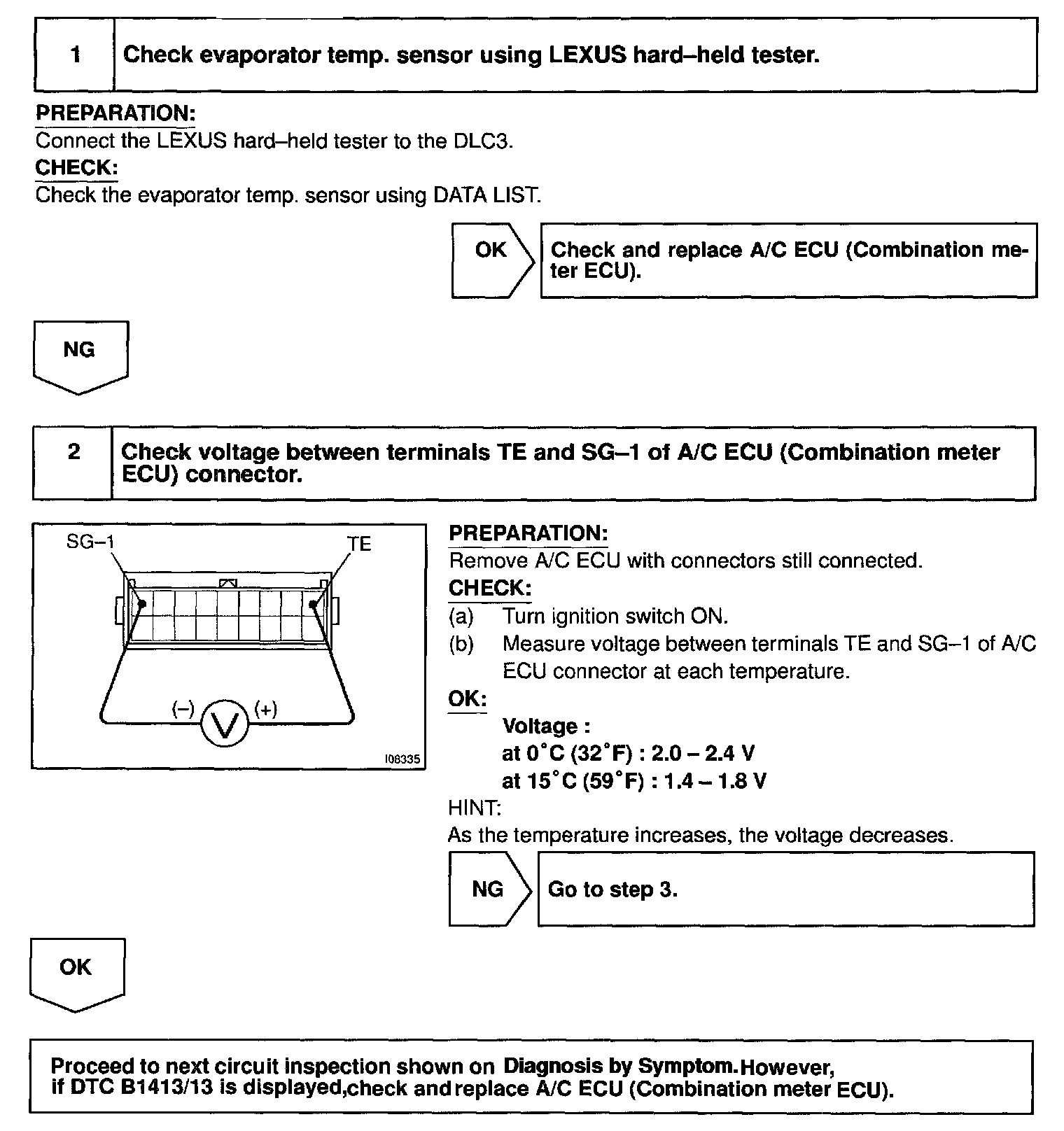

Steps 1 - 2:

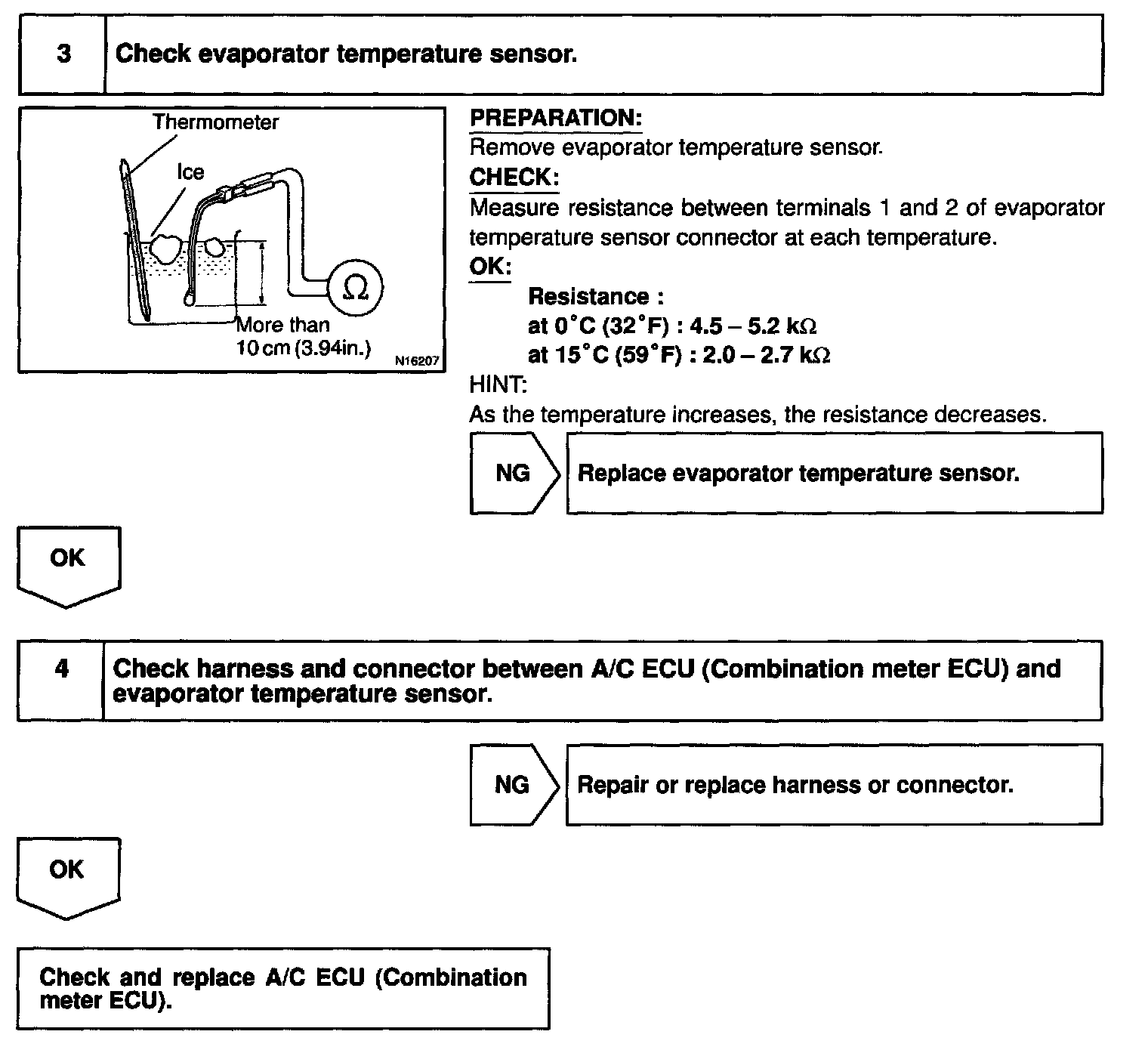

Steps 3 - 4:

INSPECTION PROCEDURE

HINT: In case of using the LEXUS hand-held tester start the inspection step 1 and in case of not using the LEXUS hand-held tester start from step 2.
