B1244

CIRCUIT DESCRIPTION

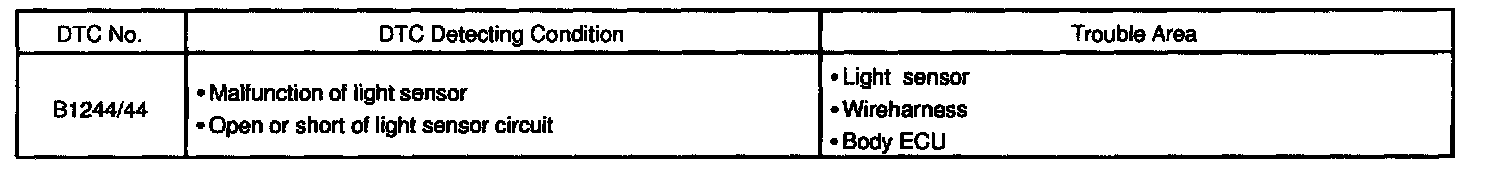

DTC Detecting Condition:




This DTC is output when failure of light sensor circuit is detected.



Wiring Diagram:

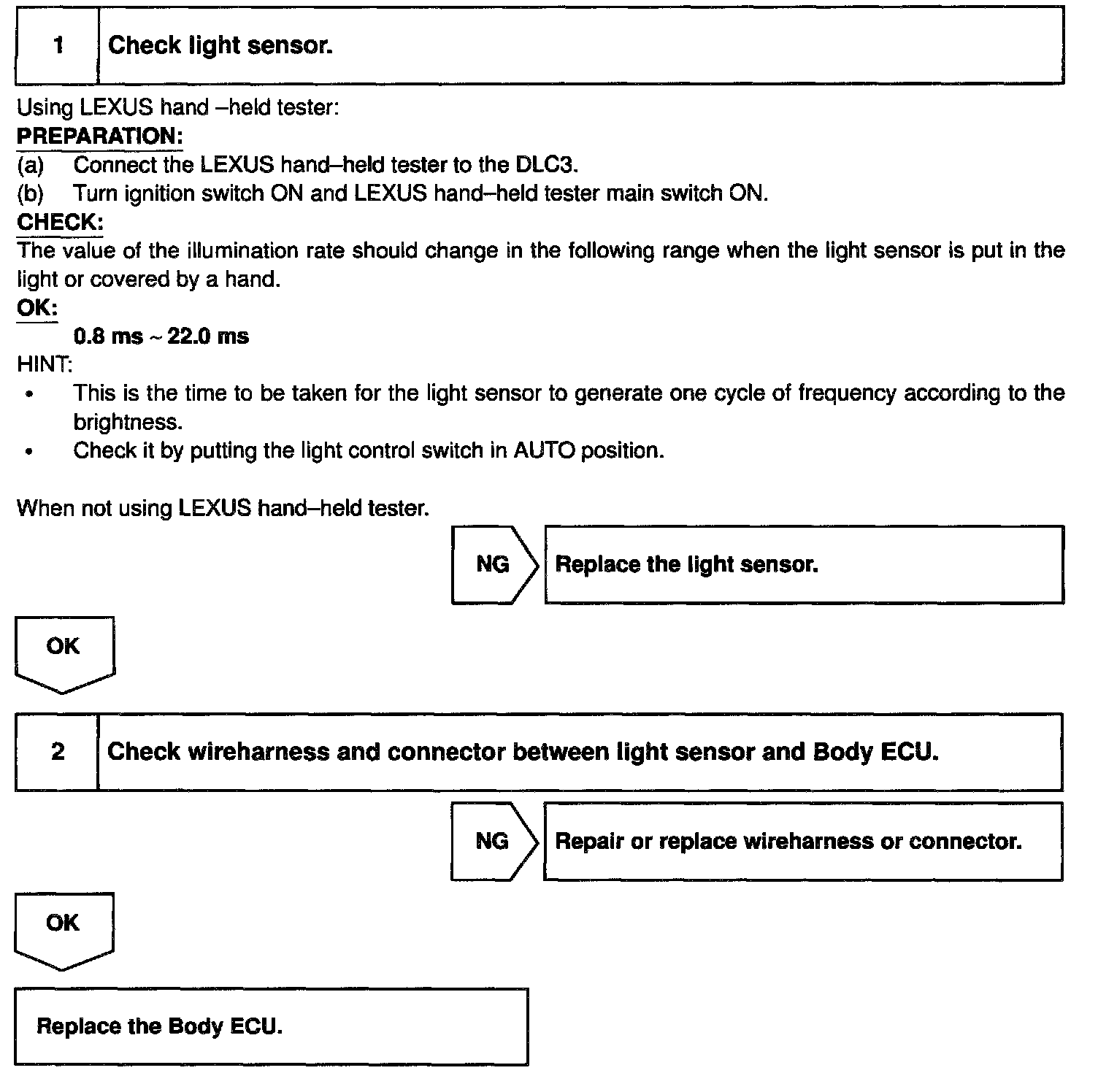

Steps 1 - 2:




INSPECTION PROCEDURE
