Fuse and Fusible Link Locations
Fuse and Fusible Link Locations

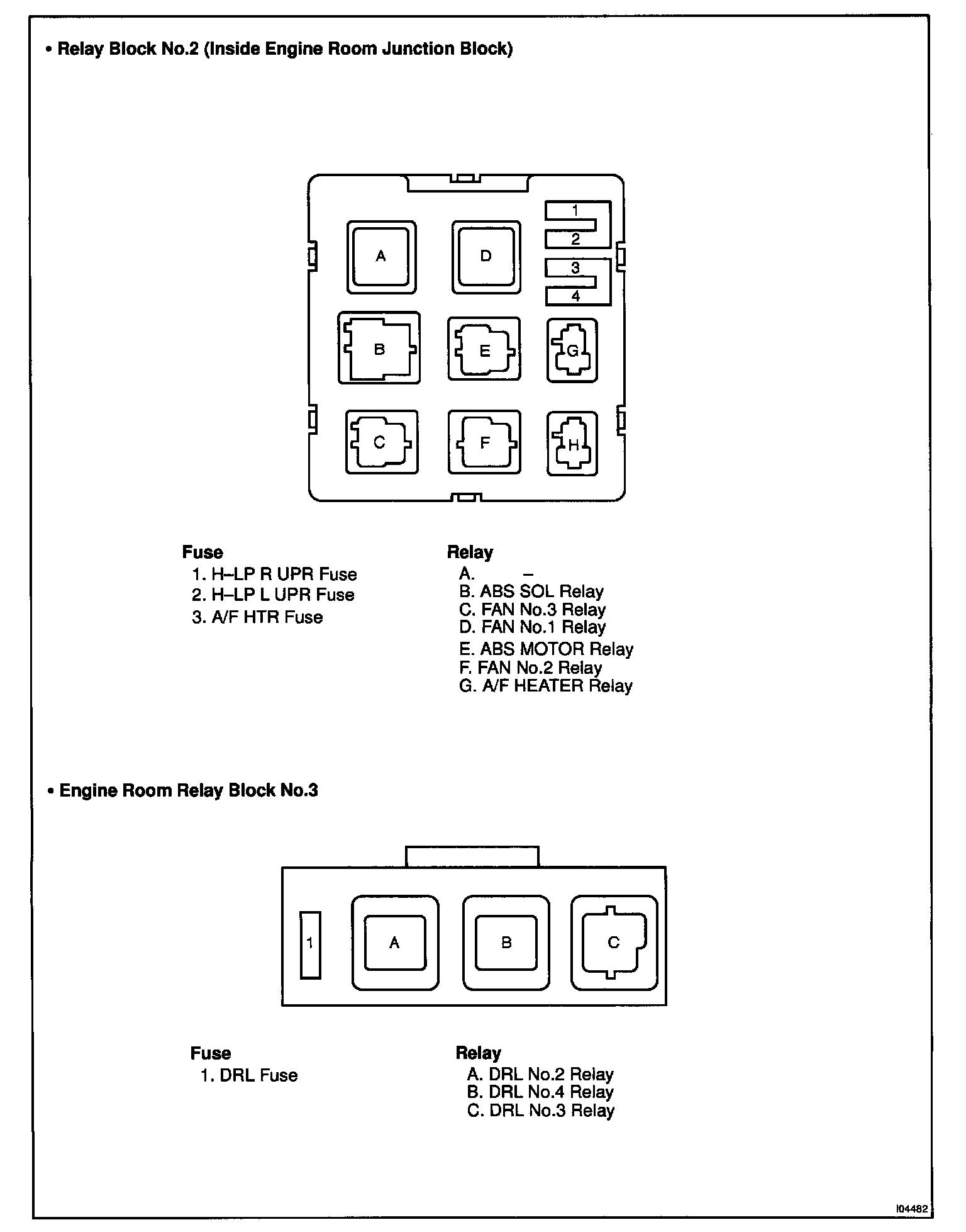

Relay Block # 2 & # 3:

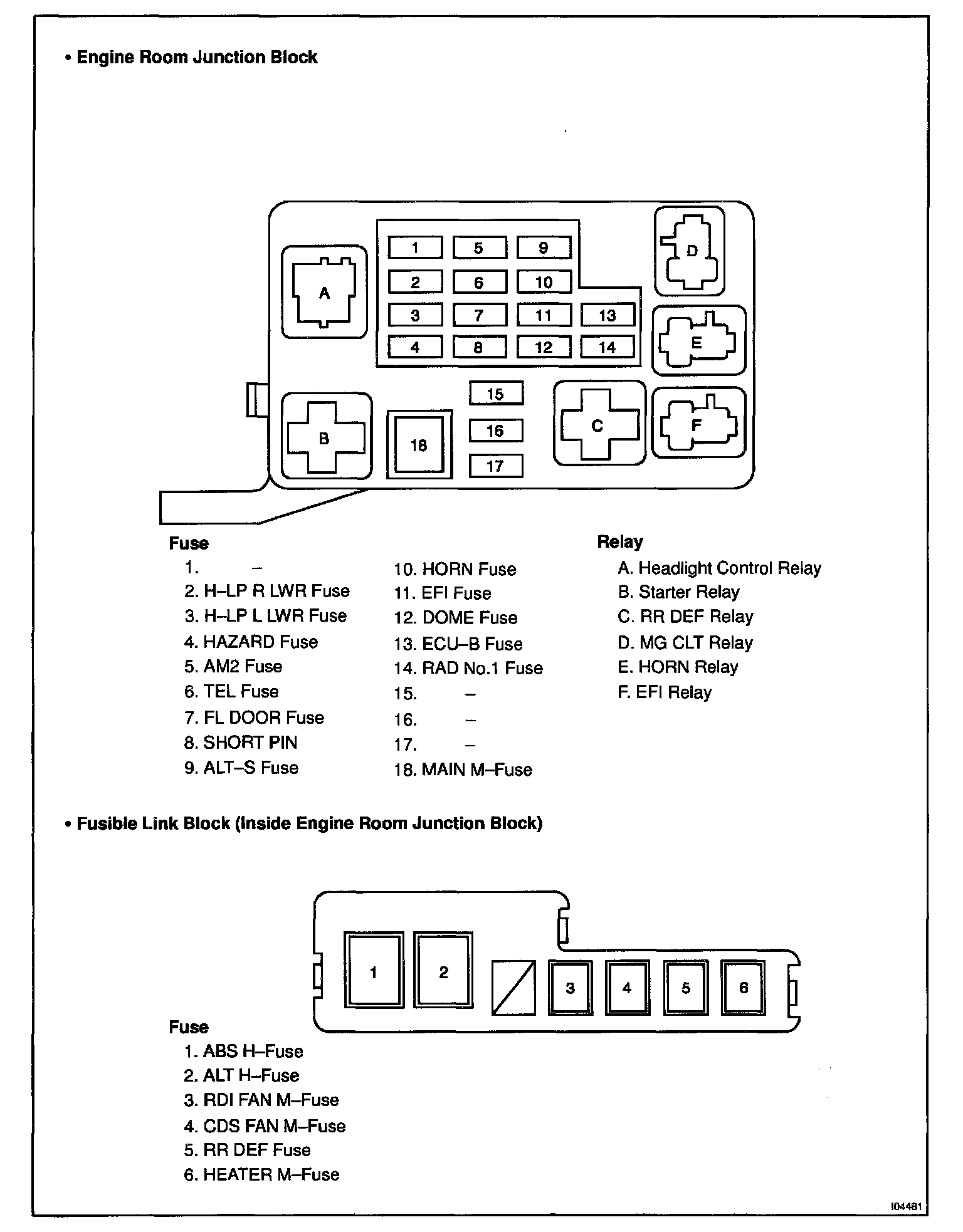

Engine Room Junction Block:

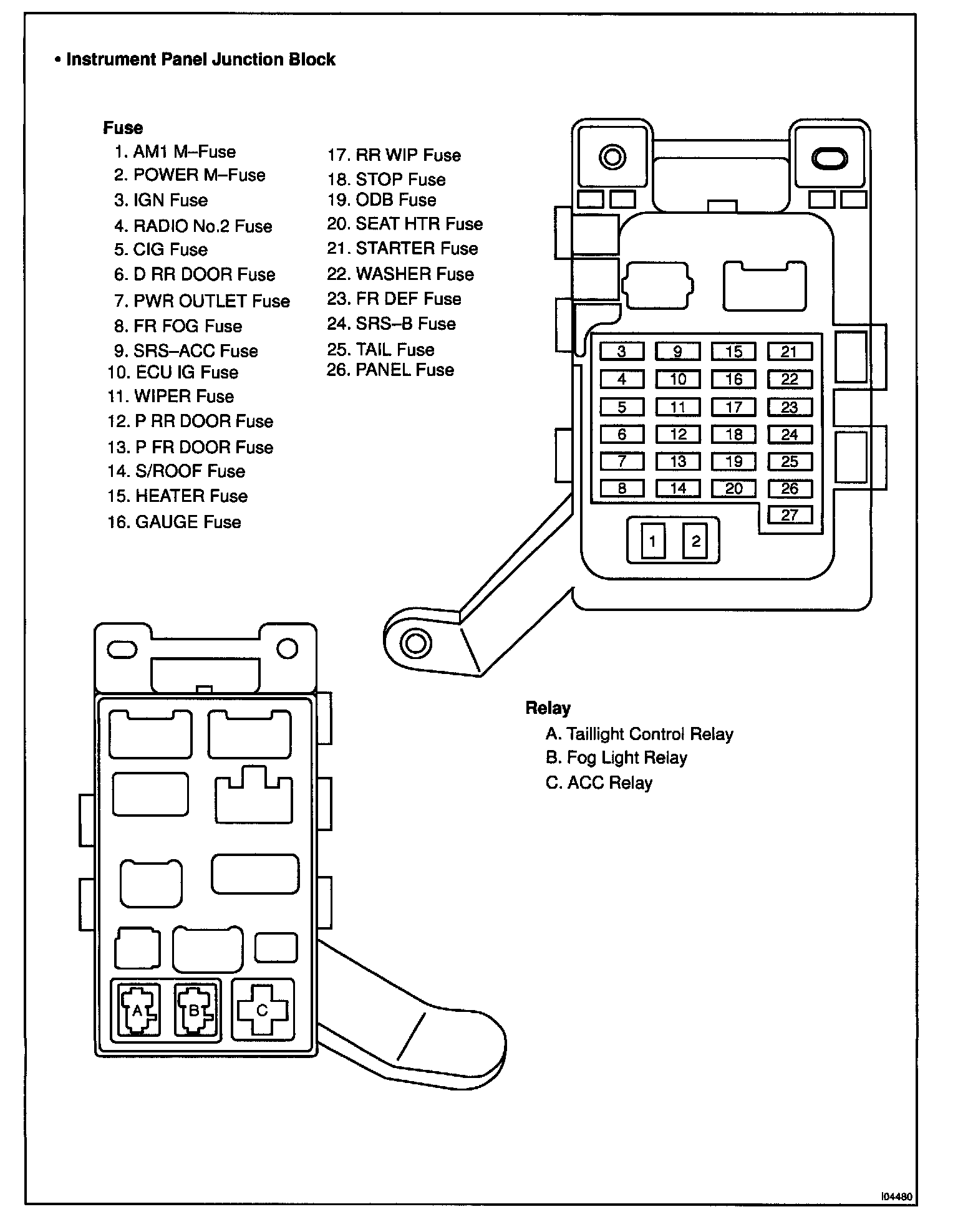

Instrument Panel Junction Block:

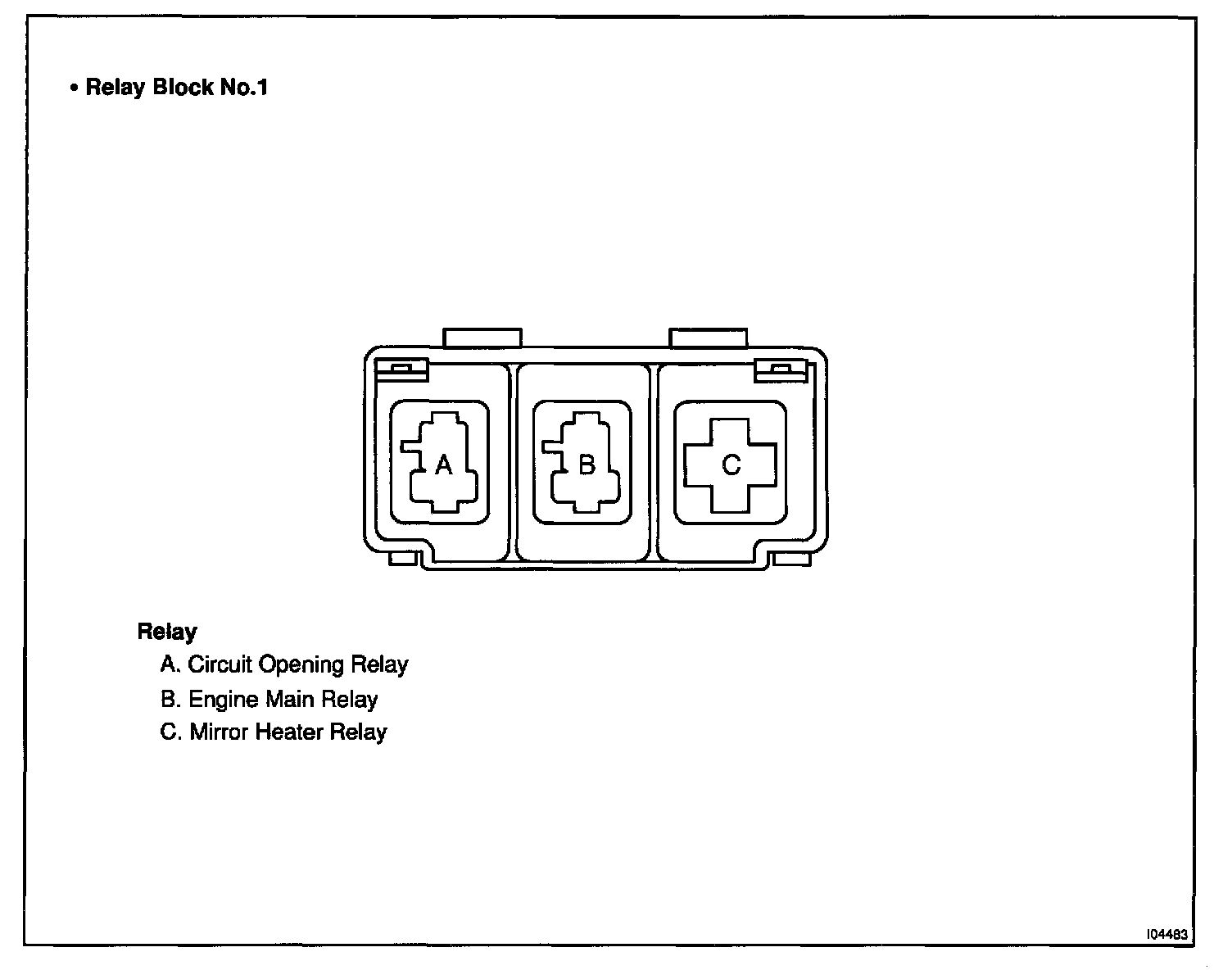

Relay Block # 1:
