Sunroof / Moonroof Limit Switch: Testing and Inspection
Sliding Roof Limit Switch Circuit
Wiring Diagram:

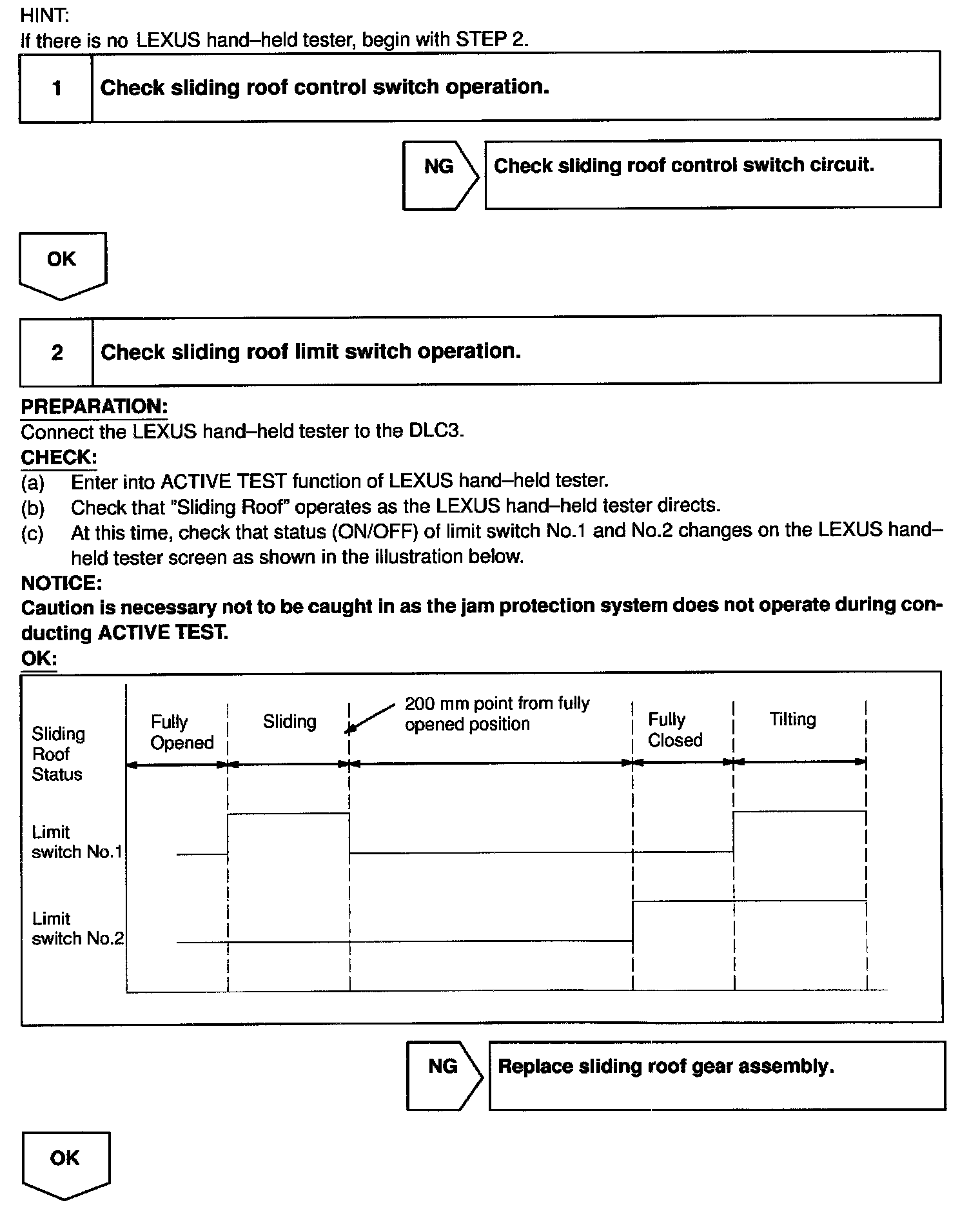

Steps 1 - 2:

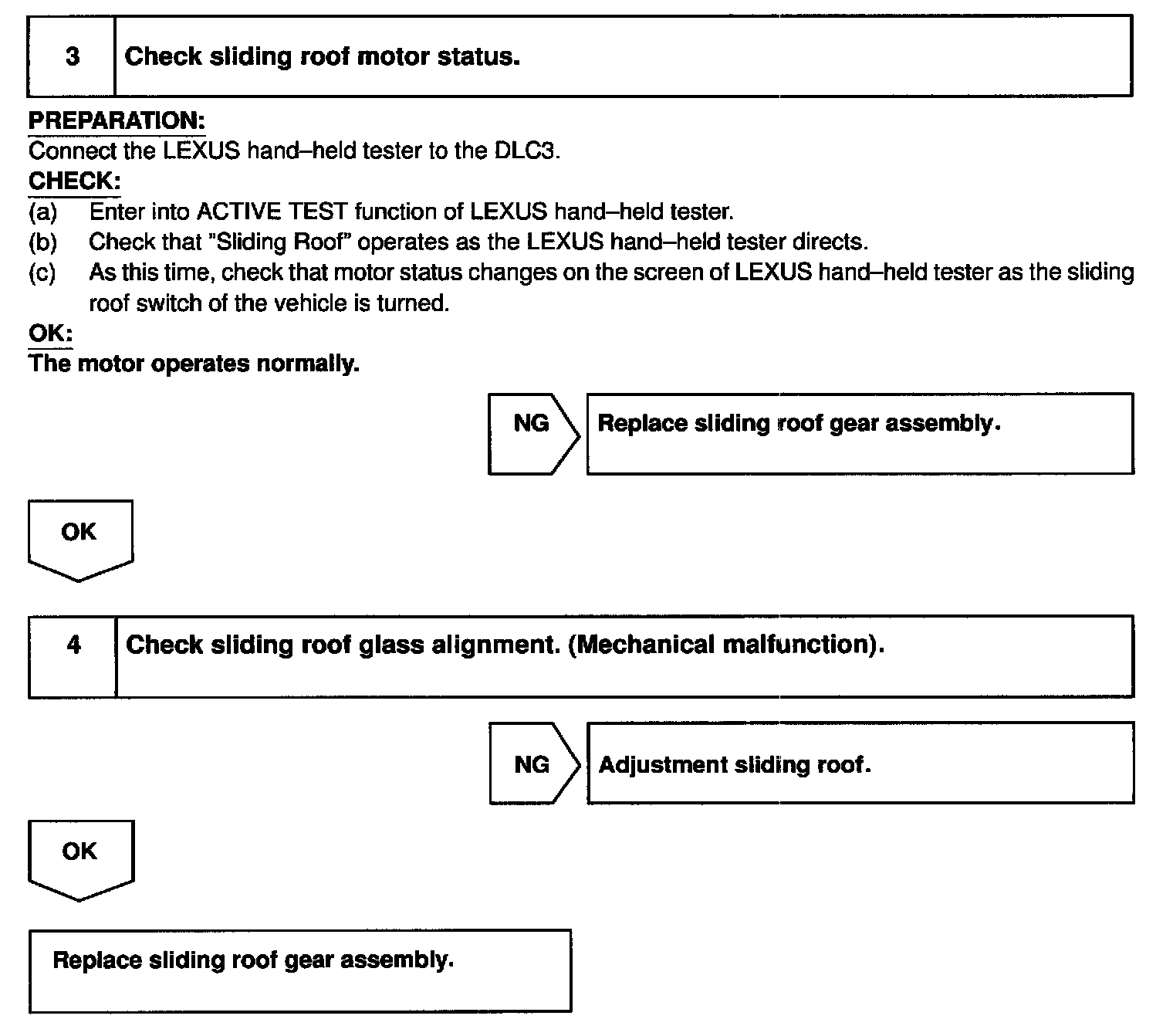

Steps 3 - 4:
INSPECTION PROCEDURE
