Seat Belt Systems
Repairs and Inspections Required After A CollisionSeat Belt Systems
CAUTION: Replace the seat belt assembly (outer belt, Inner belt, bolts or nuts) If it has been used In a severe Impact. The entire assembly should be replaced even If damage is not obvious.
1. PRETENSIONER IS NOT ACTIVATED
a. Perform a diagnostic system check. *
b. Perform a visual Check which includes the following items with the front seat outer belt removed from the vehicle.

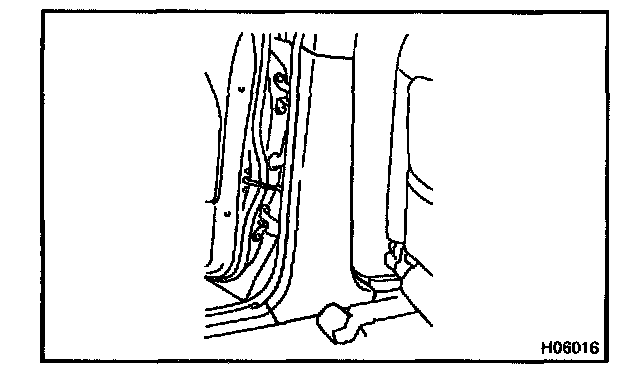

- Check for cuts and cracks in, or marked discoloration on the center pillar lower garnish.
- Check for cuts and cracks in wire harness, and for chipping in connectors.
- Check for deformation of the center pillar.
CAUTION: Be sure to follow the correct procedure, for removal and installation of the front seat outer belt.
2. PRETENSIONER IS ACTIVATED
a. Perform a diagnostic system check. *
b. Perform a visual check which includes the following item with the front seat outer belt removed from the vehicle.

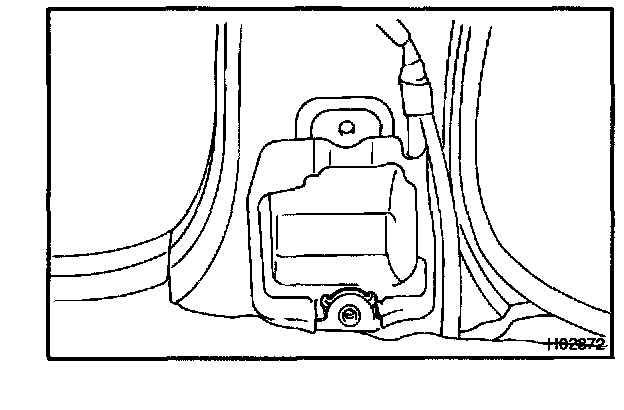

- Check for deformation of the center pillar.
- Check for damage on the connector and wire harness.
* Refer to SRS Warning Light Check, and How to Display and Read Diagnostic Trouble Codes.

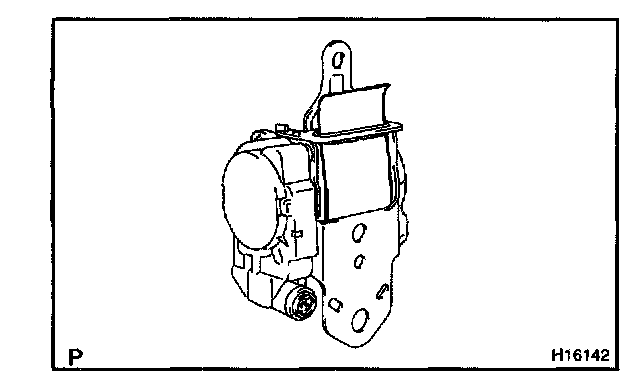

REPLACE REQUIREMENTS
In the following cases, replace the seat belt pretensioner.
- If the seat belt pretensioner has been activated.
- If the seat belt pretensioner has been found to be faulty in troubleshooting.
- If the front seat outer belt has been found to be faulty during the check in items.
- If the front seat outer belt has been dropped.
CAUTION: Be sure to follow the correct procedure, for removal and installation of the seat belt pretensioner.
